DRV8825 Stepper Motor Driver Module

DRV8825 Stepper Motor Driver Module
DRV8825 Stepper Motor Driver Module
DRV8825 Stepper Motor Driver Module
DRV8825 Stepper Motor Driver Module
  • DRV8825 Stepper Motor Driver Module
  • DRV8825 Stepper Motor Driver Module
  • DRV8825 Stepper Motor Driver Module
  • DRV8825 Stepper Motor Driver Module

DRV8825 Stepper Motor Driver Module

Regular price
Rs. 219
Sale price
Rs. 219
Regular price
Rs. 374
You save Rs. 155
41% off
You save Rs. 155
Unit price
per
  • ⚡ Dispatched within 24 hours
  • 🚚 Free shipping on orders above Rs 500/-
  • 💰 Earn RC Coins on every purchase
  • 🛠️ Dedicated Technical Support Team
  • This is DRV8825 Stepper Motor Driver Module
  • This has simple step and direction control interface

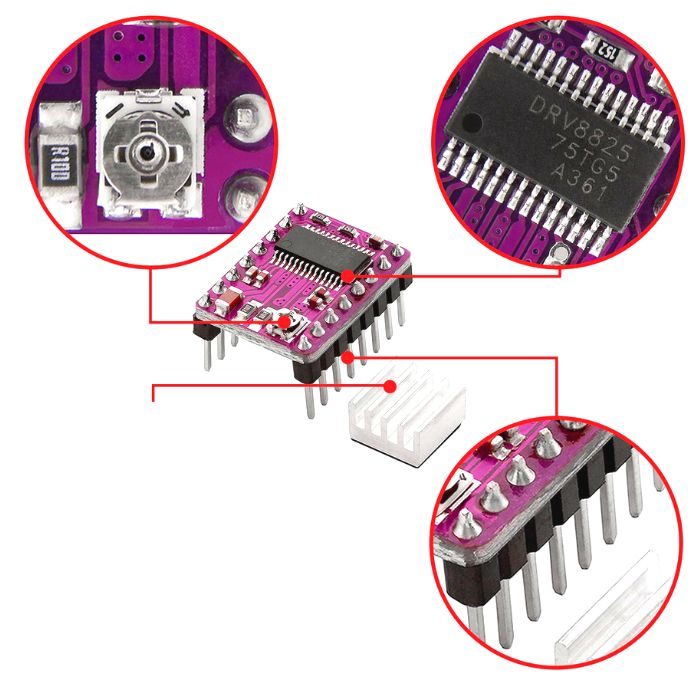

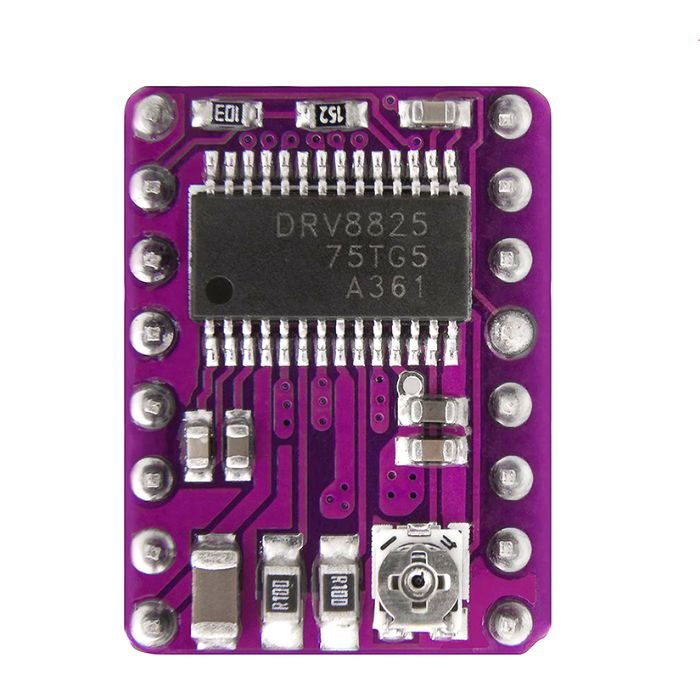

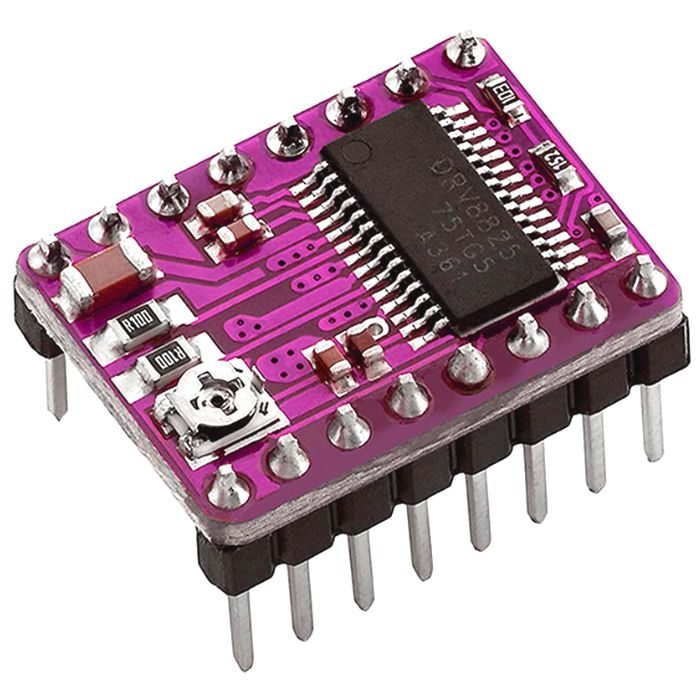

  • The DRV 8825 stepper motor driver carrier is a breakout board for ti’s DRV 8825 micro-stepping bipolar stepper motor driver
  • The DRV 8825 features adjustable current limiting, overcurrent and over-temperature protection and six micro step resolutions (down to 1 or 32step)
  • Over-temperature thermal shutdown, over-current shutdown, and under-voltage lockout
  • This can interface directly with 3.3 V and 5 V systems
  • It operates from 8.2 45 V and can deliver up to approximately 1.5A per phase without a heat sink or forced air flow (rated for up to 2.2 A per coil with sufficient additional cooling)

DRV8825 Stepper Motor Driver Module

The DRV 8825 stepper motor driver carrier is a breakout board for ti’s DRV 8825 micro-stepping bipolar stepper motor driver. The DRV 8825 features adjustable current limiting, overcurrent and over-temperature protection and six micro-step resolutions (down to 1 or 32step). It operates from 8.2 45 V and can deliver up to approximately 1.5 A per phase without a heat sink or forced air flow (rated for up to 2.2 A per coil with sufficient additional cooling). This product is a carrier board or breakout board for ti’s DRV 8825 stepper motor driver; we, therefore, recommend careful reading of the DRV 8825 datasheet before using this product.

This stepper motor driver lets you control one bipolar stepper motor at up to 2.2 A output current per coil (see the power dissipation considerations section below for more information). Here are some of the driver’s key features: simple step and direction control interface six different step resolutions: full-step, half step, 1 or 4step, 1 or 8step, 1 or 16step and 1 or 32step adjustable current control lets you set the maximum current output with a potentiometer, which lets you use voltages above your stepper motor’s rated voltage to achieve higher step rates Intelligent chopping control that automatically selects the correct current decay mode (fast decay or slow decay) 45 v maximum supply voltage built-in regulator (no external logic voltage supply needed) can interface directly with 3.3 V and 5 v systems over-temperature thermal shutdown, overcurrent shutdown and under-voltage lockout short to ground and shorted load protection 4layer, 2 oz.

If you want to control the stepper motor with this motor driver, for that you will need a few essential components like

Features:

  • Simple step and direction control interface
  • Microstep resolutions: full, 1/2, 1/4, 1/8, 1/16, and 1/32
  • Over-temperature thermal shutdown, over-current shutdown, and under-voltage lockout
  • Intelligent chopping control that automatically selects the correct current decay mode (fast decay or slow decay)
  • Six different step resolutions: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step
  • Short-to-ground and shorted-load protection
  • Adjustable current control lets you set the maximum current output with a potentiometer. Hence lets you use voltages above your stepper motor’s rated voltage to achieve higher step rates

Package Includes:

  • 1 x DRV8825 Stepper Motor Driver Module

Specifications

Model  DRV8825 Stepper Motor Driver Module
Voltage  8.2 45 V
Current per Phase 1.5A
Dimensions  3 x 2 x 1cms
Weight 5 grams

1. What is a DRV8825 stepper driver?

  • The DRV8825 is a motor driver integrated solution for printers, scanners, and other automated equipment applications. The device, which includes two H-bridge drivers and a microstepping indexer, is designed to power a bipolar stepper motor.

2. What is the difference between A4988 and DRV8825?

  • The DRV8825 has a higher maximum supply voltage than the A4988 (45 V vs 35 V), which means it can be used at higher voltages more safely and is less vulnerable to damage from LC voltage spikes.

3. How does the DRV8825 work?

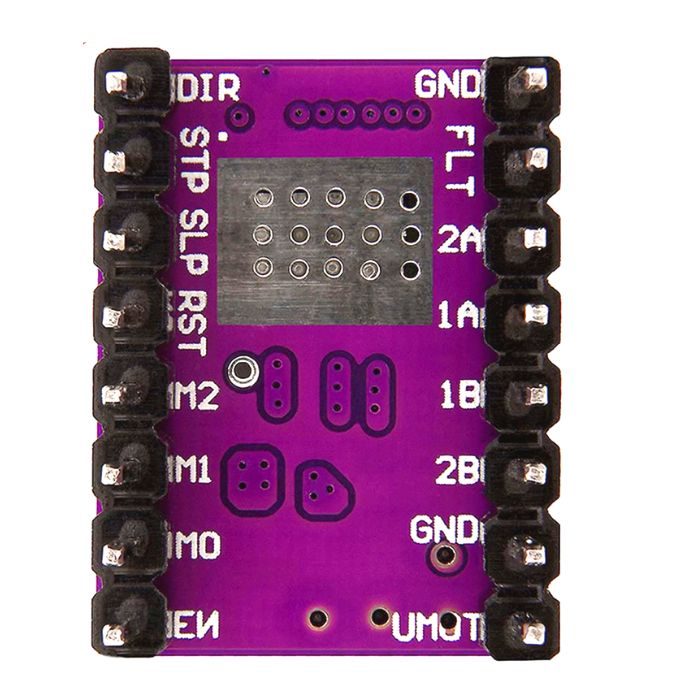

  • The DRV8825 has two control inputs: STEP and DIR. The microsteps of the motor are controlled by STEP input. Each HIGH pulse sent to this pin drives the motor in the number of microsteps determined by the microstep selection pins. The higher the pulse frequency, the faster the motor will spin.
