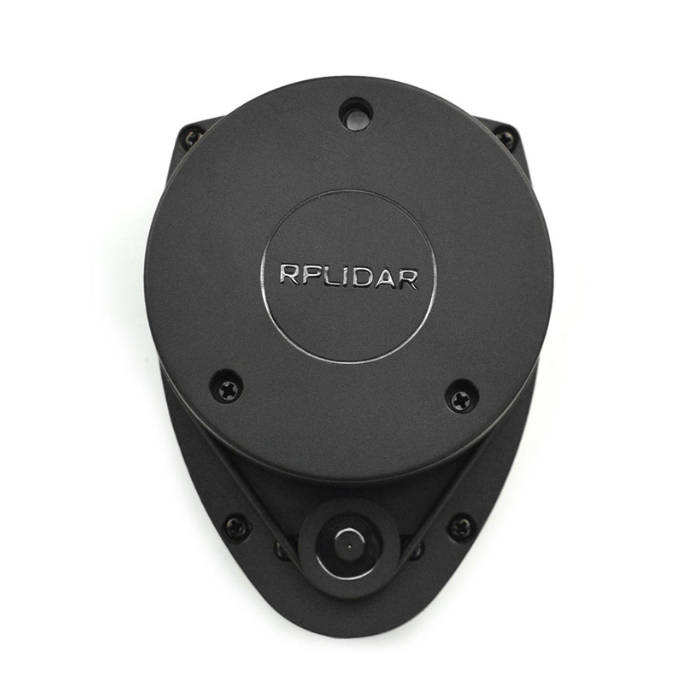

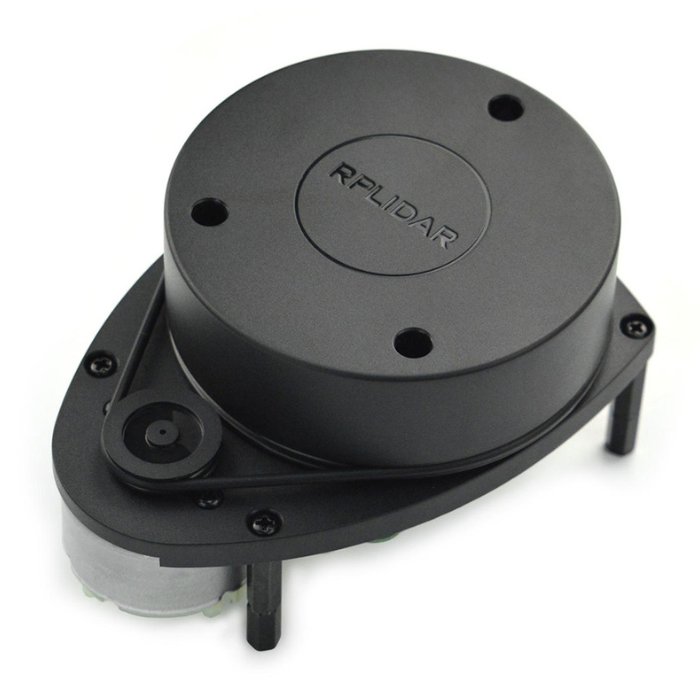

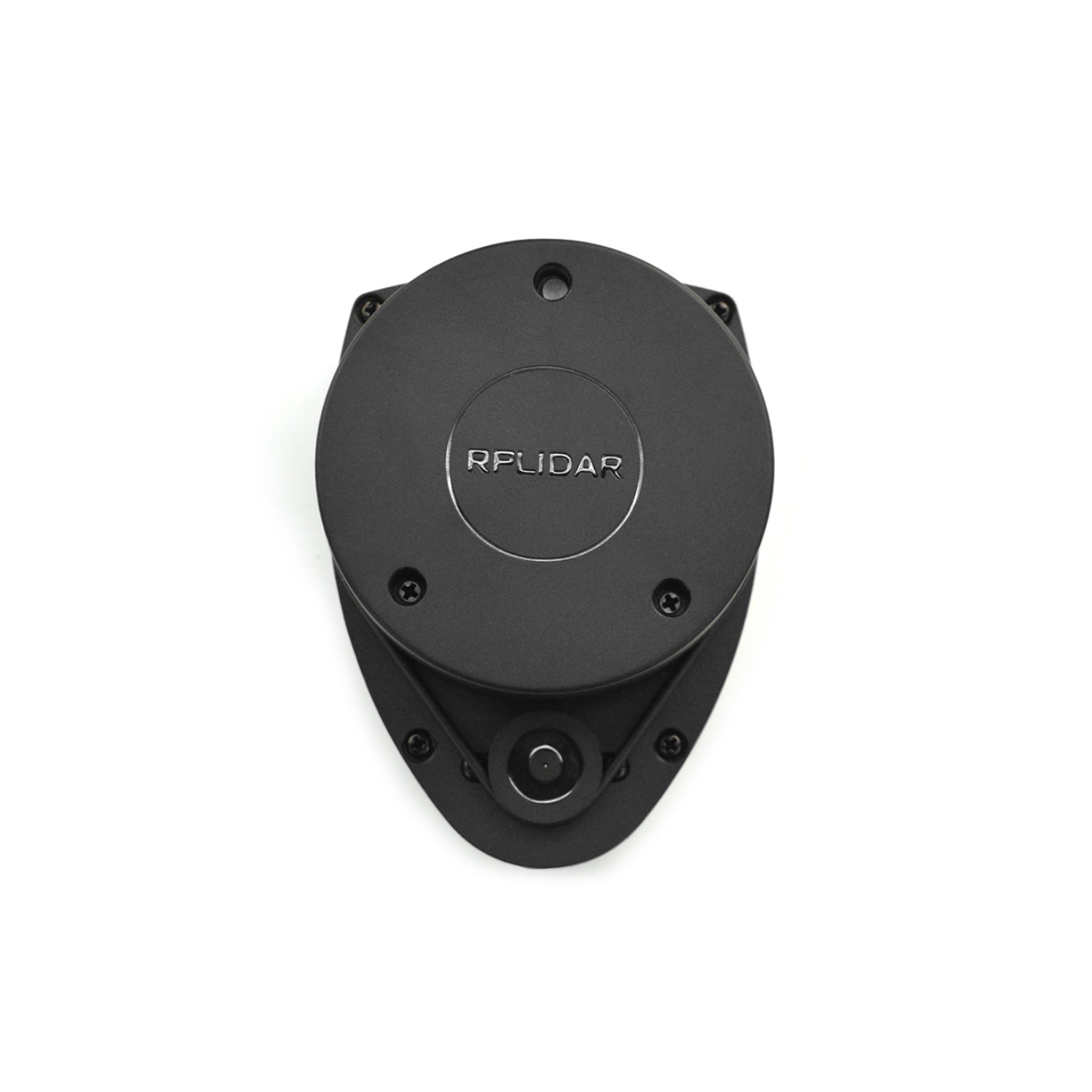

DFRobot SLAMTEC RPLiDAR A1M8 360 Degree Laser Range Finder – 12m Radius Range
Couldn't load pickup availability

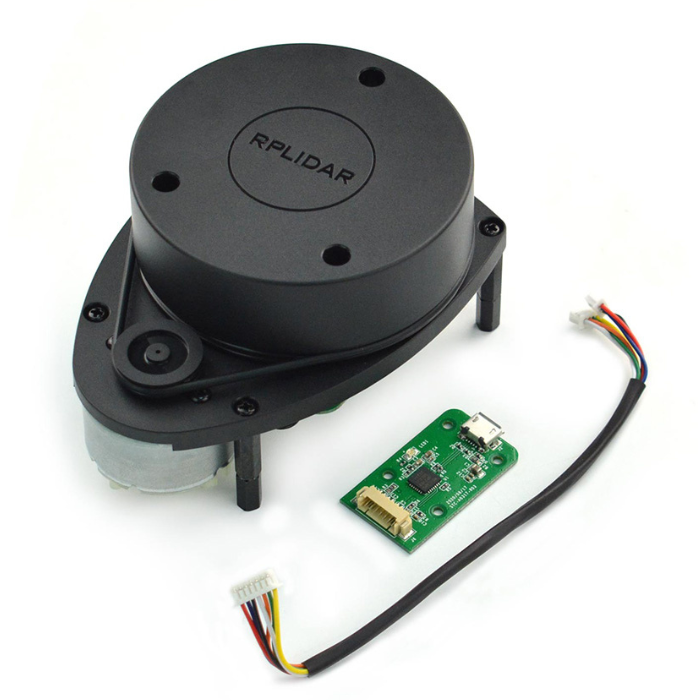

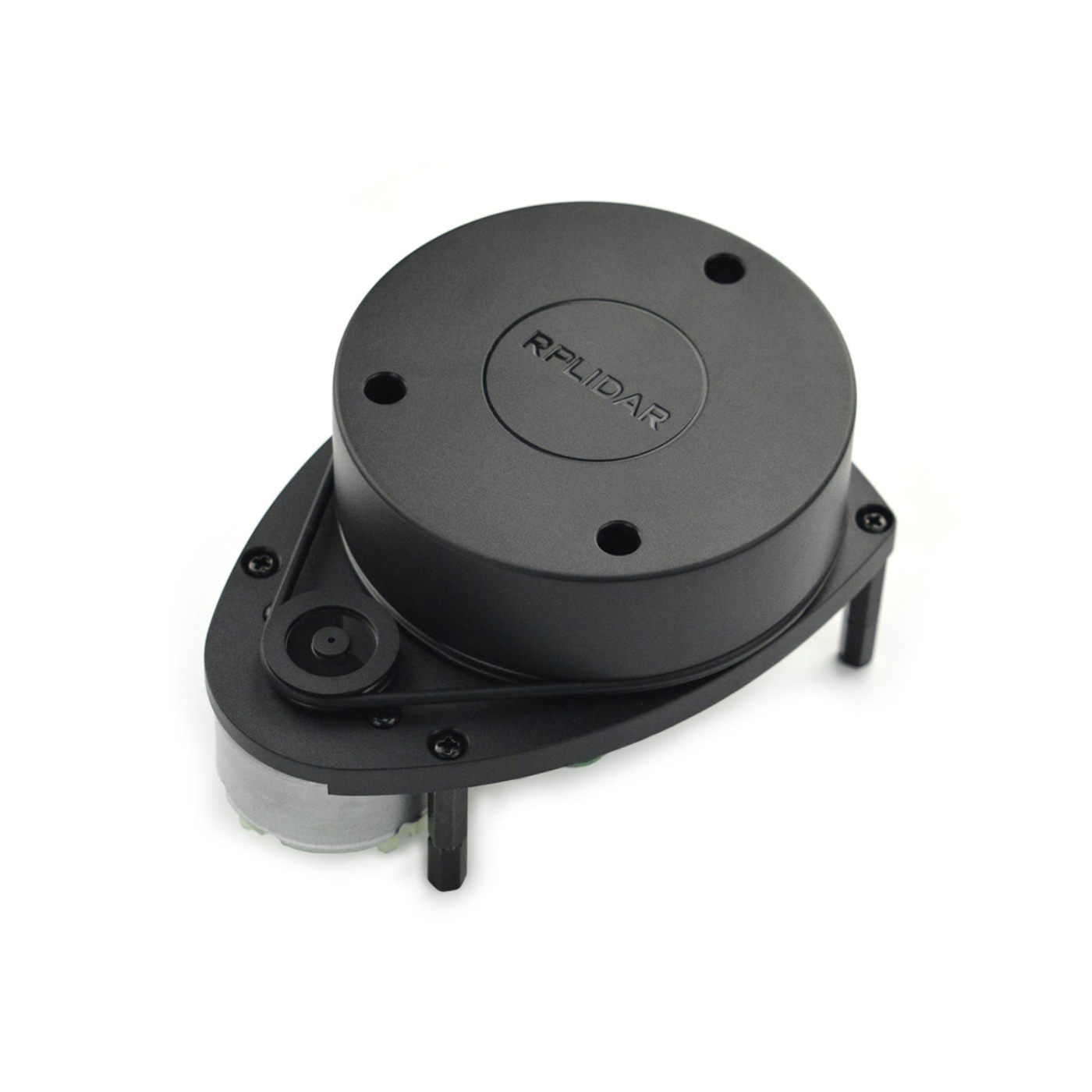

The RPLIDAR A1M8 is like a pair of eyes for your robot, letting it see everything in a full circle around itself. This advanced 360 Degree LiDAR Scanner spins around and uses a laser to quickly measure distances to objects up to 12 meters away.
It creates a digital map of its surroundings, which is super useful if you're building a robot that needs to move around a room, avoid bumping into things, or even clean your house automatically. It takes up to 8000 distance readings every single second, so the maps it makes are quite detailed.
Students and hobbyists will find this 12m Laser Range Scanner fantastic for all sorts of cool projects, especially for learning about robot navigation and SLAM (Simultaneous Localization and Mapping – which means the robot can figure out where it is while making a map at the same time).

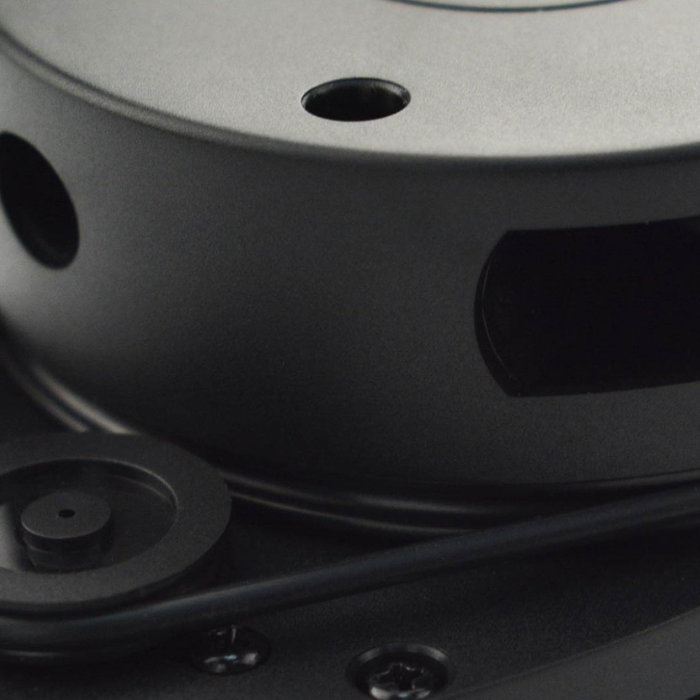

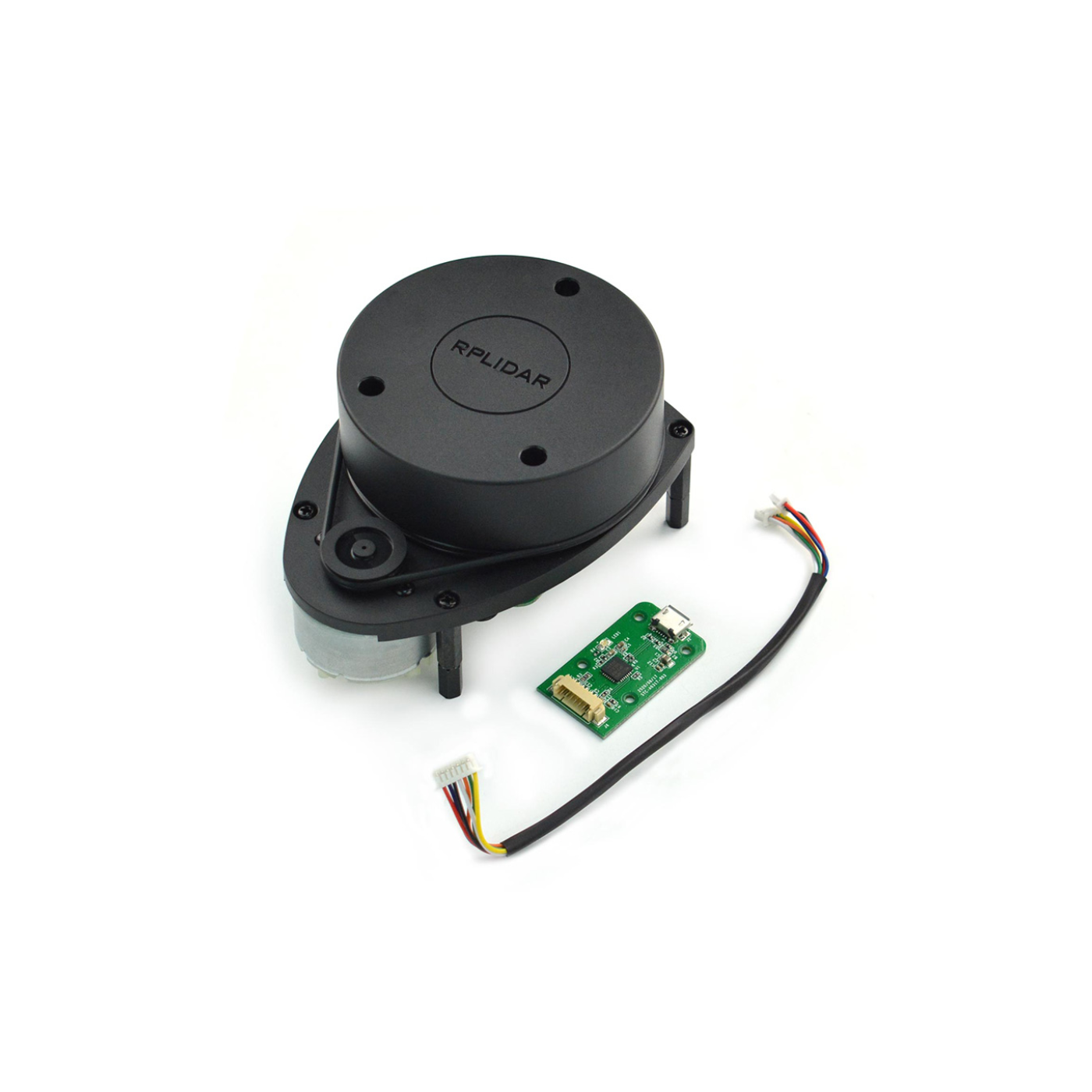

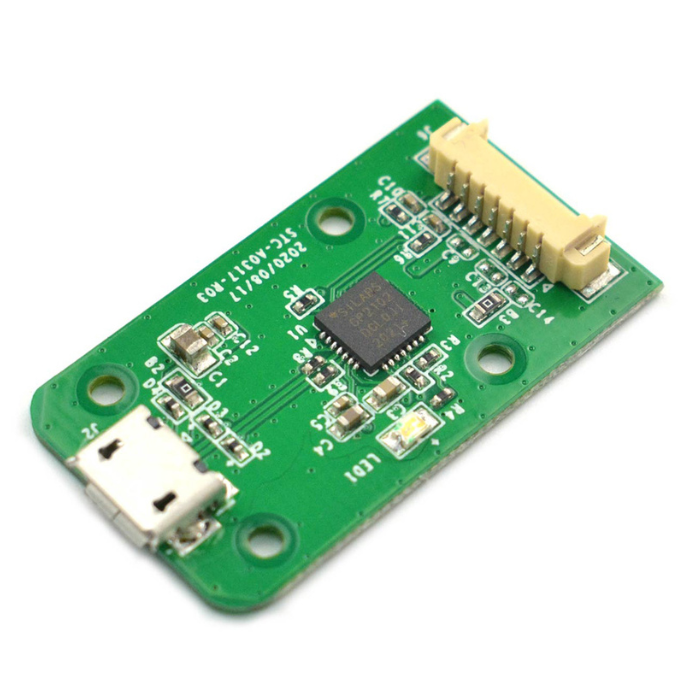

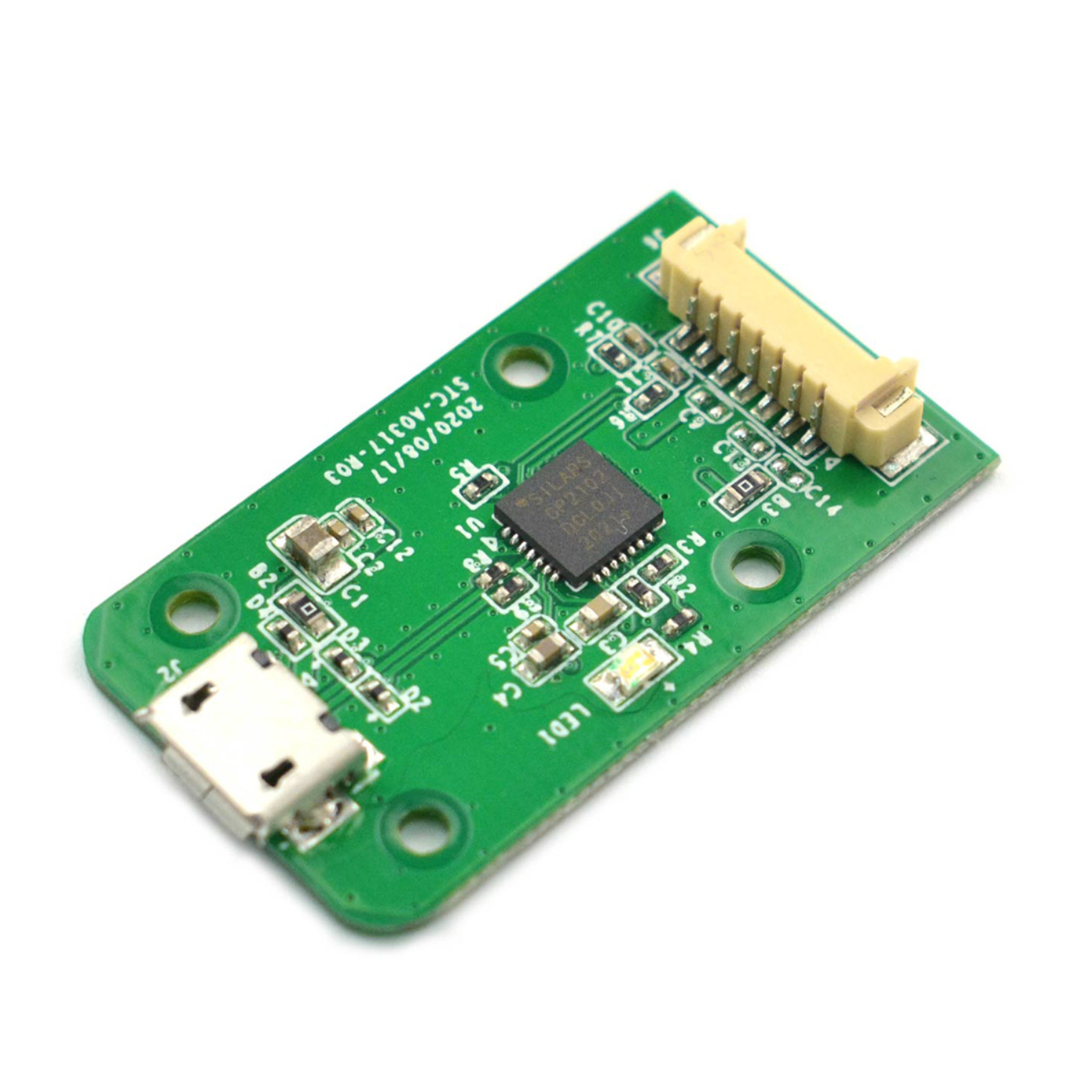

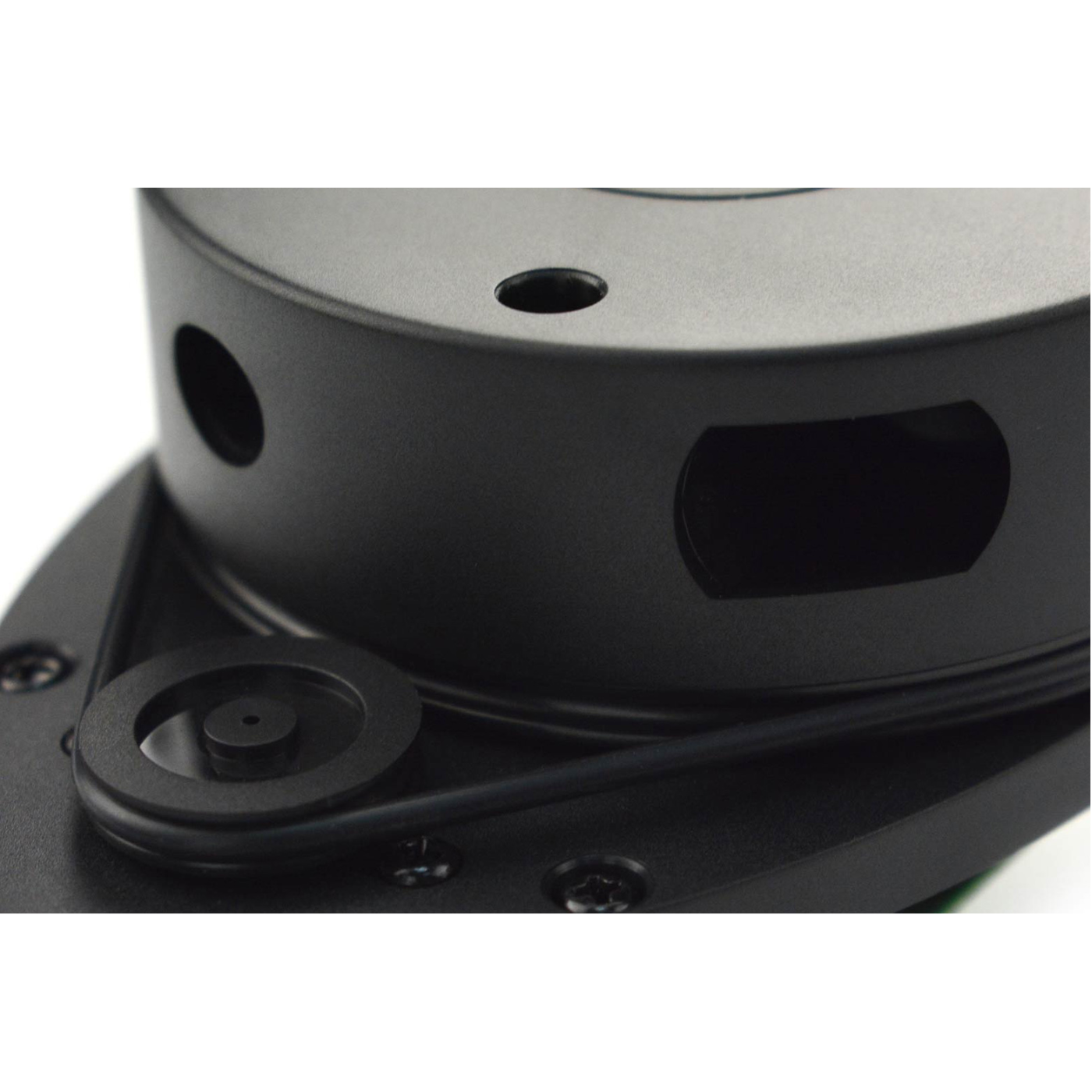

Thanks to its clever OPTMAG design, this SLAM LiDAR Sensor doesn't use old-style parts that wear out, so it's built to keep working for a long, long time (up to five years). It's designed to be easy to get started with, often just needing a simple USB connection.
| Model | RPLIDAR A1M8-R6 |
|---|---|
| Distance Range | A1M8-R4 and below: 0.15 – 6 m A1M8-R5: 0.15 – 12 m |
| Angular Range | 0 – 360° |
| Distance Resolution | <0.5 mm, <1% of the distance (full range) |
| Angular Resolution | ±1° |
| Sample Duration | 0.125 ms |
| Sample Frequency | ≤8000 Hz |
| Scan Rate | 5.5 Hz |
| Weight | 170 g |
This product comes with a 1-year manufacturer warranty from the date of purchase, covering manufacturing defects only.
The product shows signs of physical damage, mishandling, exposure to water/moisture, fire, natural calamities, unauthorized repairs, improper storage near heat or direct sunlight, or alteration in any way.
