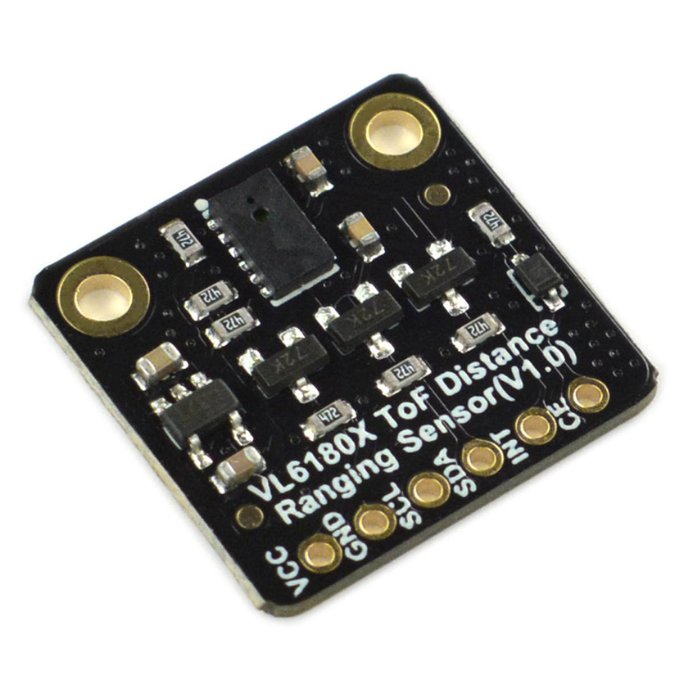

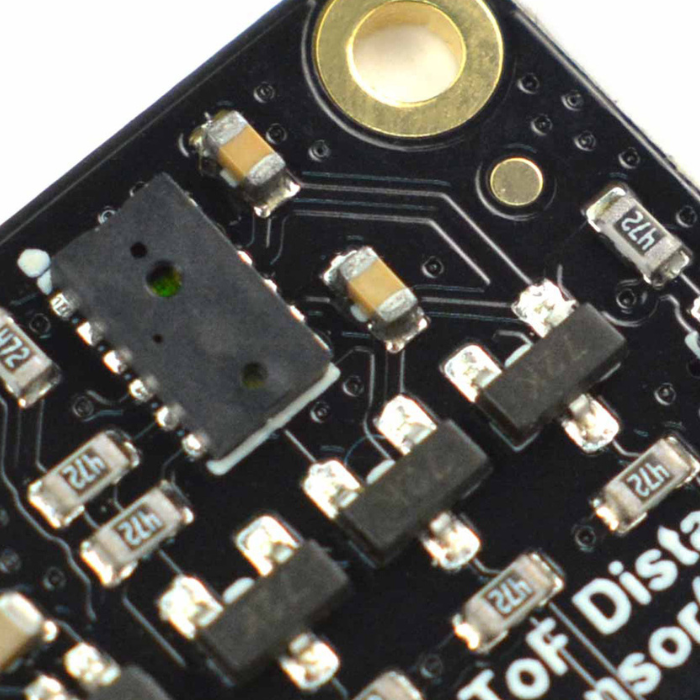

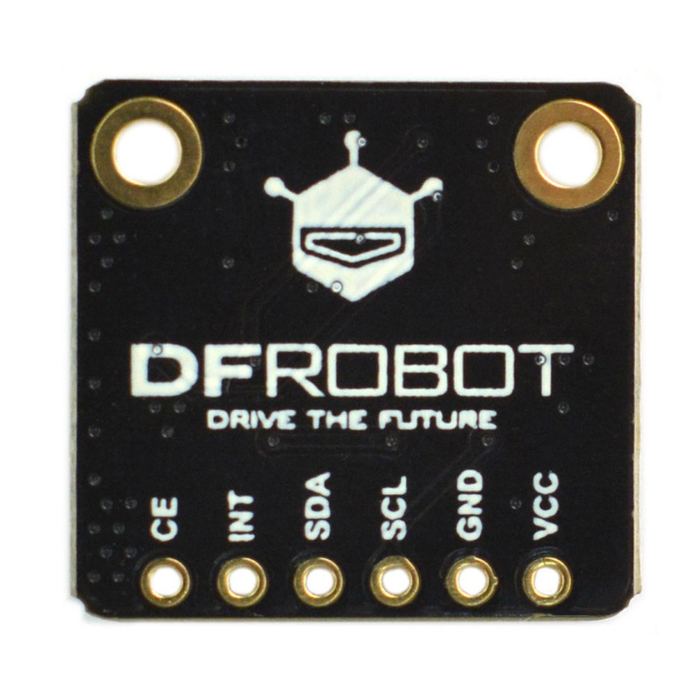

DFRobot Fermion VL6180X ToF Distance Ranging Sensor (Breakout) with Header

DFRobot Fermion VL6180X ToF Distance Ranging Sensor (Breakout) with Header

The Fermion VL6180X ToF Distance Ranging Sensor is a high-precision measurement tool that uses advanced Time-of-Flight technology to detect distances from 5mm to 100mm with millimeter accuracy.

Unlike traditional infrared sensors that can be affected by object color or reflectivity, this sensor measures the actual time taken for light to travel to the target and back, providing consistent readings in various lighting conditions.

The compact breakout board comes fully assembled with voltage regulation, I2C level shifting, and easy-to-use pin headers, making it perfect for students and hobbyists working on robotics, smart devices, or automation projects.

This versatile sensor combines distance measurement with ambient light sensing in one small package, opening up possibilities for many creative applications.

The VL6180X communicates through a simple I2C interface, making it compatible with popular platforms like Arduino and Raspberry Pi.

With its small size (20.5mm × 15.6mm), low power consumption, and ability to work accurately in changing environments, this sensor is an excellent choice for gesture detection, object presence sensing, and precise distance measurement in tight spaces.

Whether you're building a line-following robot, a touchless switch, or a smart inventory system, this ToF sensor provides reliable measurements for your electronics projects.

Features

• Detection range: 5mm to 100mm with millimeter-level accuracy
• Integrated ambient light sensor with adjustable sensitivity
• Operating voltage: 3.3V to 5V DC with onboard voltage regulation
• Communication: I2C interface (address 0x29 by default)
• Compact dimensions: 20.5mm × 15.6mm × 3.1mm
• Immune to target color and reflectivity variations
• Compatible with Arduino, Raspberry Pi, and other microcontroller platforms

DFRobot Fermion VL6180X ToF Distance Ranging Sensor with Arduino Connection Diagram

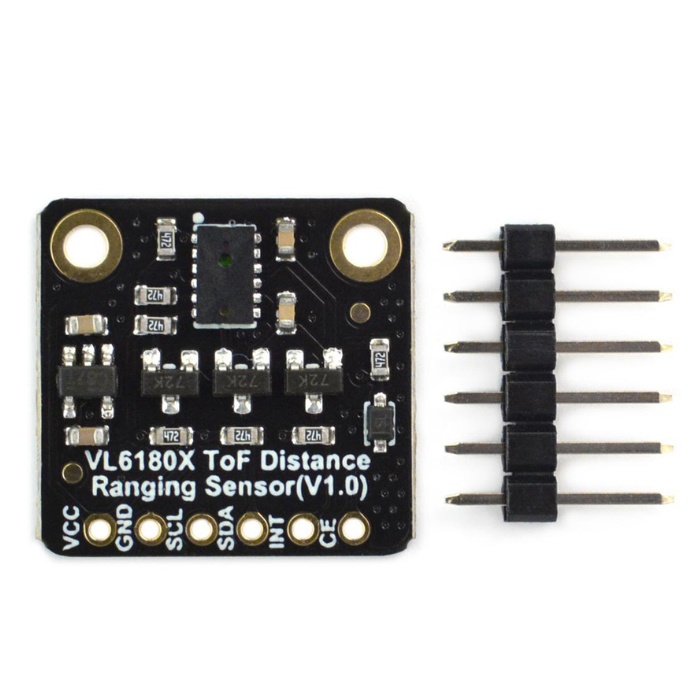

Package Includes

• 1 x DFRobot Fermion VL6180X ToF Distance Ranging Sensor (Breakout)
• 1 x 2.54-6P Black Single Row Pin Header
