Cytron Maker Line Sensor for Beginner
Cytron Maker Line Sensor for Beginner
Low stock: 9 left
Couldn't load pickup availability
Technical Support & Easy Returns
Raise a Ticket
Earn RC Coins on Every Purchase
Rewards
Cash on Delivery Available
Cash Delivery
COUPON
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Beginner-friendly line tracking sensor from Cytron
- Equipped with a 5x IR sensor array for detecting lines 13mm–30mm wide
- Supports light (white) or dark (black) line color selection
- One-touch auto calibration with EEPROM memory storage
- Dual output: 5 digital outputs + 1 high-resolution analog output
- Ideal for line-following robots, school projects, and AGVs
- No need to adjust individual sensor potentiometers

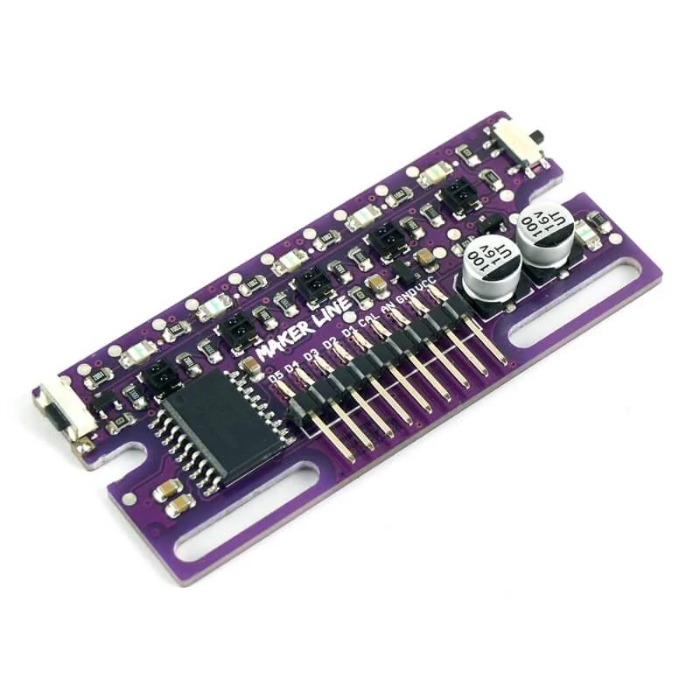

Cytron Maker Line Sensor for Beginner
The Cytron Maker Line Sensor is a beginner-friendly line tracking sensor designed to simplify the process of building line-following robots or automated guided vehicles (AGVs).

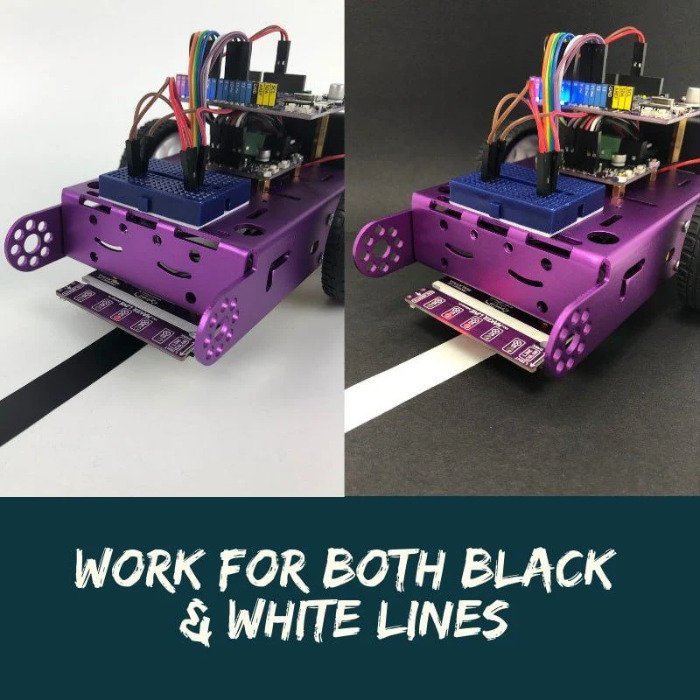

Known for its ease of use, the Maker Line Sensor Module features a 5x IR sensor array that can detect line widths between 13mm and 30mm. Whether your application requires tracking light (white) or dark (black) lines, this Cytron Line Sensor has you covered.
Gone are the days of manually adjusting each sensor’s potentiometer—thanks to its one-touch calibration system. Just press and hold the calibrate button for 2 seconds, sweep the sensor across the line, press again, and it's calibrated. Calibration data is stored in EEPROM, meaning it remains even after powering off, making setup a one-time process unless major changes are made.
The Maker Line Sensor Module offers dual output modes: five digital outputs for individual sensor states and a single analog output that provides high-resolution line position data. This analog capability is especially useful for precision tasks like PID-controlled robots.
Whether you're a student, hobbyist, or engineer, the Cytron Maker Line Sensor is the reliable and accurate tool you need for your next line-following project.

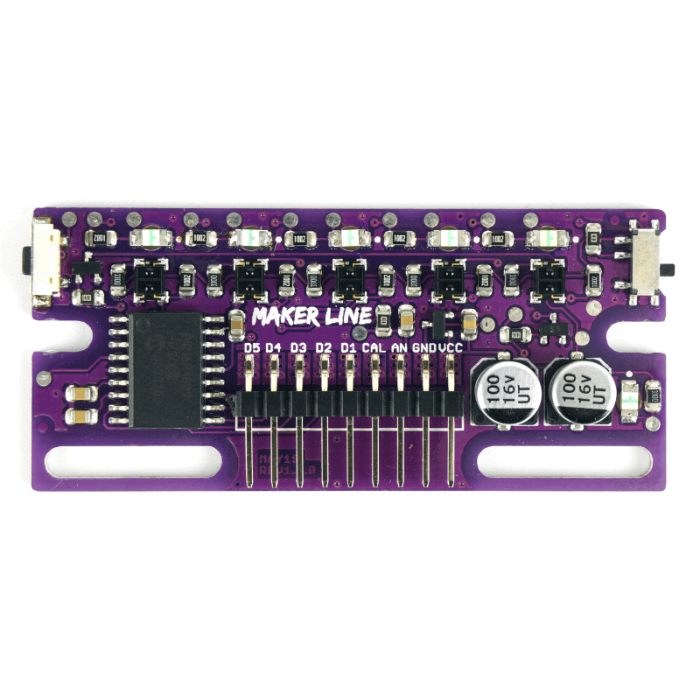

Maker Line Sensor Pinout Diagram:
Applications:

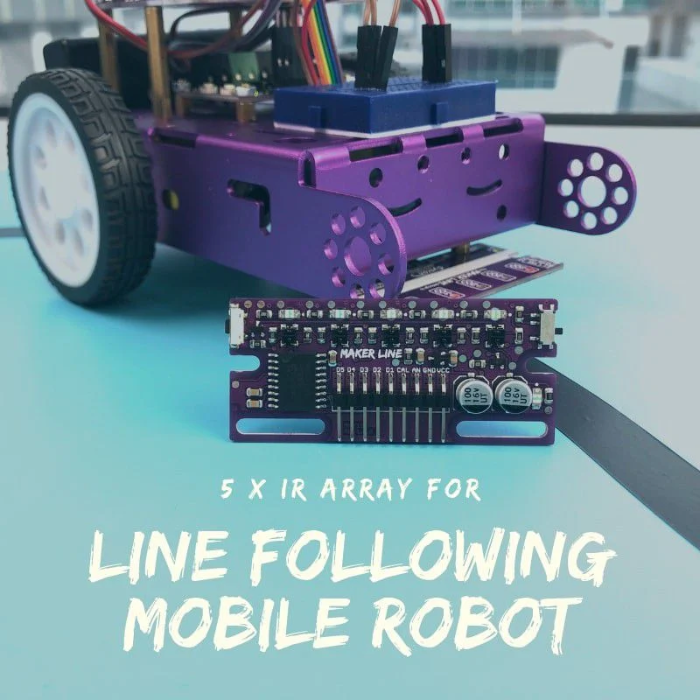

- Line Following Mobile Robot
- Automated Guided Vehicle (AGV)
Features:
- Operating voltage: DC. 3.3V and 5V compatible (reverse polarity protection).
- Recommended line width is 13mm to 30mm.
- Line color can be selected (bright or dark).
- Sensing range (height): 4mm to 40mm (Vcc = 5V, black line on a white surface).
- Sensor Refresh Rate: 200 Hz.
- Simple calibrating procedure.
- Dual Output Types: Each IR sensor state is represented by five digital outputs, while one analog output represents line position.
- It supports a wide number of controllers, including Arduino and Raspberry Pi.
Package Includes:
- 1 x Maker Line Sensor
- 2 x PCB Stand Screw and Nut 5mm
- 2 x PCB Stand Screw and Nut 10mm
Specifications:
| Specification | Details |
|---|---|
| Item Type | Sensor |
| Model Series | Maker Series |
| Voltage Rating (V) | 3.3 to 5 |
| Operating Voltage (VDC) | DC 3.3V and 5V compatible |
| Line Width (mm) | 13 to 30 |
| Sensing Distance (mm) | 4 to 40 (at 5V, black line on white surface) |
| Sensor Refresh Rate (Hz) | 200 |
