Arduino UNO R3 Board + CNC Shield + 4xDRV8825 Driver Kit compatible
Arduino UNO R3 Board + CNC Shield + 4xDRV8825 Driver Kit compatible
Regular price
Rs. 1,377
Regular price
Rs. 2,672
Sale price
Rs. 1,377
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Product will be SHIPPED TODAY, if ordered within 4 hours and 13 minutes.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- This is an excellent DIY kit for students and hobbyists interested in 3D printers and mini CNC
- The kit contains an Arduino Uno, a CNC Shield and 4x DRV8825 Drivers to drive your motors
- This kit can easily get you started into the maker world of DIY 3D printers and CNC based projects
Related Tags
CNC Shield + UNO R3 Board compatible with Arduino + 4xDRV8825 Driver Kit
Arduino Uno is an open-source microcontroller used by students and hobbyists entering the world of DIY electronics and automation, The Arduino Uno can be used for any application including being the brains of your next DIY 3D printer and/or CNC router
The CNC Shield V3.0 allows you to build an engraving machine, 3D printer, mini CNC and other similar devices using your Arduino. It is designed as a shield and can plug on top of an Arduino requiring no external connections and wiring. Along with that, the CNC shield allows you to control up to four stepper motors by mounting on 4 stepper motor drivers, included with this kit
The DRV8825 provides an integrated motor driver solution for printers, scanners, and other automated equipment. The device has two H-bridge and is intended to drive a bipolar stepper motor.
Features:
- UNO R3 Board: The main microcontroller board compatible with Arduino.
- CNC Shield: An expansion board that allows for easy connection and control of stepper motors.
- 4x DRV8825 Stepper Motor Drivers: High-performance drivers for controlling stepper motors.
- Micro-Stepping: Supports micro-stepping settings for precise control of stepper motors.
- GRBL Compatibility: Compatible with GRBL firmware, which is widely used for CNC control.
- Voltage Range: Operates on 12-36V DC.
- Heat Sinks: Included for cooling the stepper motor drivers.
- USB Cable: For connecting the UNO R3 board to a computer.
- 40-Pin Row Needles: For additional connections.
Applications:
- CNC Machines: Used for controlling stepper motors in CNC milling, engraving, and cutting machines.
- 3D Printers: Essential for driving stepper motors in 3D printers, ensuring precise layer deposition and movement.
- Laser Cutters: Controls stepper motors in laser cutting machines for accurate cutting and engraving.
- Robotics: Ideal for robotics projects requiring precise motor control, such as robotic arms and automated guided vehicles (AGVs).
- X-Y Tables: Used in X-Y tables for accurate positioning and movement in various industrial applications.
- Pick-and-Place Devices: Employed in pick-and-place machines for accurate component placement in electronics manufacturing.
- Labeling Machines: Used in labeling machines for precise label application.

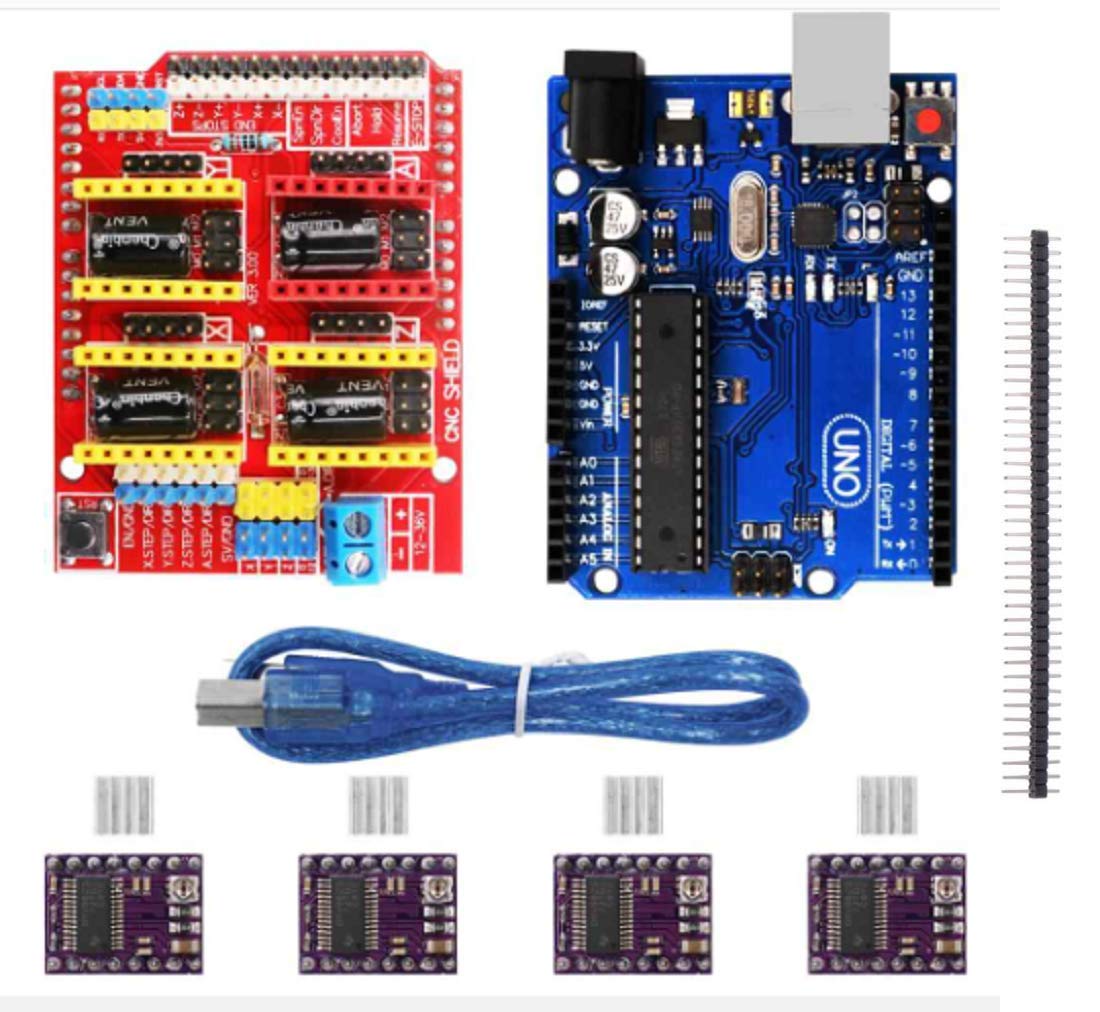

Package Includes:

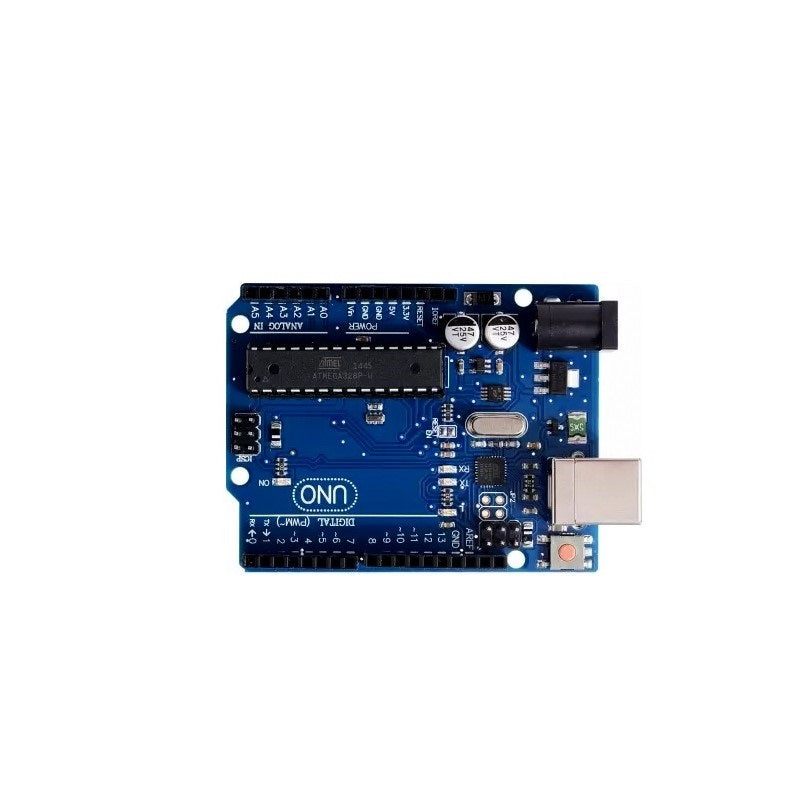

- 1x Arduino Uno Microcontroller
- 1x Arduino CNC Shield v3

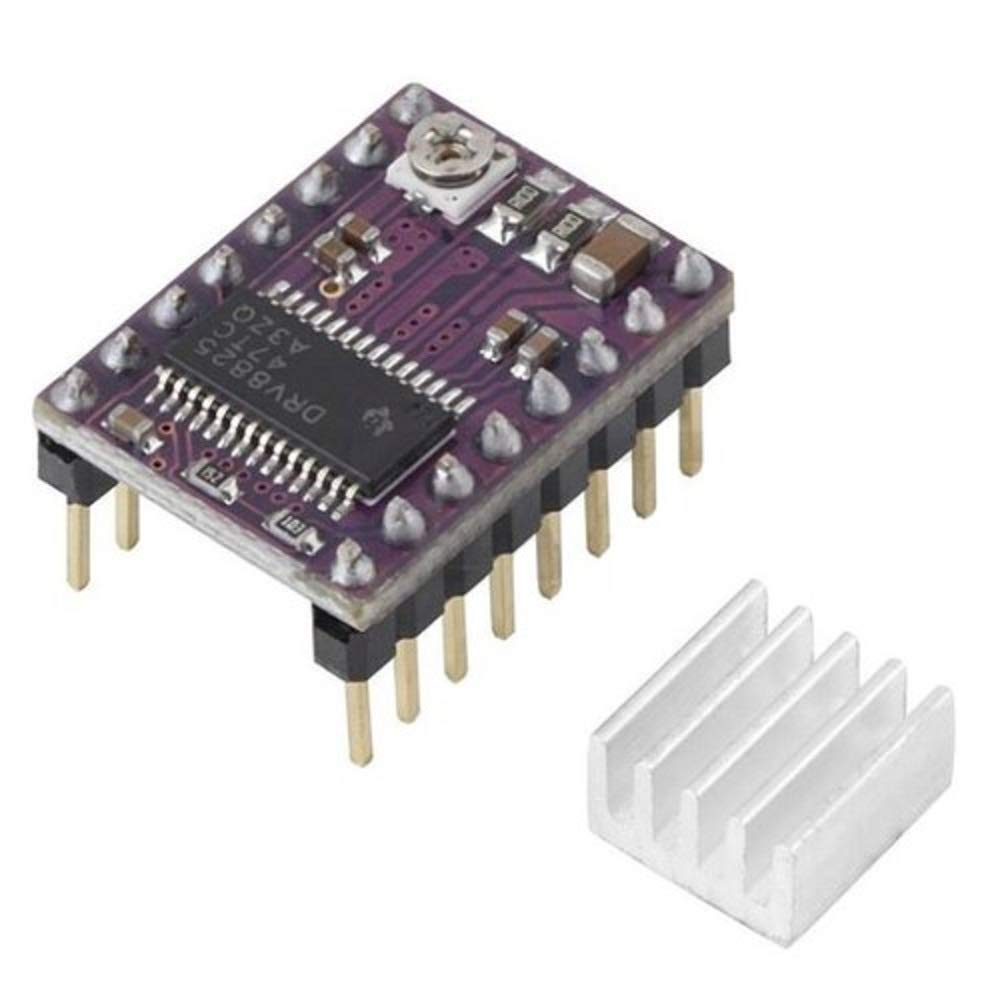

- 4x DRV8825 Motor Driver
- 4x Heatsink
- 1x Male Berg Strip
Pinout Diagram for the Arduino Uno Microcontroller
Applications of the Kit
The kit can be used to create custom 3D printers, scanner, CNC mills and other automated equipment applications
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
