BNO085 9-DOF IMU Orientation Qwiic Fusion Breakout -7Semi
BNO085 9-DOF IMU Orientation Qwiic Fusion Breakout -7Semi
BNO085 9-DOF IMU Orientation Qwiic Fusion Breakout -7Semi

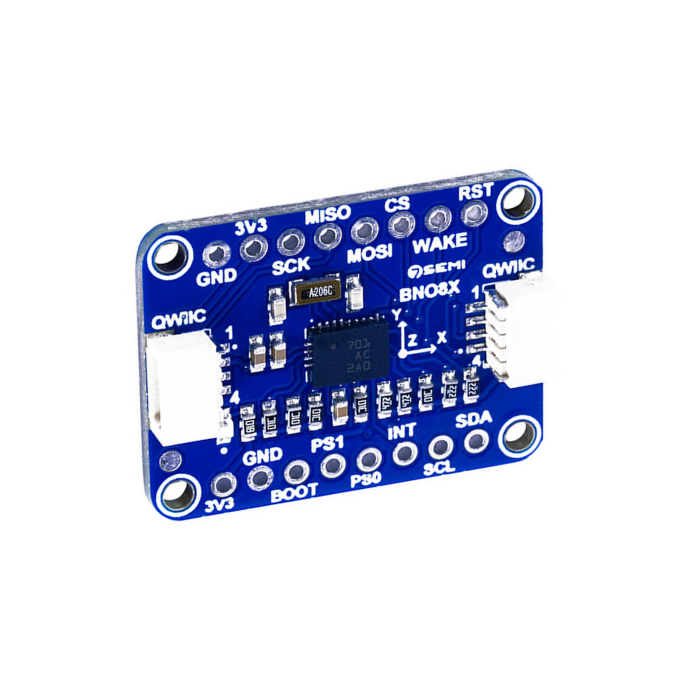

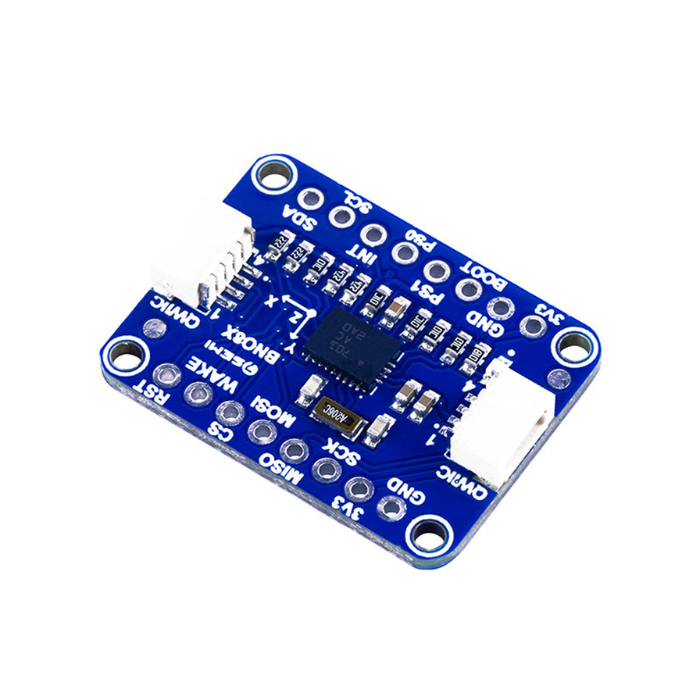

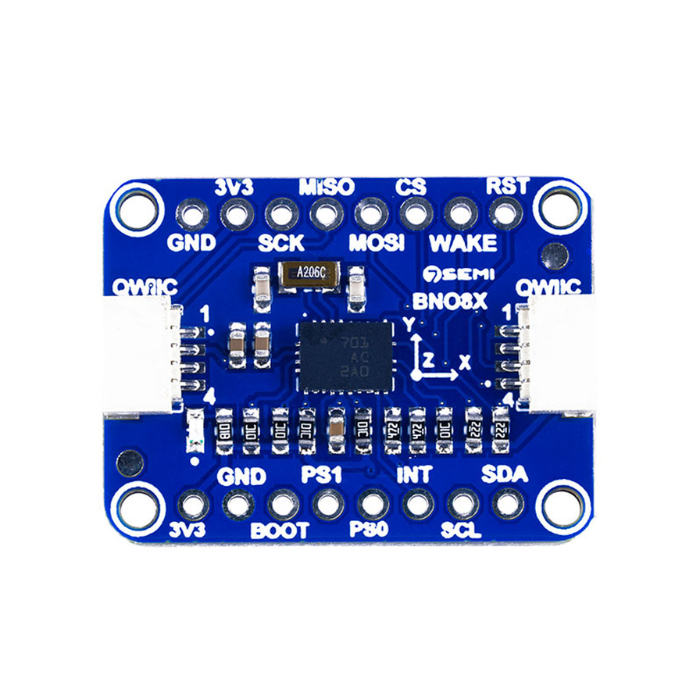

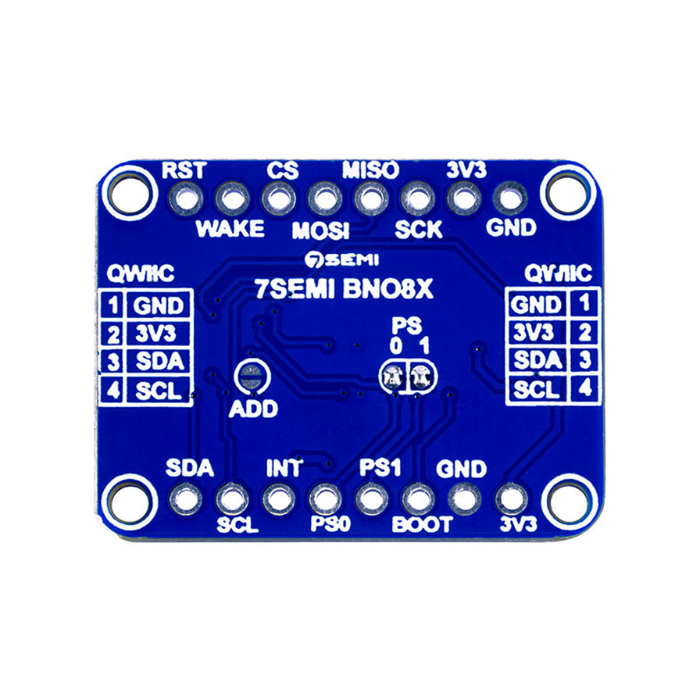

The 7Semi BNO085 9-DOF IMU Orientation Qwiic Fusion Breakout is a compact and powerful sensor module that combines a 3-axis accelerometer, gyroscope, and magnetometer to provide full 9 degrees of freedom (9-DOF) motion tracking.
At its core is an ARM Cortex M0 processor running sophisticated sensor fusion algorithms, ensuring accurate and reliable orientation data. Designed for versatility, the board supports multiple communication protocols including I2C, SPI, and UART.
With onboard Qwiic connectors, integrating the breakout into your projects is seamless and solder-free, making it an excellent choice for developers working on robotics, AR/VR, drones, and other motion-sensitive applications.
Learn how sensors such as gyroscopes and accelerometers contribute to drone stability and control in our guide: Flight Controllers Explained: What They Do and How to Choose the Right One for Your Drone.
Features:
-
Multi-Axis Motion Sensing: Acceleration, angular velocity, and magnetic field vectors
-
Rotation Quaternion Output: Accurate spatial orientation with four-point quaternions
-
Enhanced Sensor Fusion: Optimized for low-latency AR/VR applications
-
Raw & Calibrated Data Access: Base sensor reports for accelerometer, gyroscope, and magnetometer
-
Motion & Activity Detection: Detects motion, taps, steps, shakes, and activity classification
-
3.3V Regulated Input: Onboard voltage regulator for stable operation
-
Qwiic/Stemma QT Connectors: Plug-and-play, solder-free connectivity
-
Compact Breakout Design: Breadboard-compatible and durable PCB
- Software Support: Compatible with CircuitPython, Arduino, and UART-RVC mode for easy data access.
Package Includes:
- 1 x BNO085 9-DOF IMU Orientation Qwiic Fusion Breakout -7Semi
Specifications:
| Specification | Details |
|---|---|
| Sensor Type | 9-DOF IMU (Accelerometer, Gyroscope, Magnetometer) |
| Processor | ARM Cortex M0 with sensor fusion algorithm |
| Interfaces | I2C, SPI, UART |
| Qwiic/Stemma QT Support | Yes (dual connectors) |
| Voltage Input | 3.3V (regulated) |
| Motion Outputs | Acceleration (m/s²), Angular Velocity (rad/s), Magnetic Field (µT), Quaternion |
| Activity Detection | Tap, Step, Shake, Motion, Stability |
| Software Compatibility | CircuitPython, Arduino, UART-RVC mode |
| Form Factor | Breadboard-friendly breakout board |
1. What is the BNO085 used for?
The BNO085 is used for real-time sensor-fusion orientation and motion tracking. It combines a 3-axis accelerometer, 3-axis gyroscope, and 3-axis magnetometer to provide 9-DOF orientation data. It is suitable for robotics, drones, AR/VR systems, gimbals, wearable devices, and other applications that require accurate motion and orientation feedback.
2. What interface does it use — I2C, UART or SPI?
The BNO085 9-DOF IMU Orientation Qwiic Fusion Breakout supports I2C, SPI, and UART communication interfaces, giving you flexibility when connecting it to microcontrollers and development boards.
3. What does the Qwiic connector do — is it plug-and-play?
Yes. The dual Qwiic/Stemma QT connectors provide solderless, plug-and-play I2C connectivity. They make it easy to connect the BNO085 to compatible Qwiic devices and create an I2C daisy chain without needing to solder individual wires.
