- Powered by STM32G030F6P6 microcontroller with ARM Cortex-M0+ core.
- USB Micro interface for convenient powering and connectivity.
- Reset button for easy user operation.
- Includes Serial Wire Debug (SWD) interface for programming and debugging.
- Ideal for ARM Cortex-M0+ based projects and IoT applications.
- Suitable for industrial and appliance solutions.
Anchor STM32 Mini Development Board with STM32G030F6P6 MCU - 7Semi

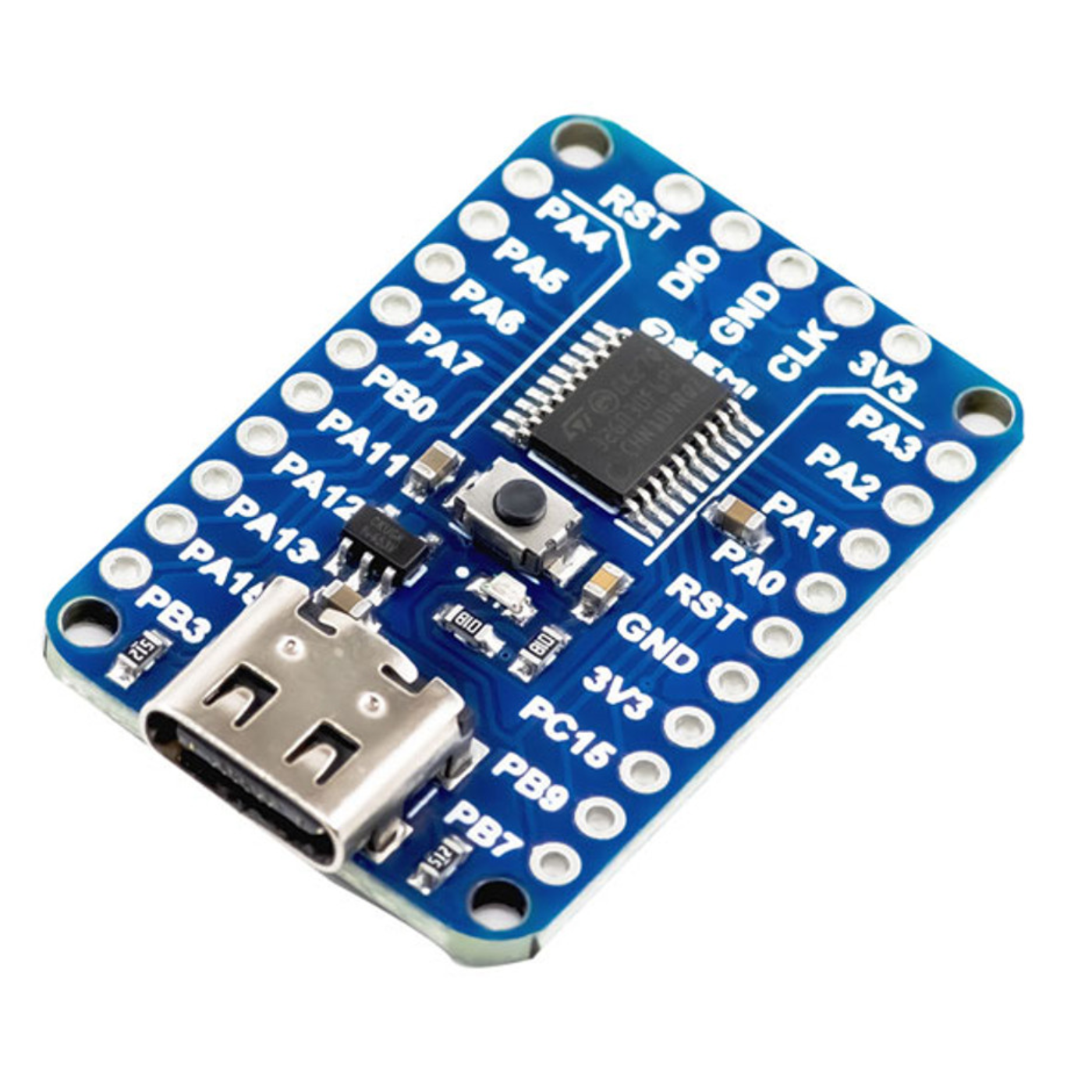

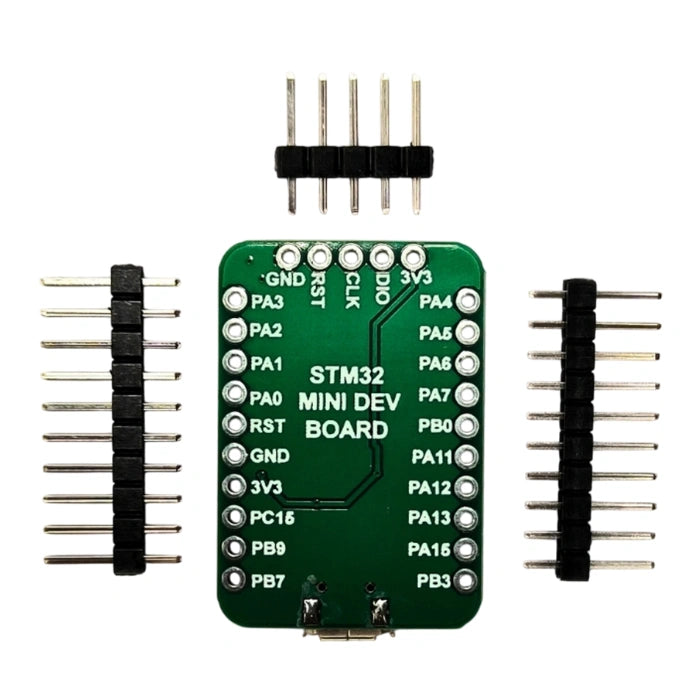

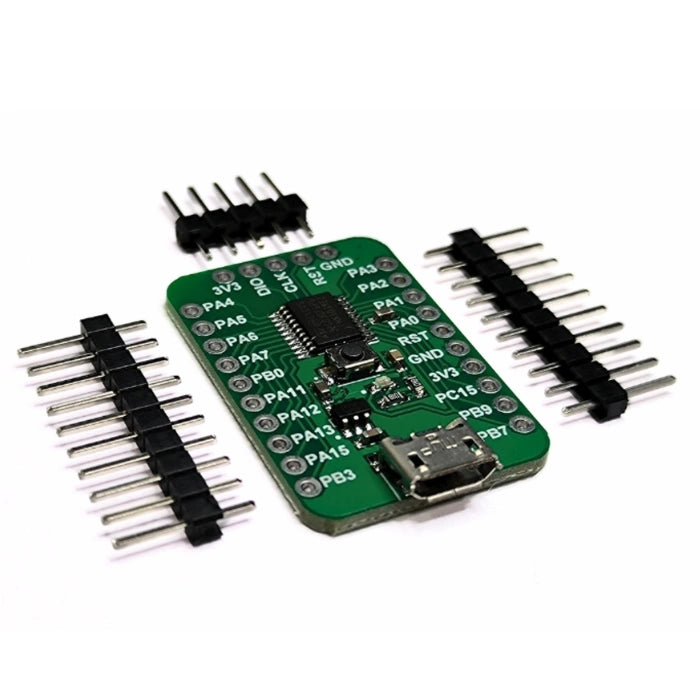

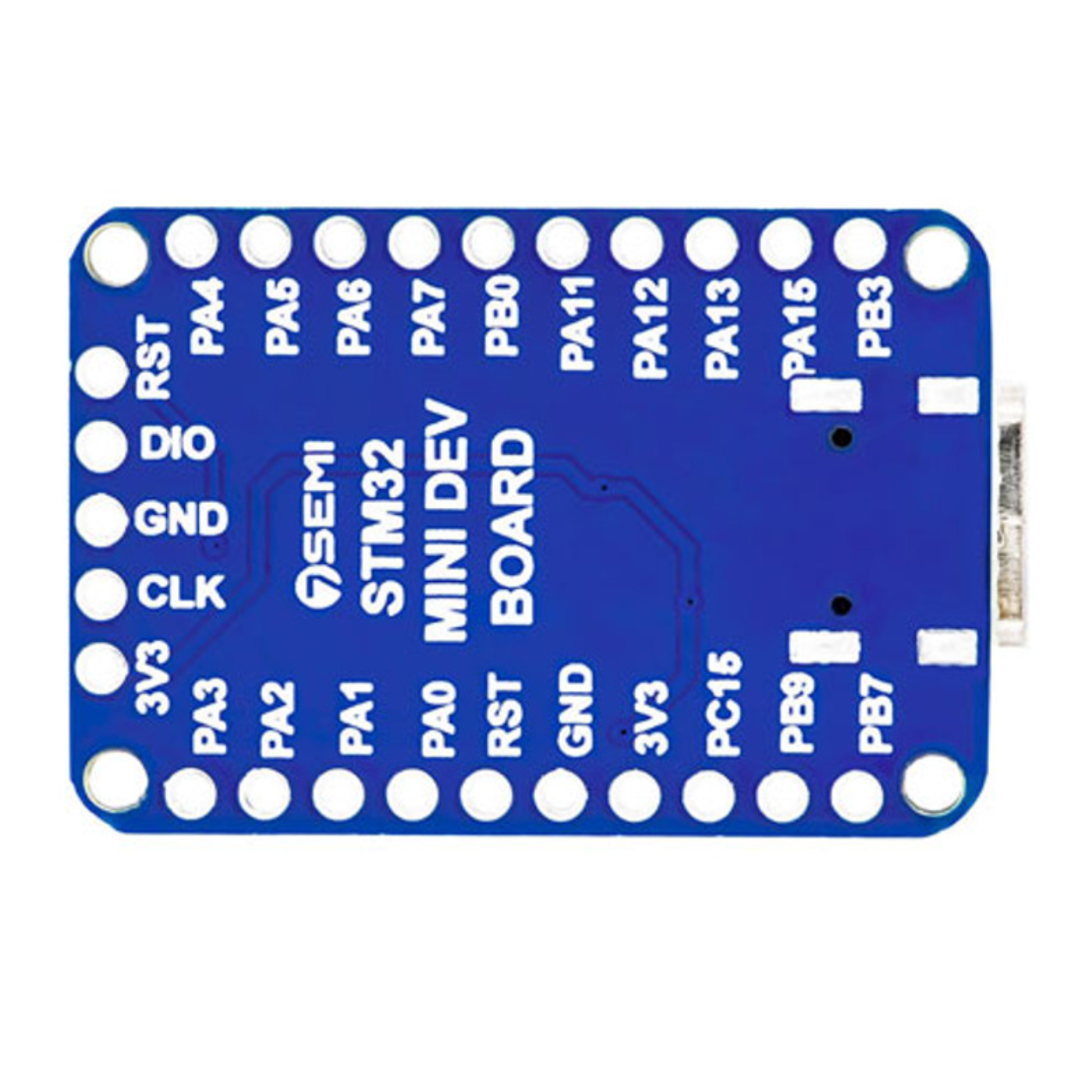

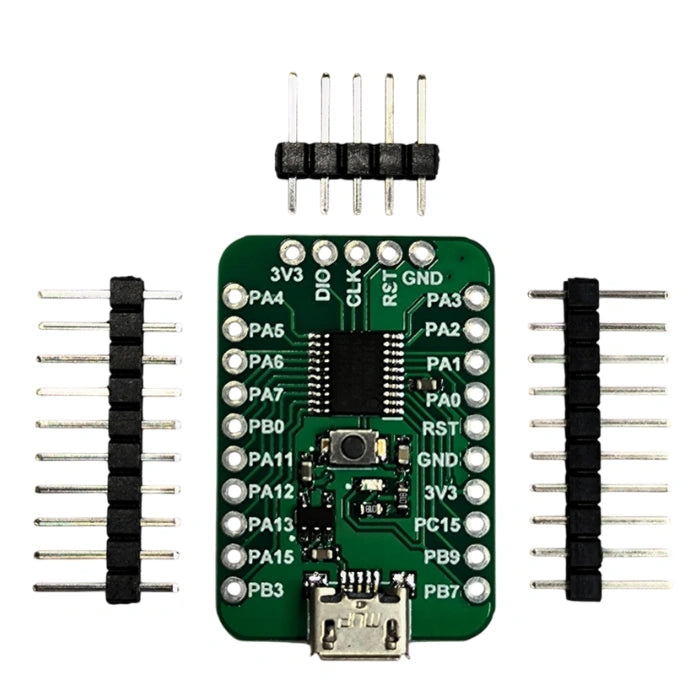

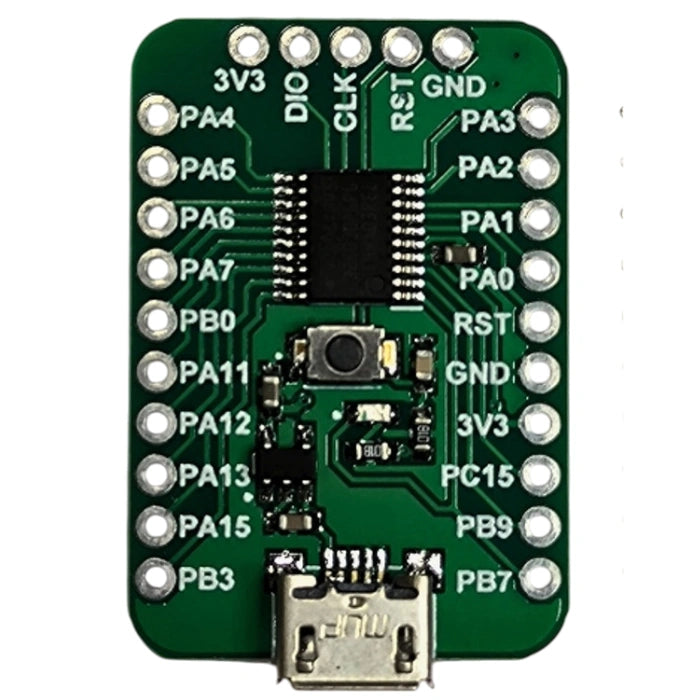

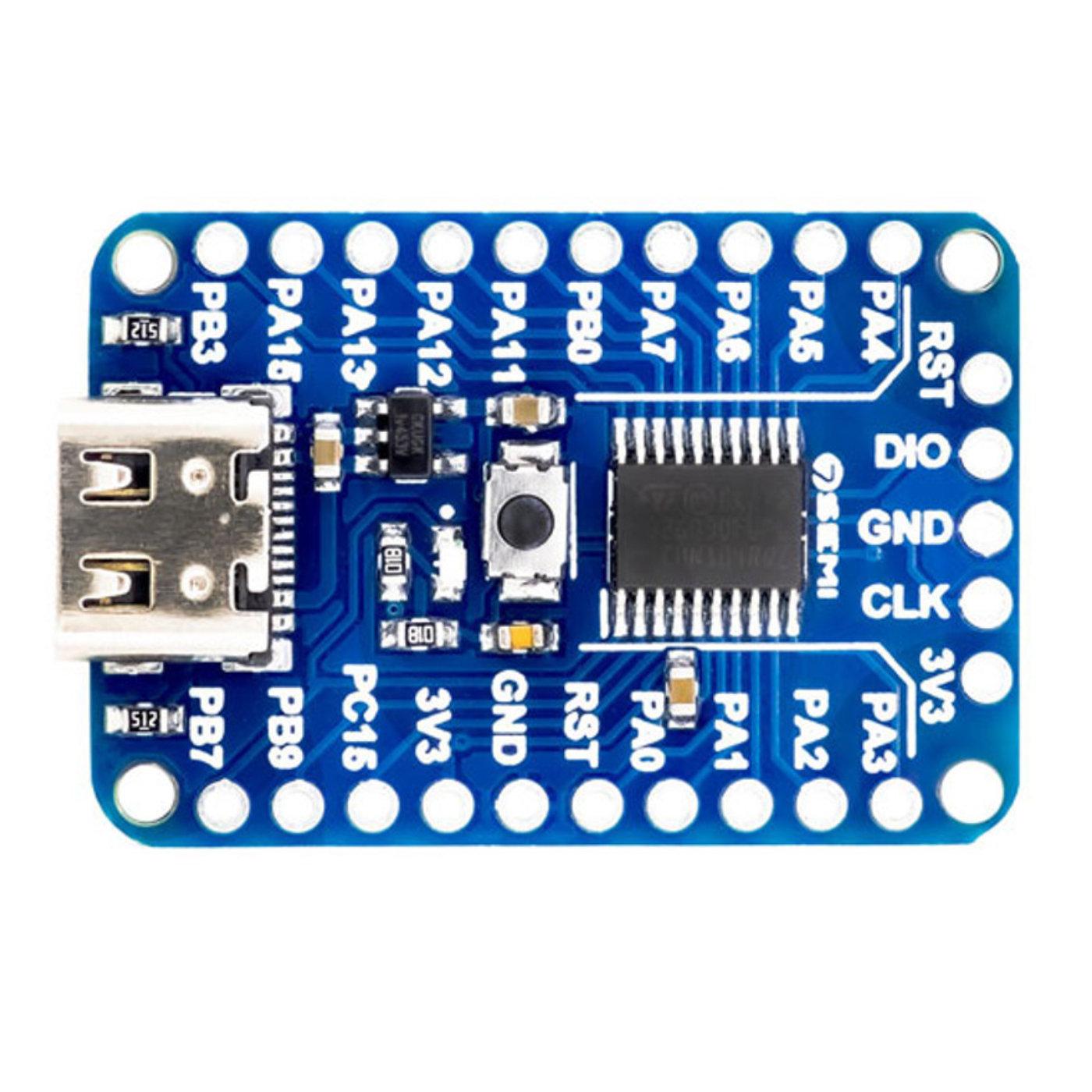

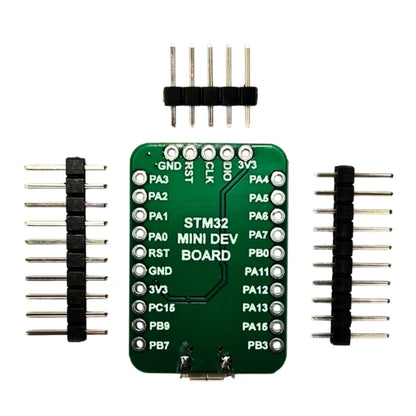

The 7Semi STM32G030F6P6 Anchor is a compact and versatile development board featuring the ARM Cortex-M0+ core and powered by the STM32G030F6P6 microcontroller. This board is designed with simplicity in mind, offering the essential circuitry needed for the smooth operation of the STM32F030R8T6 chip.
It features an easy USB Micro interface for convenient powering and connectivity, as well as a reset button for user-friendly operation.
For programming and debugging, the board is equipped with a Serial Wire Debug (SWD) interface, ensuring seamless tasks for developers.
The board serves as an excellent platform for ARM Cortex-M0+ based projects, making it an ideal choice for both beginners and experienced developers. It is perfectly suited for industrial, appliance, and Internet of Things (IoT) applications.
Features:
- ARM Cortex-M0+ Core: Based on the STM32G030F6P6 microcontroller, offering efficient processing capabilities.
- USB Micro Power Supply: Provides convenient powering and connectivity through the onboard USB Micro interface.
- Reset Button: Facilitates easy board reset during development and debugging.
- SWD Interface: Supports Serial Wire Debug (SWD) for programming and debugging tasks.
- Basic Circuitry for STM32F030R8T6: Includes essential components for the standard operation of the STM32F030R8T6 chip.
Package Includes:
- 1 x 7Semi Anchor STM32 Mini Development Board
Specifications:
| Specification | Details |
|---|---|
| MCU | STM32G030F6P6 |
| Core Architecture | ARM Cortex-M0+ |
| Operating Voltage | 3.3V (via onboard regulation from USB) |
| Programming Interface | Serial Wire Debug (SWD) |
| Power Input | USB Micro interface |
| Reset Function | Onboard reset button |
| Flash Memory | 32KB |
| SRAM | 8KB |
| Clock Speed | Up to 64MHz |
| I/O Ports | Multiple GPIOs available |
| Dimensions (LxWxH) | 3.3 x 2.2 x 0.4 cm |
| Weight | 6 gm |
