7Semi STM32G0B1RET6 Development Board - 32-bit Arm Cortex-M0+ MCU
Let us know!
We'll try to match the price for you
We’ll notify you once the product is back in stock.
Couldn't load pickup availability

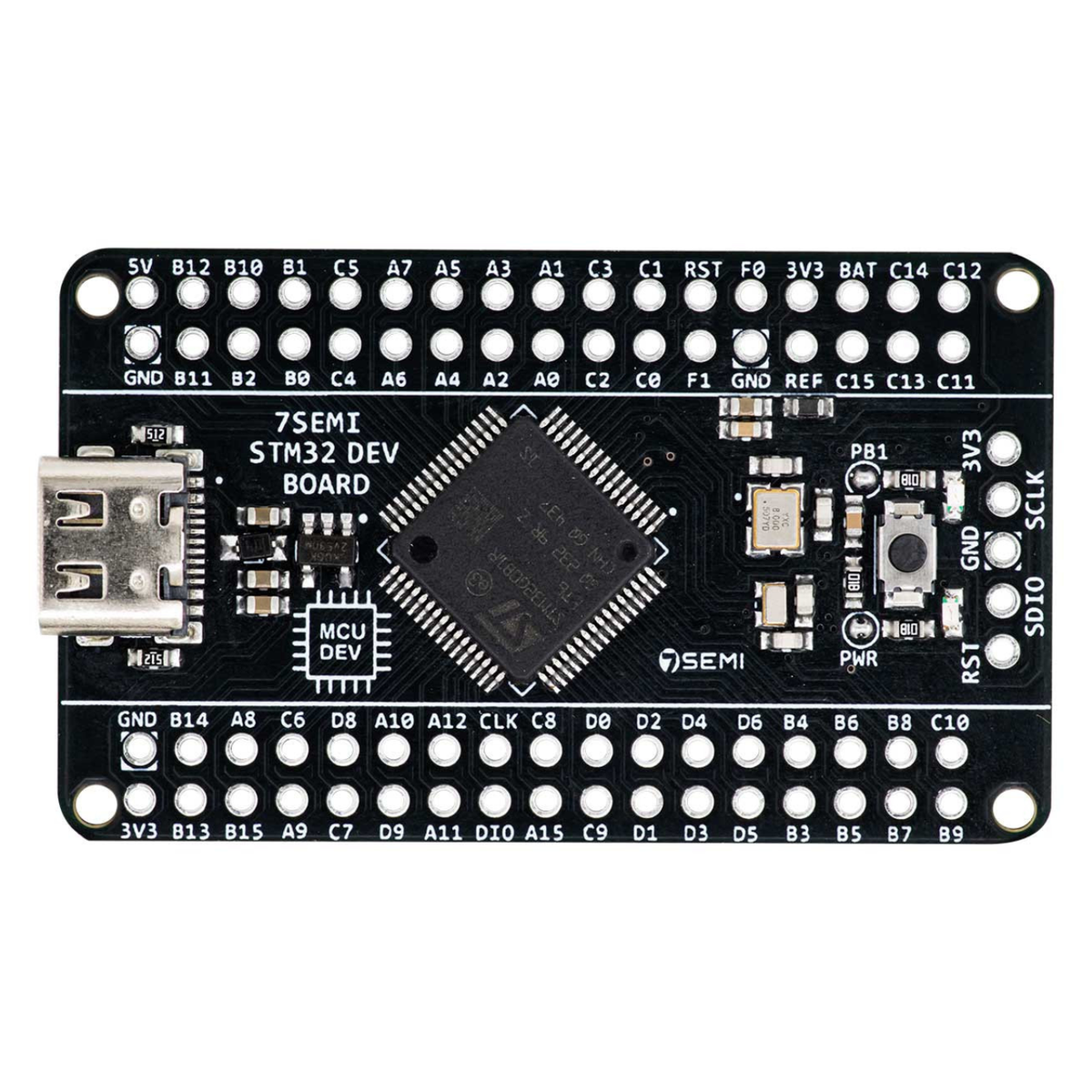

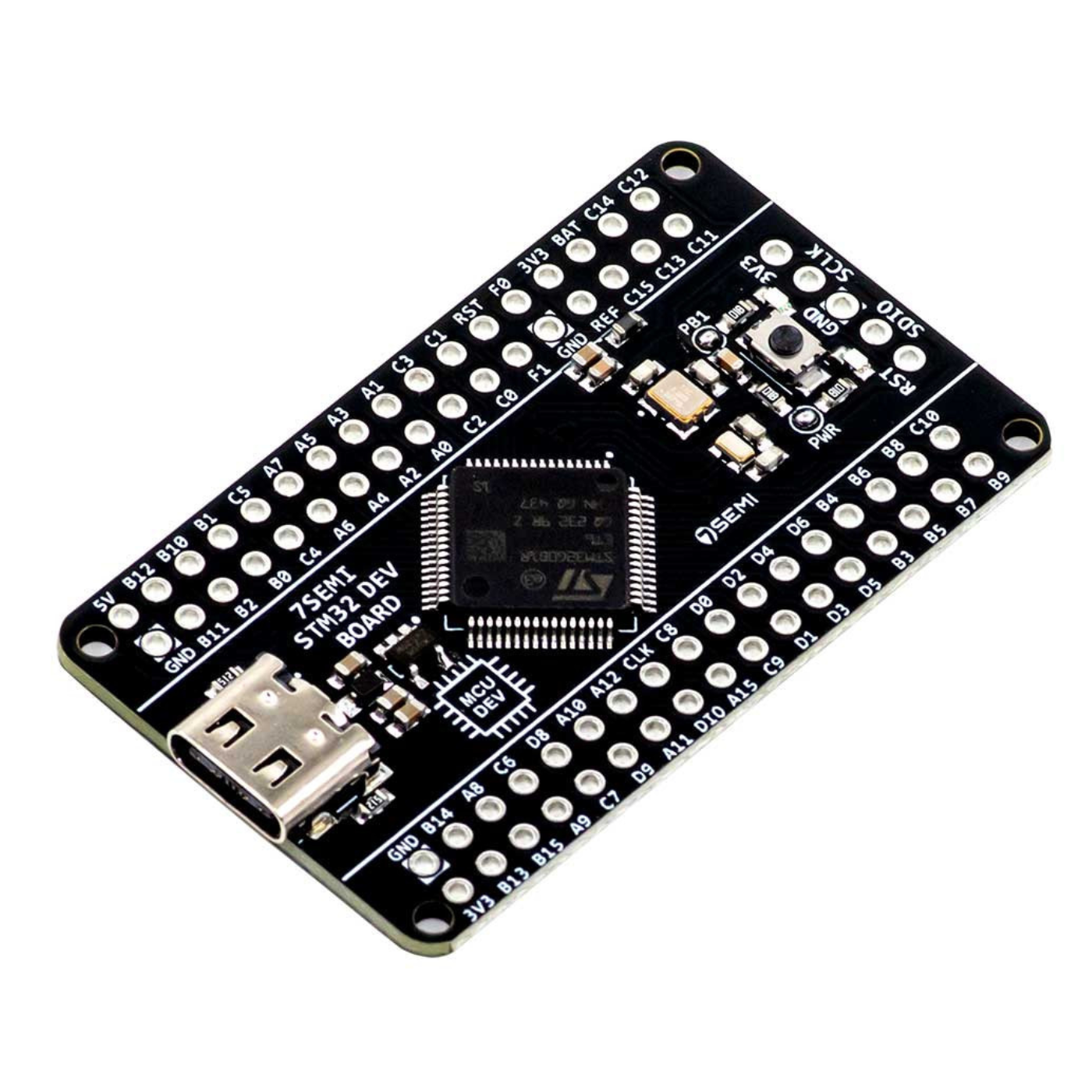

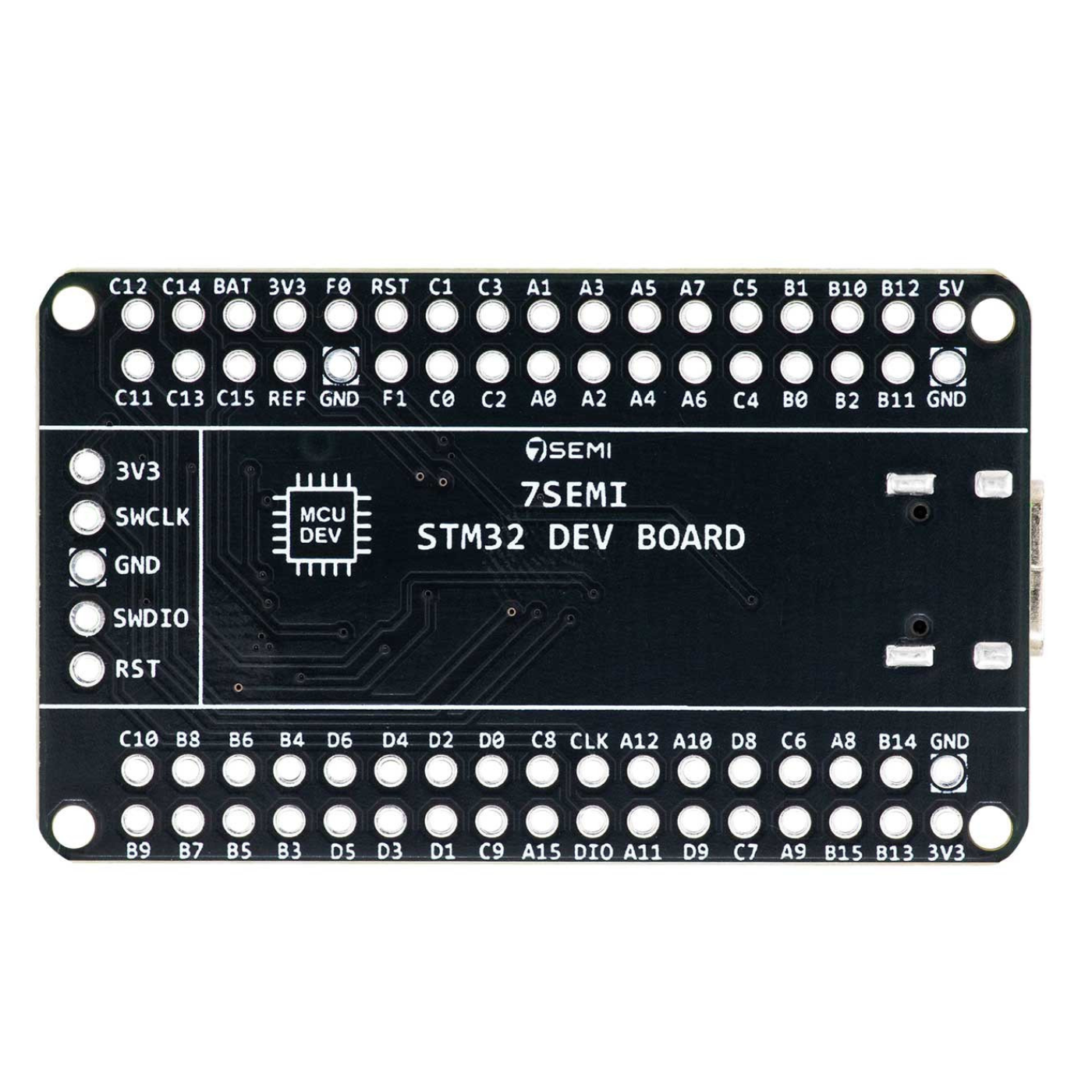

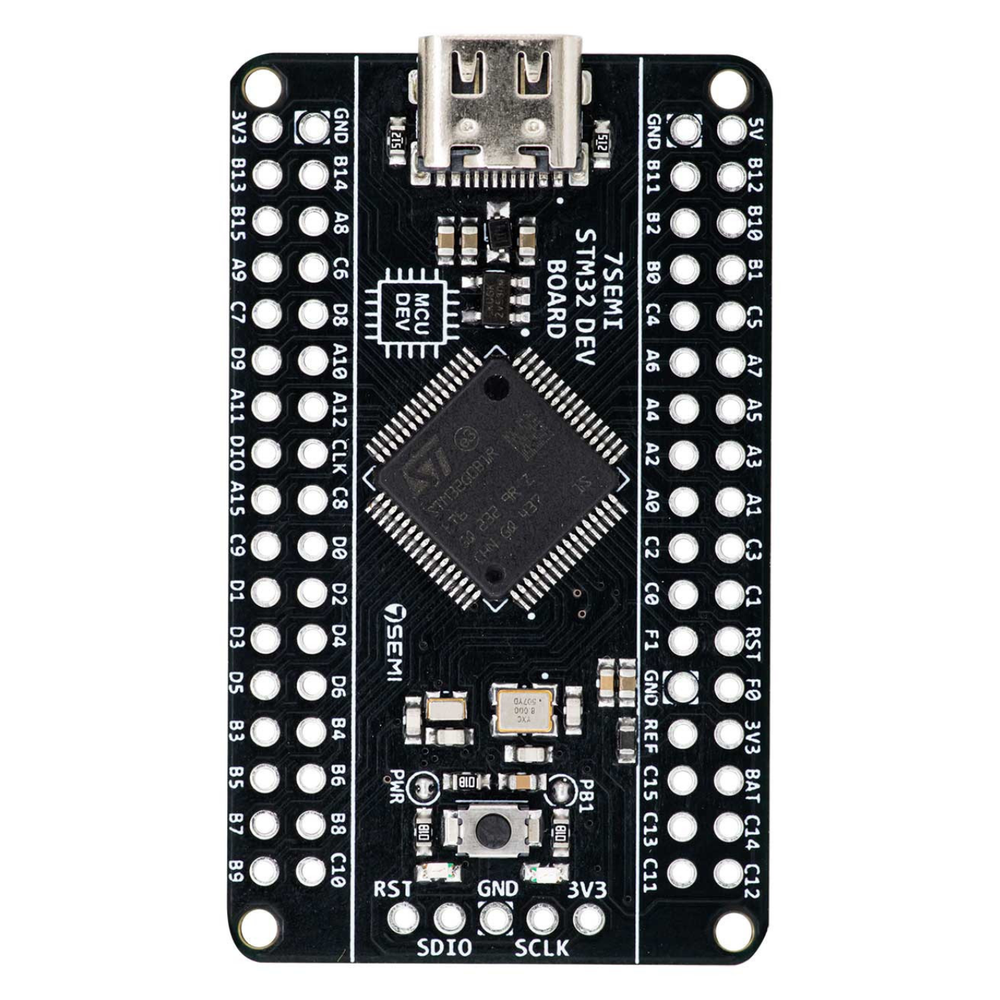

The STM32G0B1RET6 development board by 7Semi is designed to deliver efficient 32-bit embedded processing in a compact and easy-to-use form factor. Built around the STM32G0B1RET6 Arm Cortex-M0+ MCU running at 64 MHz, it provides 512 KB Flash and 144 KB SRAM, making it well-suited for industrial IoT, robotics, automation, and embedded learning applications.
This STM32G0B1RET6 development board includes USB-C power input, 2× FDCAN support, SWD debugging, and multiple serial interfaces such as USART, SPI, and I2C. With labeled headers, onboard LEDs, reset and user buttons, and breadboard-ready spacing, it offers a smooth development experience for both beginners and professional engineers.
| Specification | Details |
|---|---|
| Microcontroller | STM32G0B1RET6 (ARM Cortex-M0+) |
| Core Frequency | Up to 64 MHz |
| Flash Memory | 512 KB |
| SRAM | 144 KB |
| Operating Voltage | 1.7V – 3.6V |
| Power Supply | USB 5V or 3.3V Header |
| GPIOs | 64 |
| Interfaces | 6× USART, 3× I2C, 3× SPI, 2× FDCAN |
| Timers | 15 (Advanced / General / Low Power / Watchdog) |
| ADC | 12-bit, up to 2.5 MSPS, 16 channels |
| DAC | 2× 12-bit |
| Debug Support | SWD (SWDIO / SWCLK) |
| Board Dimensions | Approx. 50.00 mm × 29.80 mm |
| Board Weight | 6 g |
