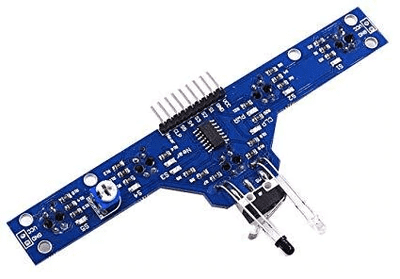

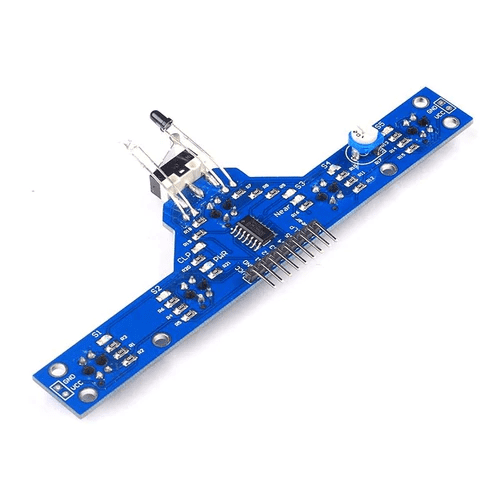

5 Channel IR Infrared CTRT5000 Line Detection Module
5 Channel IR Infrared CTRT5000 Line Detection Module
Low stock: 5 left
Regular price
Rs. 159
Regular price
Rs. 293
Sale price
Rs. 159
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Infrared light detection black and white lines, high recognition, stable performance
- Schmidt trigger mode, responsive, good signal quality
- Each with led indicator, easy to debug
- Applicable to all kinds of intelligent car tracking test
Related Tags
5 CHANNEL IR INFRARED CTRT5000 LINE DETECTION MODULE
5 channel IR sensor: Based on the TRCT5000 infrared reflection sensor, the TCRT5000L 5 Channel Tracking Sensor Tracking Module Infrared Sensor is frequently used to produce tracking smart cars. The TRCT5000 sensor's infrared emitting diode continually emits infrared light. A CTRT 5000 is a Boiler Controller for an Electric water heater.
Based on the TRCT5000 infrared reflective sensor, the TCRT5000L 5 IR Tracking Module Infrared Sensor is frequently used to produce tracking smart cars. The TRCT5000 sensor's infrared emitting diode continually emits infrared light. The infrared receiver picks up the emitted infrared rays that are reflected by the object and produces analogue values. The output analogue value depends on the colour and distance of the item. Calculating the analogue value of the five outputs allows one to determine the location of the tracking line.
Key Features:
- Excellent for creating quick line-following and grid-navigating robots.
- Consists of simple-to-use digital outputs that can be connected directly to microcontrollers.
- For simple attachment, the array contains mounting holes with a 3mm diameter.
Connection:
- VCC: VCC (It is the power input port, which could access 3.3V ~ 5V voltage)
- GND: GND (It is the negative input of the power supply)
- OUT1 ~ 5 Pin: OUT (It is the signal output port, MCU link I / O port)
Applications:
- Line follower robot
- Obstacle detector robot
- Grid navigating robots
- Maze Solving Robot
- Home automation
- Smart parking system
PACKAGE INCLUDES:
- 1 x 5 Channel IR Infrared CTRT5000 Line Detection Module
SPECIFICATIONS:
| Power supply | 5V DC |
| Number of channels | 5 |
| Dimensions(LxWxH) | 5x2x1cm |
| Weight | 10gm |
