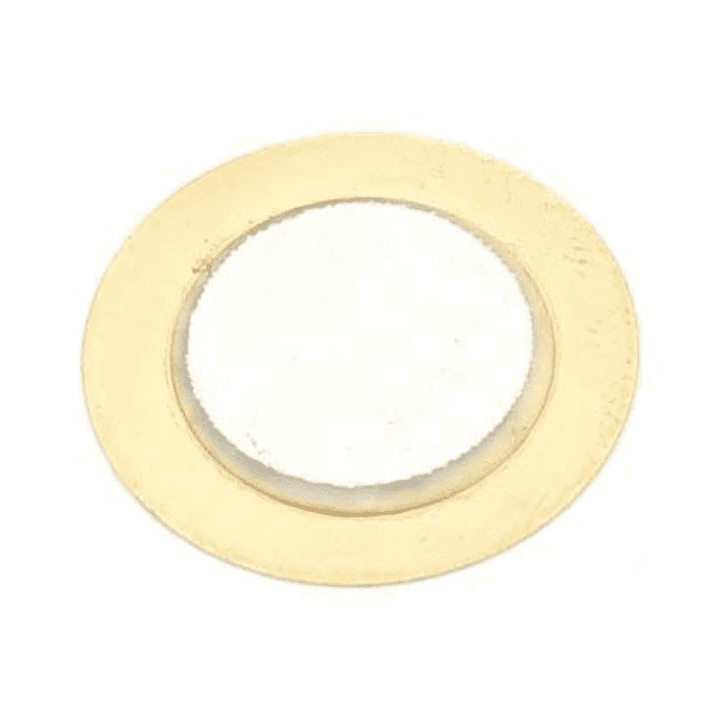

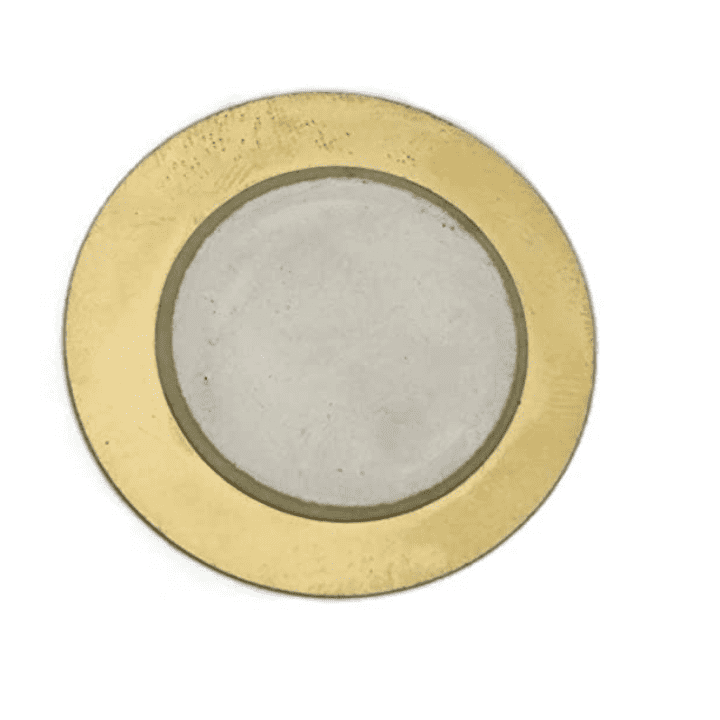

35mm Piezoelectric Sensor without Wire
35mm Piezoelectric Sensor without Wire
Regular price
Rs. 14
Regular price
Rs. 16
Sale price
Rs. 14
Unit price
per
Incl. GST (No Hidden Charges)
Couldn't load pickup availability
- Sound pressure level: 85DB 10cm
- The input voltage: 30vp-p max
- Ultra-thin and lightweight
- Low power consumption for voltage type
- Operating Temperature: -20~70
- Storage Temperature: -30-80
- Clear sound
35mm Piezoelectric Sensor without Wire

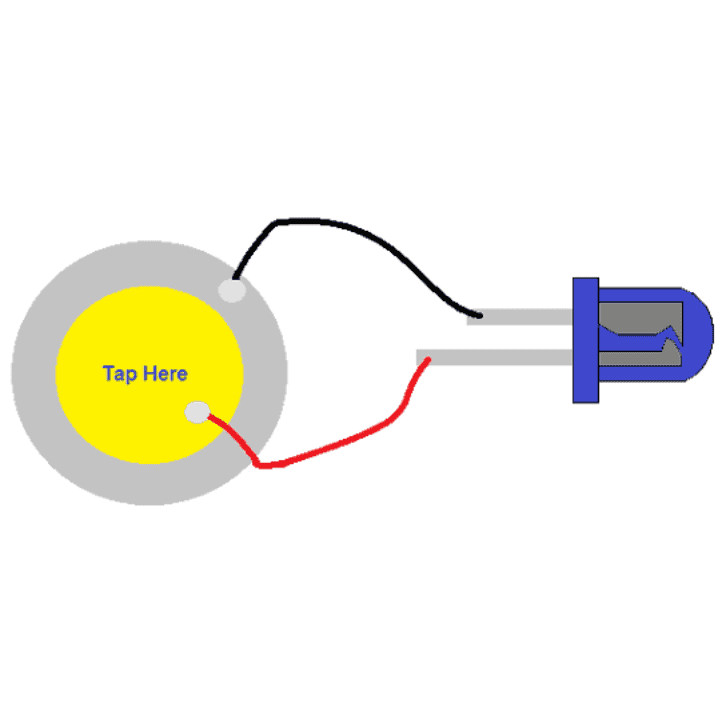

A piezoelectric transducer converts mechanical force into electrical output. When the force is applied to stretch or bend it, an electric voltage is generated. If there is no stress, no charges are induced. When there is stress, positive charges are induced on one side and negative charges induced on the opposite side. Compression occurs in the crystal as the force is applied.
This 3.5 cm Piezo Buzzer is made of excellent materials, wear resistance and shock resistance, Good, durable, High sensitivity, Three specifications are complete. It is widely used in: fire lights, control boards, small home computers, printers, copiers, alarms, electronic toys, automotive electronic equipment, telephone timers, control boards and other electronic products as voice devices
Applications:
- Used in Power Shoes
- Used in Condition Monitoring
- Pacemaker
- Security Alarm Systems
check out : 12 Volt Piezo Buzzer Plate (20mm)
Package Includes:
- 1 x 35mm Piezo Sensor without Wire
Specifications:
| Plate Thickness (mm) |
3.36 |
| Plate Diameter (mm) |

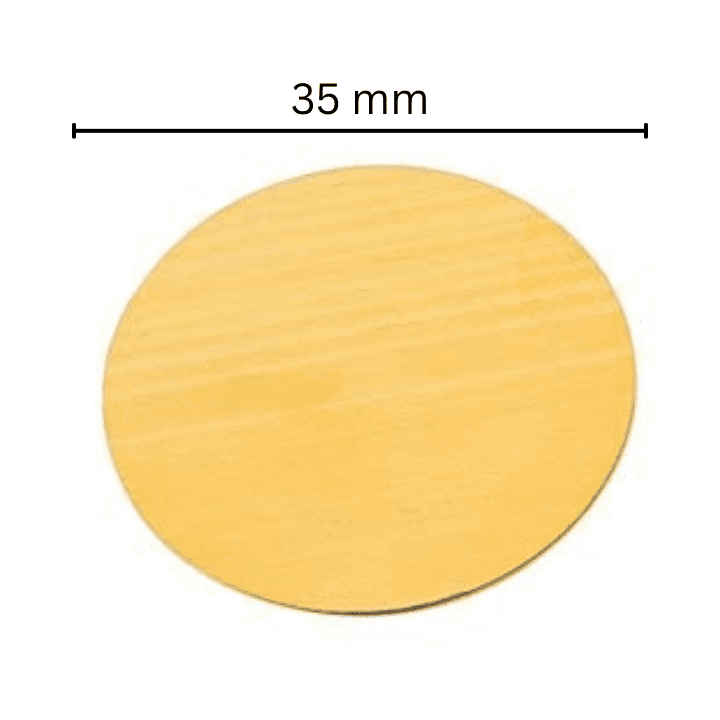

35 |
| Resonant Frequency |
10+/-0.5KHZ |
| Resonant Impedance |
100R MAX |
| The Static Capacitance |
8000pf plus or minus 30% |
| Sound pressure level |
85DB 10cm |
| The input voltage |
30vp-p max |
| Operating Temperature |
-20~70 DC |
