12V 10A PWM DC Motor Speed Controller
12V 10A PWM DC Motor Speed Controller
Out of stock
8
Regular price
Rs. 131
Regular price
Rs. 199
Sale price
Rs. 131
Unit price
per
Incl. GST (No Hidden Charges)
Couldn't load pickup availability
Currently, 25 people are actively viewing.
Free shipping on Orders Above Rs 499/-
Fast Delivery
Technical Support & Easy Returns
Raise a Ticket
Earn RC Coins on Every Purchase
Rewards
Cash on Delivery Available
Cash Delivery
COUPON
RC100
FLAT ₹ 100/- OFF
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- This is 12V 10A PWM DC Motor Speed Controller
- Control the speed of a DC motor with this controller
- High efficiency, high torque, low heat generating
- With reverse polarity protection, high current protection
- Control voltage over-voltage protection function
- The overload and short circuit protecting current is 10A

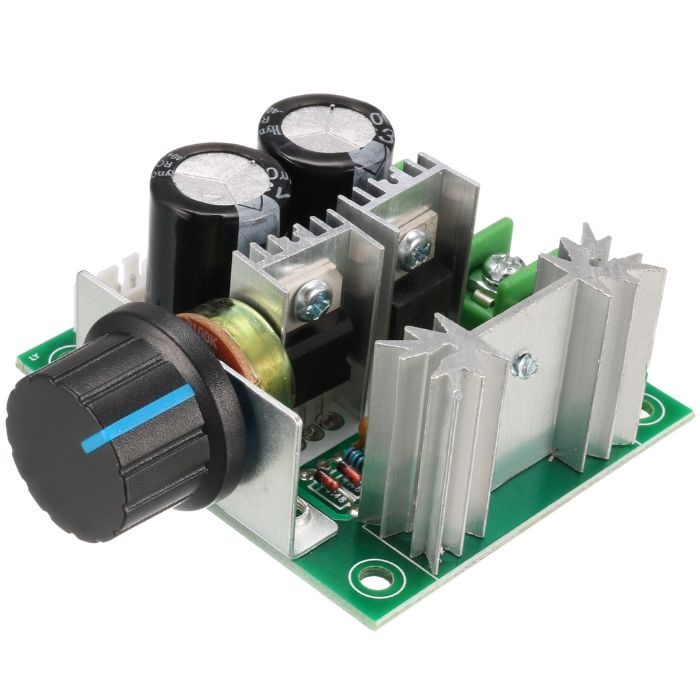

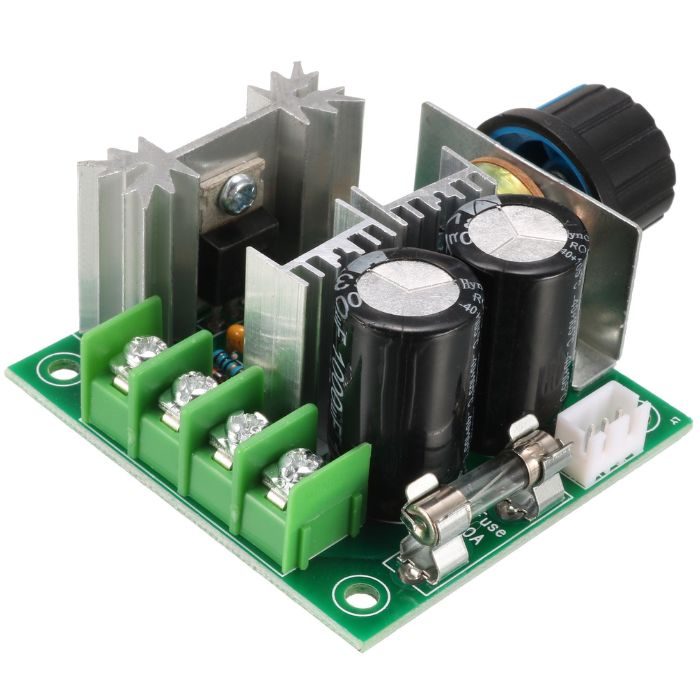

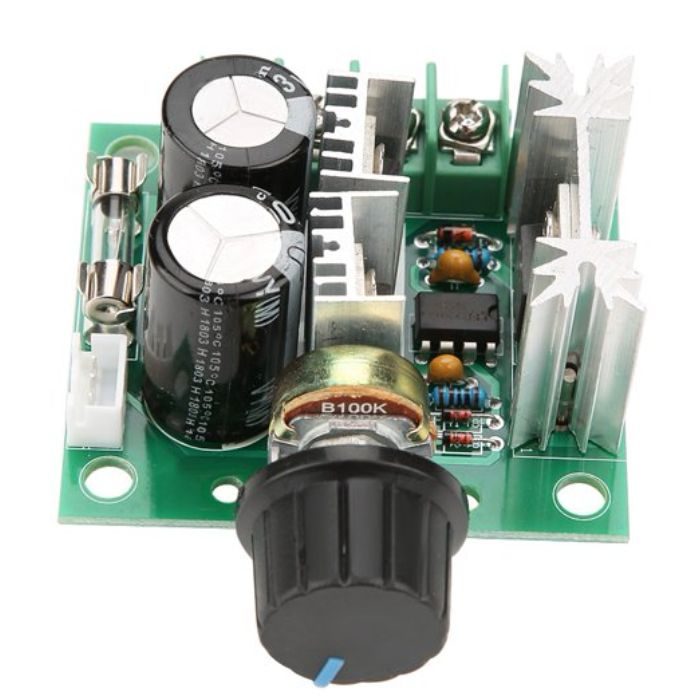

12V 10A PWM DC Motor Speed Controller
The DC Motor Speed Controller allows controlling the direction of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 10%-100%. The motor speed controller can provide a continuous current of 10A to your DC motor or other DC load. The circuit also includes a 10A fuse, with the reverse connection of the power supply and control voltage over-voltage protection function.
This speed regulator uses a barrier terminal block as its wiring type. The output voltage is linear under load and features a control frequency of 13kHz.
Note: This cannot be used for the brushless motor. The controller is not reverse-polarity protected and will be damaged if it connects the supply voltage with the wrong polarity.
Features:
- Control the speed of a DC motor with this controller.
- High efficiency, high torque, low heat generating.
- With reverse polarity protection, high current protection.
- Control voltage over-voltage protection function
- The overload and short circuit protecting current is 10A
Applications:
- Automotive: Controlling the speed of cooling fans, windshield wipers, and air conditioning systems.
- Industrial Automation: Managing the speed of conveyor belts, exhaust fans, and other motor-driven machinery.
- Home Appliances: Adjusting the speed of fans, pumps, and other household devices.
- Treadmills: Regulating the speed of the treadmill belt for different workout intensities.
- Robotics: Providing precise speed control for DC motors in robotic projects.
- DIY Projects: Ideal for custom electronics projects requiring variable motor speed control
Package Includes:
1 x 12V 10A PWM DC Motor Speed Controller
Specifications:
| Input supply voltage | 12V - 40V DC |
| Control Power | 0.01 – 400W |
| Static Current | 0.02A (Standby) |
| PWM Duty Cycle | 10% - 100% |
| PWM frequency | 13kHz |

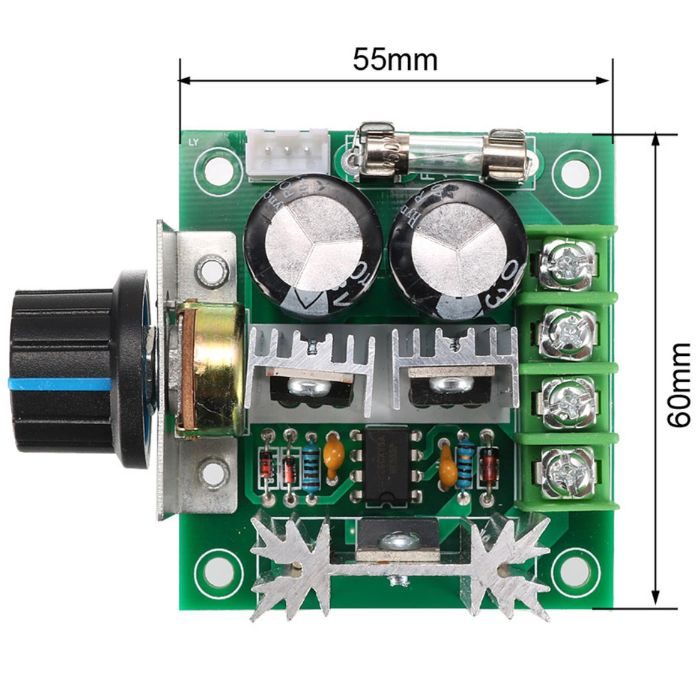

| Dimensions(LxWxH) | 6x5.5x2.8 cm |
| Weight | 69gm |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
1200W PWM Motor Speed Controller with Potentiometer
7
Regular price
Rs. 179
Regular price
Rs. 249
Sale price
Rs. 179
Unit price
per
Incl. GST (No Hidden Charges)
Sale
PWM DC Motor Speed Controller
Regular price
Rs. 214
Regular price
Rs. 326
Sale price
Rs. 214
Unit price
per
Incl. GST (No Hidden Charges)
Sale
MKS OSC V1.0 Stepper Motor Drive Simple Controller Pulse PWM Signal Generator Module Speed Control 8-24V
Regular price
Rs. 576
Regular price
Rs. 649
Sale price
Rs. 576
Unit price
per
Incl. GST (No Hidden Charges)
Sale
Found a better price?
Let us know!
We'll try to match the price for you
1. How does PWM control speed of DC motor?
- Pulse width modulation speed control works by driving the motor with a series of “ON-OFF” pulses and varying the duty cycle, the fraction of time that the output voltage is “ON” compared to when it is “OFF”, of the pulses while keeping the frequency constant.
2. What causes a DC motor to fail?
- High humidity levels can cause corrosion within the bearing, which leads to an increase in friction, which leads to an increase in wear. This could damage the shaft and bearings, preventing the motor from rotating smoothly, and affecting speed and torque.
3. How does PWM affect motor speed?
- The motor will run at a speed halfway between zero and full speed if we switch the power on and off quickly enough. A PWM controller does exactly that it turns on the motor in a series of pulses. Pulse Width Modulation is used to control the motor speed by varying (modulating) the width of the pulses.
4. What is a PWM DC Motor Speed Controller?
- The DC Motor Speed Controller allows controlling the direction of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 10%-100%. The motor speed controller can provide a continuous current of 8A to your DC motor or other DC load. The circuit also includes a 10A fuse, with the reverse connection of power supply and control voltage over-voltage protection function.
