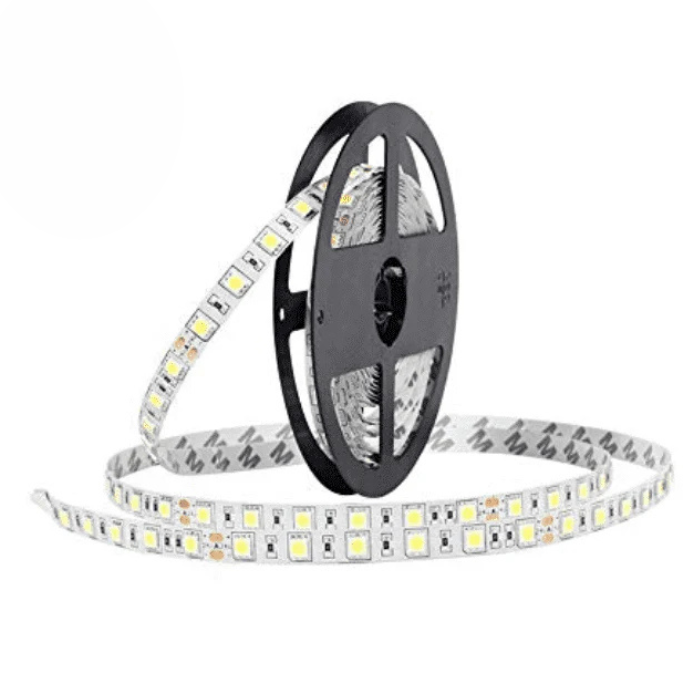

24V RGB 5050 SMD LED Strip Flexible 5M/Roll NO Waterproof

24V RGB 5050 SMD LED Strip Flexible 5M/Roll NO Waterproof

Out of stock

Regular price Rs. 439
Regular price Rs. 799 Sale price Rs. 439
Sale Sold out 45% off Best Price Guaranteed
You save Rs. 360 | Free Shipping on Orders Above ₹ 499/-
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here
  • This 5 meter LED strip with around 300 LEDs on strip operates at 24V at 2A DC supply.
  • The blink pattern and intensity can be easily controlled with the help of microcontrollers like Arduino, Node MCU, etc.
  • Protection Level: IP20 (Not Waterproof)
  • The length of this LED Strip is 5 Meter.
  • Flexible ribbon for curving around bends. Low power consumption
Trust Badge 1 Trust Badge 2 Trust Badge 3

24V RGB 5050 SMD LED Strip Flexible 5M/Roll NO Waterproof

24V RGB 5050 SMD LED Strip with 1Meter length has 300 Bright, RGB LEDs on the single strip!  The strip is comprised of 5050 Sized SMD RGB LEDs and draws a total of 22.5 Watts of Power. This RGB 5050 SMD LED Strip strip is flexible and can be bent to conform to curves and corners. Runs from 24VDC. (Power supply and controller not included) You need a minimum output 2 AMPs Adapter to power this full 1 Meter strip. Using an underpowered power supply on these strips will result in power loss down the line and mismatched colors due to a certain color of diodes not receiving enough power.

These strips are a bit different because, though they have the same number of LED modules (300) in another Cold white or Warm White roll, they actually have three times the light-emitting diodes as a regular LED strips. This is because each of the 300 modules on the strip each contains three colors. A red, a blue and a green LED. This means that, when set to white, at full brightness, the RGB strips use almost three times the power as the regular white strips. A 1 Meter roll of RGB LEDs uses roughly 2.8 Amps at 24VDC. So connecting three of these strips, end-to-end would result in roughly an 8.4 Amp requirement.

With this you can create different ambience at the comfort of your hands just by switching lights on and the designer sequence of lights that are already preset. These lights can be used as decorative pieces around the house especially during festive occasions, office buildings, walls etc. or for any functions to brighten the occasion.

read more : NEOPIXEL WORKING AND DEMO

Note: These are NOT individually addressable LED strips. Each color has its own separate 24VDC circuit. For a total of three 24VDC circuits (R G B). You can power these strips off of regular 24V DC if you don’t need advanced flashing patterns or color mixing.

Application:

  • Ideal for decoration of building outlines, landscape illumination, amusement themes.
  • Holiday light sculpture, decorative figure, active signs, displays, shop windows
  • Storefronts, bar, nightclub, street, sidewalk, deck, park, porch, staircase, railing, ceiling, or driveway.

Package Includes:

  • 1 x 24V RGB 5050 SMD LED Strip Flexible 5M/Roll NO Waterproof

Specifications:

LED Glow Color

RGB

Operating Voltage

24V DC

Operating Current

2A

Total Luminous Flux

18-20LM

View angle

120 ° ~ 140 °

Power required

8-10W/meter

Strip Width

10 mm

Strip Length

1 Meter

No. of LEDs

60LED/Meter

Protection Level

IP20 (No Waterproof)

Working Temperature

-20 °C to 50 °C

Weight(gm)

10
