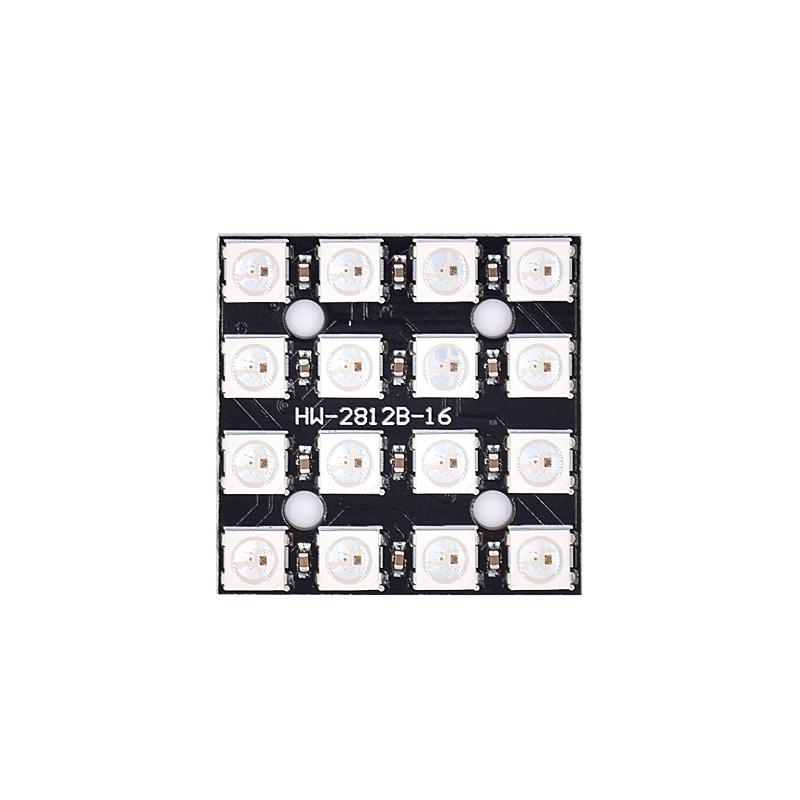

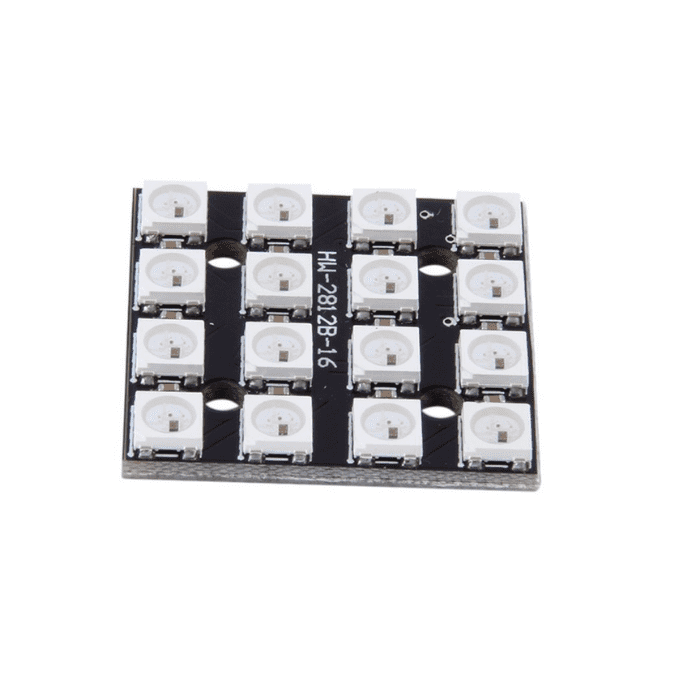

WS2812 16 Bit RGB LED Matrix

WS2812 16 Bit RGB LED Matrix

Regular price Rs. 71
Regular price Rs. 99 Sale price Rs. 71
Sale Sold out 28% off Best Price Guaranteed
You save Rs. 28 | Free Shipping on Orders Above ₹ 499/-
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Product will be SHIPPED TODAY, if ordered within 1 hours and 27 minutes.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here
  • Cost-effective, the color of the light is highly consistent
  • Send data at a speed of 800 kbps
  • Each pixel of the three primary colors can achieve 256 brightness, scan frequency is not less than 400 Hz/s
  • When the rate of refresh is 30 feet per second, the cascade number is not less than 1024 points
  • Built-in electric reset circuit and power lost reset circuit
Trust Badge 1 Trust Badge 2 Trust Badge 3

WS2812 16 Bit RGB LED Matrix

You can create animations, and games, or even incorporate them into a fun e-textiles project. On top of all that, thanks to its flexible backing, this LED Matrix can be bent and bowed to fit onto almost any curvy surface. These panels require a 5V low voltage input for power which needs to be able to source a good amount of current.

Each LED is capable of drawing as much as 60mA (at peak brightness the matrix can draw just over 3.5 Amps at 5 Volts), this adds up so it is suggested to use a 5V 2A power supply.

There are two 3-pin connection ports to the wiring board. Solder wires to the input port and provide 5VDC to the +5V and ground pins, then connect the DIN pin to your microcontroller and make a common ground from the 5V power supply to the microcontroller/Arduino.

Package Includes:

  • 1 x WS2812 16 Bit RGB LED Matrix

Specifications

Model  WS2812
Bit  16
Board Colour  Black
Dimensions  3×3 cm
Data Transmission Speed  800 kbps
Rate of Refresh  30 feet per second
Weight  15 grams
