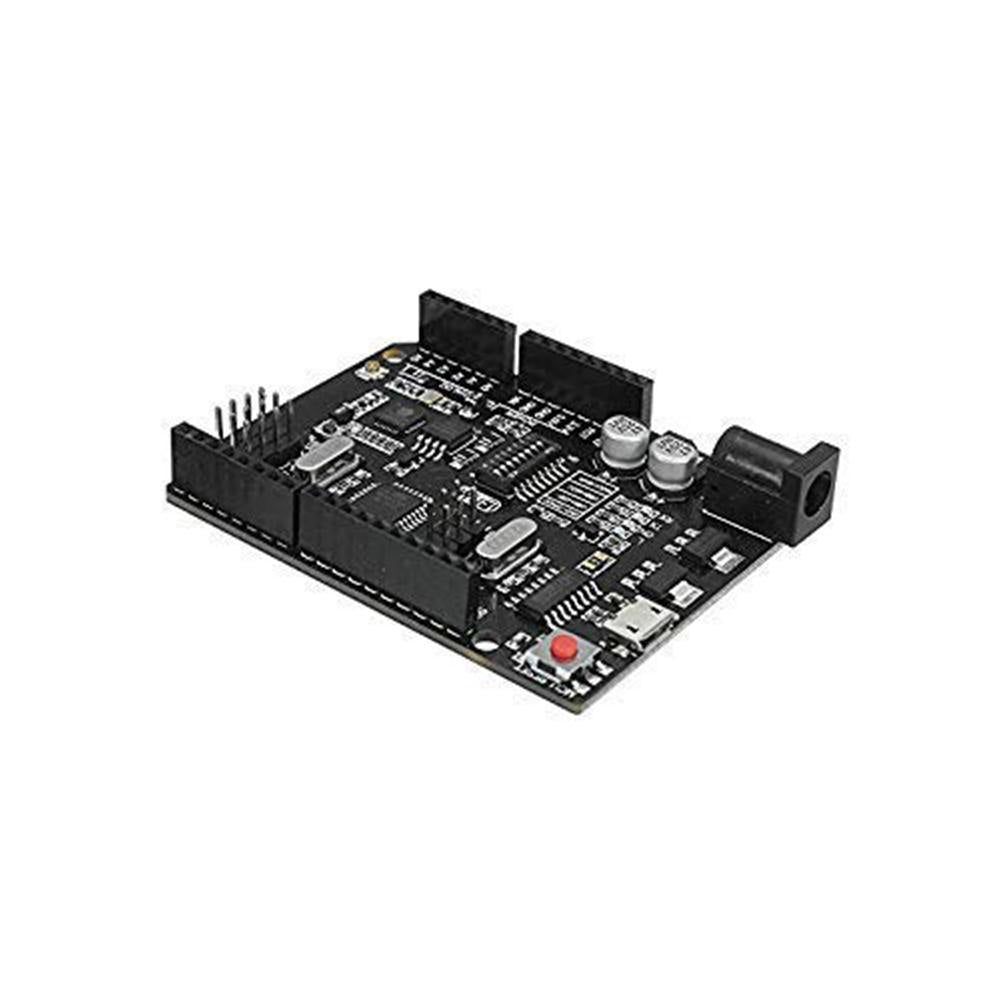

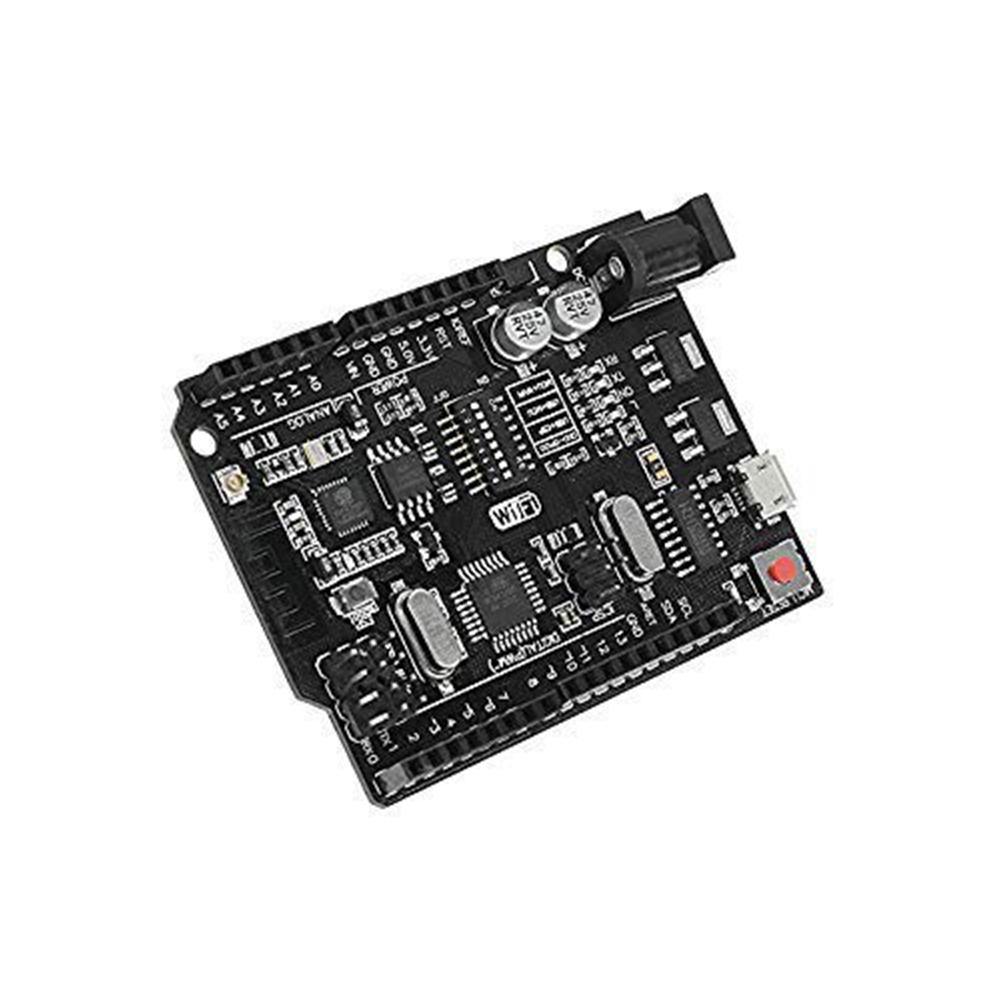

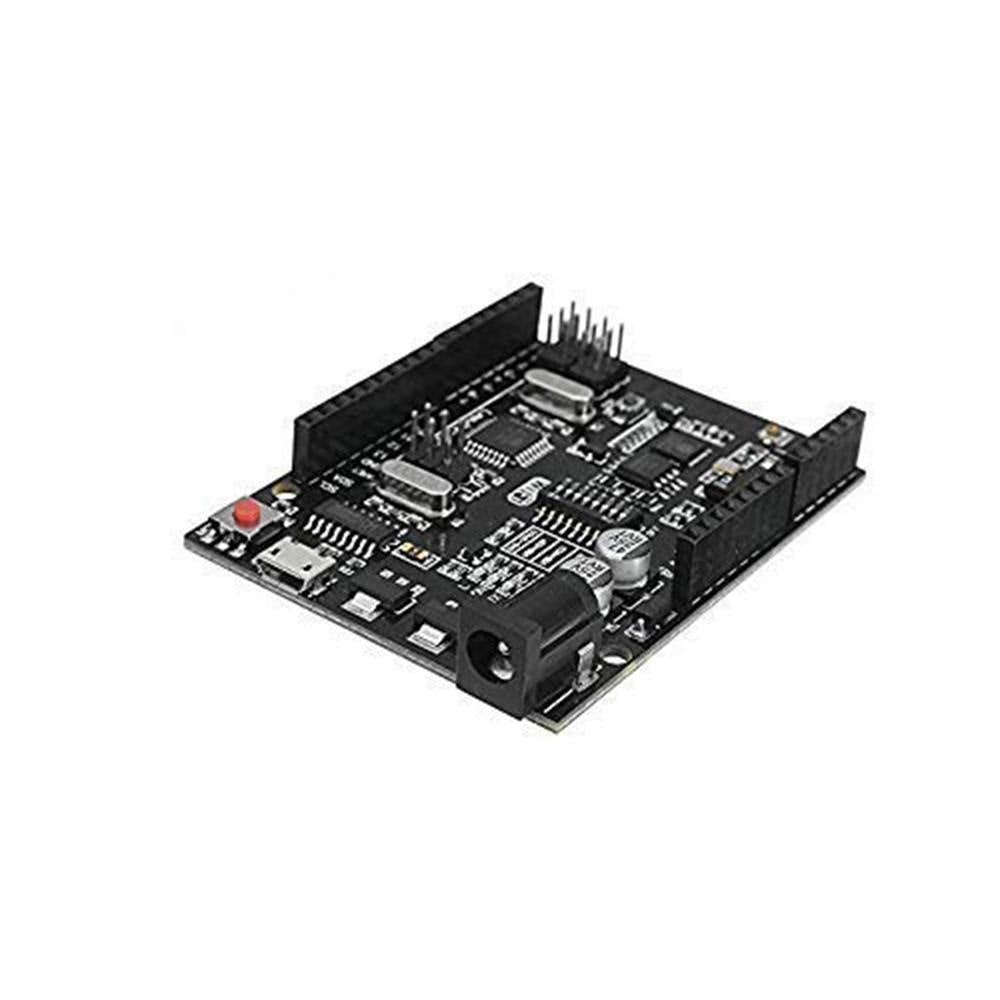

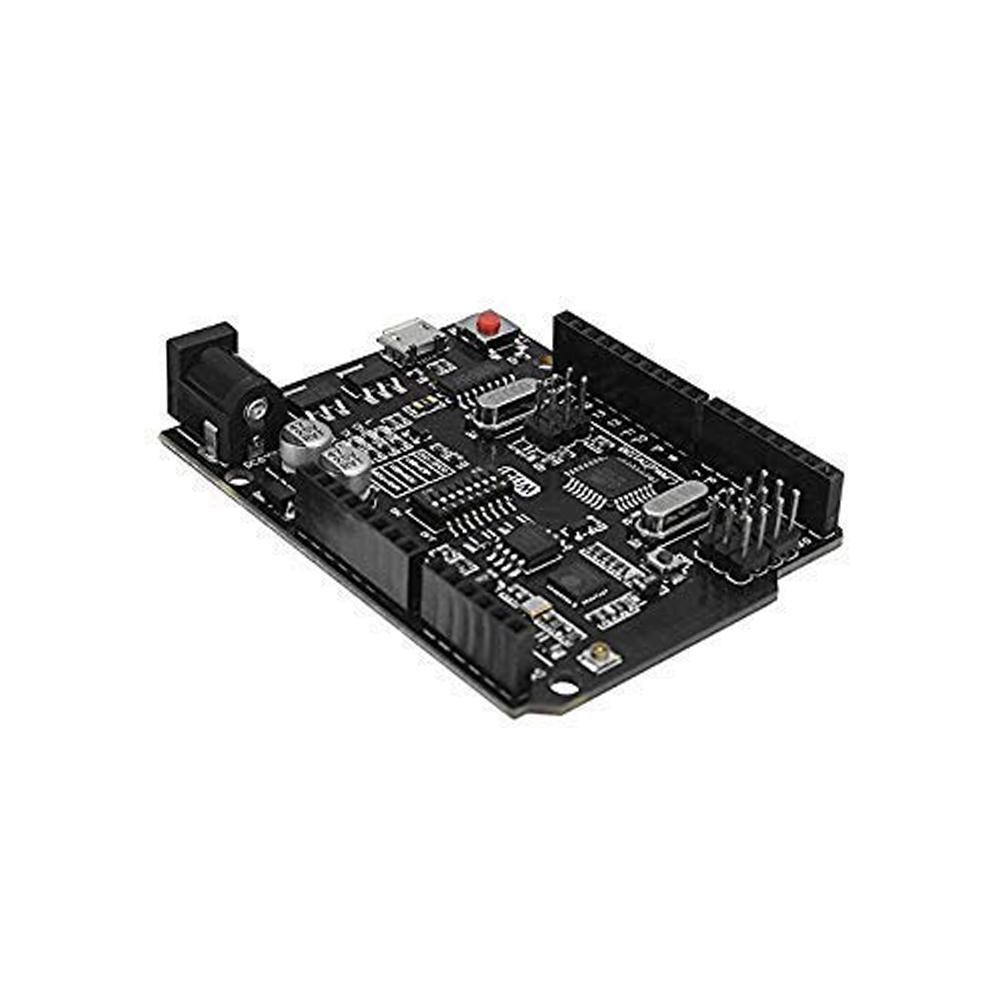

Arduino UNO+WiFi R3 ATmega328P+Node MCU ESP8266 CH340G Compatible Board
Arduino UNO+WiFi R3 ATmega328P+Node MCU ESP8266 CH340G Compatible Board
Low stock: 6 left
Regular price
Rs. 510
Regular price
Rs. 749
Sale price
Rs. 510
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Product will be SHIPPED TODAY, if ordered within 3 hours and 22 minutes.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- This is UNO+WiFi R3 ATmega328P+Node MCU ESP8266 CH340G Board Compatible with Arduino
- This board has USB-TTL converter.
- This board has ATmega328P microcontroller
- Operating Supply Voltage: of this board is 5V.
- Digital I/O Pins of this board are 14.
- Analog I/O Pins of this board are 6.
CH340G Board compatible with Arduino

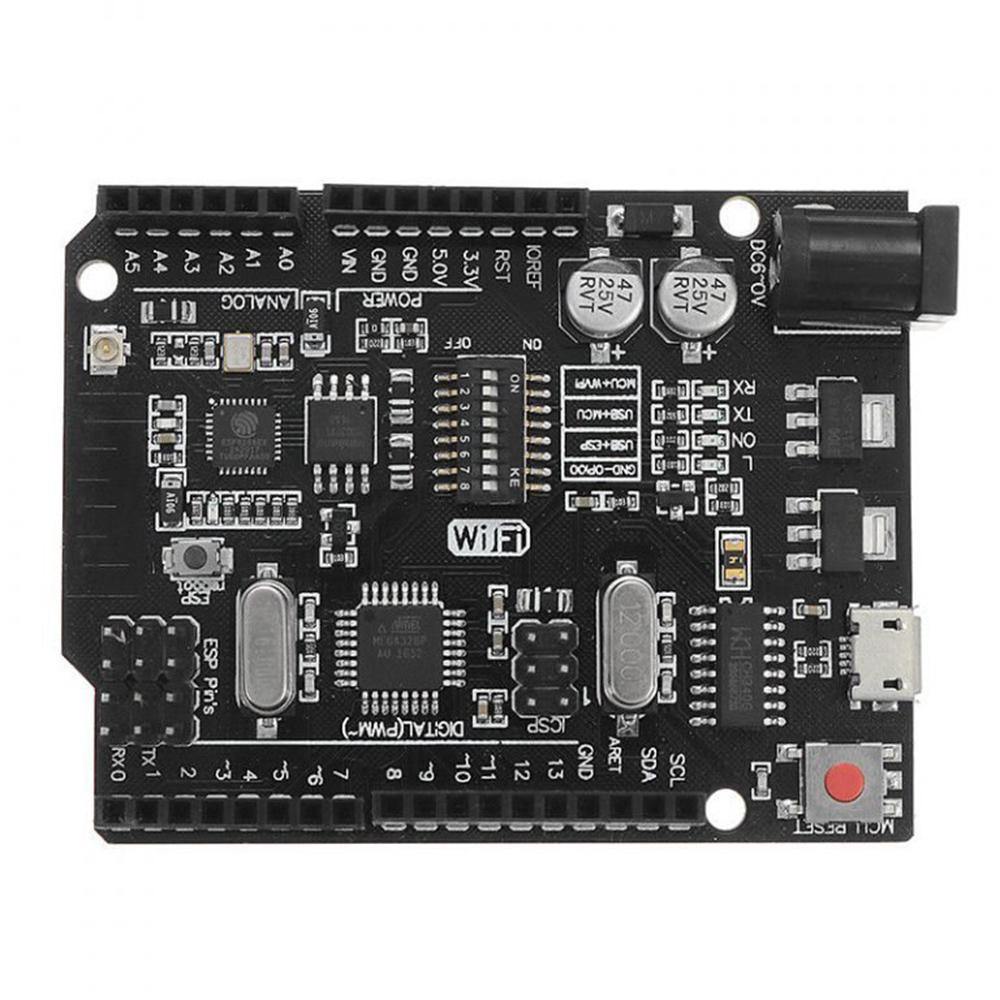

The Uno+WiFi R3 is a fully integrated board that combines the Uno R3 ATmega 328 microcontroller with the WiFi ESP8266 chip, along with 8Mb of memory, all on a single board. Both modules can operate together or separately, each with their own pinout headers.
This board provides a convenient solution for developing new projects that require both Uno and WiFi functionalities. It includes a USB-serial converter, CH340G, allowing for easy updating of sketches and firmware for both ATmega328 and Node MCU ESP8266.
Essentially a modernized version of the classic Arduino UNO R3 board, the Uno+WiFi R3 offers simple operations and includes a DIP switch to connect the different modules in various configurations. LED lights are provided for connecting peripheral sensors and modules, making it a versatile choice for a wide range of projects.
Check out the entire range of Compatible Arduino Boards
Applications:
- WiFi-based IoT applications.
- IoT home automation.
- Internet Smoked Alarm.
- Incubator Controller.
- Security Alarms.
Comparison With Similar Boards:
|
Specification |
|||
| Microcontroller | ATmega4809 | ATmega328P (SMD) | ATmega328P (Through hole) |
| USB connector | Micro-USB | USB-B | USB-B |
| Digital I/O Pins | 14 | 14 | 14 |
| Analog input pins | 6 | 6 | 6 |
| PWM pins | 5 | 6 | 6 |
| UART | Yes | Yes | Yes |
| I2C | Yes | Yes | Yes |
| SPI | Yes | Yes | Yes |
| I/O Voltage | 5V | 5V | 5V |
| Input voltage (nominal) | 7-12V | 7-12V | 7-12V |
| DC Current per I/O Pin | 20mA | 20 mA | 20 mA |
| Power Supply Connector | Barrel Plug | Barrel Plug | Barrel Plug |
| clock speed | 16 MHz | 16 MHz | 16 MHz |
| USB-Serial chip | ATmega16U2 | CH340 | ATmega16U2 |
| SRAM | 6.144KB | 2KB | 2KB |
| Flash Memory | 48KB | 32KB | 32KB |
| EEPROM | 256 Bytes | 1KB | 1KB |
| Dimensions | 68.6 mm x 53.4 mm | 68.6 mm x 53.4 mm | 68.6 mm x 53.4 mm |
| RADIO MODULE | u-blox NINA-W102 | - | - |
| Inertial Measurement Unit | LSM6DS3TR (3D accelerometer) | - | - |
| LED_BUILTIN | 25 | 13 | 13 |
| Wi-Fi Microprocessor | Yes | - | - |
Package Includes:
- 1 x UNO+WiFi R3 ATmega328P+ESP8266 CH340G Board compatible with Arduino
Specifications:
| Microcontroller | ATmega328IC |
| Wi-Fi Module | Node MCU ESP8266 |
| Input supply voltage (V) | 3.3 ~ 5 |
| Current consumption (mA) | 800 |
| Dimensions | 7 x 5.35 x 1.5cms |
| Weight | 25 grams |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
Arduino MEGA 2560 CH340 R3 Compatible Board
Regular price
Rs. 1,099
Regular price
Rs. 1,599
Sale price
Rs. 1,099
Unit price
per
Incl. GST (No Hidden Charges)
Sale
Arduino MEGA 2560 Atmel R3 compatible Board
Regular price
Rs. 1,099
Regular price
Rs. 1,648
Sale price
Rs. 1,099
Unit price
per
Incl. GST (No Hidden Charges)
Sale
Arduino Due AT91SAM3X8E ARM Cortex-M3 compatible Board
Regular price
Rs. 2,800
Regular price
Rs. 3,999
Sale price
Rs. 2,800
Unit price
per
Incl. GST (No Hidden Charges)
Sold out
Found a better price?
Let us know!
We'll try to match the price for you
1. Which Arduino uses ATmega328P?
- Arduino Uno Wifi module is suitable for both beginners and advanced Learners, this board can be used for almost any project thanks to its versatility. This is a modified version of the classic Arduino UNO R3 board. Fully integrated ATmega328 microcontroller and his IO ESP8266 with 32MB flash memory and USB-TTL converter CH340G. All modules can work together or independently. The atmega328p Arduino compatible to esp8266 board has wifi feature which makes it easier to use for Home automation and IoT projects. Atmega328p smd pinout are similar to that of Arduino Uno.
2. Does the Arduino Uno have Wi-Fi?
- No, The Arduino Uno does not come with inbuilt WiFi. The Arduino Uno atmega328p board with WIFI is similar development board with inbuild wifi. This Arduino Uno wifi board can be used as a replacement for the Arduino Uno. The Arduino uno wifi esp8266 connection is possible with the help of the Uno+Wifi Board.
3. Why ATmega328 is used in Arduino Uno?
- The Arduino Uno's ATmega328 comes pre-programmed with a bootloader that allows new code to be uploaded without the use of an external hardware programmer. Communicate using the original STK500 protocol. The ATmega328P is a high performance, low power 8-bit AVR microcontroller with an advanced RISC architecture capable of executing 131 instructions in almost a single clock cycle.
4. Is Arduino and Atmega328 same?
- The Atmega328 is like a brain of Arduino that commands the Arduino to perform any particular task. So, Arduino and Atmega328 are not the same thing but All the Arduino has atmega328 inbuilt in it.
