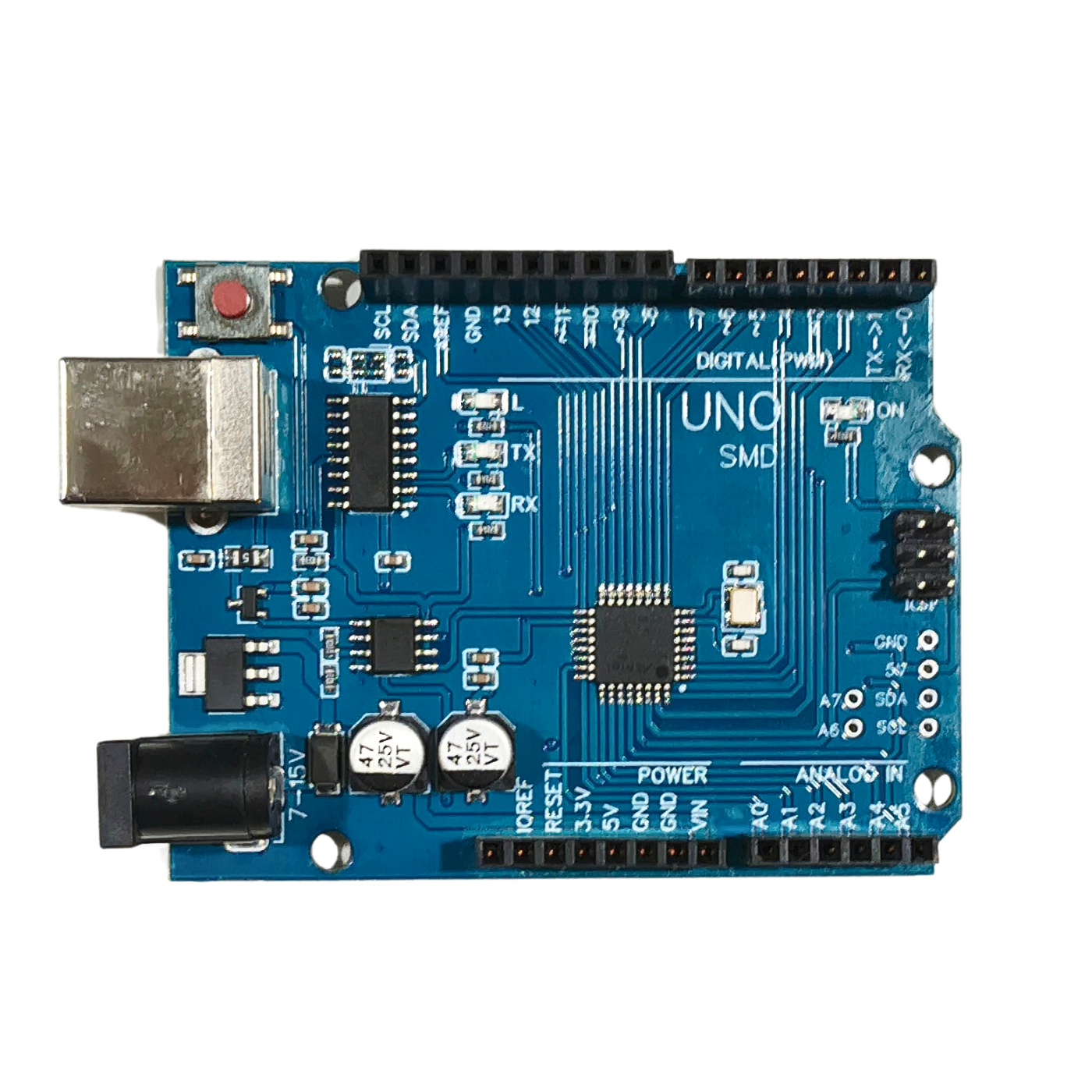

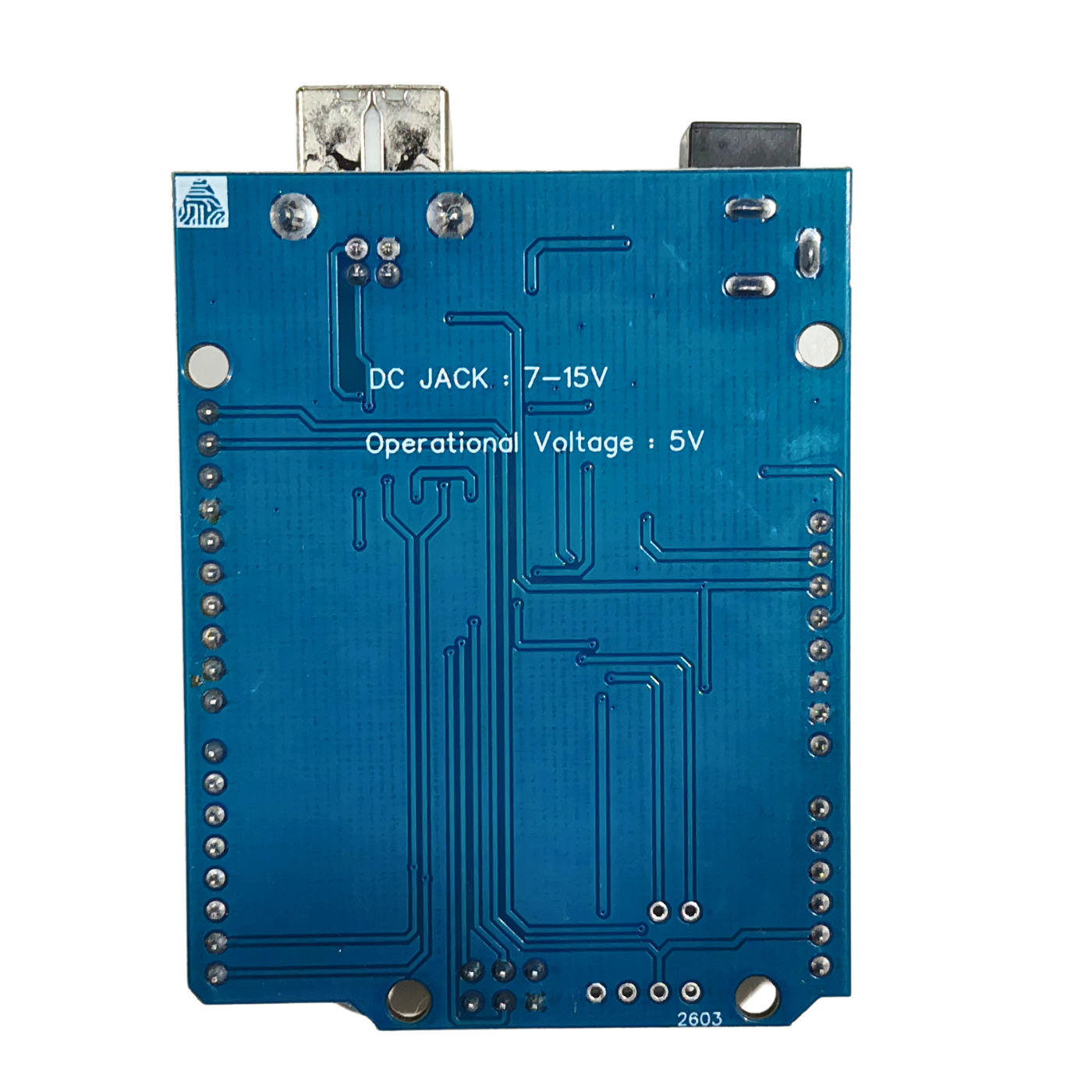

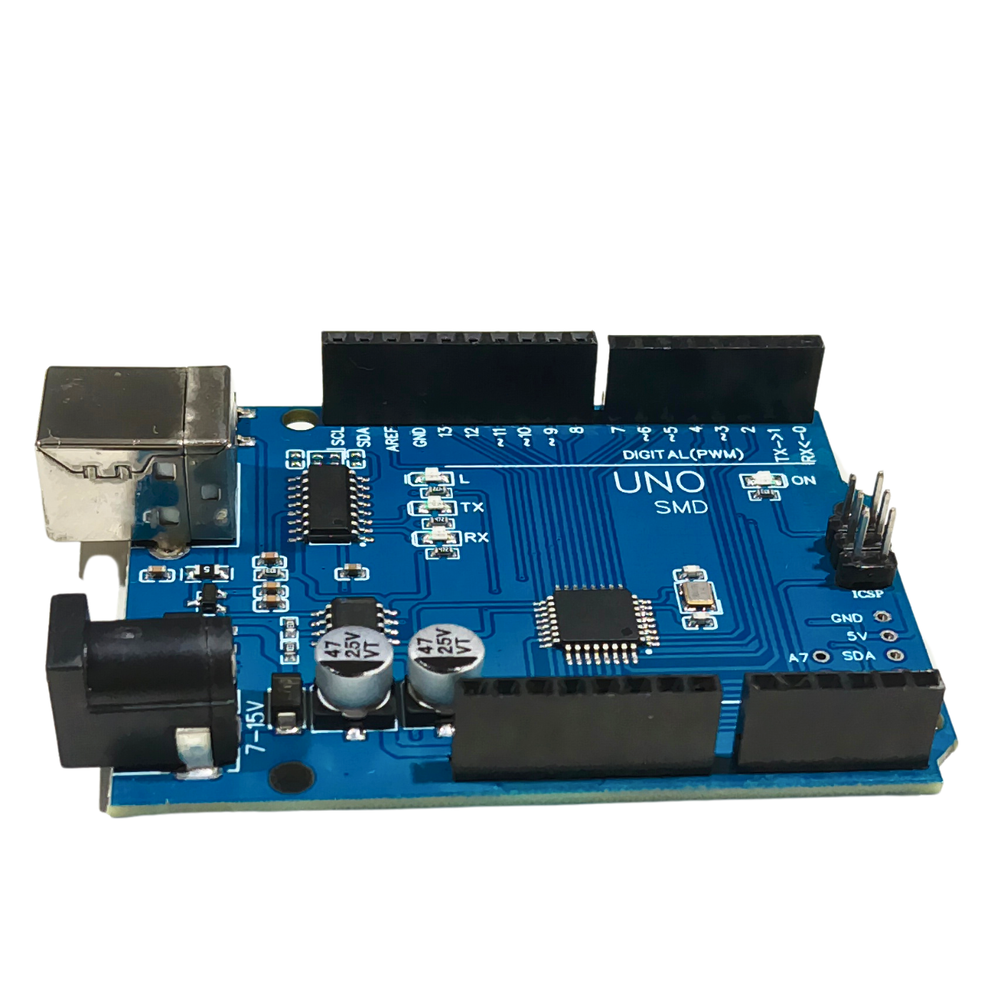

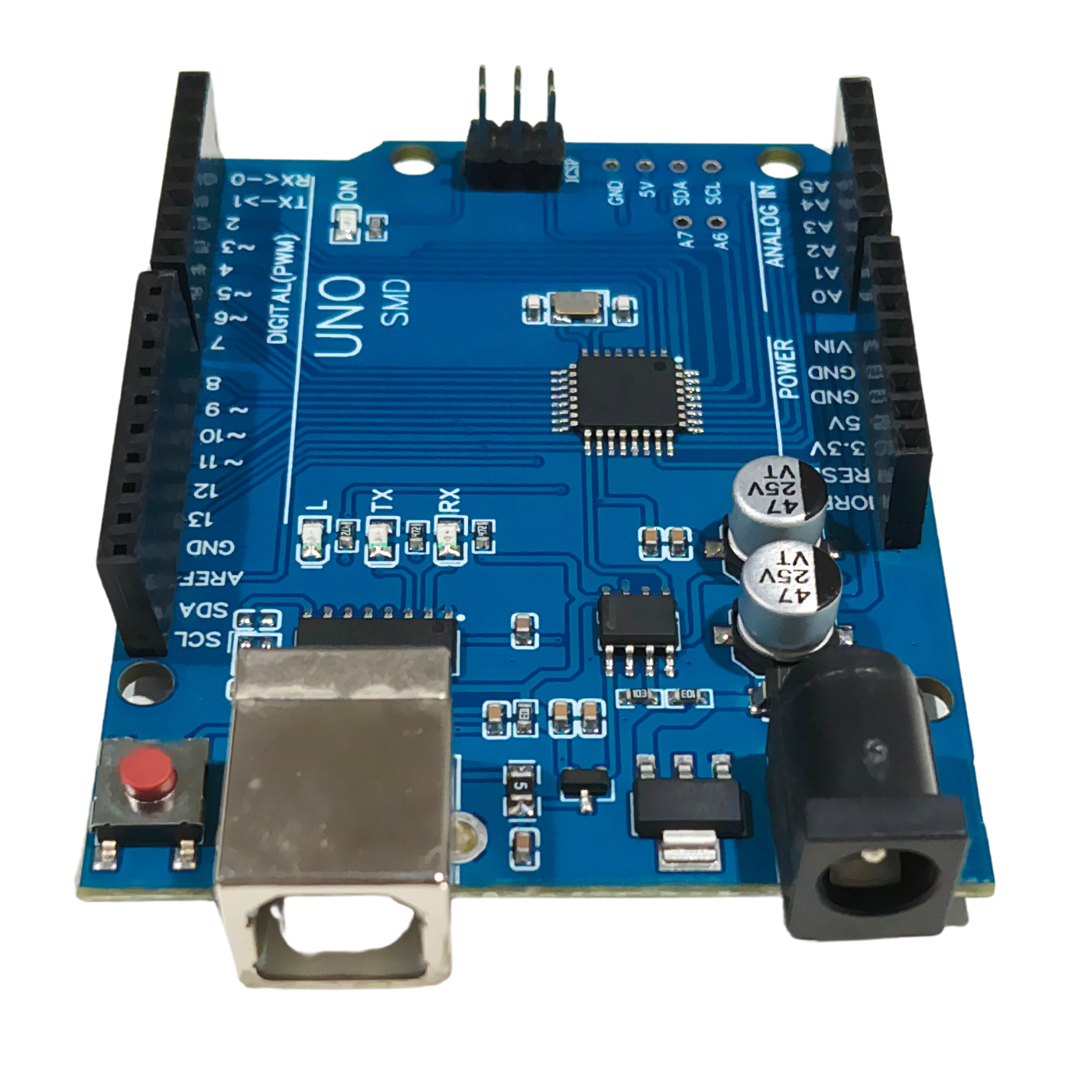

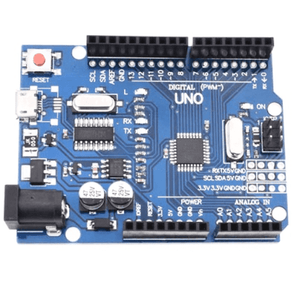

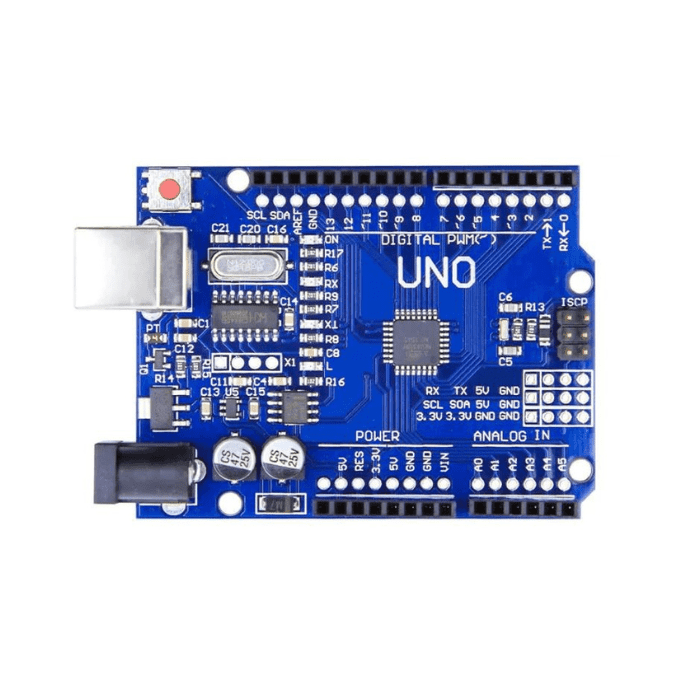

UNO SMD Board compatible with Arduino
The Uno SMD board is based on the ATmega328. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started.
The Uno SMD development board comes with a CH340G USB to UART converter chip. So in order to use this board, we need to install the CH340 driver. It can be powered via a USB connection or with an external power supply. The power source is selected automatically.
The AC-DC adapter can be connected by plugging a 2.1mm center-positive plug into the board's power jack. Leads from a battery can be inserted in the Gnd and Vin pin headers of the POWER connector. The board can operate on an external supply of 6 to 20 volts. If supplied with less than 7V, however, the 5V pin may supply less than five volts and the board may be unstable. If using more than 12V, the voltage regulator may overheat and damage the board. The recommended range is 7 to 12 volts.
If you want to use this UNO SMD Board compatible with Arduino in your small or DIY projects, for that you will need few essential components like
Comparison of Uno Boards:
|
Specification |
UNO SMD |
||
| Microcontroller | ATmega4809 | ATmega328P (SMD) | ATmega328P (Through hole) |
| USB connector | Micro-USB | USB-B | USB-B |
| Digital I/O Pins | 14 | 14 | 14 |
| Analog input pins | 6 | 6 | 6 |
| PWM pins | 5 | 6 | 6 |
| UART | Yes | Yes | Yes |
| I2C | Yes | Yes | Yes |
| SPI | Yes | Yes | Yes |
| I/O Voltage | 5V | 5V | 5V |
| Input voltage (nominal) | 7-12V | 7-12V | 7-12V |
| DC Current per I/O Pin | 20mA | 20 mA | 20 mA |
| Power Supply Connector | Barrel Plug | Barrel Plug | Barrel Plug |
| clock speed | 16 MHz | 16 MHz | 16 MHz |
| USB-Serial chip | ATmega16U2 | CH340 | ATmega16U2 |
| SRAM | 6.144KB | 2KB | 2KB |
| Flash Memory | 48KB | 32KB | 32KB |
| EEPROM | 256 Bytes | 1KB | 1KB |
| Dimensions | 68.6 mm x 53.4 mm | 68.6 mm x 53.4 mm | 68.6 mm x 53.4 mm |
| RADIO MODULE | u-blox NINA-W102 | - | - |
| Inertial Measurement Unit | LSM6DS3TR (3D accelerometer) | - | - |
| LED_BUILTIN | 25 | 13 | 13 |
| Wi-Fi Microprocessor | Yes | - | - |
Applications:
- Arduino Music Instrument
- Robot Car
- Fingerprint door lock
- Home Automation
- Security systems
Package Includes:
- 1 x UNO SMD Board compatible with Arduino
Specifications:
| Microcontroller | ATmega328 |
| Digital I/O Pins | 14 |
| Analog Inputs | 6 |
| Crystal Oscillator Frequency | 16MHz |
| Operating Voltage | 6-20V |
| Dimensions | 7 x 5 x 1cms |
| Weight | 10 grams |
ADDITIONAL RESOURCES
1. What is the difference between Uno and Uno SMD?
- In the UNO SMD (Surface Mounted Device) the microprocessor chip (ATmega328) is integrated and soldered onto the board; whereas the ATmega328 is DIP in the standard UNO (Dual In-line Packaged), which means that the microprocessor chip can easily be removed and replace if necessary.
2. Why is Uno SMD better?
- The Uno board is primarily used by beginners who can use it in electronics projects and for programming. The Uno SMD is extremely user-friendly while allowing for exceptional connectivity.
3. Where can we use the UNO SMD Board?
- The Uno is an open-source microcontroller board based on the Microchip ATmega328P microcontroller and is commonly used in Robot cars, Fingerprint door locks, Home Automation, and Security systems.
4. What chip does Uno SMD use?
- The Uno is an open-source microcontroller board based on the Microchip ATmega328P microcontroller. The board is equipped with sets of digital and analog input/output (I/O) pins that may be interfaced with various expansion boards (shields) and other circuits.
5. Does Uno SMD have ATmega328?
- Uno SMD is a microcontroller board based on the ATmega328P.It has 14 digital input/output pins, 6 analog inputs, a 16 MHz ceramic resonator (CSTCE16M0V53-R0), a USB connection, a power jack, an ICSP header, and a reset button.
