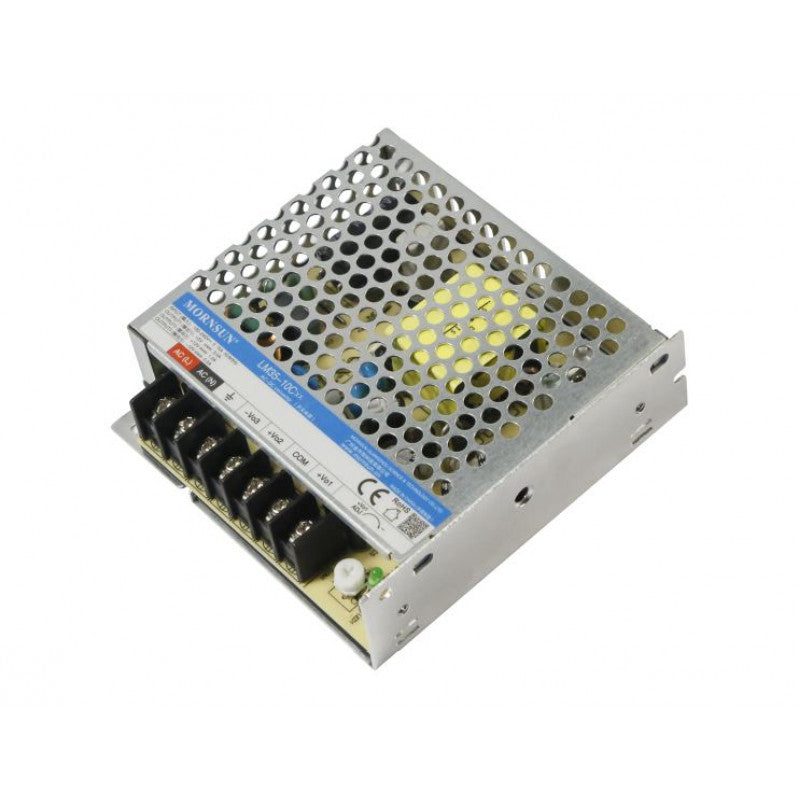

Mornsun LM35-10C052412-05 AC/DC 35W Enclosed Switching Power Supply

Mornsun LM35-10C052412-05 AC/DC 35W Enclosed Switching Power Supply

The LM35-10C052412-05 is a triple-output power converter that can independently supply three different loads in a system. It can be used in harsh working environments, with an ambient temperature range of -30°C to +70°C, without the need for a fan. The converter meets the requirements of IEC61000 for EMC immunity and CISPR32/EN55032 for emission standards, class B, without any external components. It also meets IEC/EN/UL62368, EN60335, and GB4943 safety standards. The converter offers a variety of protection features and a high-performance to low-cost ratio, making it a good choice for a variety of industries, including industrial control equipment, instrumentation, and smart home and building equipment.

check out : Mornsun LM100-10C052412-20 AC/DC 100W Enclosed SMPS

Features

• Triple-output design
• Wide operating temperature range
• No fan required
• Meets EMC and emission standards
• Provides a variety of protection features
• High-performance to low-cost ratio

The LM35-10C052412-05 is a versatile and reliable power converter that can be used in a variety of applications. It is a good choice for demanding environments and applications where cost is a factor.

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

check out : Mornsun LM35-10C051515-10 AC/DC 35W Enclosed Switching Power Supply

Package Includes:

1 x  Mornsun LM35-10C052412-05 AC/DC 35W Enclosed Switching Power Supply

Specifications:
