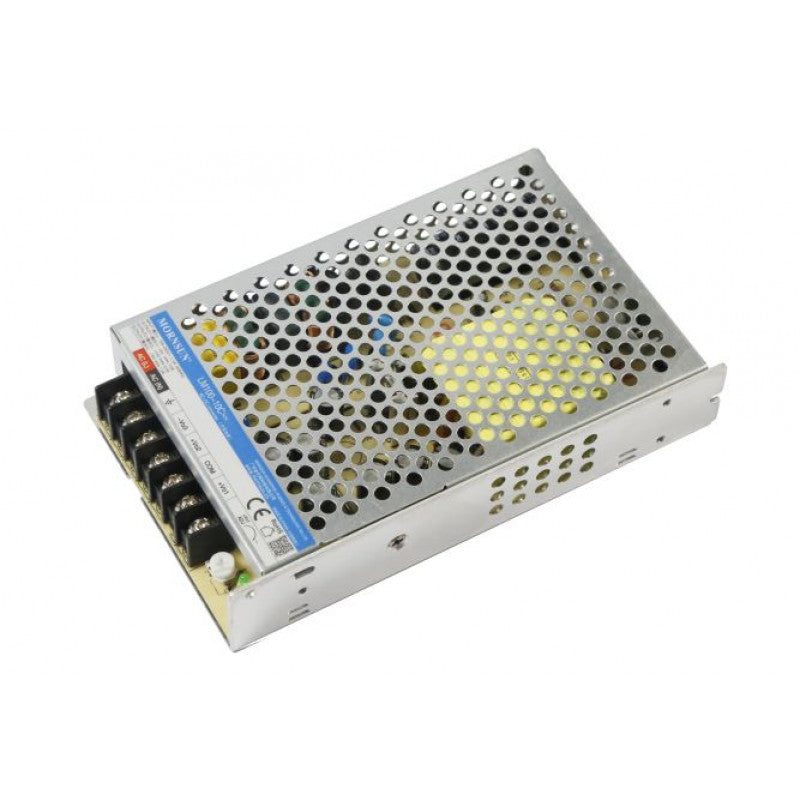

Mornsun LM100-10C052412-20 AC/DC 100W Enclosed SMPS
Mornsun LM100-10C052412-20 AC/DC 100W Enclosed SMPS
Out of stock
Couldn't load pickup availability
Free shipping on Orders Above Rs 499/-
Fast Delivery
Technical Support & Easy Returns
Raise a Ticket
Earn RC Coins on Every Purchase
Rewards
Cash on Delivery Available
Cash Delivery
COUPON
When you shop for ₹ 5000 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Universal 90 - 264VAC or 120 - 370VDC input voltage
- Operating ambient temperature range: -30℃ to +70℃
- High efficiency, high reliability and long life
- LED indicator for power on
- Output short circuit, over-current, over-voltage protection
- High I/O isolation test voltage up to 3000VAC
- Withstand 5G vibration test
- Operating altitude up to 5000m
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LM100-10C052412-20 AC/DC 100W Enclosed SMPS
The LM100-10C052412-20 is a power converter with three output versions, which can independently supply three different loads in the system. It can be used in harsh working environments with an ambient temperature range of -30℃ to +70℃, without the need for a fan. The converter meets the requirements of IEC61000 standard for EMC immunity and CISPR32/EN55032, class B emission standard without any external components, thus providing excellent EMC protection. It also meets IEC/EN/UL62368, EN60335, GB4943 safety standards. The converter integrates a variety of protection features and offers a high-performance to low-cost ratio, making it the best power solution for a variety of industries such as industrial control equipment, instrumentation, and smart home and building equipment application.
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
check out : Mornsun LM50-10C051212-20 AC/DC 50W Enclosed SMPS
Package Includes:
1 x Mornsun LM100-10C052412-20 AC/DC 100W Enclosed SMPS
Specifications:
| Type | Enclosed Type Triple Output |
| Output Power | 96W |
| Series | LM100-10C |
| Part Number | LM100-10C052412-20 |
| Mechanical Form | Enclosed |
| IP Level | Non-Waterproof |
| Output Voltage | 5V, 24V, 12V |
| Output Current | 6A, 2A, 1.5A |
