25cm Multipurpose Engineering Measuring PCB Ruler
Couldn't load pickup availability

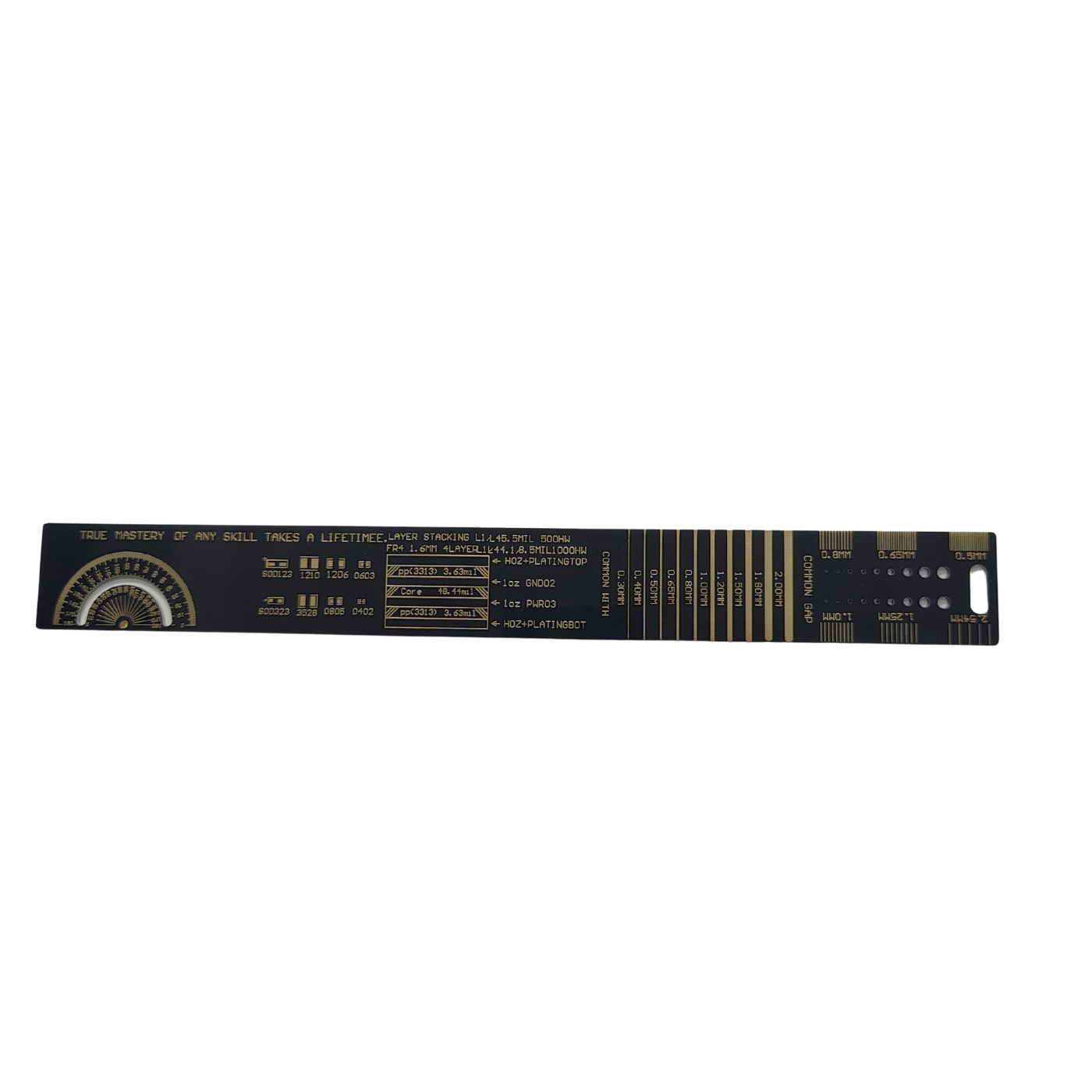

The Multipurpose 25cm PCB Ruler is designed for electronics enthusiasts, makers, and PCB designers who need a versatile and information-packed measuring tool. Crafted from durable FR4 PCB material with high-quality R-4 gold-plating, this ruler offers exceptional hardness, wear resistance, and long-lasting performance.
Its dual-scale layout allows accurate measuring in both millimeters and inches, making it suitable for PCB layout work, prototyping, and debugging.

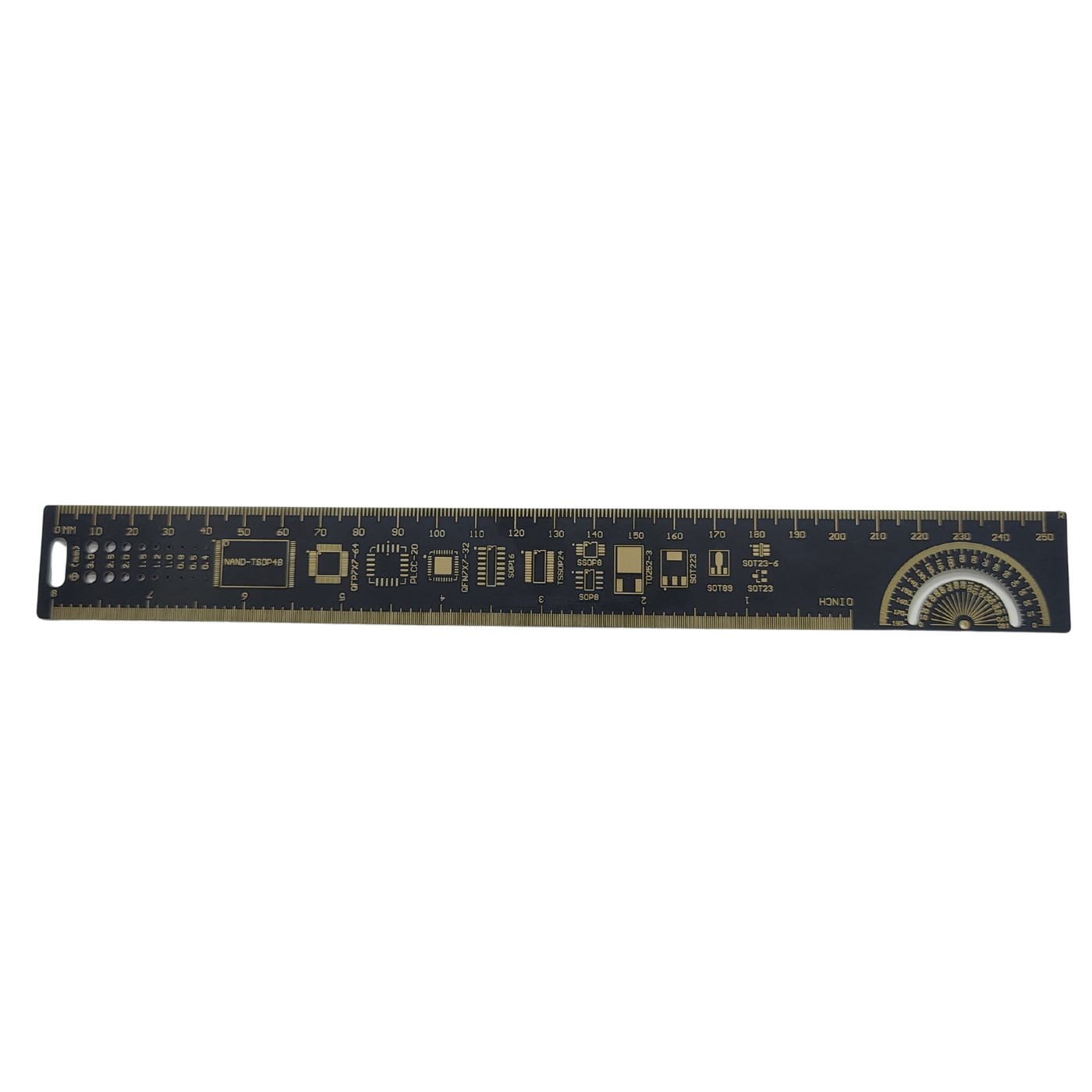

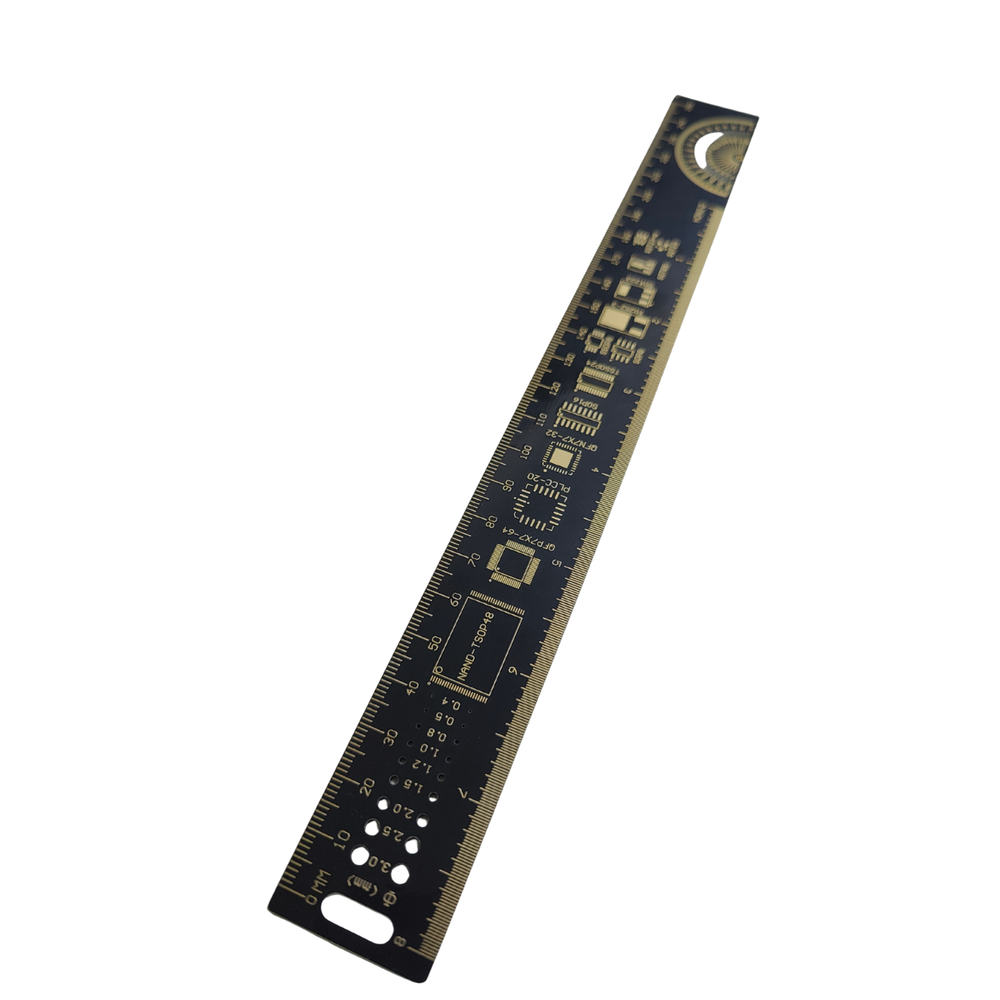

Beyond basic measurement, this 25cm ruler integrates a wide variety of PCB design references directly onto its surface. It includes angle gauges, IC pin spacing tables, SMD package outlines, resistor and capacitor chip sizing, hole diameter references, and trace-width guides.
The addition of AWG drill hole sizing helps users compare wire thicknesses quickly during assembly. Whether you're designing circuits or troubleshooting, this all-in-one PCB ruler ensures you always have essential data at your fingertips.
| Item Type | Gold-Plated Printed Circuit Board Ruler |
|---|---|
| Measuring Range | 25cm / 10 inches |
| Suitable Measurements | IC pin spacing tables, SMD resistor & capacitor packages, angle gauges |
| Material | FR4 PCB with R-4 gold plating |
| Ruler Length | 260mm |
| Ruler Width | 40mm |
| Ruler Thickness | 1.6mm |
| Markings | Copper-etched precision markings |
| Weight | Lightweight & portable |
