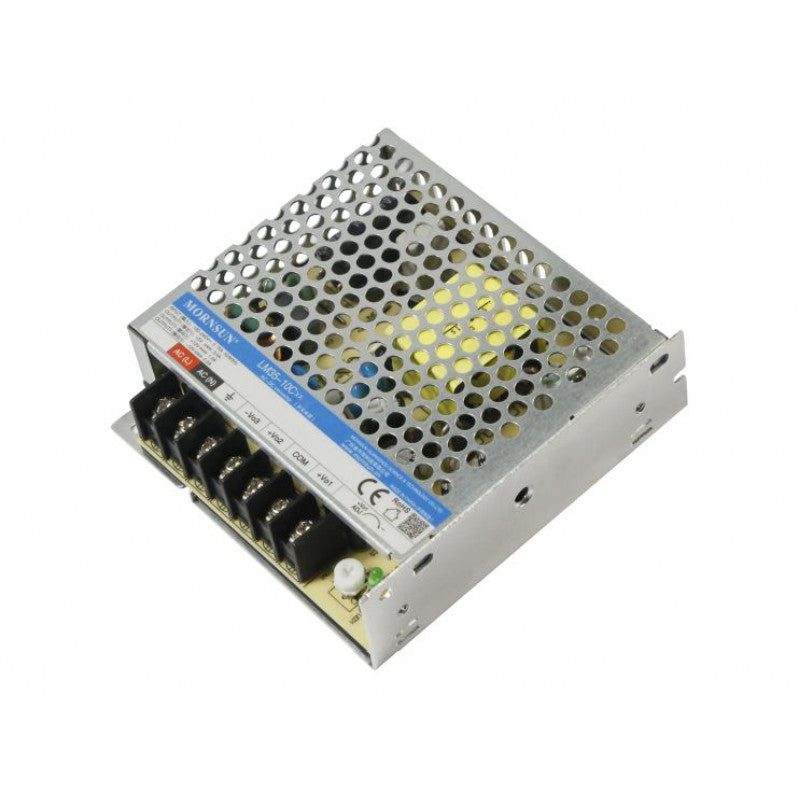

Mornsun LM35-10C051515-10 AC/DC 35W Enclosed Switching Power Supply

Mornsun LM35-10C051515-10 AC/DC 35W Enclosed Switching Power Supply

Out of stock

Regular price Rs. 1,976
Regular price Rs. 2,700 Sale price Rs. 1,976
Sale Sold out 27% off Best Price Guaranteed
You save Rs. 724 | Eligible for Free Shipping
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here
  • Universal input voltage of 85 - 264VAC or 120 - 370VDC
  • Operating ambient temperature range of -30℃ to +70℃
  • High efficiency, high reliability, and long lifetime
  • LED indicator for power on
  • Output short circuit, over-current, and over-voltage protection
  • High I/O isolation test voltage up to 3000VAC
  • Emissions compliant to CISPR32/EN55032 CLASS B
  • Withstands 5G vibration test
  • Operating altitude up to 5000m
  • Design refers to UL/IEC62368-1, EN60335-1, GB4943.1

This product is not available for store pickup. Apologies for the inconvenience caused

Trust Badge 1 Trust Badge 2 Trust Badge 3

Mornsun LM35-10C051515-10 AC/DC 35W Enclosed Switching Power Supply

The LM35-10C051515-10 is a power converter with three independent output channels. It can be used in a wide range of environments, from -30°C to +70°C, without the need for a fan. The converter meets the requirements of several safety and emissions standards, and it offers a high level of performance and protection at a low cost. It is a good choice for a variety of applications, including industrial control equipment, instrumentation, and smart home and building equipment.

Features

    • Three independent output channels
    • Wide operating temperature range
    • No fan required
    • Meets safety and emissions standards
    • High level of performance and protection
    • Low cost

    The LM35-10C051515-10 is a versatile and reliable power converter that can be used in a wide range of applications. It is a good choice for users who are looking for a high-performance, low-cost solution.

    Note:

    • Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
    • The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
    • All index testing methods in this datasheet are based on our company's corporate standards
    • In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
    • The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
    • The output voltage can be adjusted by the ADJ, clockwise to increase
    • Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
    • The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

    Package Includes:

    1 x  Mornsun LM35-10C051515-10 AC/DC 35W Enclosed Switching Power Supply

    Specifications:

    Type Enclosed Type Triple Output
    Output Power 35W
    Series LM35-10C
    Part Number LM35-10C051515-10
    Mechanical Form Enclosed
    IP Level  Non-Waterproof
    Output Voltage 5V, 15V, -15V
    Output Current 2.5A, 1A, 0.5A
