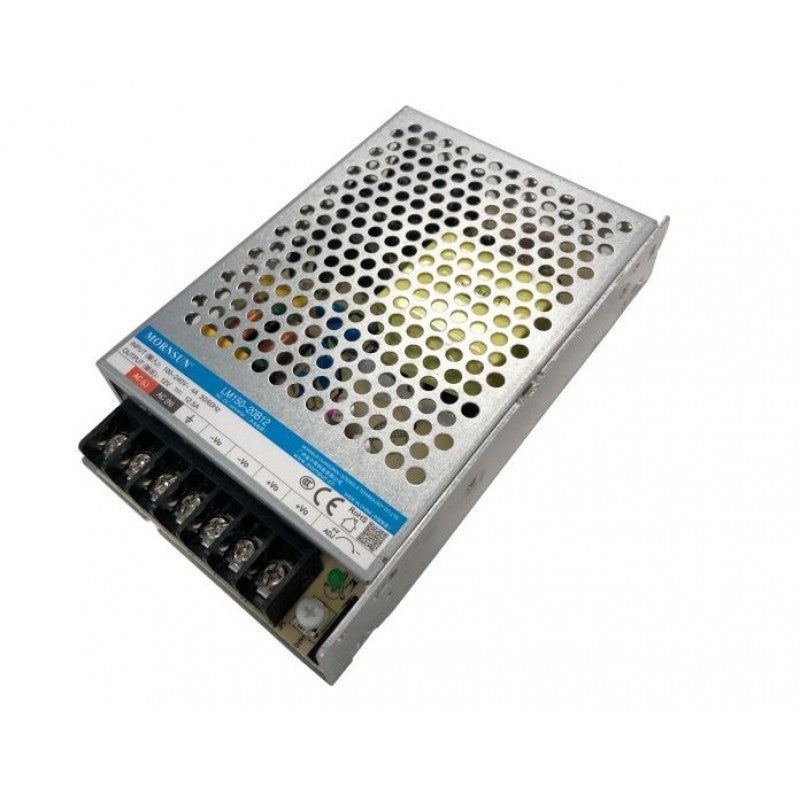

Mornsun LM150-20B12 AC/DC 150W Enclosed SMPS
Mornsun LM150-20B12 AC/DC 150W Enclosed SMPS
s

Mornsun FREE SHIPPING BEST PRICE GUARANTEED

Mornsun LM150-20B12 AC/DC 150W Enclosed SMPS - Buy Online in India

Mornsun LM150-20B12 AC/DC 150W Enclosed SMPS

Rs. 2,008
Rs. 2,743
Rs. 2,008
Save Rs. 735
(-27%)
Incl. GST (No Hidden Charges) Found a better price?
Please hurry! Only 0 left in stock
SKU: DTIFPS0207
  • Universal AC input of 85 - 264VAC or 120 - 370VDC
  • Accepts AC or DC input (dual-use of same terminal)
  • Operating ambient temperature range of -30℃ to +70℃
  • Low standby power consumption and high efficiency
  • High I/O isolation test voltage up to 4000VAC
  • Low ripple & noise
  • Output short circuit, over-current, over-voltage, and over-temperature protection
  • Over-voltage class Ⅲ (designed to meet EN61558)
  • Operating altitude up to 5000m

This product is not available for store pickup. Apologies for the inconvenience caused

BEST COUPON
RC100
COPY CODE
When you shop for ₹ 2,500 required. Applicable at Checkout.
*Coupons are not applicable on Original Boards and Kits

Free shipping on Orders Above Rs 499/-

Technical Support & Easy Returns

Same Day Shipping

Earn RC Coins on Every Purchase

Cash on Delivery Available

Robocraze Academy Limited Time Offer

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here
Enter the Captcha
Reload
Robocraze Academy Limited Time Offer
Mornsun LM150-20B12 AC/DC 150W Enclosed SMPS
Mornsun LM150-20B12 AC/DC 150W Enclosed SMPS
Rs. 2,743 Rs. 2,008
Mornsun LM150-20B12 AC/DC 150W Enclosed SMPS

Mornsun LM150-20B12 AC/DC 150W Enclosed SMPS

Rs. 2,743 Rs. 2,008
Description

Mornsun LM150-20B12 AC/DC 150W Enclosed SMPS

The LM150-20B12 is an enclosed AC-DC switching power supply from Mornsun. It features a universal AC input, accepts DC input voltage, is cost-effective, has low no-load power consumption, high efficiency, high reliability, and double or reinforced insulation. It also offers excellent EMC performance and meets IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, GB4943 standards. It is widely used in a variety of industries, including industrial, LED, street light control, electricity, security, telecommunications, and smart home.

Features

  • Universal AC input
  • Accepts DC input voltage
  • Cost-effective
  • Low no-load power consumption
  • High efficiency
  • High reliability
  • Double or reinforced insulation
  • Excellent EMC performance
  • Meets IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, GB4943 standards
  • Widely used in industrial, LED, street light control, electricity, security, telecommunications, and smart home applications

check out : Mornsun LM150-23B12R2 AC/DC 150W Enclosed SMPS

Note:

  • Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25?, humidity<75%RH with nominal input voltage and rated output load
  • The room temperature derating of 5?/1000m is needed for operating altitude greater than 2000m
  • All index testing methods in this datasheet are based on our company's corporate standards
  • In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
  • The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
  • The output voltage can be adjusted by the ADJ, clockwise to increase
  • Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
  • The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

check out : Mornsun LM150-23B15 AC/DC 150W Enclosed Switching Power Supply

Specifications

Package Includes:

1 x Mornsun LM150-20B12 AC/DC 150W Enclosed SMPS

Specifications:

Type Enclosed Type Single Output
Output Power 150W
Series LM150-20B
Part Number LM150-20B12
Mechanical Form Enclosed
IP Level  Non-Waterproof
Output Voltage 12V
Output Current 12.5A
