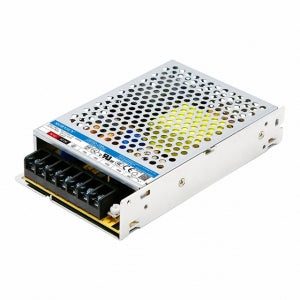

Mornsun LM150-23B15 AC/DC 150W Enclosed Switching Power Supply
Mornsun LM150-23B15 AC/DC 150W Enclosed Switching Power Supply
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Universal input voltage of 85-305VAC or 120-430VDC
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range of -30℃ to +70℃
- Low standby power consumption, high efficiency
- High I/O isolation test voltage up to 4000VAC
- Low ripple & noise
- Output short circuit, over-current, over-voltage, over-temperature protection
- IEC/EN/UL62368, EN60335, EN61558, GB4943 safety approved
- Over-voltage class Ⅲ (designed to meet EN61558)
- Operating altitude up to 5000m
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LM150-23B15 AC/DC 150W Enclosed Switching Power Supply
The LM150-23B15 is a 150W enclosed AC-DC switching power supply from Mornsun. It features a universal AC input of 85-305VAC or 120-430VDC, and a single output of 15VDC at 10A. The power supply is also isolated from the input by 4000VAC, making it safe to use with sensitive equipment. Other features include a soft start, overload protection, and thermal shutdown.
Features:
- Universal AC input of 85-305VAC or 120-430VDC
- Single output of 15VDC at 10A
- 4000VAC isolation
- Soft start
- Overload protection
- Thermal shutdown
check out : Mornsun LMF150-23B15 AC/DC Enclosed Switching Power Supply
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
check out : Mornsun LM150-12A15 AC/DC150W Enclosed Switching Power Supply
Package Includes:
1 x Mornsun LM150-23B15 AC/DC 150W Enclosed Switching Power Supply
Specifications:
| Power | 150W |
| Input voltage | 85-305VAC or 120-430VDC |
| Output voltage | 15VDC |
| Output current | 10A |
| Efficiency | 87% |
| Isolation voltage | 4000VAC |
| Dimensions | 170 x 100 x 65mm |
| Weight | 1.5kg |
