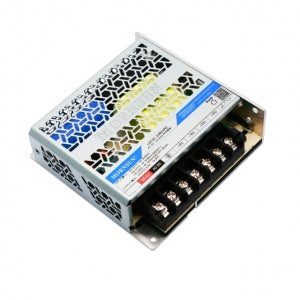

Mornsun LM150-23B12R2 AC/DC 150W Enclosed SMPS
Mornsun LM150-23B12R2 AC/DC 150W Enclosed SMPS
Out of stock
Regular price
Rs. 2,134
Regular price
Rs. 2,915
Sale price
Rs. 2,134
Unit price
/
per
You save Rs. 781 |
Eligible for Free Shipping
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
Submit your Bulk Enquiry Here
- Universal input voltage range: 80 - 305VAC or 100 - 430VDC
- Accepts both AC or DC input (dual-use of the same terminal)
- Operating ambient temperature range: -40°C to +85°C
- Low standby power consumption, high efficiency, and small size
- High I/O isolation voltage up to 4000VAC
- Protection features for output short circuit, over-current, over-voltage, and over-temperature
- Operating altitude up to 5000m
- Designed to meet OVC III safety standard (EN62477)
- Safety compliance with UL/EN/IEC/BS EN62368, EN/IEC60335 standards
Mornsun LM150-23B12R2 AC/DC 150W Enclosed SMPS
The LM150-23B12R2 is a 150W enclosed AC/DC converter that provides a single output of 12V DC at 12.5A. It has a wide input voltage range of 80-305VAC or 100-430VDC, and an efficiency of up to 91.5%. The converter is also protected against overvoltage, undervoltage, overcurrent, and short circuit.
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
check out : Mornsun LM150-20B12 AC/DC 150W Enclosed SMPS
Package Includes:
1 x Mornsun LM150-23B12R2 AC/DC 150W Enclosed SMPS
Specifications
Specification | Value |
---|---|
Output Voltage | 12V DC |
Output Current | 12.5A |
Input Voltage | 80-305VAC or 100-430VDC |
Efficiency | Up to 91.5% |
Protection | Overvoltage, Undervoltage, Overcurrent, Short Circuit |
Output Power | 150W |
