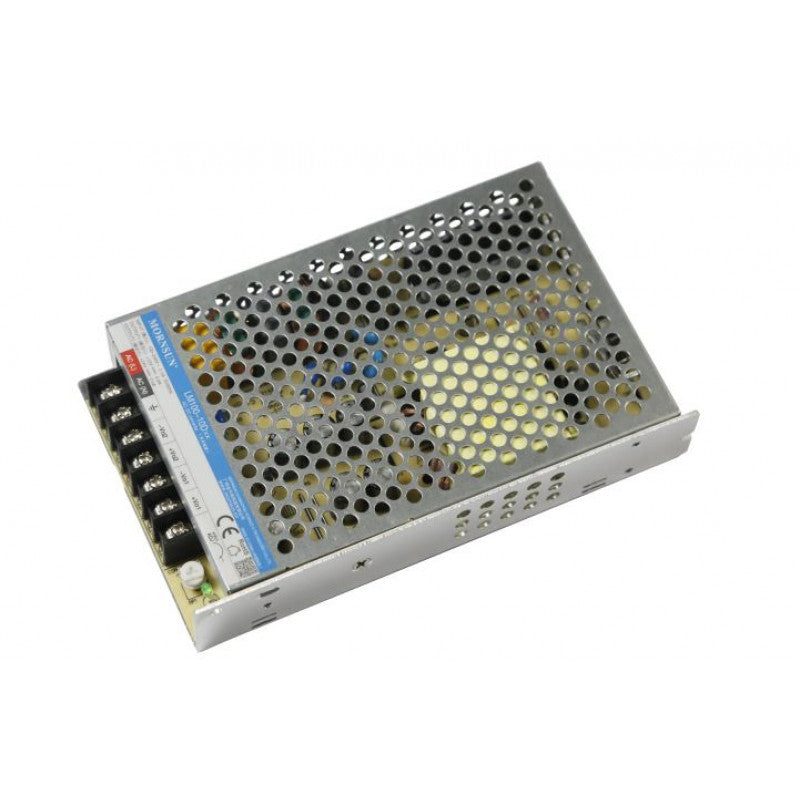

Mornsun LM100-10D1224-20 AC/DC 100W Enclosed SMPS

Mornsun LM100-10D1224-20 AC/DC 100W Enclosed SMPS

Out of stock

Regular price Rs. 2,871
Regular price Rs. 3,923 Sale price Rs. 2,871
Sale Sold out 27% off Best Price Guaranteed
You save Rs. 1,052 | Eligible for Free Shipping
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.

BEST COUPON FOR YOU

FLAT ₹ 200/- OFF RC200

When you shop for ₹ 5000 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here
  • Universal input voltage: 90 - 264VAC or 120 - 370VDC
  • Operating ambient temperature range: -30℃ to +70℃
  • High efficiency, high reliability and long life
  • LED indicator for power on
  • Output short circuit, over-current, over-voltage protection
  • High I/O isolation test voltage up to 3000VAC
  • Withstand 5G vibration test
  • Operating altitude up to 5000m

This product is not available for store pickup. Apologies for the inconvenience caused

Trust Badge 1 Trust Badge 2 Trust Badge 3

Mornsun LM100-10D1224-20 AC/DC 100W Enclosed SMPS

The LM100-10D1224-20 is a power converter with two isolated output versions. This means that it can independently supply two different loads in the system that need to be isolated from each other. The products can be used in harsh working environments with an ambient temperature range from -30℃ to +70℃, without the need of a fan for further heat dissipation.

The converters meet the requirements of the IEC61000 standard for EMC immunity performance and the CISPR32/EN55032 emission standard, class B, without any external components. This provides excellent EMC protection. The products also meet the IEC/EN/UL62368, EN60335, and GB4943 safety standards.

The converters integrate a variety of protection features and offer a high-performance to low-cost ratio. They provide the best power solution for a variety of industries such as industrial control equipment, instrumentation, and smart home and building equipment applications.

check out : Mornsun LM100-10D0524-30 AC/DC 100W Enclosed Switching Power Supply

Features

  • Two isolated output versions
  • Wide operating temperature range (-30℃ to +70℃)
  • Fanless design
  • Excellent EMC performance
  • Meets safety standards
  • Variety of protection features
  • High-performance to low-cost ratio

check out : Mornsun LM100-23B24R2 AC/DC 100W Enclosed SMPS

Note:

  • Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
  • The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
  • All index testing methods in this datasheet are based on our company's corporate standards
  • In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
  • The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
  • The output voltage can be adjusted by the ADJ, clockwise to increase
  • Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
  • The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

check out : Mornsun LM100-23B48 AC/DC 100W Enclosed Switching Power Supply

Package Includes:

1 x Mornsun LM100-10D1224-20 AC/DC 100W Enclosed SMPS

Specifications:

Type Enclosed Type Dual Output
Output Power 96W
Series LM100-10D
Part Number LM100-10D1224-20
Mechanical Form Enclosed
IP Level  Non-Waterproof
Output Voltage 12V, 24V
Output Current 4A, 2A
