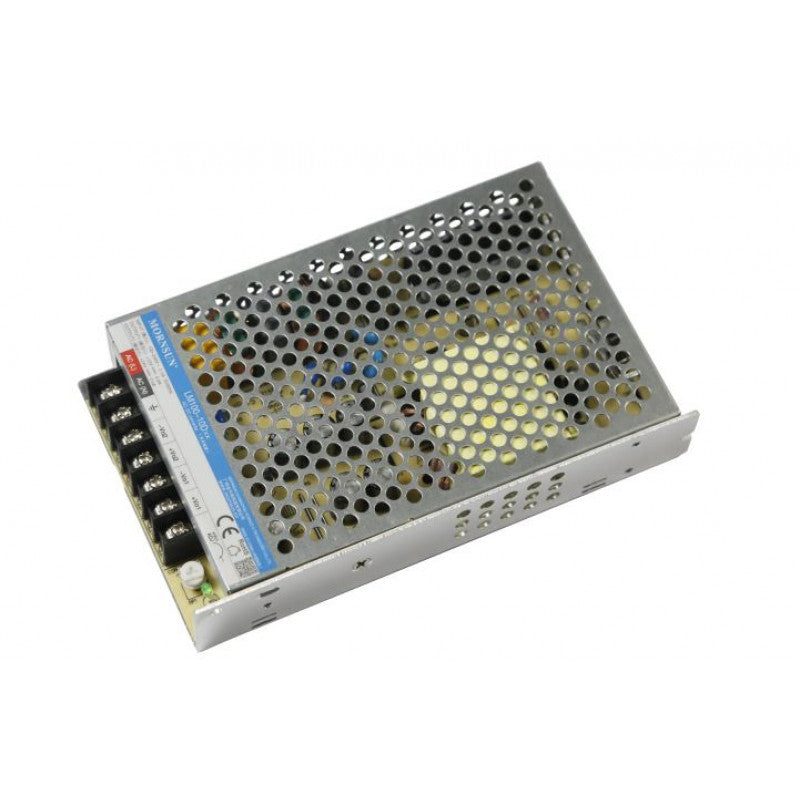

Mornsun LM100-10D0524-30 AC/DC 100W Enclosed Switching Power Supply
Mornsun LM100-10D0524-30 AC/DC 100W Enclosed Switching Power Supply
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 5000 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Universal input voltage: 90 - 264VAC or 120 - 370VDC
- Operating ambient temperature range: -30℃ to +70℃
- High efficiency, high reliability and long life
- LED indicator for power on
- Output short circuit, over-current, over-voltage protection
- High I/O isolation test voltage up to 3000VAC
- Withstand 5G vibration test
- Operating altitude up to 5000m
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LM100-10D0524-30 AC/DC 100W Enclosed Switching Power Supply
The LM100-10D0524-30 is a power converter with two isolated outputs. This means that it can independently supply two different loads in the system that need to be isolated from each other. The products can be used in harsh working environments with an ambient temperature range from -30℃ to +70℃, without the need of a fan for further heat dissipation.
The converters have excellent EMC protection and meet the requirements of IEC61000 standard, CISPR32/EN55032, class B. They also meet IEC/EN/UL62368, EN60335, GB4943 safety standards. The converters integrate a variety of protection features and offer a high-performance to low-cost ratio. They are the best power solution for a variety of industries such as industrial control equipment, instrumentation and smart home and building equipment application.
Features
- Two isolated outputs
- Wide temperature range (-30℃ to +70℃)
- Fanless design
- Excellent EMC protection
- Meets safety standards
- Variety of protection features
- High-performance to low-cost ratio
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LM100-10D0524-30 AC/DC 100W Enclosed Switching Power Supply
Specifications
| Type | Enclosed Type Dual Output |
| Output Power | 97W |
| Series | LM100-10D |
| Part Number | LM100-10D0524-30 |
| Mechanical Form | Enclosed |
| IP Level | Non-Waterproof |
| Output Voltage | 5V, 24V |
| Output Current | 5A, 3A |
