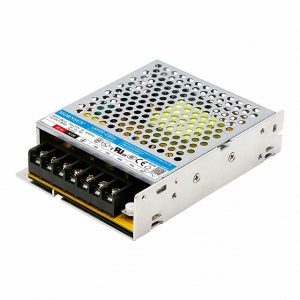

Mornsun LM100-23B48 AC/DC 100W Enclosed Switching Power Supply
The LM100-23B48 is a 110.4 watt, 48 volt AC/DC power supply from Mornsun. It is a closed-frame, convection-cooled unit with a universal input voltage range of 85 to 305 VAC or 120 to 430 VDC. The output voltage is regulated to within +/-0.5% and the output current is limited to 2.3 amps. The LM100-23B48 features a number of safety protections, including overvoltage, undervoltage, overcurrent, and overtemperature protection. It is also RoHS compliant and has a UL safety listing.
Features:
- Closed-frame, convection-cooled design
- Universal input voltage range of 85 to 305 VAC or 120 to 430 VDC
- 110.4 watt output power
- 48 volt output voltage
- +/-0.5% output voltage regulation
- 2.3 amp output current limit
- Overvoltage, undervoltage, overcurrent, and overtemperature protection
- RoHS compliant
- UL safety listing
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25?, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5?/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
