M5Stack LAN Module with W5500

M5Stack LAN Module with W5500

Although the M5 core is ESP32-based, having Wi-Fi and Bluetooth integrated, it doesn't stop you enable the Ethernet function. This LAN is an M5 Base that has a W5500 chip, which is a Hardwired TCP/IP embedded Ethernet controller that provides an easier Internet connection to embedded systems. This Base is specifically designed for industrial application scenarios, comes with a couple of HT3.96 connectors, 485 metal rail, and magnet discs for easy installation and fixation. The 6 pin of the HT3.96 connector are dangling, you can wire them up with the M-BUS and other circuits as you like.

Applications:

• M5Core + LAN implementing a conveyor controller
• PC transmits video to Core via cable

Also check M5 Stack Esp32 downloader kit. It is a USB-TTL adapter board designed for ESP32/ESP8266, featuring a CP2104/CH9102 chip. The kit supports one-touch download without chip and pin-down resetting manually. It includes components like the ESP32 CAM Downloader, ESP32 CAM Pinout Board, a 2.54-6P female header, and two 2.54-3P rows of pins. The USB Interface Type is TypeC, and it operates with a Baud Rate ranging from 300bps to 2Mbps.

Also check The M5Stack FIRE IoT Development Kit (PSRAM) V2.6 is a cost-effective Wi-Fi and Bluetooth dual-mode IoT controller based on the Espressif ESP32 main control chip. It features two low-power Xtensa 32-bit LX6 microprocessors with a main frequency of up to 240MHz. The kit includes 8M PSRAM and 16M FLASH memory, a 2.0-inch full-color HD IPS display panel, IMU, LED, microphone, speaker, TFCard slot, and various peripherals.

Package Includes:

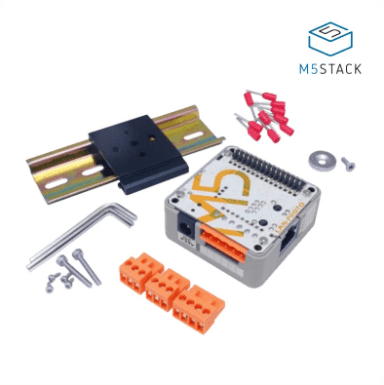

• 1x LAN Base
• 1x TTL-to-RS485 adapter board
• 1x pin header 20pin
• 1x metal rails and magnet discs
• 3x HT3.96 terminal
• 2x 3pin
• 1x 4pin
• 10x cold crimp terminal（red Copper Lugs）
• 3x HEX KEY   - 1x 1.5mm   - 1x 2mm   - 1x 2.5mm
• 2x hexagon socket head cap screws M3x28
• 4x hexagon socket tapping screw KA2x4
• 1x countersunk head screw M3x8
