M5Stack FIRE IoT Development Kit (PSRAM) V2.6

Regular price
Rs. 4,860
Sale price
Rs. 4,860
Regular price
Unit price
per
  • ⚡ Dispatched within 24 hours
  • 🚚 Free shipping on orders above Rs 500/-
  • 💰 Earn RC Coins on every purchase
  • 🛠️ Dedicated Technical Support Team
  • Based on ESP32 development
  • 8M PSRAM + 16M FLASH memory combination
  • Integrated HD IPS display panel with various hardware peripherals
  • Rich resources interface, compatible with M5Stack stacking modules and sensors, highly expandable.
  • Adopt M5GO BOTTOM base compatible with 8mm size LEGO blocks, the structure is full of fun to build.
  • Microsoft Azure authentication device
  • Compatible with multi-platform development UIFlow, MicroPython, Arduino
Also checkout M5 Stack Development Kits, Sensors&Hats, Cameras and Modules collection



M5Stack FIRE IoT Development Kit (PSRAM) V2.6

M5Stack FIRE It‘ a cost-effective Wi-Fi & Bluetooth dual-mode IoT controller that adopts Espressif ESP32 main control chip, equipped with two low-power Xtensa® 32-bit LX6 microprocessors, with the main frequency of up to 240MHz. With 8M PSRAM + 16M FLASH memory, 2.0-inch full-color HD IPS display panel, IMU, LED, microphone, speaker, TFCard slot, and other peripherals. The full-coverage case ensures circuit stability even in complex industrial applications. The internal offers a wide range of common interface resources (ADC/DAC/I2C/UART/SPI, etc.) which is highly expandable. This functional and powerful IoT controller is very applicable to various product prototyping, industrial control, and smart building applications.

High productization:

  • Exquisite designs, Prototyping right into products
  • Product-grade full-coverage cover for more stable circuit operation

Low code development:

  • Support UIFlow graphical programming platform, scripting-free, cloud push
  • Fully compatible with Arduino, ESP32-IDF and other mainstream development platforms
  • Support FreeRTOS, with dual-core and multitasking mechanism, it can perform the tasks efficiently, Program optimization.

High integration:

  • 2.0-inch IPS display panel, 6-axis IMU, programmable RGB lights x10, microphone, speaker, custom buttons x3
  • Built-in Li-ion power, integrated power management chip, supports TypeC and POGO PIN
  • Finely tuned RF circuit for stable and reliable wireless communication

Strong expandability:

  • GROVE expansion ports x3 (I2C, GPIO, UART)
  • Easy access to M5Stack software and hardware system, stackable module design, plug-and-play sensor expansion

Note: GPIO 16 / 17 of FIRE are connected to PSRAM by default, so when you connect or stack other modules, you need to pay attention to avoid conflicts with these two pins to prevent the device from not working properly and generating instability..

Switching operations:

Power on: Click the red button on the left
Power off: Quickly double-click the red button on the left
USB power: By default, It can not be shut down when USB power is on

Applications:

  • IoT Controller
  • DIY creator works
  • Smart Home Control

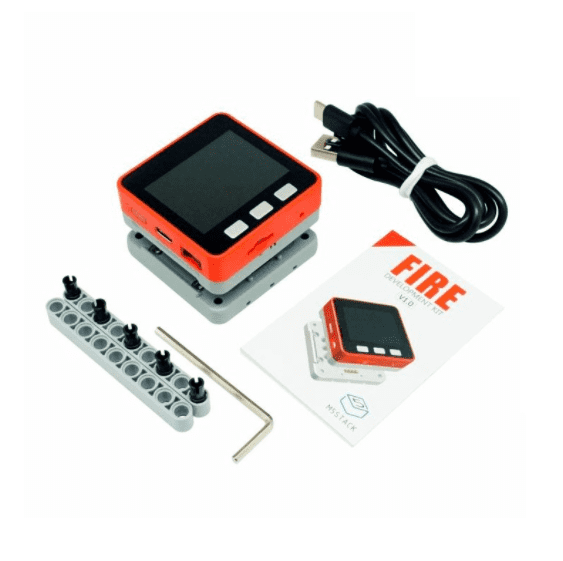

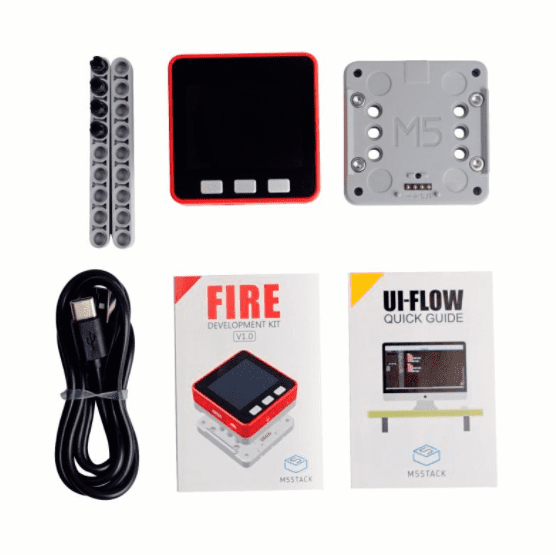

Package Includes:

1x M5Stack FIRE
1x M5GO Charging Base
2x LEGO Building Blocks
5x LEGO Connections
1x M3 Hex Wrench
1x Type-C USB (50cm)
1x User's Manual

Specifications:

ESP32-D0WDQ6-V3 240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi, dual mode Bluetooth
Flash 16MB
PSRAM 8MB
Input power 5V @ 500mA
Interface TypeC x1, POGO PIN x1, I2C x1, GPIO x1, UART x1
Keys Custom Keys x 3
LCD screen 2.0"@320*240 ILI9342C IPS panel, maximum brightness 853nit
Speaker 1W-0928
Microphone Analog BSE3729 Microphone
IMU 6-axis MPU6886
USB Chip CH9102F
LED SK6812 RGB LED x 10
Antenna 2.4G 3D antenna
Operating Temperature 0°C to 40°C
Dimensions 54mm x 54mm x 30.5mm
Weight 162gm
