- Supports NVIDIA Jetson Nano, Xavier NX, and TX2 NX modules for flexible project development.
- Small footprint (87 × 52 × 26 mm) and just 100g, perfect for space-constrained designs.
- Operates smoothly across a wide temperature range (-25°C to 65°C).
- Equipped with dual USB 3.0, Micro-USB 2.0, and GbE Ethernet for fast data transfer.
- Supports M.2 Key M SSD (2242) and MicroSD cards for flexible storage needs.
- Includes HDMI output and CSI interface for camera integration in computer vision applications.
- Offers UART, SPI, CAN, and GPIO ports to support diverse peripherals and robotics projects.
- Powered via DC 12V/5A input, ensuring consistent and efficient performance.
A203 V2 Carrier Board for NVIDIA Jetson Nano/Xavier NX/TX2 NX – Compact AI Development Board for Robotics & Embedded Systems - Seeed Studio
The Jetson A203 V2 Carrier Board is an upgraded version of the A203, designed as a versatile and reliable NVIDIA Jetson Nano/Xavier NX/TX2 NX carrier board (A203 V2).
It provides a wide range of peripheral interfaces, including support for Wi-Fi, Bluetooth, SSD storage, and more, making it highly adaptable for diverse industrial applications.
From manufacturing and logistics to retail, agriculture, and beyond, this board enables developers to build end-to-end solutions with ease.
With its compact size and lightweight design, the A203 V2 is an ideal compact AI development board for robotics, video analysis, and embedded systems.
It’s well-suited for advanced robotics projects such as UAVs, unmanned boats, and submarines, offering seamless integration and stable performance.
When paired with NVIDIA Jetson modules (sold separately), it empowers innovators, hobbyists, and professionals to accelerate development in robotics, computer vision, and edge AI.
Features:
- NVIDIA Elite Partner Design – Built with reliability and compatibility in mind.

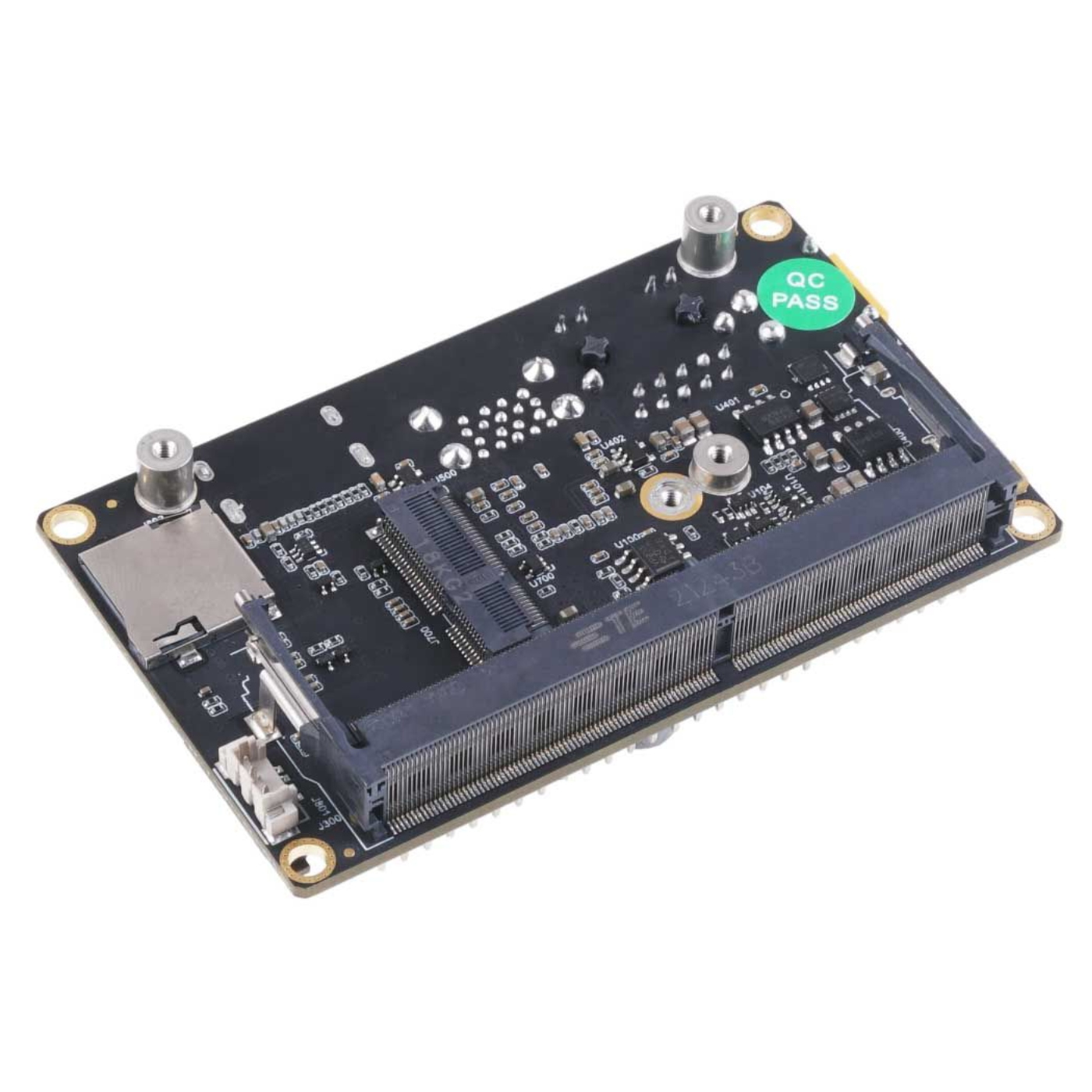

- 260-Pin Jetson Module Connector – Compatible with Jetson Xavier NX, Nano, and TX2 NX modules.
- Compact & Lightweight – Dimensions: 87mm × 52mm × 26mm; Weight: only 100g.
- Wide Operating Temperature – Stable performance from -25°C to 65°C for industrial environments.
- High-Speed Connectivity – 2 × USB 3.0 Type-A ports, 1 × USB 2.0 Micro-B connector, and USB 3.0 20-pin ZIF.
- Flexible Storage Expansion – Supports M.2 Key M SSD (2242) and MicroSD card.
- Reliable Networking – RJ-45 Gigabit Ethernet port (10/100/1000M).
- Multimedia Support – HDMI right-angle vertical connector and CSI camera interface.
- Rich I/O Interfaces – Includes UART, SPI, CAN, and GPIO for versatile peripheral integration.
- Stable Power Supply – Powered via 12V/5A DC jack for consistent performance.
- Application-Ready – Optimized for robotics, computer vision, video analysis, UAVs, and embedded AI solutions.
Applications:
- Autonomous Mobile Robot (AMR)
- AI Video Analytics
- Machine Vision
- Generative AI

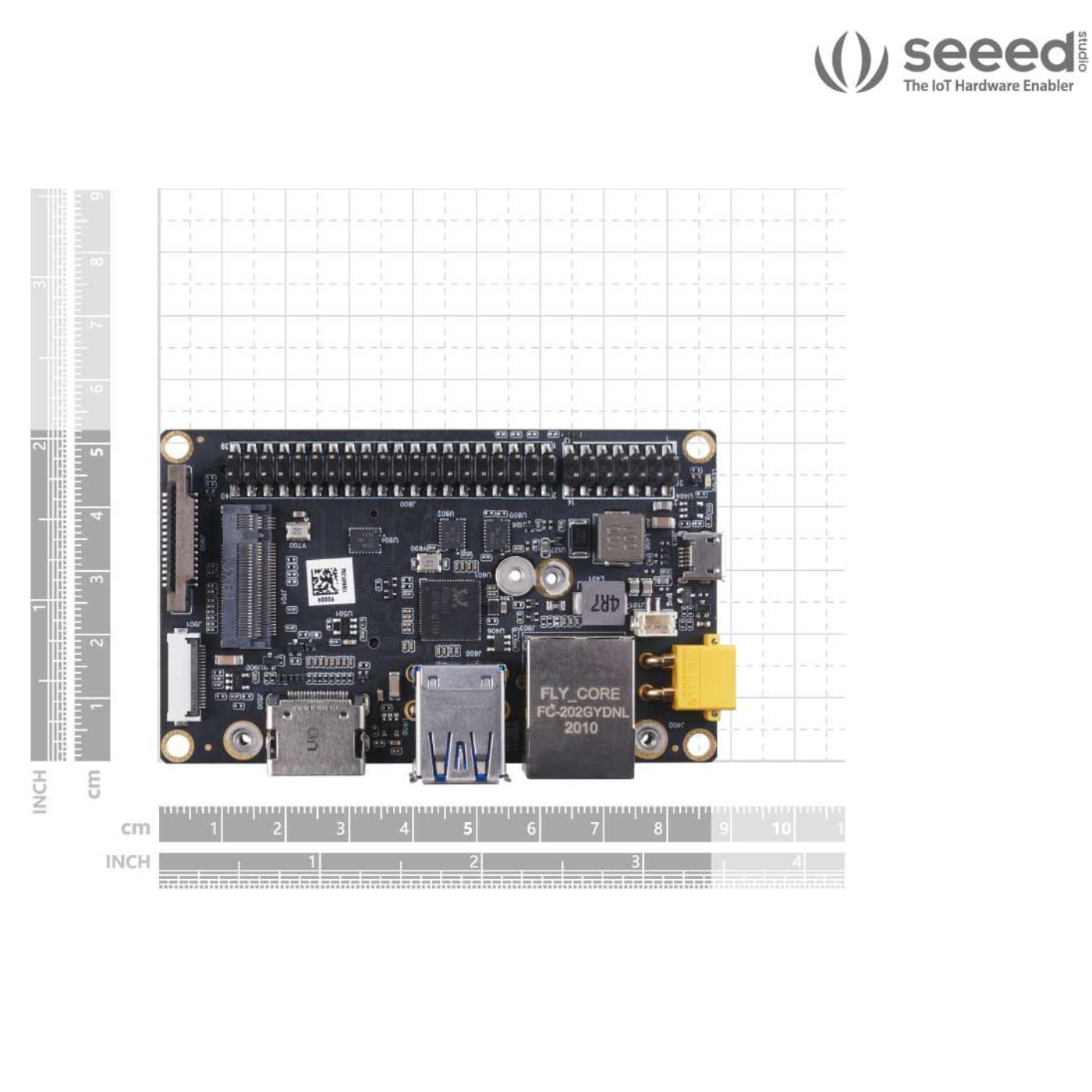

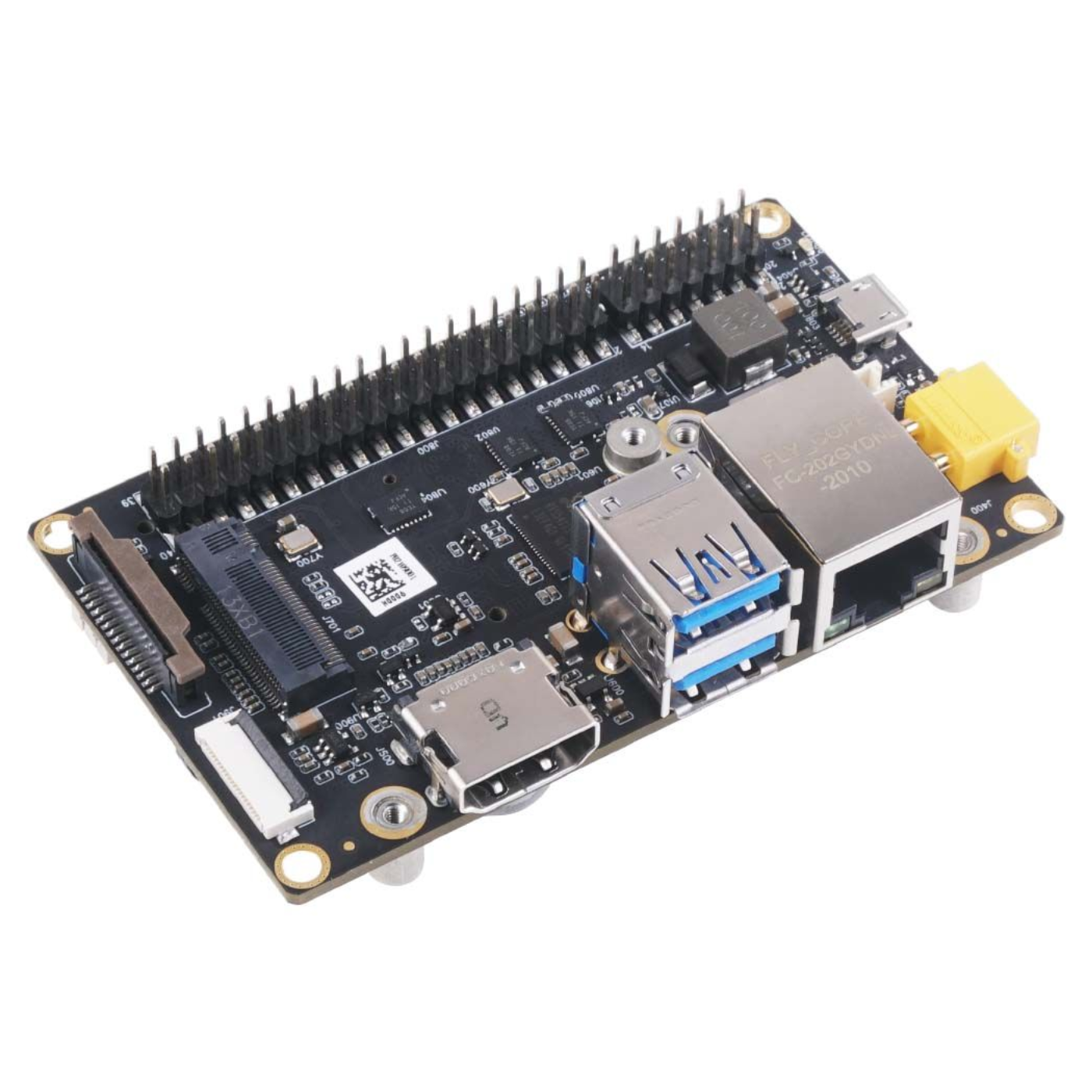

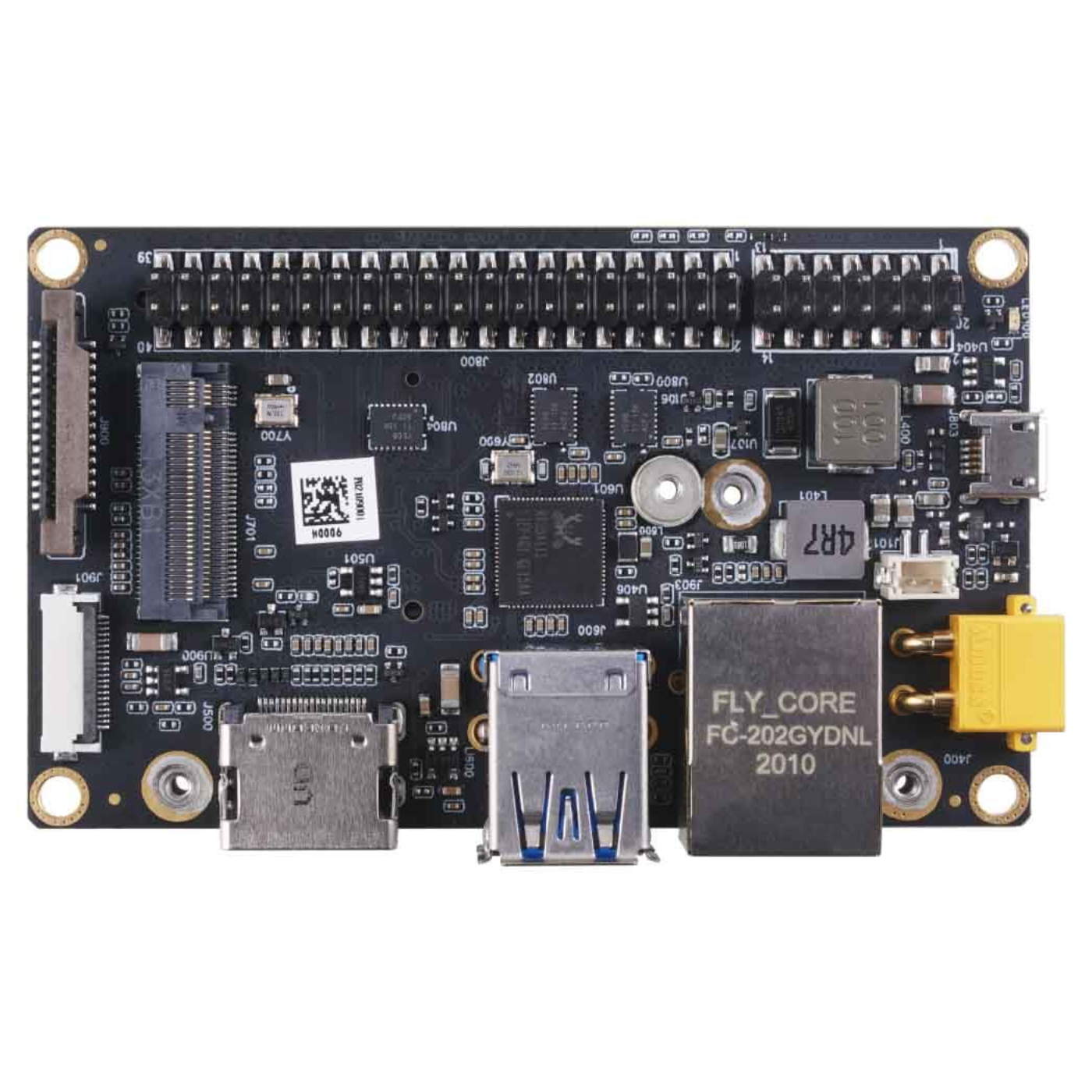

A203 V2 Carrier Board Hardware Overview
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
Found a better price?
Let us know!
We'll try to match the price for you
Package Includes:
- 1 x A203v2 carrier board
Specifications:
| Component | Specification |
|---|---|
| Carrier Board Storage |
1x M.2 Key M (Disk size 2242) 1x MicroSD Card Slot |
| Networking |
Ethernet: 1x Gigabit Ethernet (10/100/1000M) M.2 Key E: 1x M.2 Key E PCIe 2230 |
| I/O - USB |
2x USB 3.0 Link1 Type-A connectors 1x USB 2.0 Micro-B connector USB 3.0 0.5mm pitch 20-pin ZIF |
| Camera | 1x CSI |
| Display | 1x HDMI Right Angle Vertical Connector |
| Fan | 1x Fan Picoblade Header |
| Multifunctional Ports |
1x 2.0 Pitch 40-Pin (UART, GPIO, SPI, etc.) 1x 2.0 Pitch 14-Pin (Reset, CAN, Recovery, etc.) |
| RTC | 1x RTC 3V, 2-pin |
| Power | DC 19V / 4.74A |
| Mechanical (W x D x H) | 87mm x 52mm x 26mm |
| Operating Temperature | -25℃ ~ 65℃ |
