What is the reComputer Edge AI Device? A Complete Guide

Summary

The reComputer J4012 is a compact, high-performance computer designed specifically for artificial intelligence (AI) applications at the edge.

This means it's built to process data directly on the device itself, rather than sending information to a distant cloud server, which allows for faster, more private, and more reliable AI processing.

The reComputer is powered by an NVIDIA Jetson Orin NX module. This module provides it with powerful AI performance, capable of up to 100 trillion operations per second (TOPS), making it suitable for demanding tasks like real-time video analytics, object detection, robotics, and medical imaging.

What is Edge AI and Why It Matters

To understand this device, we first need to talk about "Edge AI." Think about how your brain works. When you touch something hot, you pull your hand away instantly.

You don't need to send a message to a "central brain" somewhere else and wait for instructions. Your reflexes are local and immediate. This is the basic idea behind Edge AI.

"The Edge" simply means processing information directly on the device itself, instead of sending it to "The Cloud," which is are huge data center located far away. AI computing at the edge has a few major advantages:

• It's Faster: Decisions are made in a fraction of a second because there's no delay from sending data back and forth over the internet. This is essential for things like self-driving cars or factory robots that need to react instantly.
• It's More Private: If a device processes data locally, sensitive information—like a video from your living room—never has to leave your home. This keeps your personal data much more secure.
• It's More Reliable: An edge device can keep working even if the internet goes down. A smart security system that relies on the cloud might fail during a Wi-Fi outage, but an edge-powered one will keep on running.

This is why edge AI computing is becoming so important. It brings intelligence and decision-making to where it's needed most.

Key Features of the reComputer J4012

The reComputer J4012 is specifically designed to be excellent at Edge AI tasks. It is powered by an NVIDIA Jetson Orin Nano 16GB module, which is a tiny but mighty engine for running AI programs.

This gives it a huge performance boost over older devices, allowing it to handle complex tasks with ease. Seeed Studio has created a high-performance AI board that is powerful yet easy for developers to use.

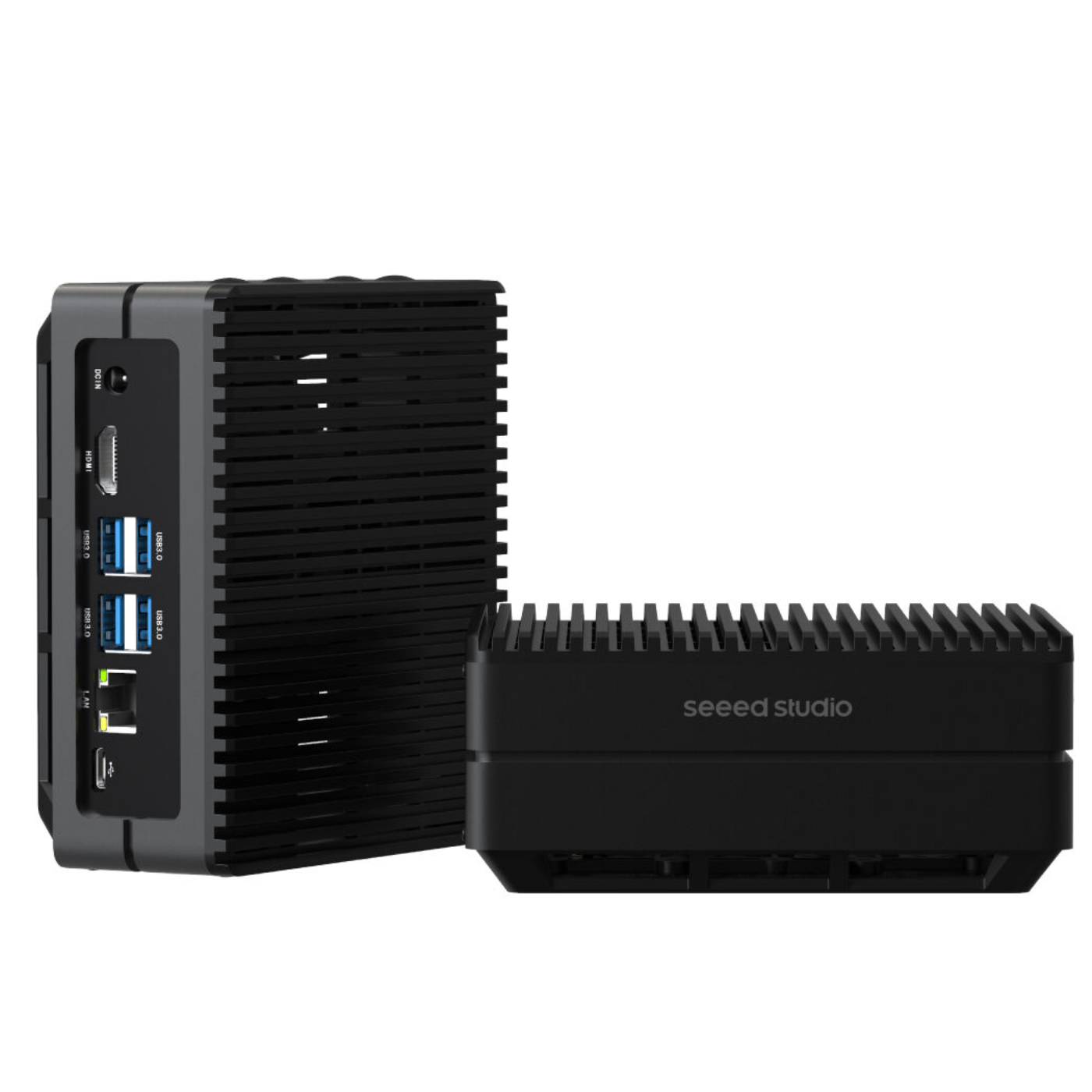

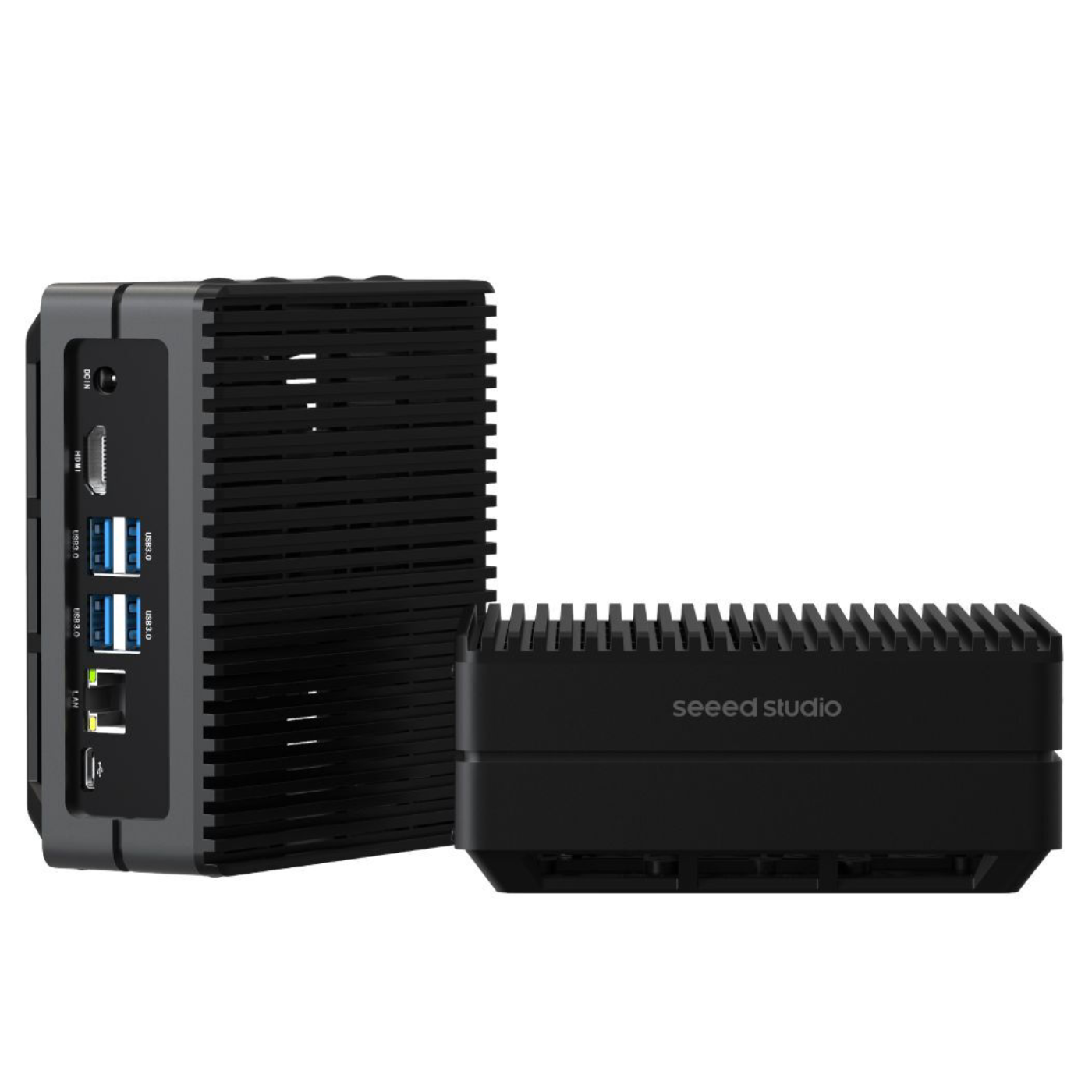

One of its cleverest features is its case. It's made of aluminum and acts as a giant heatsink, which means it can stay cool without a noisy fan in many situations.

For tougher jobs that generate more heat, it has a quiet fan that you can control. This makes it perfect for all kinds of environments, from a quiet office to a busy workshop.

It's also a very compact AI device, making it simple to fit into projects where space is limited.

It also comes with all the right connections a developer would need:

• Fast USB ports for connecting cameras, keyboards, or hard drives.
• An HDMI port to connect to a screen.
• An Ethernet port for a stable wired internet connection.
• Special slots (M.2 key E and M) for adding upgrades like Wi-Fi or super-fast storage drives.

These features make the reComputer a complete package, ready to be used for building amazing AI projects from the moment you take it out of the box.

Specifications of the reComputer J4012

A closer look at the technical details shows a device built for serious AI work. The impressive reComputer performance comes from its powerful combination of a modern CPU, a professional-grade GPU, and specialized processing cores for AI.

Setting Up the reComputer J4012 for Your Projects

Getting your reComputer ready for development is a straightforward process, designed to get you from unboxing to coding as quickly as possible. Since the device typically ships with the NVIDIA JetPack operating system pre-installed on an SSD, much of the complex initial software setup is already done for you.

Follow these steps to get started:

Step 1: Unboxing and Physical Connections

First, unpack the device and get your peripherals ready. You will need:

• The reComputer J4012 unit.
• The included power adapter (or a compatible 12V-19V DC supply).
• An HDMI cable and a monitor.
• A USB keyboard and mouse.

Connect everything:

1. Plug the HDMI cable into the reComputer's HDMI port and your monitor.
2. Connect your keyboard and mouse to any of the four USB 3.2 ports on the front.
3. Finally, plug the power adapter into the wall and connect it to the DC power jack on the back of the reComputer. Do not turn it on just yet.

Step 2: First Boot and Initial System Configuration

Press the power button to turn on the device. The reComputer will boot into the NVIDIA JetPack OS, which is based on Ubuntu (a popular Linux distribution). On the first startup, you will be guided through a one-time setup process:

1. Read and accept the NVIDIA software license agreement.
2. Select your system language, keyboard layout, and time zone.
3. Create a user account by choosing a username and a strong password. This will be your administrator account.
4. The system will finalize the configuration and then log you into the Linux desktop environment, which will look and feel familiar to anyone who has used Ubuntu.

Step 3: Connect to Your Network

For updates and accessing online resources, you'll need an internet connection. You have two main options:

• Wired Connection (Recommended for setup): The easiest method is to plug an Ethernet cable from your router directly into the Gigabit Ethernet port on the back of the reComputer. The connection should be configured automatically.
• Wireless Connection (Requires Wi-Fi module): The reComputer J4012 has an M.2 Key E slot specifically for adding a Wi-Fi/Bluetooth module. If you have installed one, you can connect to a Wi-Fi network by clicking the network icon in the top-right corner of the desktop, just as you would on any other computer.

Step 4: Update Your System Software

Once connected to the internet, it's crucial to update your system to ensure all software packages and security patches are current.

• Open the Terminal application from the app menu.
• Type the following command and press Enter. This command downloads the latest list of available software packages.

sudo apt update

• After it finishes, run the next command to install the updates.

sudo apt upgrade

• You will be prompted for your password and may need to confirm the download by pressing 'Y'.

Step 5: Set Up a Remote Workflow (Optional but Recommended)

While you can work directly on the reComputer with a monitor and keyboard, many developers prefer to access it remotely from their main laptop or desktop. This is known as working in "headless mode."

• Find the IP Address: In the terminal on your reComputer, type ifconfig or ip addr to find its IP address on your local network. Look for the address under the eth0 (wired) or wlan0 (wireless) section.
• Connect via SSH: On another computer connected to the same network, open its terminal (or an SSH client like PuTTY on Windows) and use the following command, replacing username and ip_address with your own:

ssh username@ip_address

• The first time you connect, you will be asked to verify the host's authenticity. Type yes. Then, enter the password you created in Step 2. You will now have full command-line access to your reComputer from your primary machine.

Step 6: Run a Sample AI Project

Your reComputer J4012 is now ready for development. The NVIDIA JetPack SDK comes with many pre-built examples that allow you to test the AI capabilities right away.

Running a simple image classification demo is a great way to confirm everything is working.

1. Navigate to the samples directory. The exact location can vary, but it is often in a path like /usr/src/jetson_multimedia_api/samples/.
2. Follow the instructions in the sample's README file to compile and run the code.
3. For example, you can run a pre-trained object detection model on a sample image or a live camera feed (if you connect a USB camera) to see the device identify objects like people, cars, and animals in real time.

You are now fully set up and ready to begin developing your own AI for robotics, intelligent IoT solutions, or other edge computing projects on the powerful reComputer platform.

Benefits of Using reComputer J4012 for Developers

The reComputer J4012 offers a fantastic package for anyone looking to build with AI, making it a top choice among edge AI devices.

• First, it delivers incredible performance without using a lot of power. This is the core goal of machine learning at the edge: getting maximum results with minimal energy, which is perfect for devices that run on batteries.
• Second, it uses the same core software as NVIDIA's huge data center GPUs. This means a developer can build an AI program on a powerful desktop computer and then easily transfer it to the reComputer to run in the real world. This saves a massive amount of time and effort.
• Finally, this device is ready for both building and deploying. Some AI Modules are just bare circuit boards that need a lot of extra work to be put into a final product. The reComputer, however, comes in a strong case, ready to go. A developer can create a prototype on their desk and then install that exact same device out in the field, which is a huge advantage for getting new products to market quickly.

Conclusion

The reComputer is more than just another small computer; it's a gateway to creating powerful, independent AI applications.

By packing the advanced capabilities of the NVIDIA Jetson Orin Nano into a well-designed and easy-to-use system, it makes building with AI more accessible than ever.

For developers, hobbyists, and businesses, it provides the tools needed to bring intelligent ideas to life.

Whether it’s for smarter homes, more efficient factories, or next-generation robotics, this device is built to power the future of innovation at the intelligent edge.
