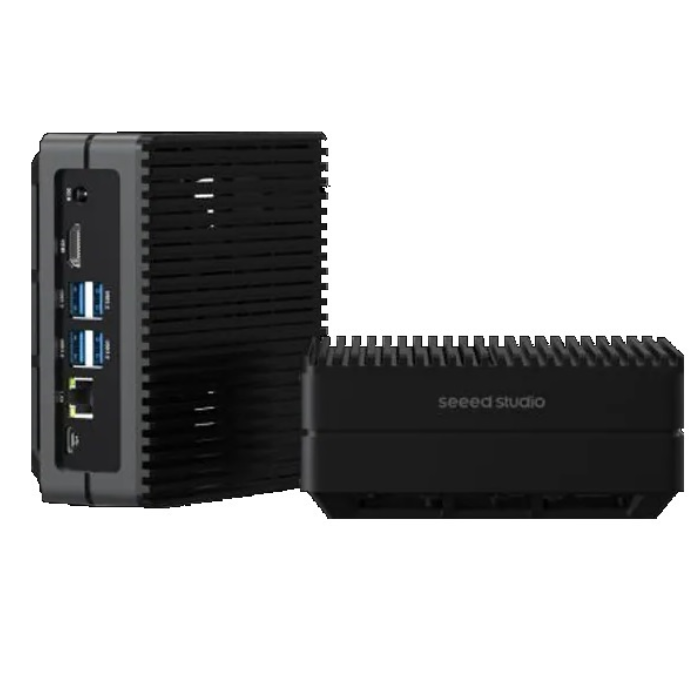

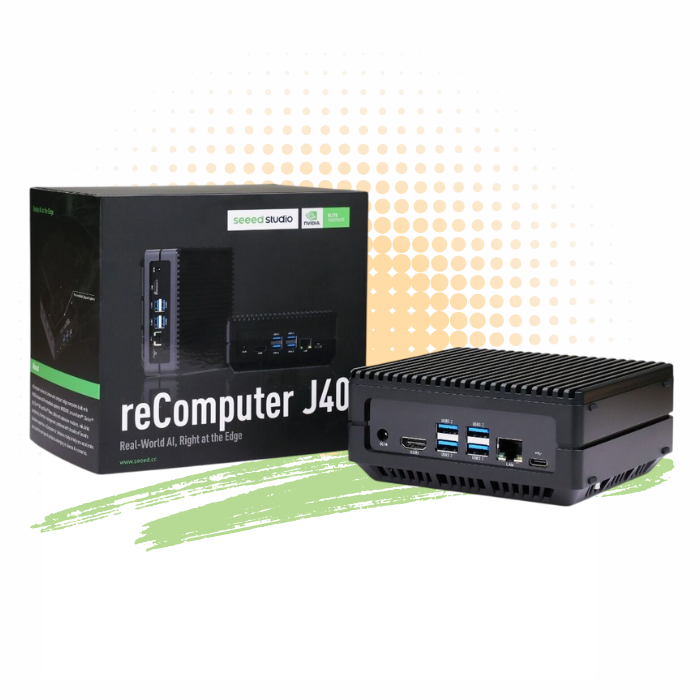

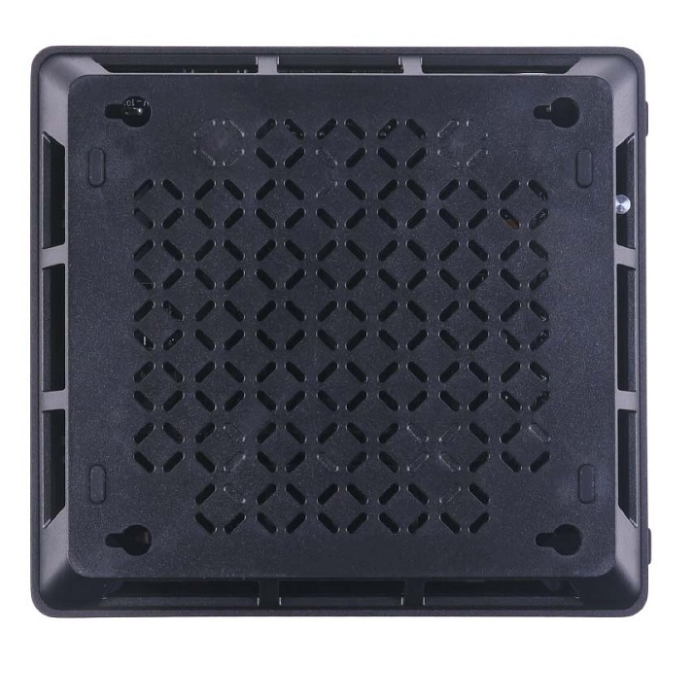

reComputer J4012-Edge AI Device with NVIDIA Jetson Orin™ NX 16GB module
reComputer J4012 is the perfect solution for advanced AI applications. It is compact, expandable, high-performing, durable, easy to integrate, versatile, and of high quality. reComputer J4012 ensures the highest quality and durability.
Its NVIDIA Jetson Orin NX 16GB module provides up to 100 TOPS AI performance and guarantees exceptional computing power. The aluminum case and cooling fan offer optimal performance and longevity, making it suitable for industrial conditions and perfect for robust applications.
Our reComputer J4012 is easy to use with pre-installed JetPack 5.1 on 128GB NVMe SSD and designed to solve complex AI tasks.
Features:
- Brilliant AI Performance for production: on-device processing with up to 100 TOPS AI performance with low power and low latency

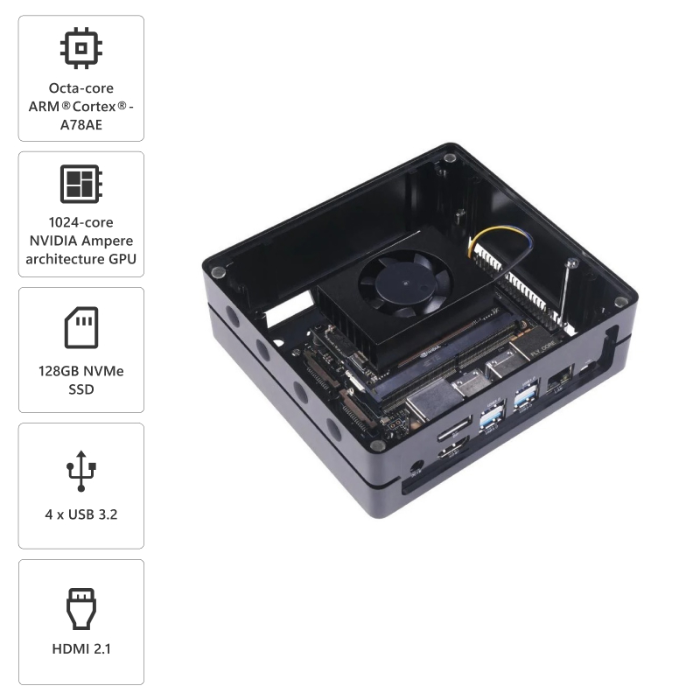

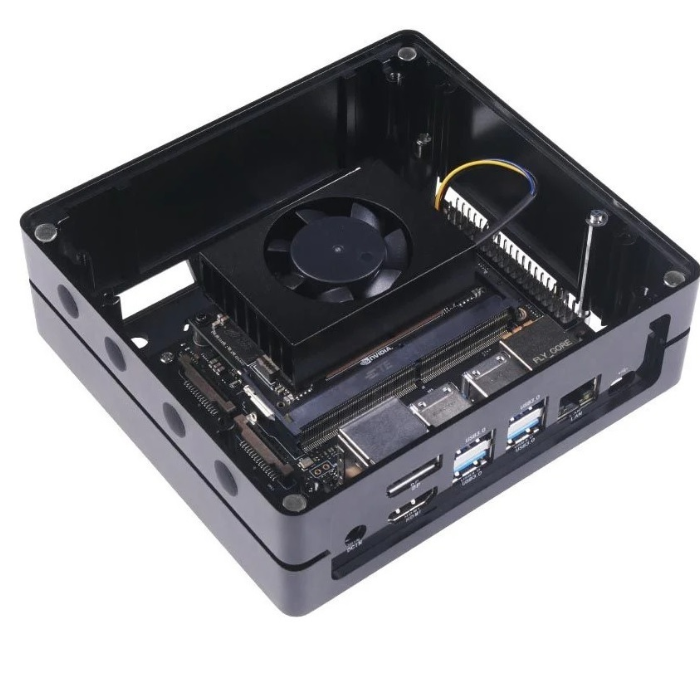

- Hand-size edge AI device: compact size at 130mm x120mm x 58.5mm, includes NVIDIA Jetson Orin™ NX 16GB production module, a cooling fan with a heatsink, enclosure, and a power adapter. Support desktop, wall mount, fit in anywhere

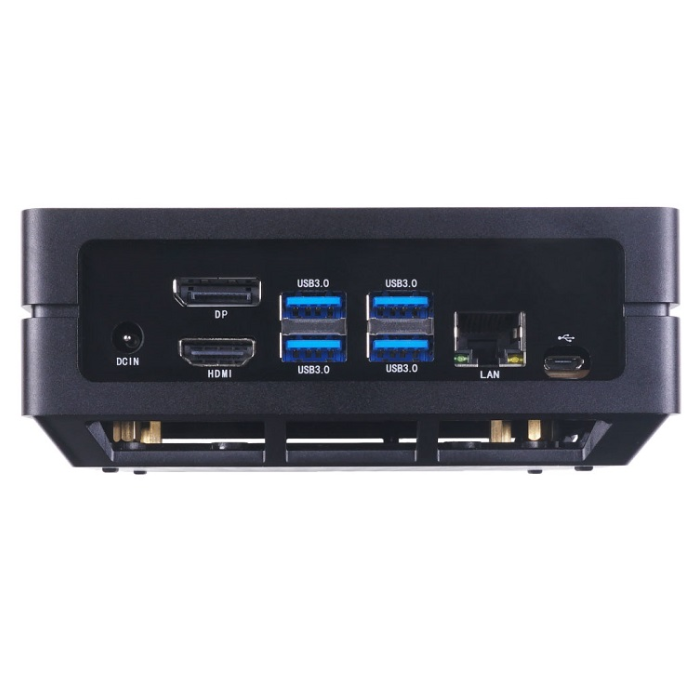

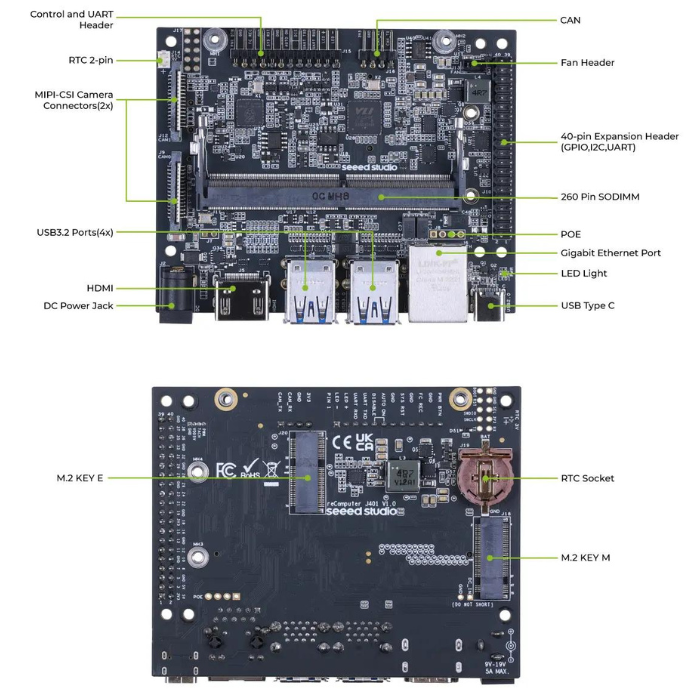

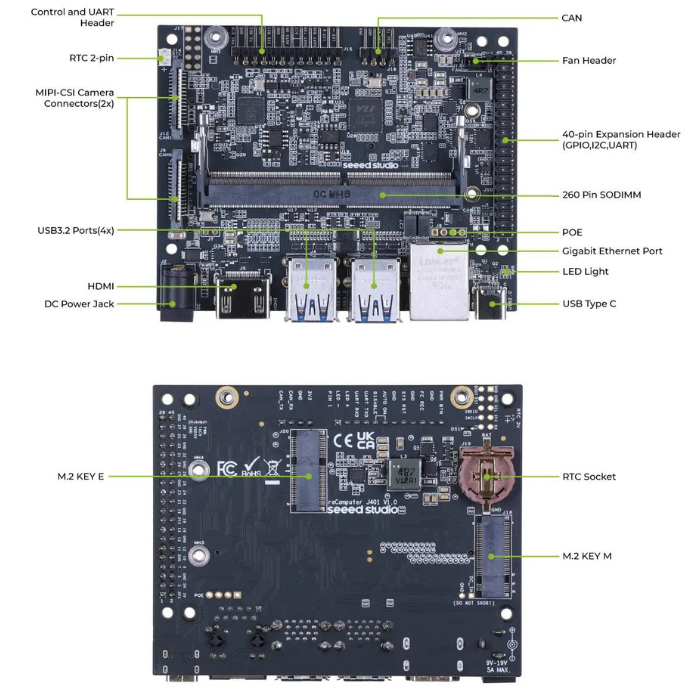

- Expandable with rich I/Os: 4x USB 3.2, HDMI 2.1, 2xCSI, 1xRJ45 for GbE, M.2 Key E, M.2 Key M, CAN, and GPIO.
- Accelerate solution to market: pre-installed Jetpack with NVIDIA JetPack™ 5.1 on the included 128GB NVMe SSD, Linux OS BSP, 128GB SSD, support Jetson software and leading AI frameworks and software platforms
- Comprehensive certificates: FCC, CE, RoHS, UKCA
Applications:
reComputer J40 series, powered by Orin NX, is ideal for building autonomous applications and complex AI tasks of image recognition, object detection, pose estimation, semantic segmentation, video processing, and many more. The following are few of the applications that have been tested with Xavier NX and you can take them for reference in order to build applications using Orin NX as well.
- Traffic management
- license plate detection
- car detection
- pedestrian detection
- Industry 4.0:
- helmet detection, hard hat detection, and custom PPE detection
- visual anomaly detection using NVIDIA Deepstream IoT
- Retail:
- sentiment analysis(webinar: learn your customer with AI by Zenus smart camera),
- retail store items detection
- Robotics:
- under-ice sensing ROV
- warehouse towing robot
- Edge AI into the Wild: Wildfire detection
- Agriculture: weeding machines, Tractors, Livestock detection
- Healthcare: medical imaging analysis
Find in the Jetson Community Resources page tools and tutorials the community has created to power your development experience, and check out the Community Projects page to inspire your next project!
Comparison among reComputer J40 and J20 series boards
|
Specifications
|
reComputer J4011
|
reComputer J4012
|
reComputer J2021
|
reComputer J2022
|
|
Module
|
Jetson Orin NX 8GB
|
Jetson Orin NX 16GB
|
Jetson Xavier NX 8GB
|
Jetson Xavier NX 16GB
|
|
AI Performance
|
70 TOPS
|
100 TOPS
|
21 TOPS
|
|
GPU
|
1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
|
384-core NVIDIA Volta™ GPU
|
|
GPU Max Frequency
|
765 MHz
|
918 MHz
|
1100MHz
|
|
CPU
|
6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3
|
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
|
6-core NVIDIA Carmel ARM®v8.2 64-bit CPU 6 MB L2 + 4 MB L3
|
|
CPU Max Frequency
|
2 GHz
|
1900MHz
|
|
Memory
|
8GB 128-bit LPDDR5 102.4GB/s
|
16GB 128-bit LPDDR5 102.4GB/s
|
8 GB 128-bit LPDDR4x @ 59.7GB/s
|
16 GB 128-bit LPDDR4x 59.7GB/s
|
|
DL Accelerator
|
1x NVDLA v2
|
2x NVDLA v2
|
2x NVDLA
|
|
DLA Max Frequency
|
614 MHz
|
1100 MHz
|
|
Vision Accelerator
|
1x PVA v2
|
1x PVA
|
|
Storage
|
128GB NVMe SSD
|
16 GB eMMC 5.1
|
|
Video Encoder
|
1x 4K60 (H.265) | 3x 4K30 (H.265)
6x 1080p60 (H.265) | 12x 1080p30 (H.265)
|
2x 4K60 | 4x 4K30 | 10x 1080p60 | 22x 1080p30 (H.265)
2x 4K60 | 4x 4K30 | 10x 1080p60 | 20x 108p30 (H.264)
|
|
Video Decoder
|
1x 8K30 (H.265) | 2x 4K60 (H.265) | 4x 4K30 (H.265)
9x 1080p60 (H.265) | 18x 1080p30 (H.265)
|
2x 8K30 | 6x 4K60 | 12x 4K30 | 22x 1080p60 | 44x 1080p30 (H.265)
2x 4K60 | 6x 4K30 | 10x 1080p60 | 22x 1080p30 (H.264)
|
|
Display
|
1* HDMI 2.1
|
1*HDMI Type A; 1*DP
|
|
CSI Camera
|
2* CSI （2-lane 15pin）
|
|
Networking
|
1* Gigabit Ethernet (10/100/1000M)
|
|
USB
|
4* USB 3.2 Type-A (10Gbps); 1* USB2.0 Type-C (Device Mode)
|
4* USB 3.1 Type A Connector；1* USB Type-C (Device mode)
|
|
M.2 Key M
|
1* M.2 Key M
|
|
M.2 Key E
|
1* M.2 Key E
|
|
Fan
|
1* 4 pin Fan Connector(5V PWM)
|
|
CAN
|
1* CAN
|
|
Multifunctional Port
|
1* 40-Pin Expansion header,1* 12-Pin Control and UART header
|
|
RTC
|
RTC 2-pin, RTC socket (supports CR1220 but not included)
|
|
Power
|
9-19V
|
9-12V
|
|
Power Supply
|
Power adapter not included
|
|
Temperature
|
-10℃~60℃
|
|
Mechanical
|

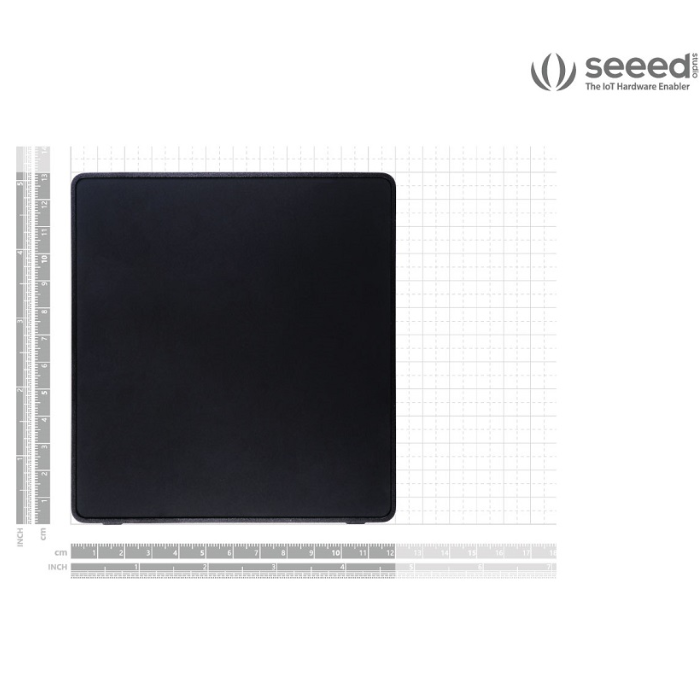

130mm x120mm x 58.5mm
|
130mm x120mm x 50mm
|
