- The Wio Link allows visual configuration and updates can be done easily with the help of OTA features.
- You can also perform plug and play groves and IFTTT applications.
- The Wio Link is also compatible with android and IOS applications.
- Buy the Wio Link development board online at best prices. Robocraze is the authorized sellers of seeed studio products in India.
Seeed Studio Wio Link Wireless Development Board
Wio Link is designed to simplify your IoT development. It is an ESP8266-based open-source Wi-Fi development board to create IoT applications by virtualizing plug-and-play modules to RESTful APIs with mobile APPs.
This time, we define a new way to create IoT applications. No hardware programming. No breadboard. No jumper wires. No soldering. The Wio Link allows visual configuration and updates can be done easily with the help of OTA features. You can also perform plug-and-play groves and IFTTT applications. The Wio Link is also compatible with android and IOS applications.

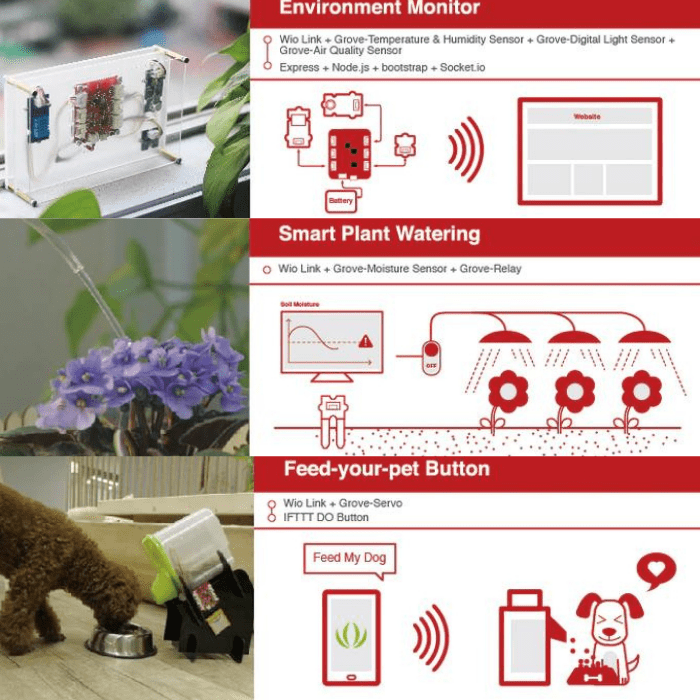

Applications:
- Environment Monitor
- Smart Plant Watering
- Feed Your Pet

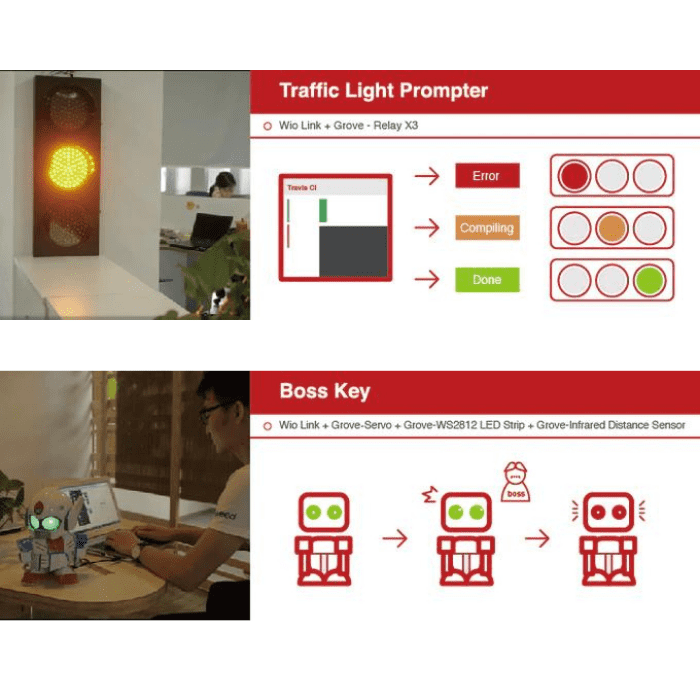

- Boss Key
- Traffic Light Prompter
Also check Seeedstudio Grove-Voltage Divider Module. The module allows users to adjust the gain of an input voltage. It is easy to use and has a small size.
Also check Seeeduino XIAO compatible with Arduino. Some of its features include a 48MHz ARM Cortex-M0+ processor, 256KB of flash memory, and 32KB of SRAM. It also has 14 GPIO pins, 11 analog pins, and multiple development interfaces.

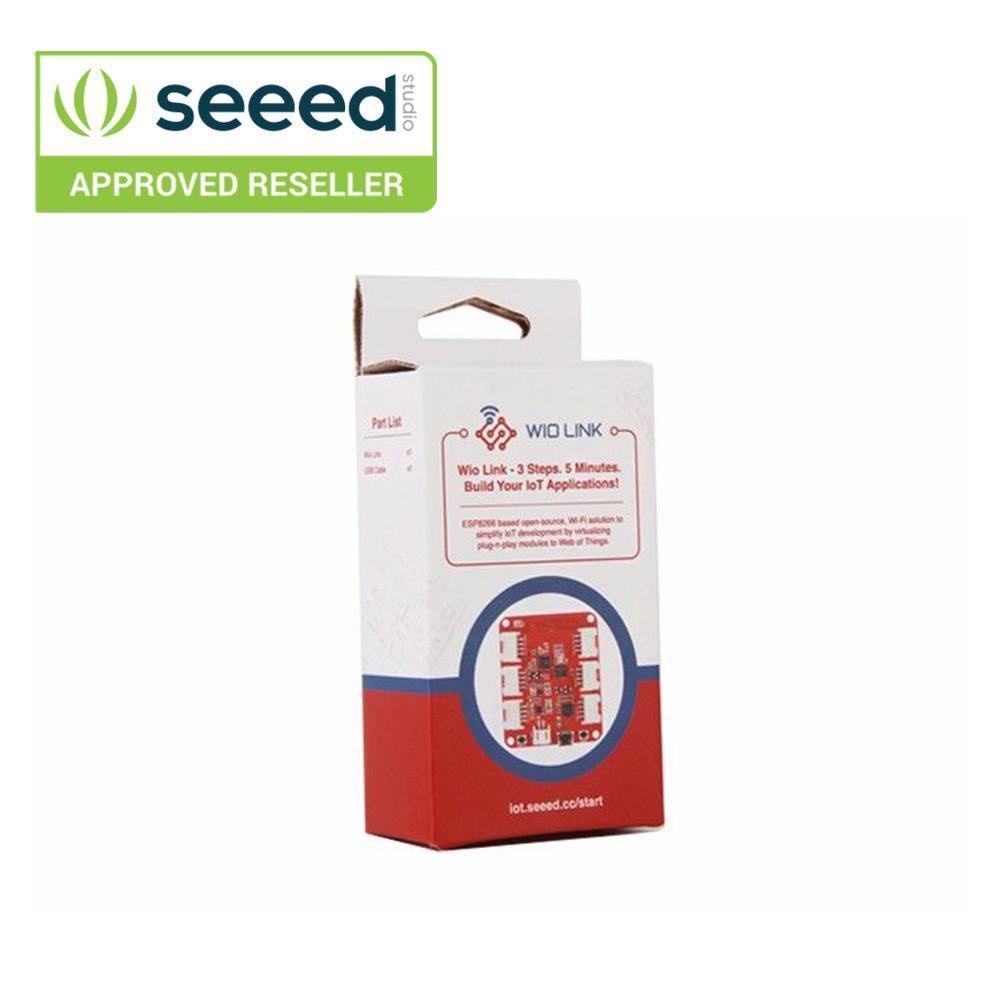

Package Includes:
- 1 x Wio Link Board
Specifications:
| Dimensions | 55mm x48mm x6.5mm |
| Weight | 48g |
| Battery | Exclude |
| Wi-Fi Network Protocol | 802.11b/g/n |
| Wi-Fi Encryption Technologies | WEP/TKIP/AES |
| Flash Memory | 4MByte |
| Output DC Current | 1000mA MAX |
| Operating Voltage | 3.3V |
| Charge Current | 500mA MAX |
| Battery holder: | 3.4~4.2V |
| MICRO USB | 5V |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
Found a better price?
Let us know!
We'll try to match the price for you
1. What is Wio link?
- Wio Link is an open-source Wi-Fi development board based on the ESP8266 SoC. The best part about it is the associated platform, which allows users to create IoT applications by virtualizing plug-and-play modules to RESTful APIs with mobile Apps. The Wio Link supports visual configuration, and updates are simple with the help of OTA features.
2. What are the applications of the wio link?
- Wio Link is well-designed to provide simple Wi-Fi solutions for applications such as smart homes, intelligent environmental monitoring, amusing toys, the web of things, and the internet of things.
