Seeed Studio

Seeeduino XIAO compatible with Arduino

Seeeduino XIAO compatible with Arduino

Regular price Rs. 586
Regular price Rs. 735 Sale price Rs. 586
Sale Sold out 20% off Best Price Guaranteed
You save Rs. 149
Incl. GST (No Hidden Charges)
  • Powerful CPU: ARM® Cortex®-M0+ 32bit 48MHz microcontroller(SAMD21G18) with 256KB Flash,32KB SRAM
  • Flexible compatibility: Compatible with Arduino IDE
  • Easy project operation: Breadboard-friendly
  • Small size: As small as a thumb(20x17.5mm) for wearable devices and small projects.
  • Multiple development interfaces: 11 digital/analog pins, 10 PWM Pins, 1 Digital to Analog Converter output, 1 SWD Bonding pad interface, 1 I2C interface, 1 UART interface, 1 SPI interface.
Related Tags

Seeeduino XIAO compatible with Arduino

Seeeduino XIAO is the smallest Arduino compatible board in Seeeduino Family. It is an Arduino microcontroller that is embedded with the SAMD21 microchip. The interfaces of Seeeduino XIAO is rich enough in such a tiny Dev.

Seeeduino XIAO is integrated with the powerful CPU-ARM® Cortex®-M0+(SAMD21G18) which is a low-power Arduino microcontroller. On the other hand, this little board has good performance in processing but needs less power. As a matter of fact, it is designed in a tiny size and can be used for Arduino wearable devices and small projects.

Applications of Seeeduino XIAO:

  • Wearable devices
  • Rapid prototyping (directly attached to the expanded PCB as a minimal system)
  • Perfect for all the projects need mini Arduino
  • DIY keyboard
  • USB development (USB to multi-channel TTL/USB host mode, etc.)
  • A scenario where you need to read multiple mock values The Digital to Analog Converter output

Package Includes:

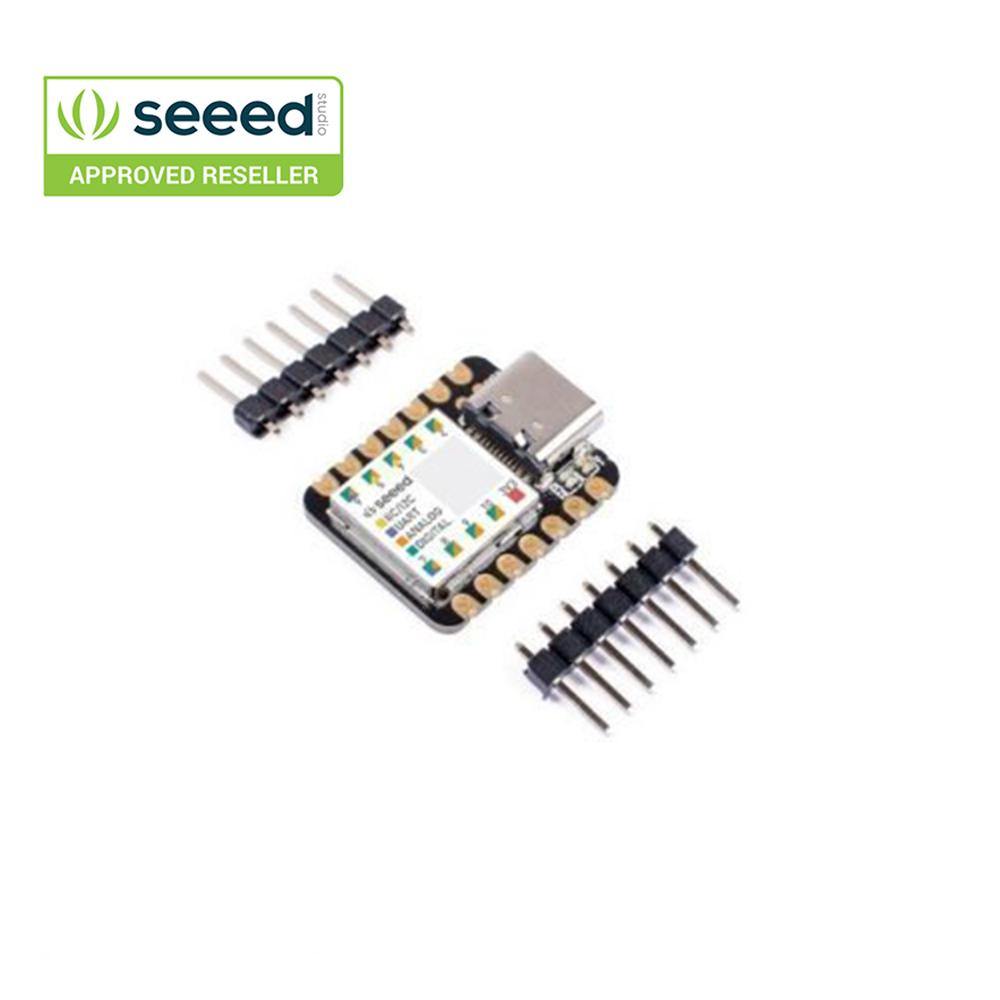

  • 1 x Seeeduino XIAO

Specifications:

CPU ARM Cortex-M0+ CPU(SAMD21G18) running at up to 48MHz
Storage 256KB Flash,32KB SRAM
I/O PINs 14 GPIO PINs,11 analog PINs, 11 digital PINs, 1 Digital to Analog Converter output Pin
Interface 1 I2C interface,1 UART interface, 1 SPI interface
Power supply and downloading interface USB Type-C interface
LEDs 1 user LED, 1 power LED, two LEDs for serial port downloading
Dimensions 20x17.5x3.5 mm
Weight  5 grams
