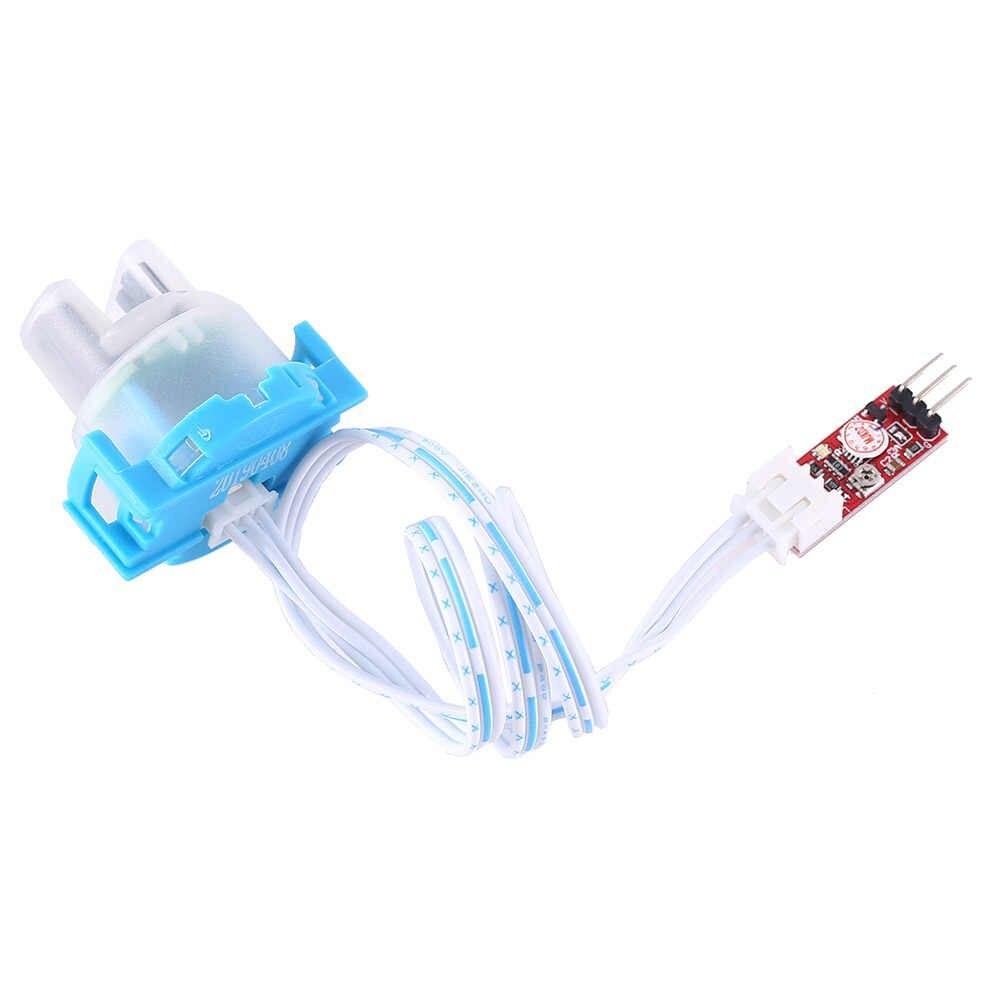

Turbidity Sensor With Module for Liquid Particle Detection
Turbidity Sensor With Module for Liquid Particle Detection
Regular price
Rs. 559
Regular price
Rs. 799
Sale price
Rs. 559
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Product will be SHIPPED TODAY, if ordered within 9 hours and 55 minutes.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- The turbidity sensor has an operating voltage of 5VDC and maimum current of 30mA.
- It has an operating temperature of -30 ° C to 80 ° C and is best compatible with Arduino, Raspberry Pi, AVR, PIC.
- It is able to detect particles that are suspended in water and detect quality of water.
- Ideal monitoring of water turbidity in rivers, streams, lakes, water boxes, catchment and research sites, laboratories, tanks with liquids and etc.
Turbidity Sensor With Module for Liquid Particle Detection
A turbidity liquid particle detection sensor is a device that is used to measure the turbidity, or cloudiness, of a liquid. Turbidity is often used as an indication of the presence of suspended particles in the liquid, such as dirt, algae, or bacteria.
The sensor works by shining a light through the liquid and measuring the amount of light that is scattered or absorbed by the particle detection.
Turbidity is the measurement of particulate matter in water. It requires the analog port of the MCU to read the analog value for calculation. It needs turbidity calibration liquid to calibrate. It is not the multimeter that directly measures the voltage.
The output voltage of each module is different. The module should be protected from light and light. The temperature and voltage will make the output voltage of the module different.
These decisions are made on the basis of a comparison between clean water measurements (taken at the beginning of the wash cycle) and the wash water turbidity measurement taken at the end of each wash cycle.
By measuring the turbidity of the wash water, the dishwasher can conserve energy on lightly soiled loads by only washing as long as necessary. This will result in energy savings for the consumer.
Parameters of the Turbidity Particle Sensor:
-
Voltage: 3.3-5V (with anti-reverse circuit)
-
Output: default analog (can set high and low output)
-
Measuring range: 0-1000 NTU
Key Features:
- Turbidity can be measured in the range of 0 to 1000 Nephelometric Turbidity Units (NTU).
- Operates at 3.3-5V and has built-in anti-reverse circuitry for safety.
- The operating temperature range is from -20°C to 80°C.
- Uses light scattering or absorption to estimate the presence of suspended particles in liquids.
- Used in various applications such as water quality monitoring, environmental monitoring, and industrial processes.
Turbidity Liquid Particle Detection Sensor Pin Diagram:

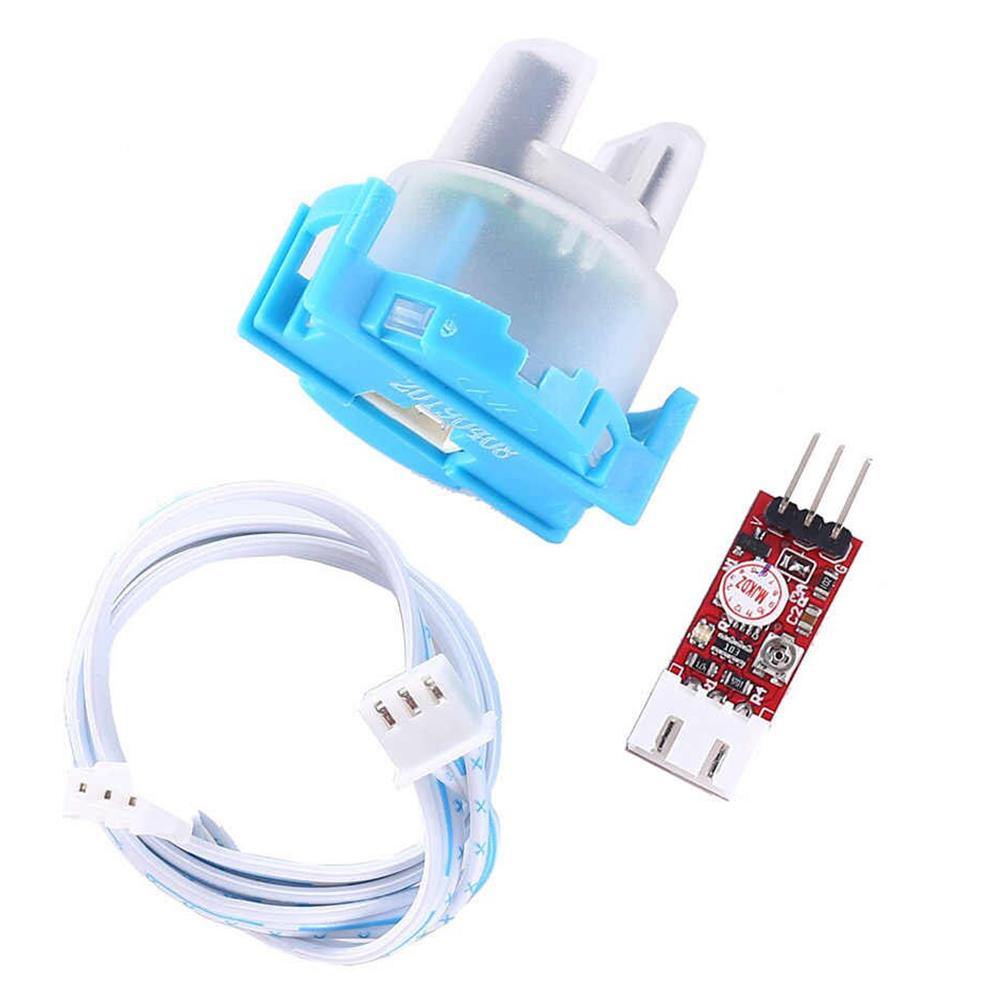

Package Includes:
- 1 x Turbidity Sensor With Module
Specifications:
| Type | Logic ICs |
| Operating Temperature | -20~80 celsius |
| Supply Voltage | 3.3-5V |
| Dimensions | 5 x 5 x 5cms |
| Weight | 35 grams |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
Found a better price?
Let us know!
We'll try to match the price for you
1. How does the turbidity sensor work?
- A turbidity probe operates by projecting a light beam into the water being tested. Any suspended particles will then scatter this light. A light detector is placed at a 90-degree angle to the light source and detects the amount of light that is reflected back at it.
2. What is turbidity?
- Turbidity is the measurement of particulate matter in water. It requires the analog port of the MCU to read the analog value for calculation. It needs turbidity calibration liquid to calibrate. It is not the multimeter that directly measures the voltage. The output voltage of each module is different. The module should be protected from light. The output voltage of the module will vary depending on the temperature and voltage.
3. Where is the turbidity sensor used?
- The 12v Turbidity sensors can be used in small scale DIY projects. It can be used in projects like water irrigation system, Aquariums, Water cleaning systems etc.
