BTS7960 43A H-Bridge Motor Driver (IBT-2)

Rs 344/-
- 37%
Rs 344/-
Rs 549/-
Save Rs 205/-
🪙
RC REWARDS Earn 3 RC Coins on this order
Incl. GST (No Hidden Charges)
Please hurry! Only 184 left in stock

Free Delivery Above ₹999

Technical Support & Easy Returns

Same-Day Shipping (Order by 3 PM on Business Days)

Earn RC Coins on Every Prepaid Order

COD Available on Order Value Between ₹500 to ₹3,000
SKU: TIFMC0057
  • This is BTS7960B 43A H-Bridge Motor Driver
  • Double BTS7960 large current (43 A) H-bridge driver
  • Based on the reliable BTS7960 motor driver architecture
  • Supply voltage: 5.5V to 27V
  • Overtemperature shutdown with latch behavior
  • Overvoltage lockout and undervoltage shutdown
  • Driver circuit with logic-level inputs
  • Onboard 5V power indicator
  • Efficient and compact BTS7960B design for high-current applications

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here
+91

File(s) size limit is 20MB. Max 3 files.

Select Categories
CAPTCHA
Reload Captcha
Robocraze Academy Limited Time Offer
BTS7960B 43A H-Bridge Motor Driver – High-current motor driver for heavy-duty DC motors – Robocraze
BTS7960 43A H-Bridge Motor Driver (IBT-2)
Rs 549/- Rs 344/-
BTS7960B 43A H-Bridge Motor Driver – High-current motor driver for heavy-duty DC motors – Robocraze
BTS7960B 43A H-Bridge Motor Driver – High-current motor driver for heavy-duty DC motors – Robocraze
BTS7960B 43A H-Bridge Motor Driver – High-current motor driver for heavy-duty DC motors – Robocraze
BTS7960B 43A H-Bridge Motor Driver – High-current motor driver for heavy-duty DC motors – Robocraze

BTS7960 43A H-Bridge Motor Driver (IBT-2)

Rs 549/- Rs 344/-
Description

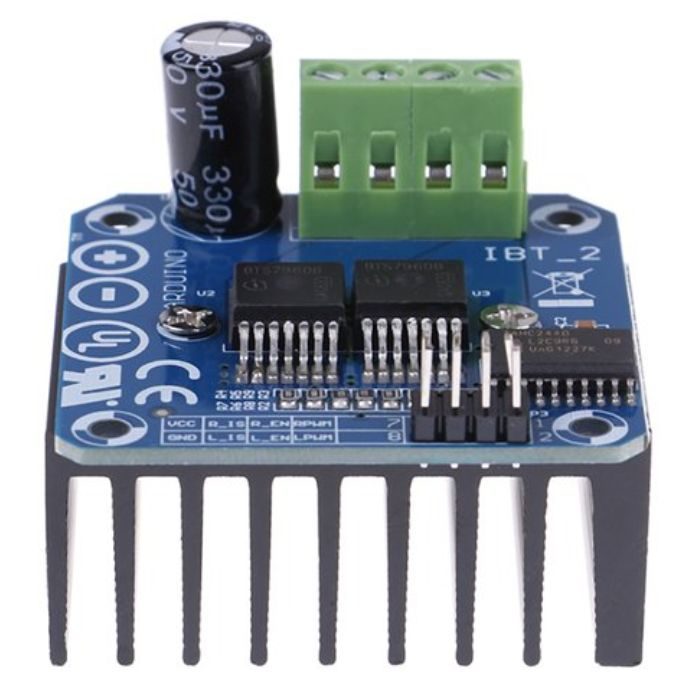

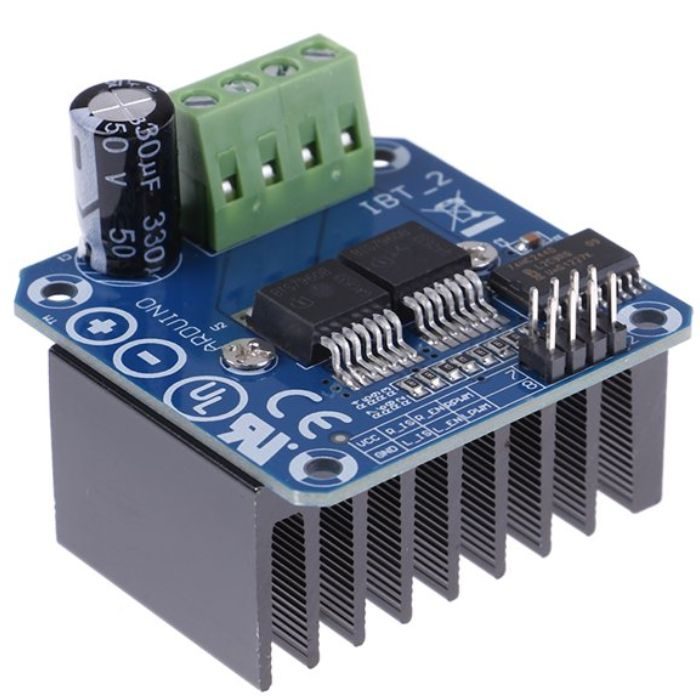

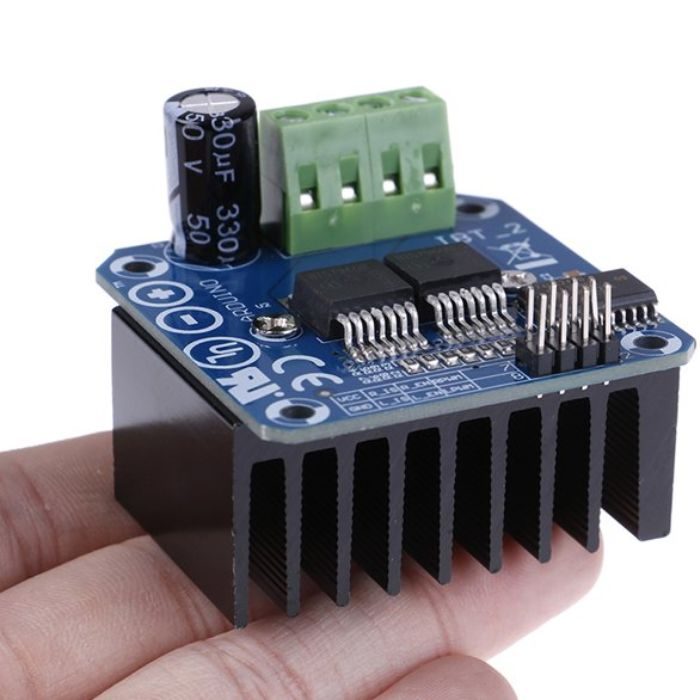

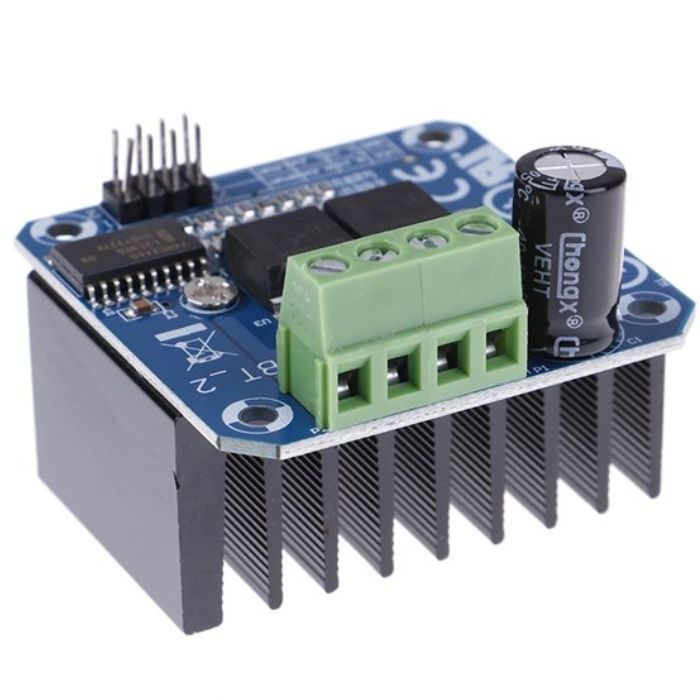

BTS7960 43A H-Bridge Motor Driver (IBT-2)

The BTS7960 Motor Driver 43A H-Bridge Module (commonly known as IBT-2) is a fully integrated high-current solution H-bridge designed for motor drive applications that use the BTS7960 motor driver IC, making it ideal for high-power DC and stepper motor control.

The NovalithIC™ family includes the BTS7960B, which integrates one p-channel high-side MOSFET and one n-channel low-side MOSFET along with a driver IC in a single package. The p-channel high-side switch eliminates the need for a charge pump, helping reduce EMI and simplifying the overall design.

The integrated driver IC simplifies interfacing with microcontrollers by offering logic-level inputs, diagnostic feedback with current sensing, slew rate adjustment, dead time generation, and protection features such as overtemperature, overvoltage, undervoltage, overcurrent, and short circuit protection.

The double BTS7960 43A H-bridge high-power stepper motor driver module is a compact and cost-effective solution for protected high-current PWM motor drives. If you want to control motors using this module, you will need essential components like a microcontroller (e.g., Arduino or Raspberry Pi), a suitable power supply, and connection wires.

Why Choose BTS7960B 43A H-Bridge Motor Driver?

Choosing the BTS7960 motor driver is a smart decision for both hobbyists and professionals who need a reliable high-current motor control solution. The BTS7960 motor driver price makes it an excellent value-for-money option, offering powerful performance without significantly increasing overall project costs.

Built around the robust BTS7960B architecture, this module is widely used in demanding applications such as robotics, electric vehicles, high-power DC motors, and stepper motor systems. Its combination of efficiency, protection features, and ease of integration makes it a dependable choice where durability and consistent performance are critical.

Features

  • Path resistance of type. 16 m? @ 25 °C
  • Low quiescent current of typ. 7 µA @ 25 °C
  • PWM capability of up to 25 kHz combined with active freewheeling
  • Switched mode current limitation for reduced power dissipation in overcurrent
  • Current limitation level of 43 A typ.
  • Status flag diagnosis with current sense capability
  • Overtemperature shut down with latch behavior
  • Overvoltage lockout
  • Undervoltage shut down
  • Driver circuit with logic level inputs
  • Adjustable slew rates for optimized EMI
  • Designed for high-performance applications using the BTS7960 motor driver

BTS7960 Pinout

The IBT-2 module features clearly labeled pins for straightforward microcontroller integration:

  • VM+: Motor power supply input (6V – 27V)
  • VCC: Logic power supply (5V)
  • GND: Common ground for both motor and logic
  • R_EN / L_EN: Right/Left channel enable (tie to 5V or control via MCU)
  • R_PWM / L_PWM: Right/Left channel PWM speed/direction control inputs

Wiring with Arduino

Connecting the BTS7960 motor driver to an Arduino is straightforward. For a basic single-motor setup:

  1. Connect VM+ to your external battery (6V-27V) and GND to the battery negative.
  2. Connect VCC to the Arduino 5V pin and GND to the Arduino GND (a common ground is essential).
  3. Connect R_PWM to Arduino Pin 6 and L_PWM to Arduino Pin 5.
  4. Connect your DC motor to the Motor+ and Motor- screw terminals.

Tip: For more details on control logic, check out our complete guide on What Is a Motor Driver?

Specifications

Package Includes:

  • 1 x BTS7960B 43A H-Bridge Motor Driver

Specifications:

Input voltage(V) 6 – 27
Maximum current(A) 43
Input level(V) 3.3 – 5
Operating Frequency(KHz) 25
Dimensions (mm) 50 x 50 x 43
Weight(gm) 67
FAQ

What is a BTS7960B 43A H-Bridge motor driver?

The BTS 7960 is a fully integrated high current half bridge for motor drive applications. It is part of the NovalithICTM family containing one p-channel high-side MOSFET and one n-channel low-side MOSFET with an integrated driver IC in one package.

What is the BTS7960B 43A H-Bridge motor driver used for?

The BTS7960B 43A H-Bridge motor driver is designed for driving high-power DC motors. It's often used in robotics, electric vehicles, and automation projects where precise control of motor direction and speed is required. Its high current capability makes it suitable for large motors, making it a popular choice for heavy-duty robotics and DIY electronics applications.

How much current and voltage can the BTS7960 motor driver handle?

The BTS7960 motor driver can handle up to 43A of continuous current and supports a voltage range of 6V to 27V. This high current and voltage capacity make it suitable for controlling large DC motors in various electronics and robotics projects, allowing reliable and safe operation in demanding applications.

Can the BTS7960B motor driver be used with Arduino or ESP32?

Yes, the BTS7960B motor driver can easily interface with Arduino or ESP32 boards. It accepts standard PWM signals for speed and direction control, making it simple to integrate into microcontroller-based robotics or automation projects. This compatibility enables precise motor management using popular development platforms.

What is the difference between BTS7960 and L298N motor drivers?

The main difference is current handling and efficiency. The BTS7960 supports up to 43A and operates efficiently at higher voltages, making it ideal for large motors. The L298N is limited to around 2A and is less efficient, suitable for smaller motors and basic robotics. BTS7960 is preferred for heavy-duty applications, while L298N suits lighter projects.

How do I wire the BTS7960 to Arduino for a robot car?

Connect the BTS7960 motor driver to the Arduino by connecting the driver's logic/control pins to compatible Arduino digital/PWM pins, the motor to the driver's motor output terminals, and the motor power terminals to a suitable external battery or power supply. Connect the Arduino GND and BTS7960 GND together to provide a common ground. Use the BTS7960 PWM inputs to control motor speed and direction according to your wiring and Arduino code. For a complete robot car project, you can combine the BTS7960 motor driver with a 2WD or 4WD robot chassis kit and an Arduino Uno. This provides the main components needed to build a complete Arduino-based mobile robot.
