12A 300W DC-DC Buck Converter Step down Power Module 7-32V to 0.8-28V
12A 300W DC-DC Buck Converter Step down Power Module 7-32V to 0.8-28V
12A 300W DC-DC Buck Converter Step down Power Module 7-32V to 0.8-28V

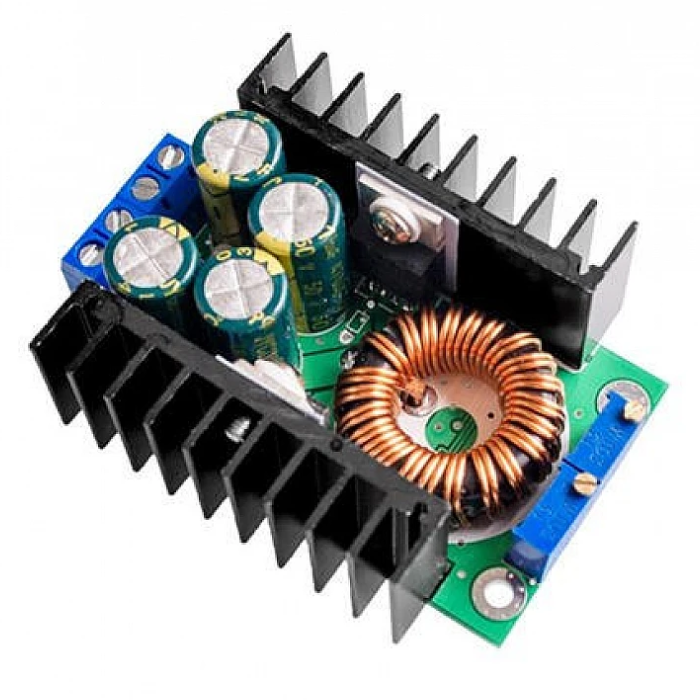

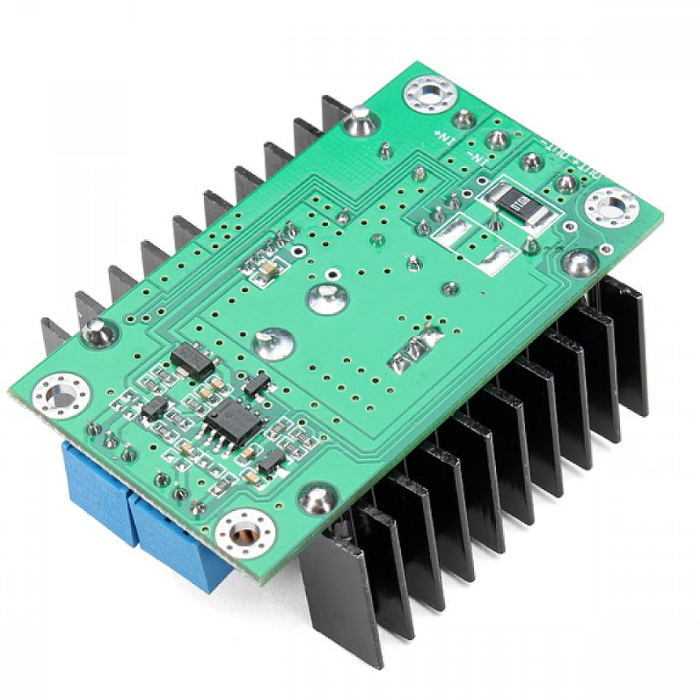

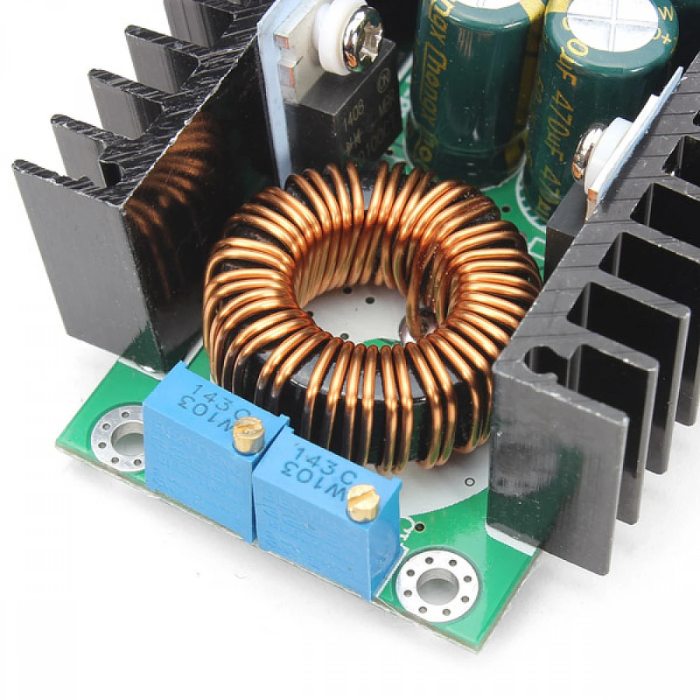

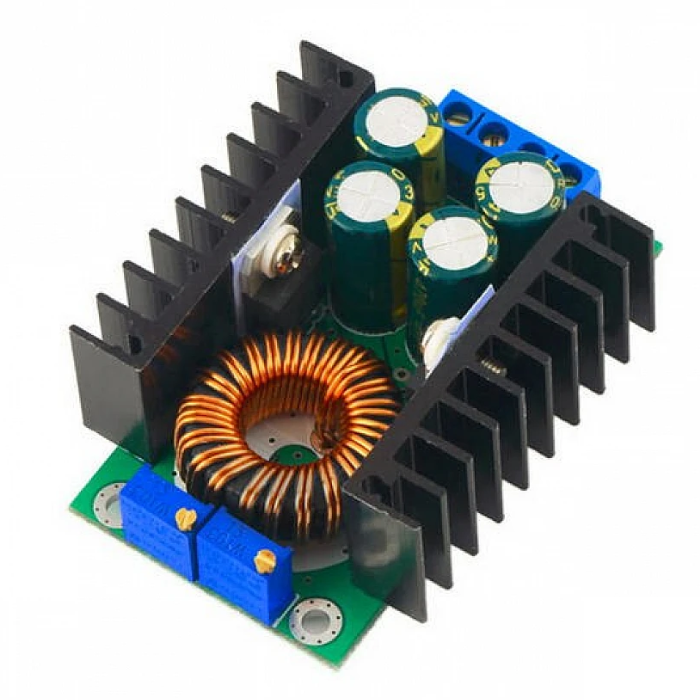

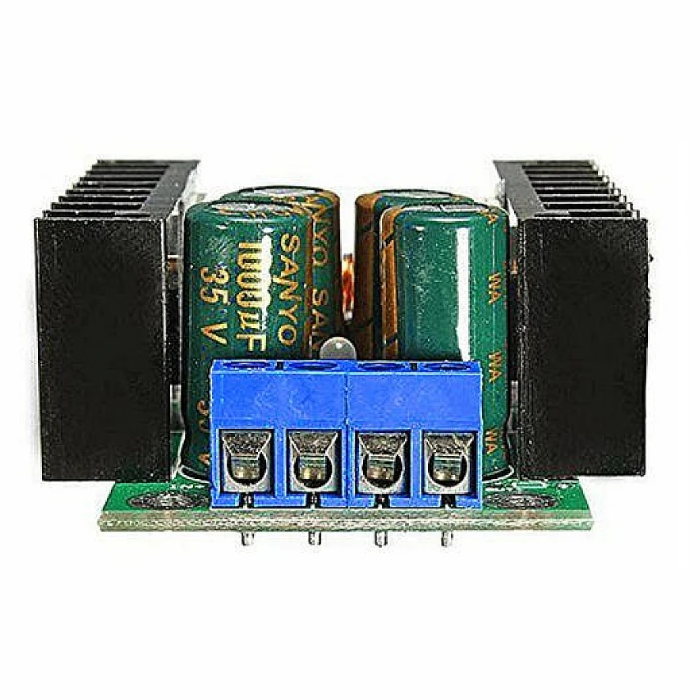

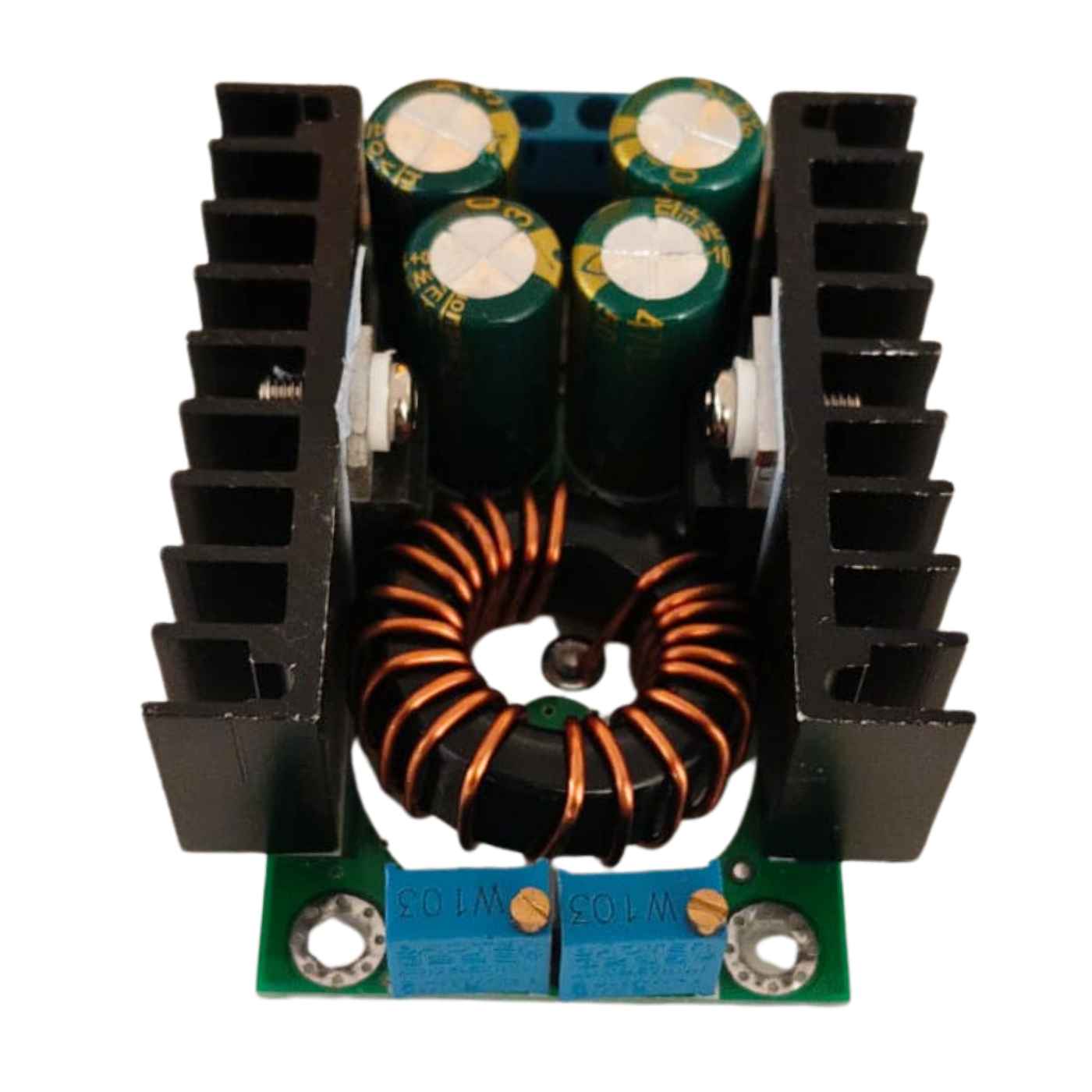

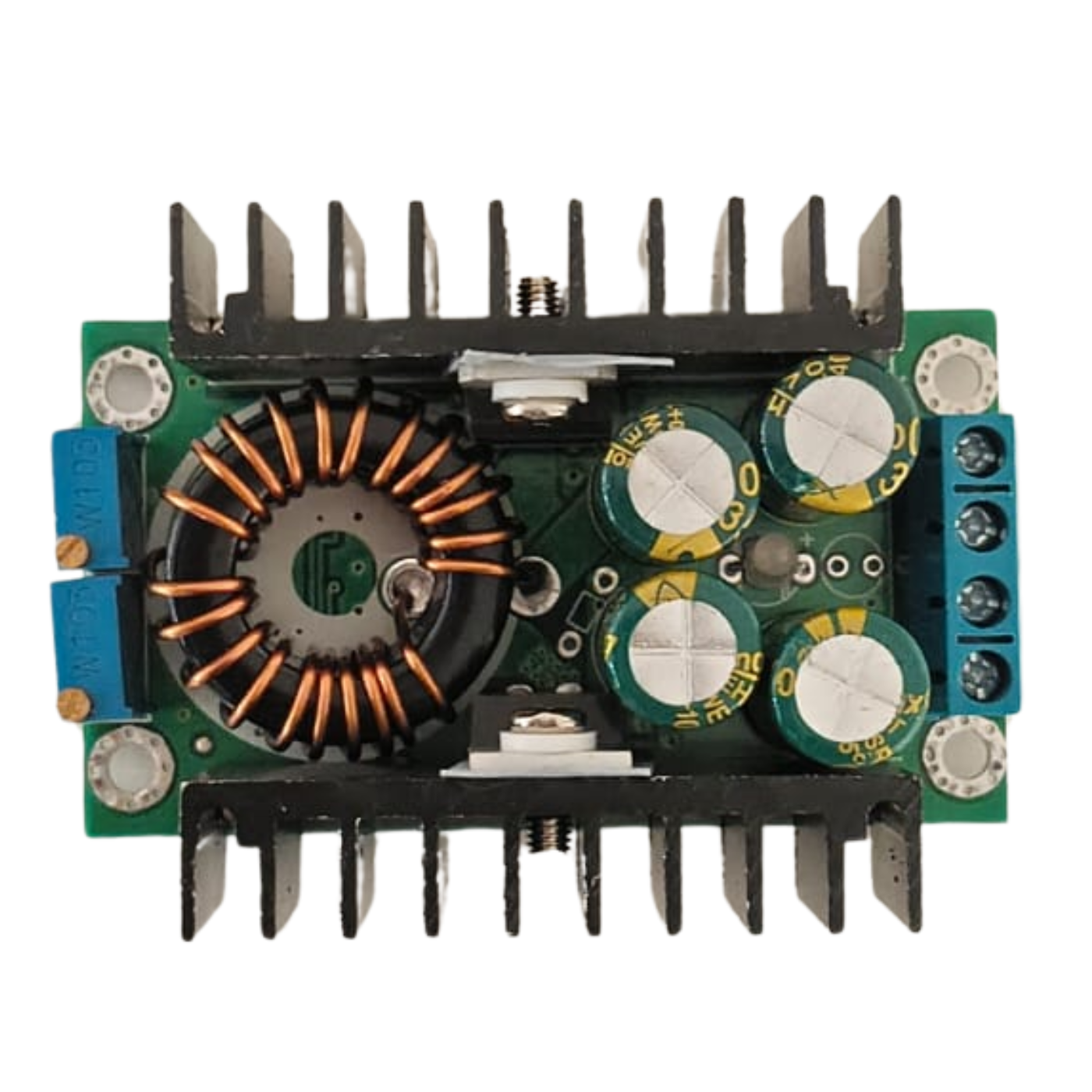

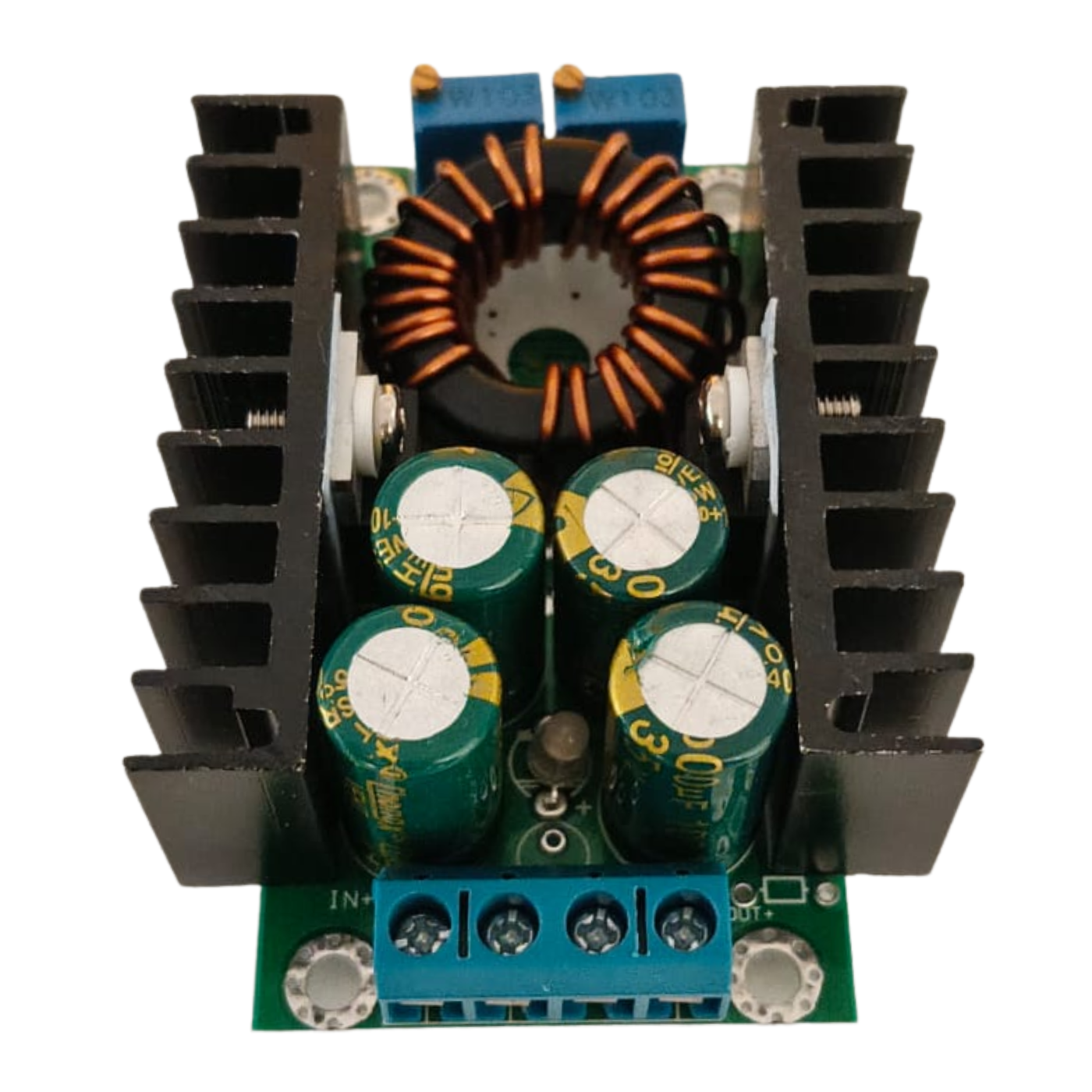

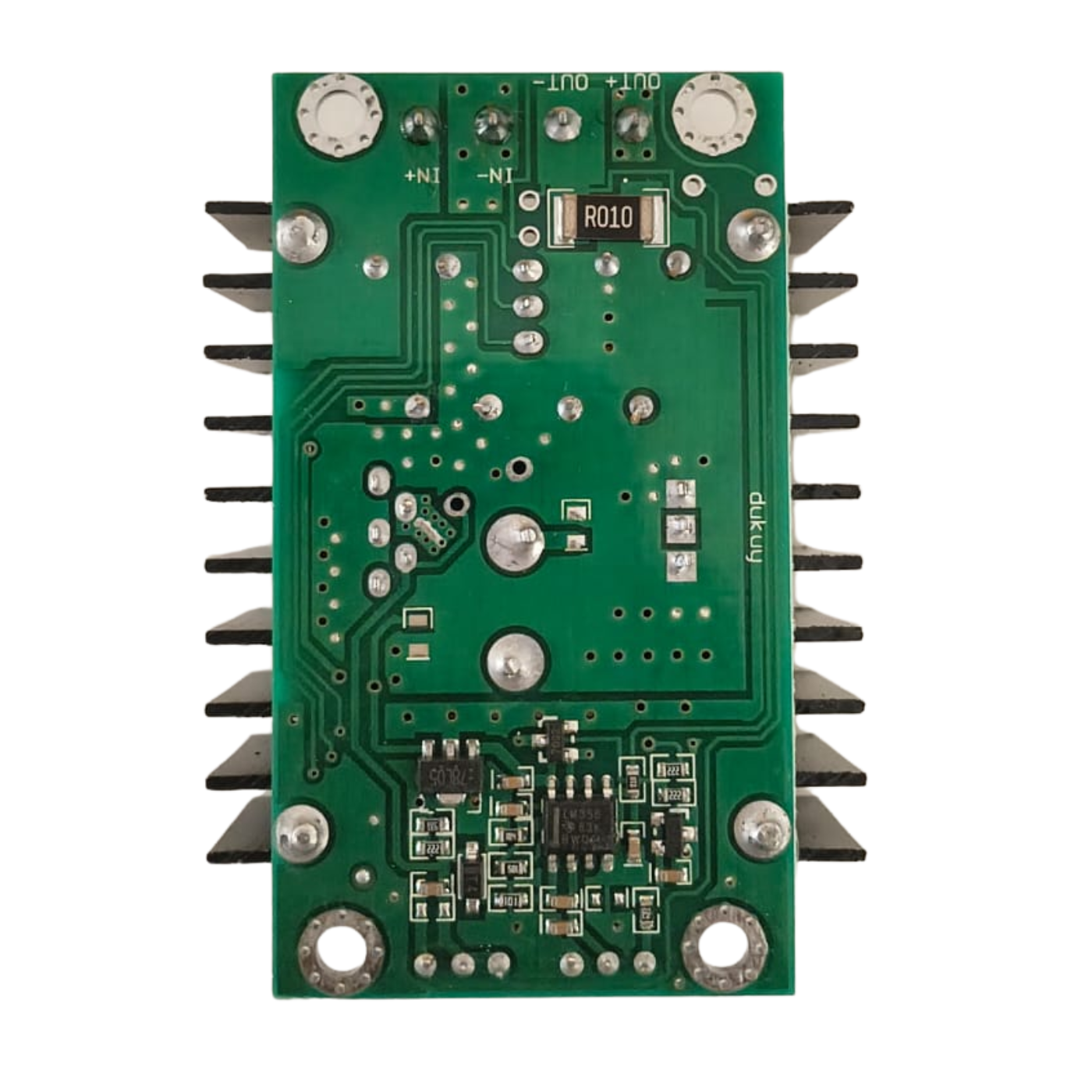

The 12A 300W DC-DC Buck Converter is a step-down power module that adjusts input voltage from 7-32V to an output of 0.8-28V. It has large aluminium heat sinks for better cooling and stable performance. With built-in capacitors and a strong magnetic coil, it works efficiently and reliably.
A TVS diode protects it from voltage surges, making it safe to use. This module is great for projects like battery charging, powering devices, or regulating voltage in cars, solar panels, and other equipment. It ensures a steady output even when the input voltage changes.
Need help choosing a DC-DC converter? Learn more about how buck, boost, and buck-boost converters work and how to choose the right module for your electronics project in our Buck-Boost Converter Guide.
Features
- Input voltage: 7-32V; adjustable output voltage: 0.8-28V.
- Supports up to 12A current and 300W power output.
- Large aluminum heat sinks for efficient cooling.
- Five low-resistance capacitors for stable performance.
- Built-in TVS diode for protection against voltage surges.
- High-efficiency design with a strong magnetic coil and copper wire.
Applications
- High-power LED lighting driver
- Charging lithium or lead-acid batteries
- Vehicle-mounted power systems
- Power supply for low-voltage systems
- Charging 6V, 12V, 14V, and 24V batteries
- On-board power for laptops
- Regulated voltage supply
- Powering low-voltage systems
Package Includes
1 x 12A 300W DC-DC Buck Converter Step down Power Module 7-32V to 0.8-28V
Specifications
| Input Voltage | 7-32V DC |
| Output Voltage | 0.8-28V DC (adjustable) |
| Output Current | 12A (max) |
| Output Power | 300W (max) |
| Efficiency | Up to 95% |
| Heat Dissipation | Large aluminum heat sinks |
| Capacitors | 5x 470uF/35V low-resistance |
| Protection | TVS diode for surge protection |
| Dimensions(LxWxH) | 7cm x 5cm x 2cm |
| Weight | 56gm |
1. What size heatsink or cooling does this need at full 12A load?
The module already includes large aluminum heatsinks for heat dissipation. However, operating continuously at the maximum 12A/300W rating can generate significant heat depending on the input/output voltage, ambient temperature, and efficiency. For sustained high-current operation, provide good airflow around the heatsinks and monitor the module temperature. Avoid treating the 12A/300W figure as a guaranteed continuous rating under every operating condition.
2. Can this be used to charge a 12V battery?
Yes, it can be used as an adjustable DC-DC power source for battery-charging applications, but the output voltage and current must be set appropriately for the specific battery chemistry and charging requirements. This module should not be treated as a dedicated smart battery charger unless the required charging profile can be safely implemented externally. The current Robocraze page lists battery charging as one of its applications.
3. What's the maximum ripple/noise on the output?
A specific maximum output ripple/noise value is not currently provided in the product specifications. The module uses five 470µF/35V low-resistance capacitors to help stabilize the output, but the actual ripple can vary with input voltage, output voltage, load current, wiring, and measurement conditions.
