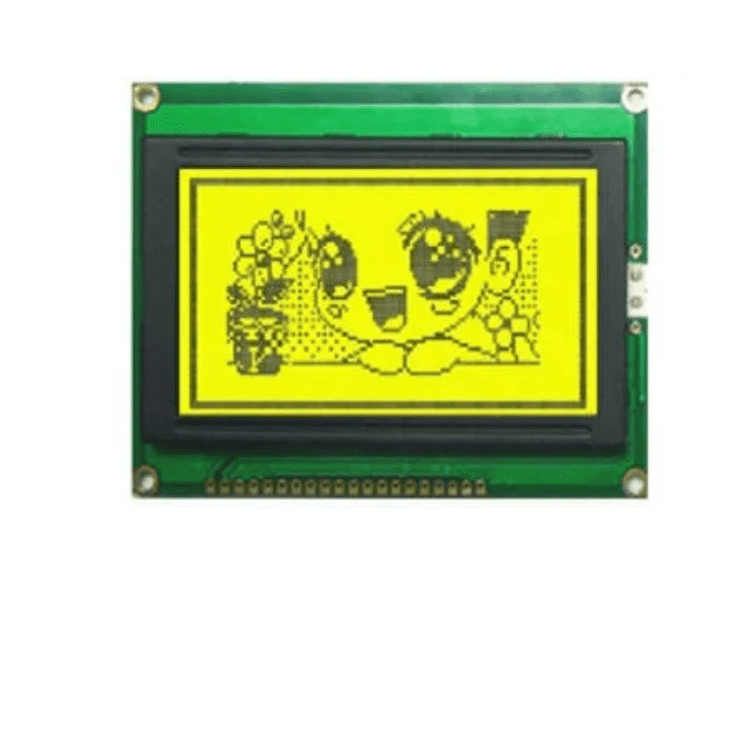

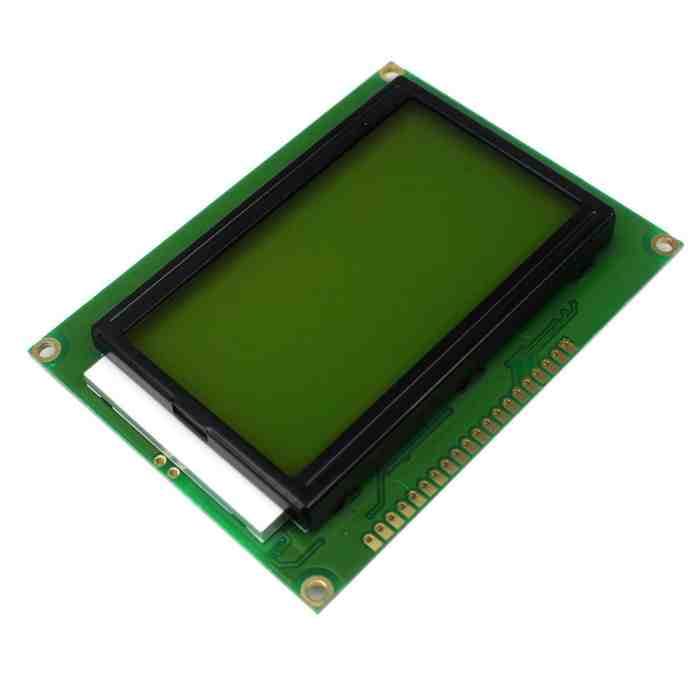

- This is the 128x64 Pixel Yellow Backlight Graphic LCD
- The graphic LCD display module has a 128x64 pixel resolution.
- The 128x64 pixel LCD display module uses JHD12864E controller has is equipped with yellow backlight.
- The graphic LCD display uses a 8 bit parallel interface or serial SPI modes.
- It needs a power supply voltage of 5V and operating temperature of :-20°C to +70°C.
- This 128x64 pixel graphic lcd display module is best suited for microcontrollers and development boards compatible with arduino.
JHD 128x64 Graphic LCD -Yellow Backlight
This is the original jHD128x64 LCD display with Yellow backlight, It is simple to use and works with the vast majority of microcontrollers on the market. With this Graphic LCD, you can do a lot of graphic things. You can make frames as well as small animations. The 128x64 Graphic LCD module has a 128 x 64 pixel LCD screen with a Yellow backlight and a white foreground. This graphic lcd is fully programmable and can show a mix of graphics and text. This 128x64 LCD display is a large, bright Yellow LCD with white back-lit pixels. It is also well known for its widespread use in 3D printers as a RAMPS extension accessory.

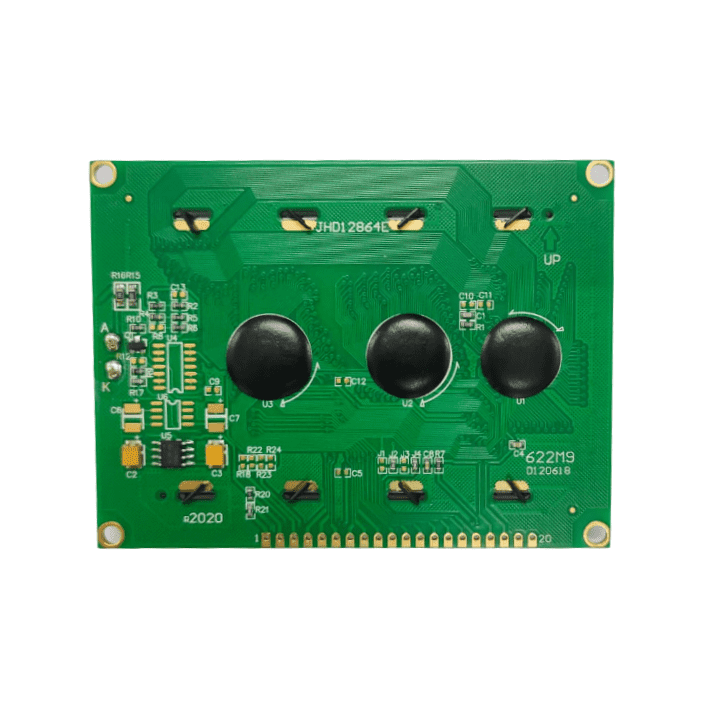

A display is required if you want to add visual output to your Arduino projects. This LCD display is best suited for graphical upgrades to popular 16x2 LCDs, but it also allows full graphical control. This 128x64 Graphic LCD series allows the user to draw lines, circles, and boxes, set or redefine individual pixels, clear specific blocks of the display, control the backlight, and adjust the baud rate in addition to writing text. The pins of the LCD 128x64 Graphic Yellow Color Backlight LCD Display module are documented on the back of the LCD to aid in wiring it up. It is very simple to connect this LCD to the 3D printer's RAMPS controller.
check out : 128x48 Green LCD
Also check 128x64 Graphic LCD with a blue backlight available on Robocraze. It features a display format of 128x64 dots and is based on the ST7920 controller, a popular Arduino controller. The LCD supports both 8-bit parallel interface and serial SPI modes. The power supply voltage is 5.0V, and the operational temperature ranges from -20°C to +70°C.
Package Includes:
- 1 x 128x64 Graphic LCD -Yellow Backlight
Specifications:
| Brand | JHD12864E |
| Display Format | 128x64 dots |
| Controller | KS0108 |
| Interface | 8-bit parallel interface or serial SPI modes |
| Power Supply Voltage | 5V |
| Operation temperature | -20°C to +70°C |
| Package Dimensions | 6 x 4 x 2 cm |
| Package Weight | 150 grams |
