  • This is TM1637 4 Digit 7 Segment LED Display
  • This is Ease of multiplexing
  • It can be used as a 4 digit display unit
  • It can be used as a clock display
  • The counter project using 7 segment display
  • 4 M2 screws positioning holes for easy installation
  • This 7 segment LED Display has 4 digits which are controlled by TM1637 Driver Chip

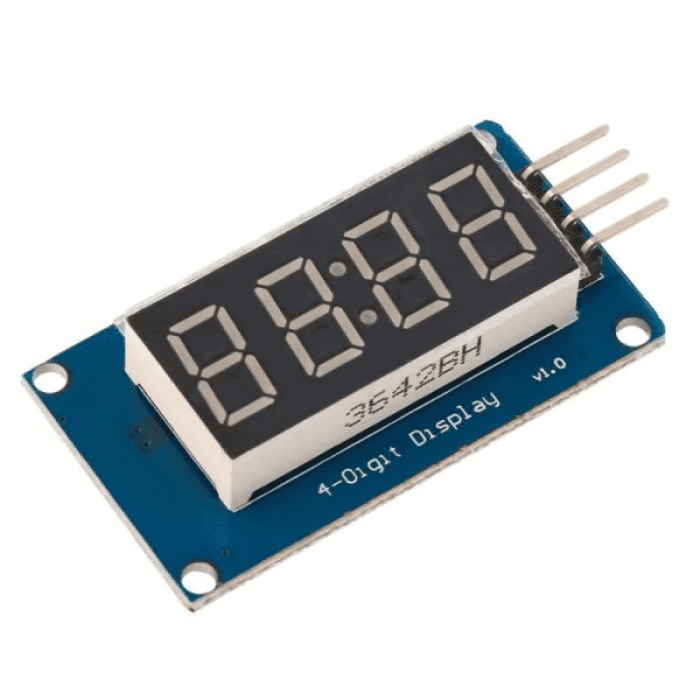

TM1637 4 Digit 7 Segment LED Display

The TM1637 4 digit 7 Segment LED Display is a low-cost solution for displaying Arduino project output data. Though the data displayed is limited to numbers, users can also display characters such as A, B, C, and so on. The TM1637 Driver Chip controls the 4 digits on this 7 segment display. This TM1637 4 Bits Digital Tube LED Display Module can be controlled with just two wires.

Also, thanks to the I2C Bus, you can control it with only two wires, freeing up more pins on your Microcontroller for other purposes. The module is a 12-foot clock with four common anode tube (0.36 inch) display module for driver IC TM1637, with only two signal lines allowing the MCU to control four 7-segment digital tubes.

If you want to use this 4 digit 7 segment display module in your Arduino project, for that you will need few essential components like

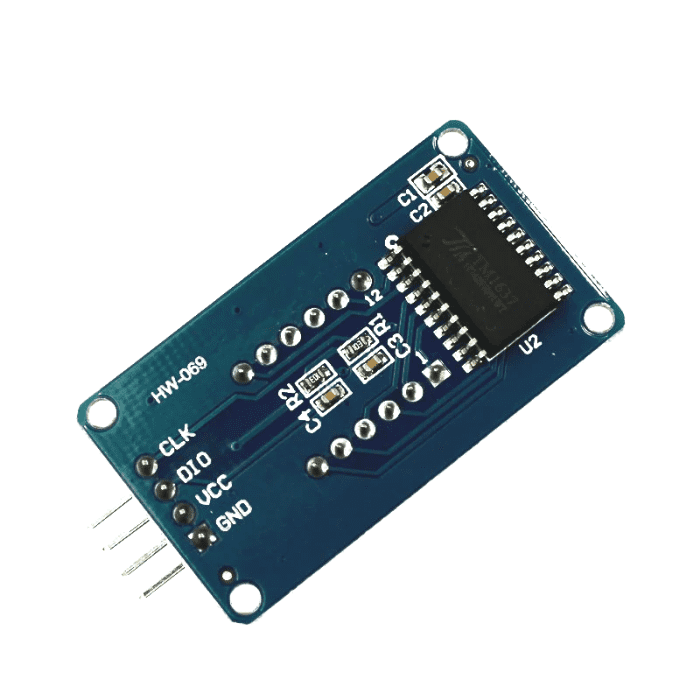

tm1637 4 digit 7 segment led display pinout

TM1637 4 Digit 7 Segment LED Display pin Diagram

Pinout:

1 CLK Clock Input Pin
2 DIO Data Input/Output Pin
3 VCC 3.3V to 5V power supply Pin
4 GND Ground Pin

Applications:

  • Can use as a 4-digit display unit.
  • Can use as a clock display
  • DIY clock project.
  • 4 digit display unit.
  • Electrical/Electronic projects.
  • The counter project using 7 segment display.

Package Includes:

  • 1 x TM1637 4 Digit 7 Segment LED Display

Specifications:

Model  TM1637
Driver Chip MAX7219
Number of Digit 4
Input Current 30mA
Input Voltage 3.7 - 5.3V
Dimensions 19mm x 50mm x 14mm
Weight  15 grams
  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details

People Also Buy

-36%
TM1637 4-Digit Display + IR Proximity Sensor-Robocraze

TM1637 4-Digit Display + IR Proximity Sensor

Rs. 96
Rs. 149 Rs. 96
Incl. GST (No Hidden Charges)
Sale
-15%
Original Arduino Uno Rev3 A000066 - Robocraze

Arduino Uno R3 Original

Rs. 1,860
Rs. 2,199 Rs. 1860
Incl. GST (No Hidden Charges)
Sale
-25%
ESP12F ESP8266 Amica NodeMCU Wifi Module - Robocraze

ESP12F ESP8266 Amica NodeMCU Wifi Module

Rs. 263
Rs. 349 Rs. 263
Incl. GST (No Hidden Charges)
Sale

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

NaN -Infinity

1. What is a 4-digit 7-segment display?

  • This 7-segment LED Display has 4 digits which are controlled by the TM1637 Driver Chip. It requires only two connections to control this TM1637 4 Digits 7 Segment Led Display Module. Also thanks to the I2C bus you can control it using only 2 wires, leaving more pins available on your Microcontroller to connect other things.

2. How does a TM1637 4 Digit 7-Segment LED Display work?

  • The TM1637  4-digit 7-segment displays require 12 connection pins. The TM1637 IC is mounted on the back of the display module, which reduces the total wire to 4. Two pins are required for the power connections and the other two pins are used to control the segments. The module is a 12-foot clock with four common anode tubes (0.36 inch) display modules for driver IC TM1637, only two signal lines can make the MCU control four 7-segment digital tubes.

3. Where can the TM1637 4 Digit 7-Segment LED Display can be used?

  • This 7-segment LED Display has 4 digits which are controlled by the TM1637 Driver Chip. The TM1637 4 Digit 7-Segment LED Display can be used as a  4-digit display unit, Can be used as a clock display, as a DIY clock project, 4-digit display unit, for Electrical/ Electronic projects, and as a counter project using 7 segment display.

4. What is 7 segment display?

  • A seven-segment display is a form of electronic display device for displaying decimal numerals that is an alternative to the more complex dot matrix displays.

5. Where are 7-segment displays used?

  • Seven-segment displays are widely used in digital clocks, electronic meters, basic calculators, displays in home appliances, cars, and various other electronic devices that display numerical information.
