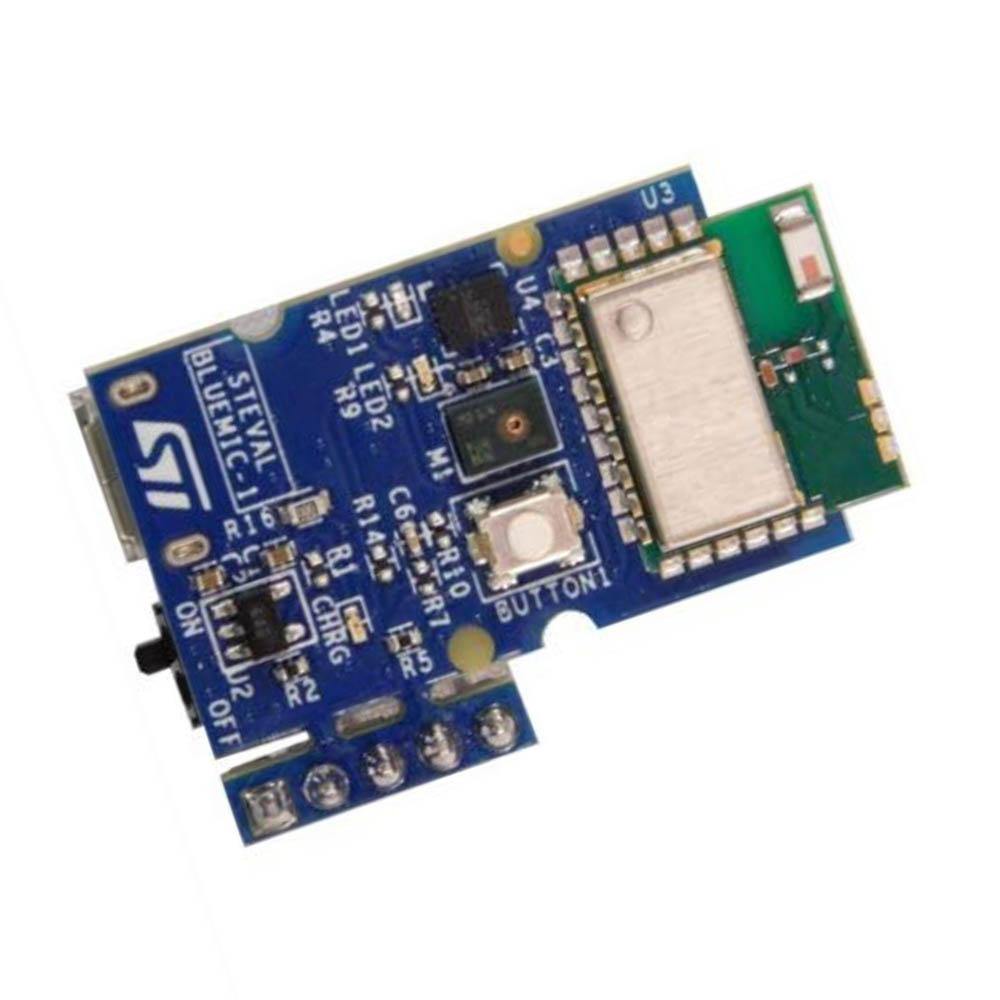

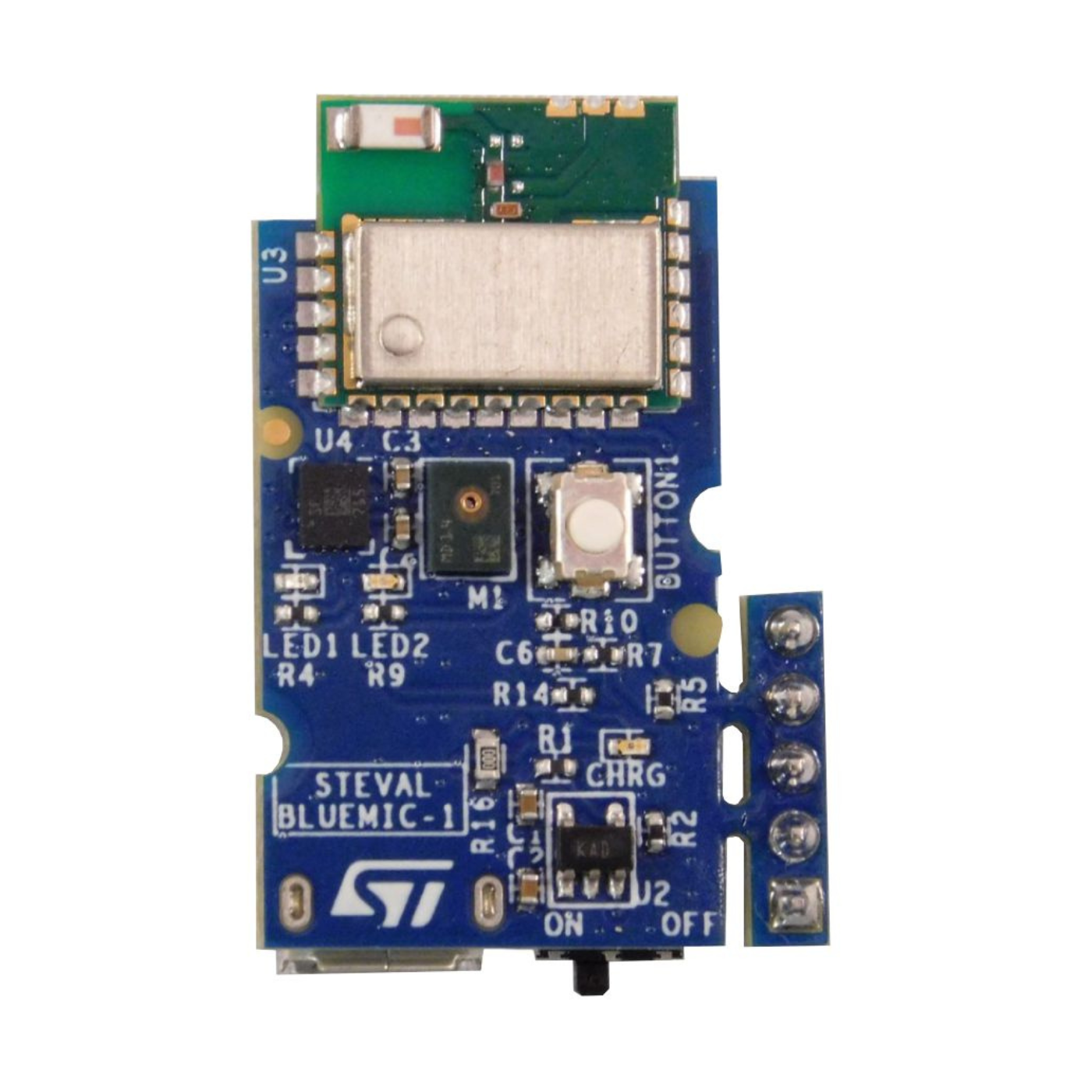

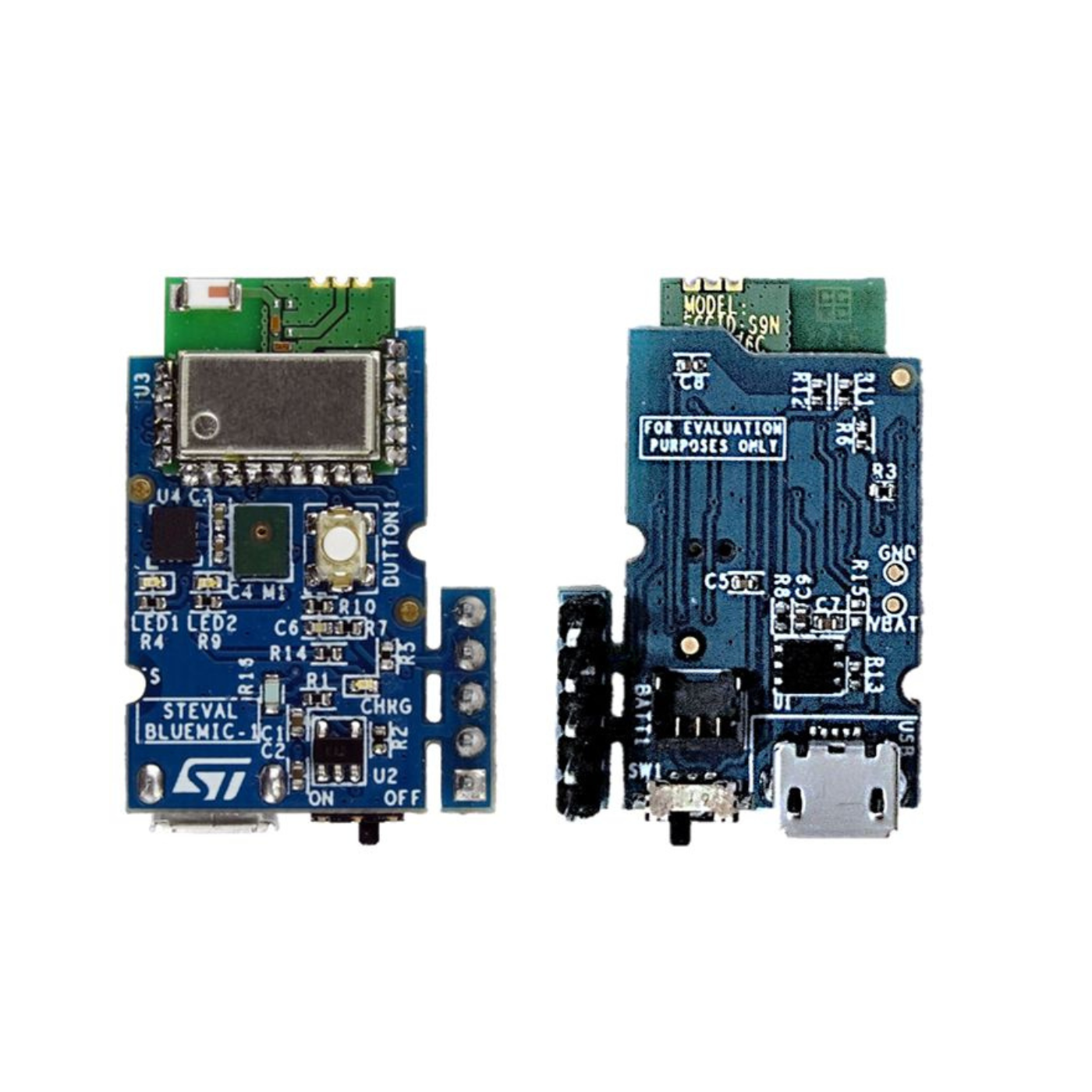

Steval Bluemic 1 Evaluation Board

Regular price
Rs. 3,019
Sale price
Rs. 3,019
Regular price
Sold out
Unit price
per
Tax included. Shipping calculated at checkout.

  • Bluetooth SMART small form factor board based on the SPBTLE-1S module, Bluetooth v4.2 compliant
  • On-board MP34DT05-A (or MP34DT04-C1 in the first generation board) digital MEMS microphone
  • On-board LSM6DSL: MEMS 3D accelerometer (¬Ī2 / ¬Ī4 / ¬Ī8 / ¬Ī16 g) plus 3D gyroscope (¬Ī125 / ¬Ī245 / ¬Ī500 / ¬Ī1000 / ¬Ī2000 dps)
  • Battery or USB Powered
  • SW development kit for audio and inertial MEMS data streaming over BLE

Steval Bluemic 1 Evaluation Board

The STEVAL-BLUE MIC-1 evaluation board mounts the SPBTLE-1S Bluetooth SMART application processor compliant with BT specification v4.2. It supports multiple simultaneous roles and can act as a Bluetooth Smart master and slave device at the same time.

This BLE wireless battery-powered solution also embeds digital MEMS microphone MP34DT05-A (or MP34DT04-C1 in the first generation board) and 3D accelerometer + 3D gyroscope, which render this evaluation board suitable for a wide range of advanced smart applications.

The evaluation board comes with a SW development kit that includes the Bluetooth low energy stack, all the drivers for audio and inertial data acquisition, and button and LED management.

Package Includes:

  • 1 x¬†STEVAL-BLUE MIC-1 evaluation board

Specifications:

Evaluation Board Type  Steval BlueMic
Dimensions  5 x 3 x 1cms
Weight  15 grams
