SpeedyBee F405 V3 30×30 Flight Controller
SpeedyBee F405 V3 30×30 Flight Controller
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 10000 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- High-performance flight controller for drones.
- Uses STM32F405 MCU for efficient processing.
- Equipped with BMI270 IMU for precise motion sensing.
- Features Type-C USB for modern connectivity.
- Includes built-in barometer for accurate height measurement.
- AT7456E OSD chip for on-screen display.
- Supports BLE Bluetooth for configuration (MSP enabled on UART4).
- Does not support WIFI.
- Connects to DJI Air Unit via 6-pin plug or direct soldering.
- Compatible with DJI O3, RunCam Link, Caddx Vista, and DJI Air Unit V1.

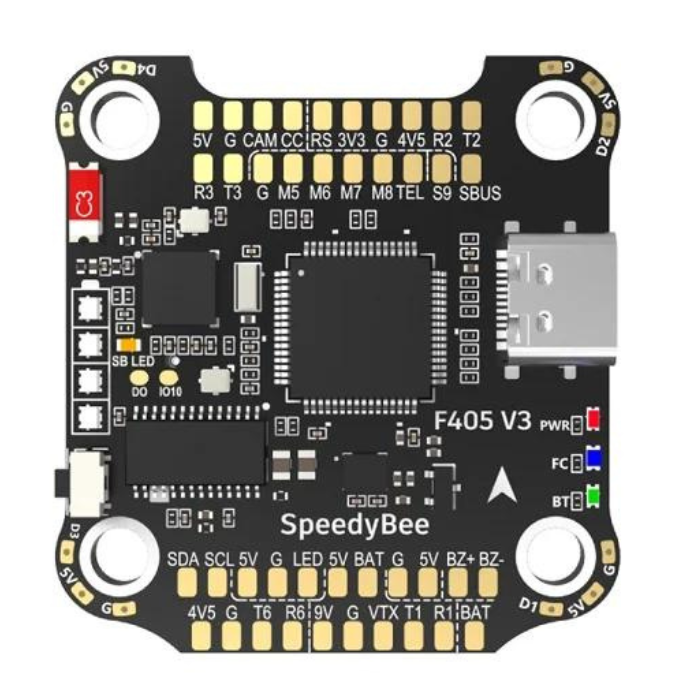

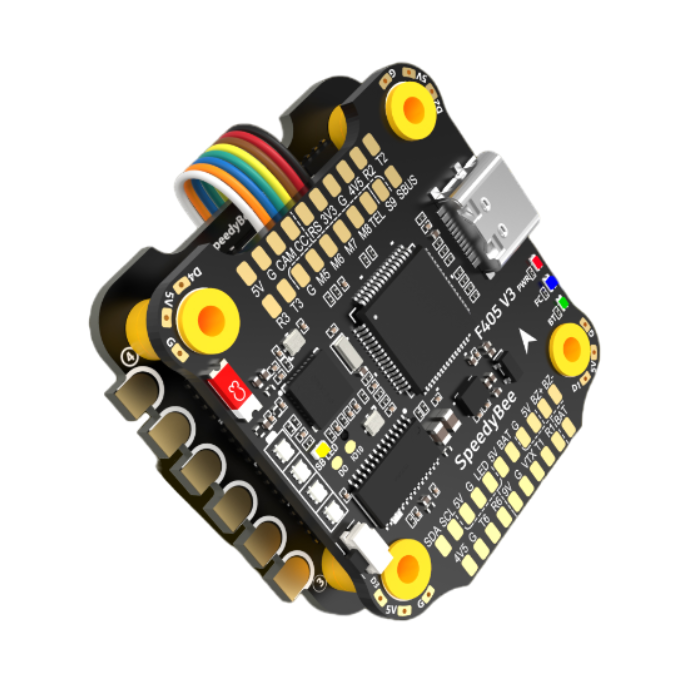

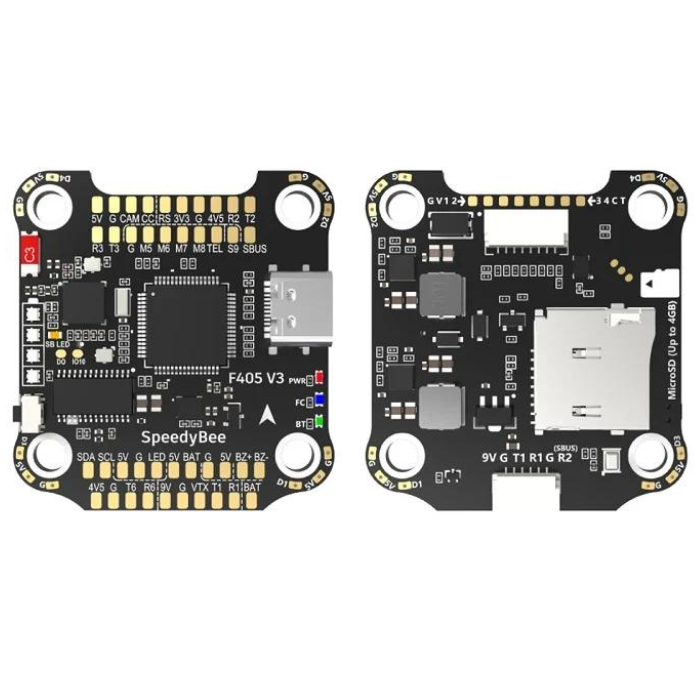

SpeedyBee F405 V3 30×30 Flight Controller
Look over the SpeedyBee F405 V3 30x30 Flight Controller. It's a small 30x30mm controller that fits a variety of drone frames, from little quads to larger racers.
It operates on the STM32F405 processor, which has an ARM Cortex-M4 core for smooth and quick computing. It includes a built-in barometer for precise height measurements and a 4GB SD card slot for storing flight data. The DJI Air Unit connector allows for rapid digital installations, and the power supply is 9V 2A and 5V 2A.
You get four UARTs for your receiver, VTX, camera, and GPS. You can even power your GPS through USB, so there’s no extra heat. Plus, the 22mm cutouts are perfect for fitting an FPV camera in tight builds. It’s great for both beginners and pros, offering solid performance and flexibility.
Key Features:
- 22mm cutouts for fitting FPV cameras in compact builds.
- Dedicated DJI Air Unit connector for easy digital setup.
- Built-in barometer for precise height measurement.
- SD card slot supports up to 4GB for Blackbox data.
- Powers GPS via USB, eliminating extra heat.
- Four UARTs for connecting receiver, VTX, camera, and GPS.
- 9V 2A and 5V 2A individual BECs for reliable power.
Package Includes
1 x SpeedyBee F405 V3 30×30 Flight Controller
Specifications:
| Specification | Details |
|---|---|
| Item Type | Flight Controller |
| MCU Type | STM32F405 |
| IMU (Gyro) | BMI270 |
| USB Type | Type-C |
| Barometer | Built-in |
| OSD Chip | AT7456E chip |
| BLE Bluetooth | Supported, for Flight Controller configuration (MSP enabled with Baud rate 115200 on UART4) |
| WIFI | Not supported |
| DJI Air Unit Connection Way | Two ways supported: 6-pin connector or direct soldering |
| 6-pin DJI Air Unit Plug | Supported, compatible with DJI O3/RunCam Link/Caddx Vista/DJI Air Unit V1, no wire changes needed |
