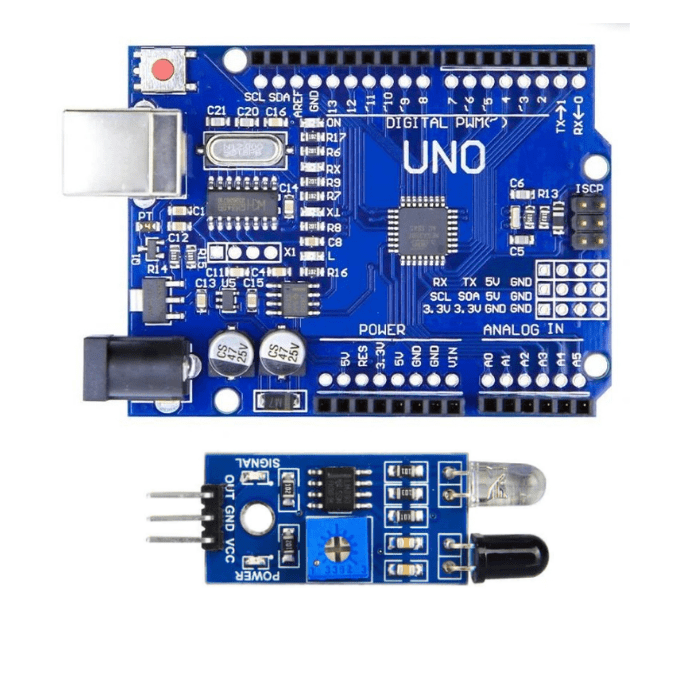

IR Proximity Sensor with SMD UNO Compatible with Arduino

IR Proximity Sensor with SMD UNO Compatible with Arduino

5

Rs. 300
Rs. 499 Rs. 300
Sale Sold out 40% off
Incl. GST (No Hidden Charges)
Submit your Bulk Enquiry Here
Currently, 23 people are actively viewing.
Trust Badge 1
Same Day Shipping
If Ordered within 4 Hours and 47 Minutes
Trust Badge 2

Technical Support & Easy Returns

Trust Badge 3

Earn RC Coins on Every Purchase

Rewards

Trust Badge 4

Cash on Delivery Available

Cash Delivery

COUPON

RC100 FLAT ₹ 100/- OFF

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

  • The Uno SMD is an Uno compatible version of the latest R3 iteration of the Arduino Uno, which is the most popular of the many development boards available for hobbyists
  • Arduino can sense the environment by receiving input from a variety of sensors and can affect its surroundings by controlling lights, motors, and other actuators
  • This board uses an SMD version of the microprocessor rather than the older style DIP package used on the original product and has some additional features
  • A preset knob to fine-tune distance range
  • If there is an obstacle, the indicator lights on the circuit board.

IR Proximity Sensor with SMD UNO Compatible with Arduino

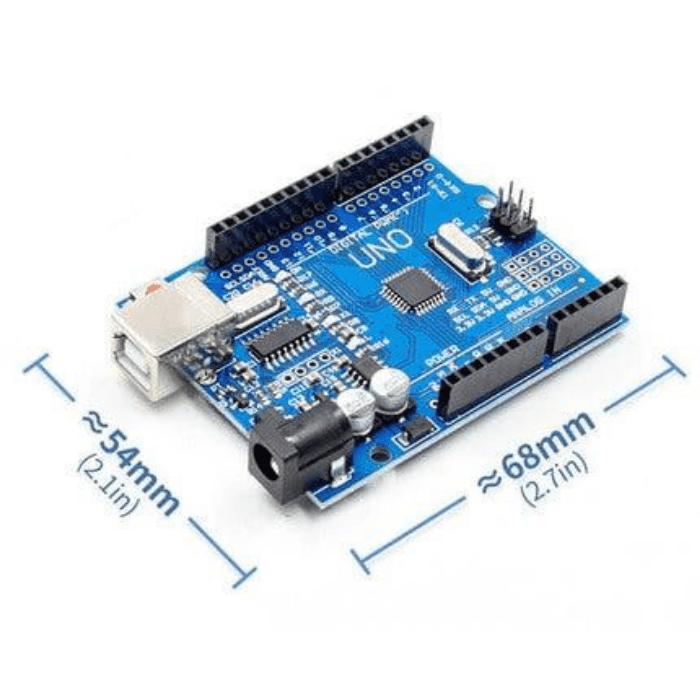

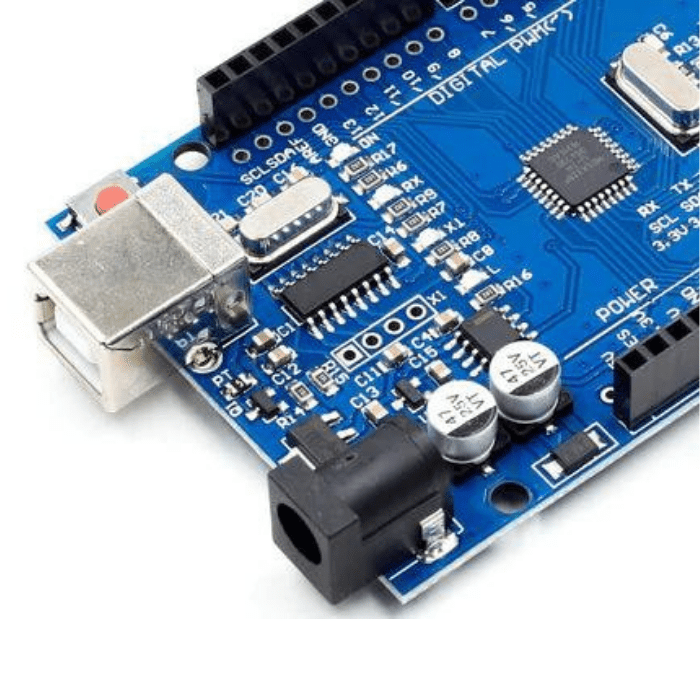

The Arduino UNO SMD board is based on the ATmega328. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started.

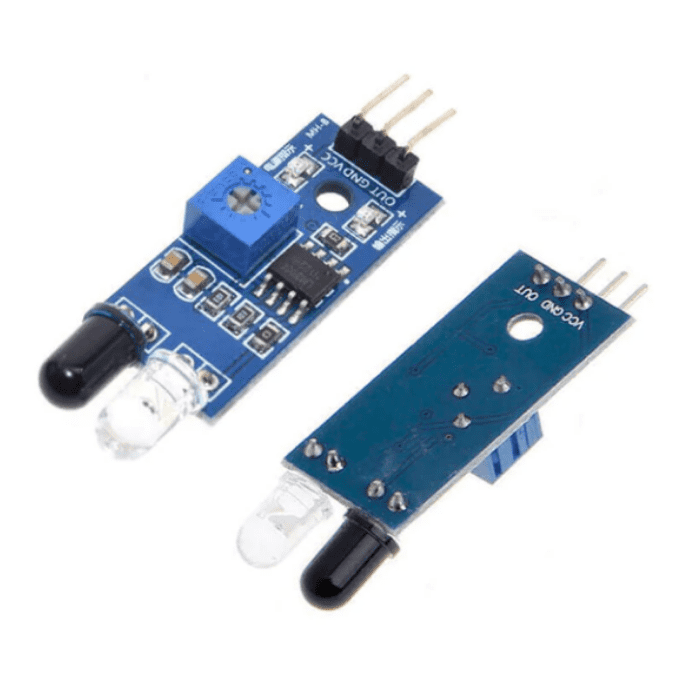

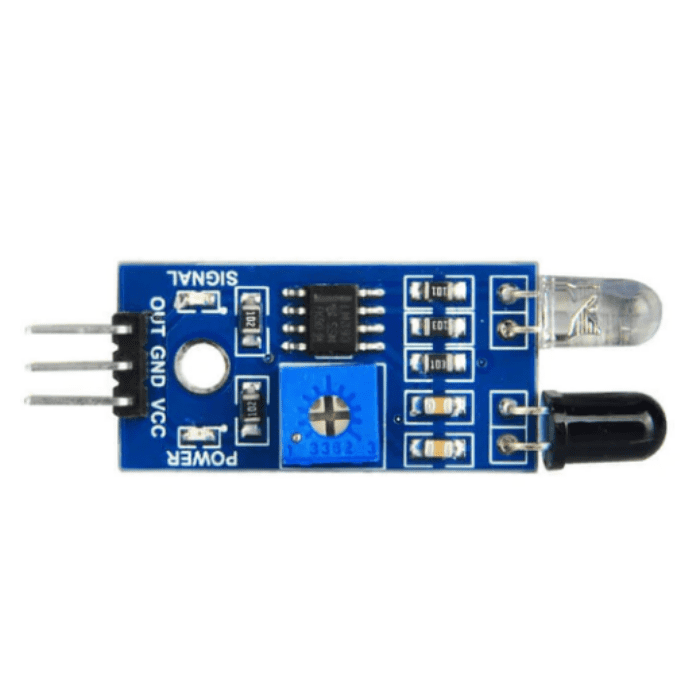

IR Proximity Sensor module has the great adaptive capability of the ambient light, having a pair of an infrared transmitter and the receiver tube, the infrared emitting tube to emit a certain frequency encounters an obstacle detection direction (reflecting surface), infrared reflected the receiver tube receiving, after a comparator circuit processing, the green LED lights up, while the signal output will output digital signal (a low-level signal).

Arduino UNO Pinout:

Arduino UNO Pinout

IR Proximity Sensor Pinout:

IR Proximity Sensor Pinout

Applications:

  • Remote System Monitoring
  • Home Alarm System
  • Remote Controlling System
  • Security Access Control
  • Vehicle tracking
  • SMS Gateway
  • Arduino Music Instrument
  • Robot Car
  • Fingerprint door lock

Package Includes:

  • 1 x Arduino UNO SMD
  • 1 x IR Proximity Sensor module

Specifications:

Microcontroller

ATmega328

Digital I/O Pins

14

Analog Inputs

6

Crystal Oscillator Frequency

16MHz

Operating Voltage

6-20V

Dimensions

7 x 5 x 1cms

Weight

10 grams

Main Chip Of IR Proximity Sensor

LM393

Operating Voltage (VDC) Of IR Proximity Sensor

3.6 ~ 5

Distance Measuring Range (CM)

2 ~ 30

Dimensions Of IR Proximity Sensor

48 x 14 x 8 mm
