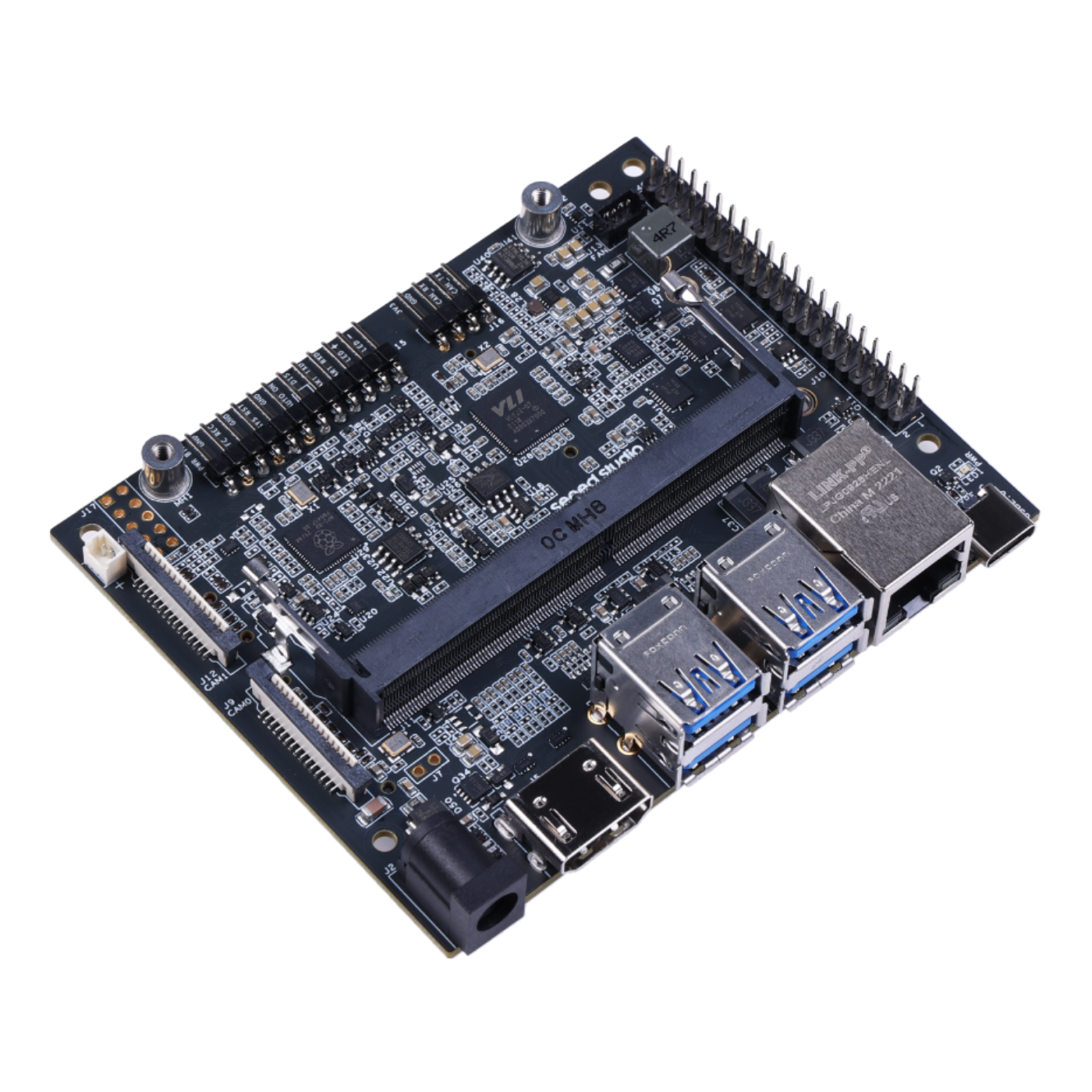

The reComputer J401 is an advanced NVIDIA Jetson Orin NX carrier board, purpose-built to support both Jetson Orin Nano and Orin NX modules.
Designed as an open-source extension board, this Jetson carrier board breaks out a comprehensive range of I/O interfaces from the SoM, offering seamless high-speed and low-speed connectivity to meet diverse development needs.
With its compact form factor, reliable performance, and developer-friendly architecture, the J401 simplifies the process of building, testing, and scaling embedded systems.
Ideal for prototyping, edge deployments, and long-term product updates, it accelerates time-to-market while providing the flexibility required for robotics, computer vision, and AI-powered edge applications.
For developers looking for a compact yet powerful Jetson Nano carrier board alternative with Orin compatibility, the reComputer J401 offers a future-ready platform for advanced AI development.
The J401 Jetson Nano carrier board design provides flexibility for AI developers, researchers, and embedded system integrators working on next-generation edge applications.
| Component | Specification |
|---|---|
| Carrier Board | Compatible with Jetson Orin™ NX / Orin™ Nano |
| Storage | 1x M.2 Key M (connector to support 2280 NVMe SSD) |
| Networking — Ethernet | 1x RJ-45 Gigabit Ethernet (10/100/1000M) |
| M.2 Key E | 1x M.2 Key E for WiFi/Bluetooth module |
| I/O — USB |
4x USB 3.2 Type-A (10Gbps) 1x USB 2.0 Type-C (Device Mode) |
| Camera | 2x CSI (2-lane, 15-pin) |
| Display | 1x HDMI 2.1 |
| Fan | 1x 4-pin Fan Connector (5V PWM) |
| CAN | 1x CAN |
| Multifunctional Port |
1x 40-Pin Expansion Header 1x 12-Pin Control and UART Header |
| RTC | 1x RTC 2-pin (supports CR1220, not included) |
| Power | 9–19V DC |

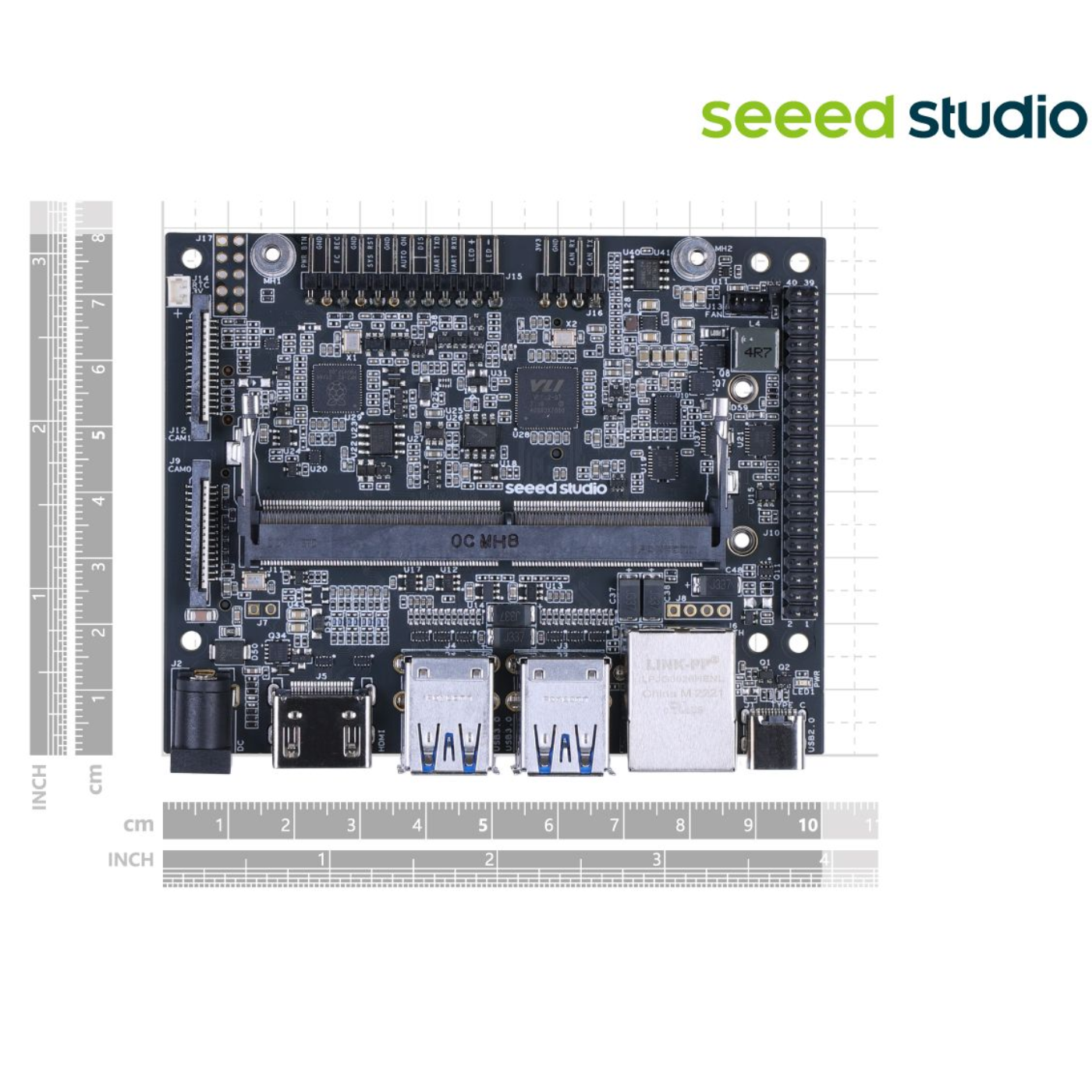

| Mechanical — Dimensions (W × D) | 100mm × 80mm |
| Installation | Desk, wall-mounting |
| Operating Temperature | -10°C to 60°C |
The reComputer J401 board is a versatile and powerful open-source carrier board designed specifically for the NVIDIA Jetson Orin Nano and Orin NX modules. It unlocks the full potential of these modules by providing multiple interfaces. This allows you to easily connect a wide range of peripherals for your AI and robotics projects.
Connecting peripherals to your Orin Nano expansion board is easy thanks to its rich set of ports. You can plug in multiple cameras, various USB devices, and fast M.2 storage for your data. The board also includes a port for Ethernet modules, making it a powerful hub for building complex AI applications.
Yes, the Orin NX carrier board is built for high-speed data transfer. It is equipped with Gigabit Ethernet for fast networking, multiple M.2 slots for high-speed storage, and modern USB 3.2 ports. These features ensure fast and stable communication, which is crucial for demanding AI and data-intensive applications.
The reComputer J401 board requires an external DC power supply, as one is not included in the box. A common requirement is a 12V/5A power source. To ensure the safety and stability of your Jetson Orin carrier board, it is very important to use a high-quality regulated adapter.
Absolutely, the Jetson Orin carrier board is purpose-built for advanced AI, robotics, and edge computing projects. It functions as both an Orin Nano expansion board and an Orin NX carrier board. This flexibility allows you to integrate a wide variety of sensors and peripherals for any application.
To update the firmware on your reComputer J401 board, you will need to use the NVIDIA SDK Manager. Connect the board to your host computer via its USB flashing port. The SDK Manager will then guide you through the process of flashing the latest software for your Orin Nano or Orin NX module.
Yes, the Orin NX carrier board is designed to handle multiple connected devices running at the same time. You can simultaneously use several cameras, high-speed M.2 SSDs, and various USB modules. This makes it the perfect platform for building complex, multi-sensor AI systems.
If your Orin Nano expansion board is not booting, start with the basics. First, double-check that your power supply is providing adequate voltage and current. Also, ensure your monitor is connected correctly to the HDMI output and that the firmware installation was completed successfully on the reComputer J401 board.
