Raspberry Pi Pico Microcontroller Board - (Pack of 50)
Let us know!
We'll try to match the price for you
We’ll notify you once the product is back in stock.
Couldn't load pickup availability

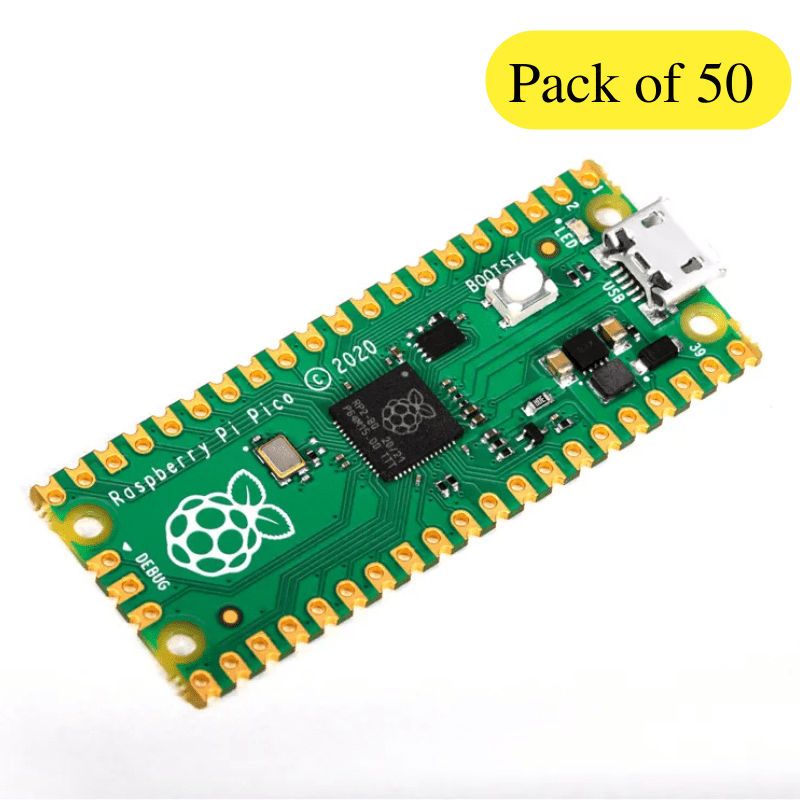

The Raspberry Pi Pico Pack of 50 is the latest released microcontroller board by Raspberry Pi. The 50 Quantity of Raspberry Pi Pico Board without headers is exclusively created by Robocraze for Schools & Colleges, Wholesalers, Industries, Offices etc.

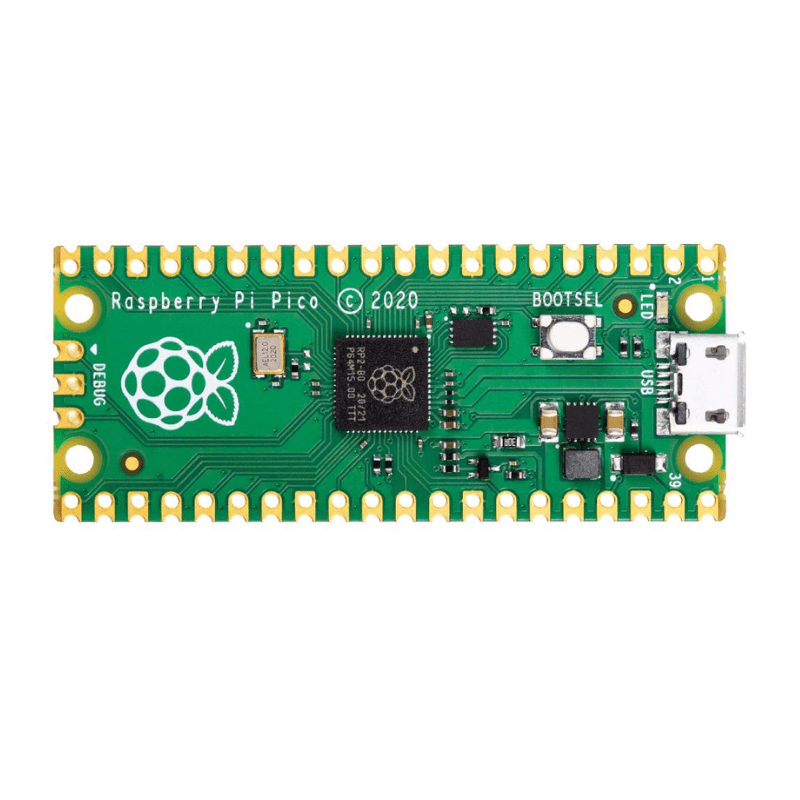

Raspberry Pi Pico Microcontroller Board is a low-cost, high-performance microcontroller board with flexible digital interfaces. It feature the RP2040 which marks Raspberry Pi's first microcontroller designed in-house. Pico provides minimal (yet flexible) external circuitry to support the RP2040 chip (Flash, crystal, power supplies and decoupling and USB connector). The majority of the RP2040 microcontroller pins are brought to the user IO pins on the left and right edge of the board. Four RP2040 IO are used for internal functions - driving an LED, on-board Switched Mode Power Supply (SMPS) power control and sensing the system voltages.
| Processor | Dual-core ARM Cortex-M0+ |
| Clock | Up to 133 MHz |
| Memory | 264 kB SRAM, 2 MB QSPI Flash |
| GPIO Pins | 26 |
| Analog inputs | 3 |
| UARTx Ports | 2 |
| SPI controllers Ports | 2 |
| I2C controllers Ports | 2 |
| PWM channels Ports | 16 |
| Programmable I/O state machines for custom peripheral support | 8 |
| Input power | 1.8-5.5 V DC |
| Operating temperature | -20 to 85 °C |
| Onboard sensor | Temperature sensor |
| Libraries | Accelerated integer and floating-point |
| Size | 21 × 51 mm |
Raspberry Pi Original boards comes with a 1-year manufacturer warranty from the date of purchase, covering manufacturing defects only.
The product shows signs of physical damage, mishandling, exposure to water/moisture, fire, natural calamities, unauthorized repairs, improper storage near heat or direct sunlight, or alteration in any way.
