Raspberry Pi Pico H - Pico with Headers Soldered

Raspberry Pi Pico H - Pico with Headers Soldered

Raspberry Pi Pico H with Soldered Headers is a low-cost microcontroller board features their powerful new chip, the RP2040, and all the fixin's to get started with IoT embedded electronics projects at a stress-free price.

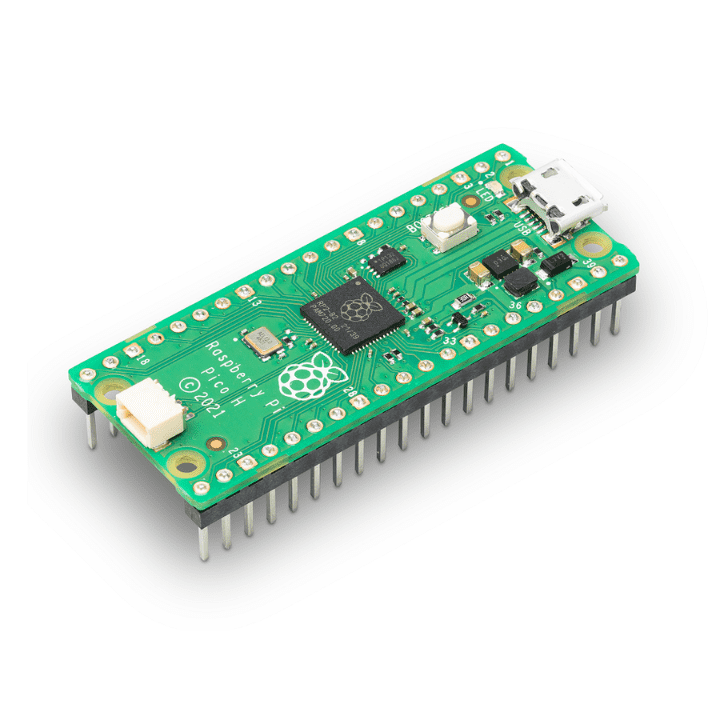

Raspberry Pi Pico H is Similar to the classic Raspberry Pi Pico but adds pre-soldered headers and a new 3-pin debug connector.

There's 20 pads on each side, with groups of general purpose input-and-output (GPIO) pins interleaved with plenty of ground pins. All of the GPIO pins are 3.3V logic, and are not 5V-safe so stick to 3V! You get a total of 25 GPIO pins, 3 of those can be analog inputs (the chip has 4 ADC but one is not broken out). There are no true analog output (DAC) pins.

On the slim green board is minimal circuitry to get you going: A 5V to 3.3V power supply converter, single green LED on GP25, boot select button, RP2040 chip with dual-core Cortex M0, Wireless chipset with antenna, 2 MegaBytes of QSPI flash storage, and crystal.

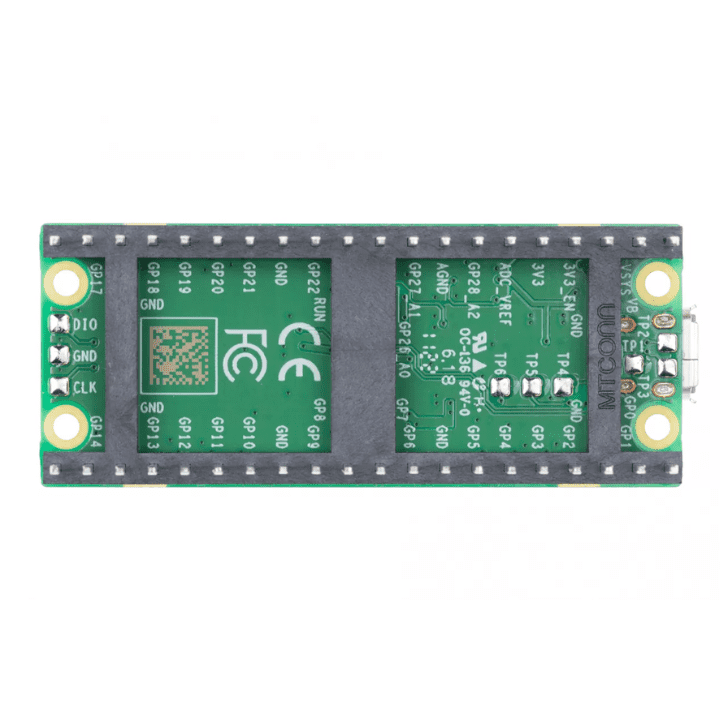

Note: This variation comes with a set of male headers pre-soldered to all through-hole vias and a 3 pin debug connector. The spacing remains 2.54mm and breadboard compatible (even more so now with the addition of the male headers).

Package Includes:

• 1 x Raspberry Pi Pico H with Headers Soldered

Specifications:

ADDITIONAL RESOURCES

• 3-Pin Connector
