Radiolink CrossFlight Flight Controller – Stable Drone RC Control

The Radiolink CrossFlight Flight Controller is a high-performance, precision-engineered solution designed to enhance the control and stability of your drones and RC vehicles. Ideal for aerial photography, FPV racing, or casual drone flying, this flight controller offers superior stability, responsive handling, and precise maneuverability in every flight.

Equipped with advanced gyroscopic sensors and optimized flight algorithms, the CrossFlight ensures accurate control and smooth performance even in challenging conditions. Its compact, lightweight design makes installation simple and supports a wide range of drone setups, making it a perfect choice as a drone flight controller or FPV flight controller for various applications.

Seamless integration with Radiolink transmitters and receivers, combined with an intuitive user interface, allows for quick setup and easy customization of flight parameters. Pilots gain enhanced control, reliability, and versatility, unlocking new levels of performance for both professional and hobbyist drone enthusiasts.

Features

  • Vibration Damping by Software : Maintains sensor data accuracy, improves altitude hold, and ensures stable flight performance.
  • Built-in OSD Module : Provides real-time graphical display of critical flight information such as aircraft direction and position, eliminating the need for an external OSD module.
  • 10-Channel PWM Output : Supports 3–8 axis multirotors, airplanes, helicopters, cars, boats, and other RC applications.
  • Compact & Lightweight : At just 39.7 × 39.7 × 13 mm and 16.5 g, it saves space and reduces overall weight, extending flight time.
  • User-Friendly Setup : Comes with full technical support and guidance for installation, PID adjustments, log viewing, and more.
  • Automation Software Testing System : Uses the same system as PIXHAWK and Mini Pix, enabling automated testing from sensors to connection ports for reliable performance.
Specifications

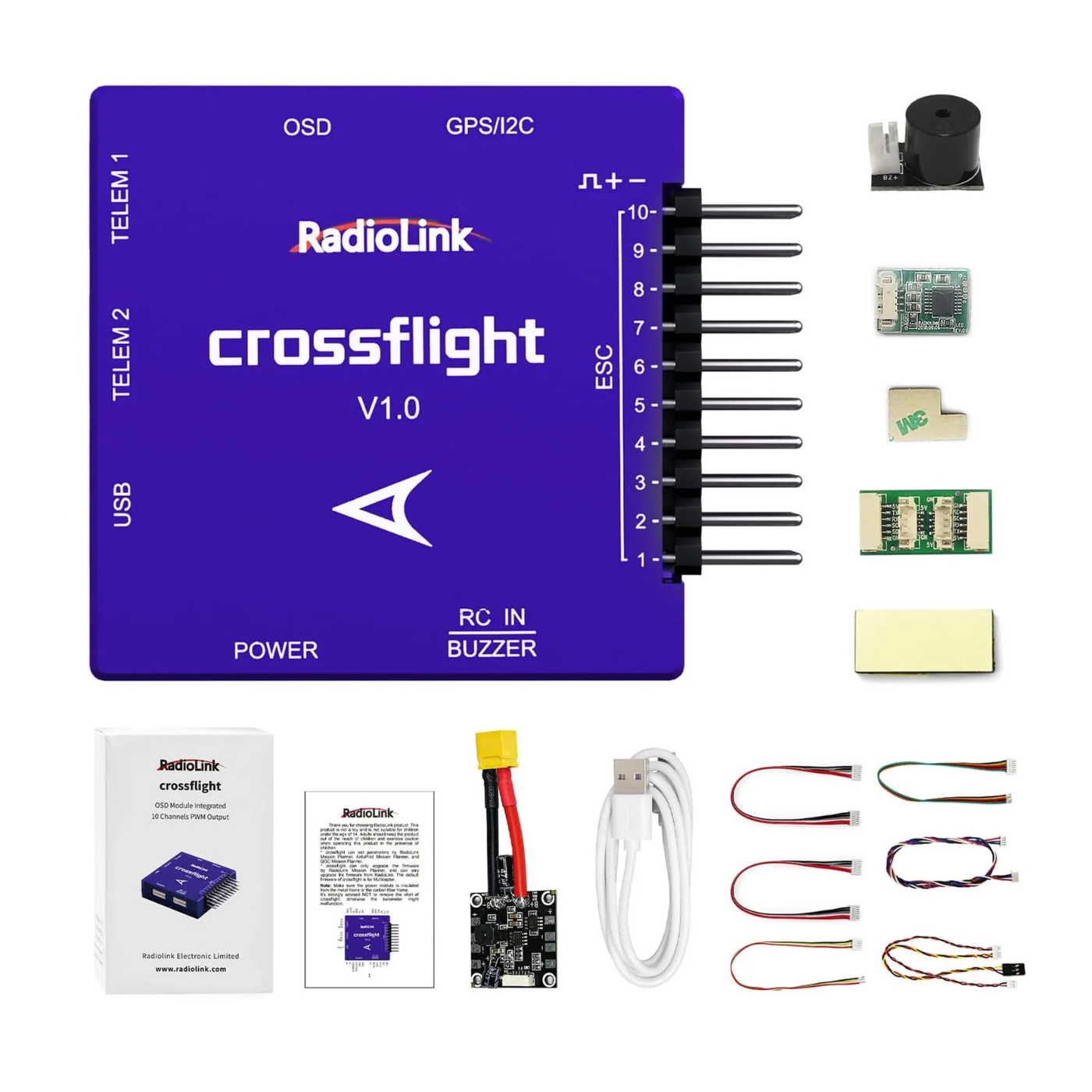

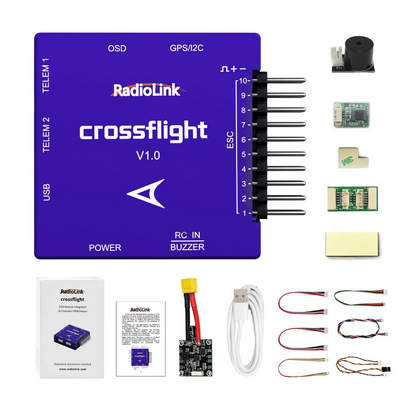

Package Includes

  • 1 x CrossFlight Flight Controller
  • 1 x Power Module(Support 2-12S)
  • 1 x Buzzer
  • 1 x I2C Transfer Board
  • 1 x FC Status Indicate LED
  • 1 x 4G TF (MicroSD) Card
  • 1 x Buzzer & Receiver Connect Cable
  • 1 x Power Module Connect Cable
  • 1 x I2C Transfer Board Connect Cable
  • 1 x OSD Port Connect Cable
  • 2 x TELEM1&2 Ports Connect Cable
  • 1 x FC Status Indicate LED Cable
  • 1 x Double-sided Adhesive Tape
  • 1 x Type-C Cable
  • 1 x User Manual

Specifications

Processor HC32F4A0PITB
Gyroscope ICM42670
Compass VCM5883
Barometer LPS22HB
FRAM Without FRAM, uses internal flash to store parameters; 2617 waypoints for multi-copters, 2623 for airplanes
Connector JST GH1.25 Connector
PWM Output 10 PWM Output
Mavlink UART 2 (without CTSRTS)
USB Port 1 (Type-C)
GPS UART/I2C Port 1
RC In Signal Input PPM/SBUS
RSSI Output Not supported
OSD Module Integrated
ESC Protocol PWM
DSHOT Protocol Not supported
ONESHOT Protocol Not supported
Neopix LED Supported
Gripper Function Supported
RTK Supported
USB Voltage 5V ± 0.3V
Servo Voltage Not applicable
Operating Temperature -40°C to 80°C
Adaptable Models 3-8 copter / Airplane / Helicopter / Car / Boat
Dimension 39.7 × 39.7 × 13 mm (1.56" × 1.56" × 0.51")
Weight 16.5g (0.58oz); 54g (1.9oz) with all wires
Power Module Input Voltage 2-12S
Power Module Input Current 90A
Power Module Output Voltage 5.1V
Power Module Output Current (BEC) 2.5A
Input Current (to one ESC only) 20A
How To

1. How to set up the Radiolink CrossFlight flight controller for a new drone?

To set up this drone flight controller, connect it with your drone’s power system, configure it through the software, and calibrate the sensors for stable flight.

2. How to configure FPV settings with the Radiolink CrossFlight flight controller?

You can configure your FPV flight controller by linking it with compatible FPV gear, adjusting PID values, and fine-tuning stability for smooth aerial video transmission.

3. How to update the firmware of the Radiolink CrossFlight flight controller?

Firmware updates for this drone flight controller can be done using a USB connection and the Radiolink software tool, ensuring optimal performance and added stability features.

4. How to connect the Radiolink CrossFlight flight controller with different transmitters?

This flight controller is compatible with multiple RC transmitters. Simply bind the transmitter to the receiver, then integrate it with the CrossFlight controller for precise drone or RC control.

5. How to troubleshoot stability issues in drones using the Radiolink CrossFlight flight controller?

If your drone drifts or shakes, recalibrate the FPV flight controller, check motor alignment, and reset sensor calibration to restore smooth and stable drone control.

FAQ

1. How do I set up the Radiolink CrossFlight flight controller on my drone?

To set up the drone flight controller, mount it securely on your drone frame, connect the ESCs, motors, and receiver, and calibrate the sensors using the CrossFlight software for stable and responsive flight.

2. How do I calibrate the fpv flight controller for accurate performance?

Calibration involves leveling the fpv flight controller, setting gyro and accelerometer offsets, and ensuring all motor outputs are correctly mapped. This helps your drone maintain stability during FPV flights.

3. How can I connect the flight controller to my RC transmitter?

Connect the receiver channels to the input ports on the flight controller and bind your RC transmitter according to the manual. This allows precise control of throttle, yaw, pitch, and roll for your drone or RC vehicle.

4. How do I update the firmware on the drone flight controller?

Use the official CrossFlight software to connect your drone flight controller to a computer via USB. Follow the instructions to download and install the latest firmware, ensuring optimal performance and new feature support.

5. How do I troubleshoot stability issues with the fpv flight controller?

Check the sensor calibration, motor orientation, and ESC connections on the fpv flight controller. Also, ensure the drone frame is balanced and that firmware is up-to-date to resolve common stability problems.
