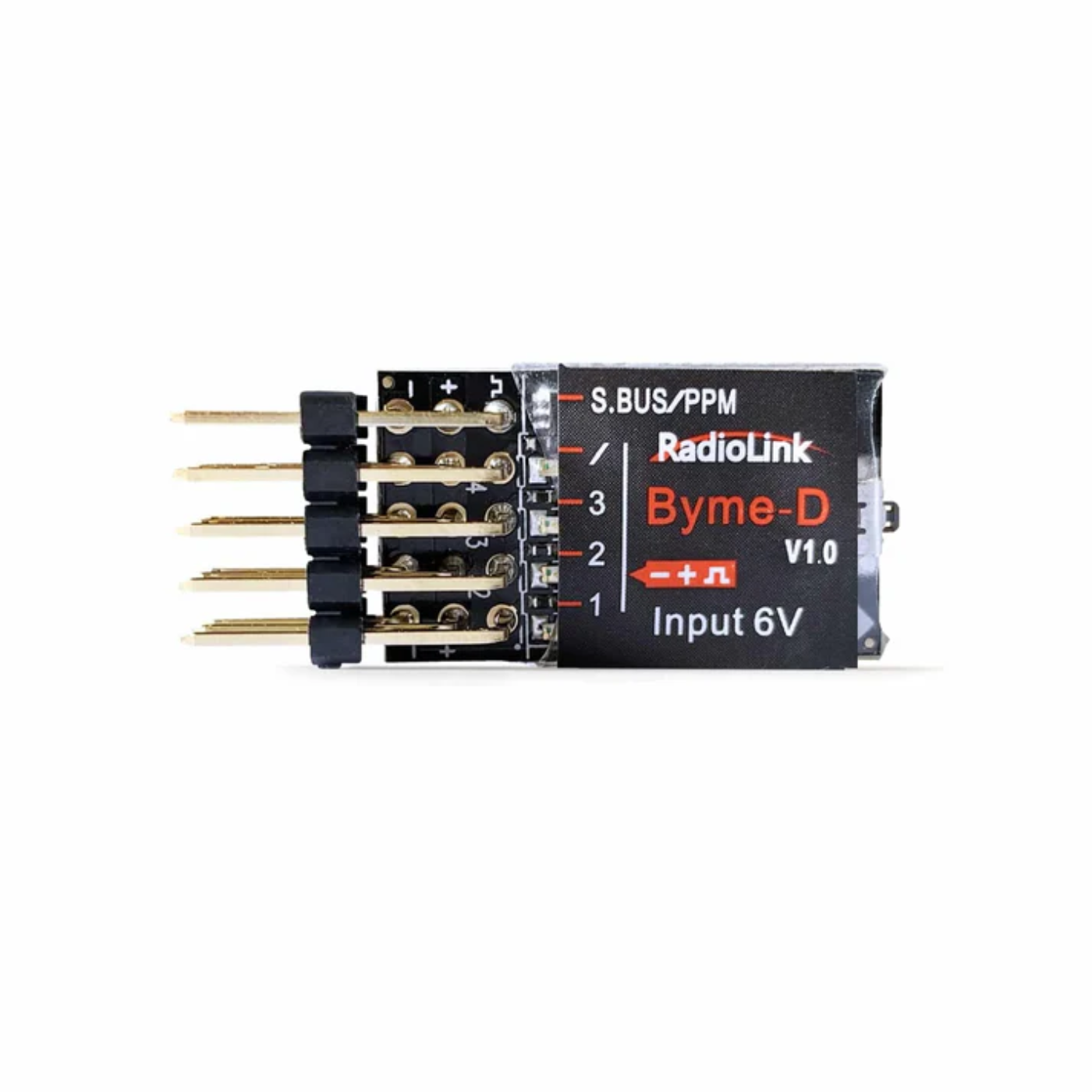

Radiolink Byme-D 3CH Flight Controller with Gyroscope

Package Includes

• 1 x Radiolink Byme-D 3CH Flight Controller with Gyroscope
• 1 x Receiver Connection Cable

Specifications

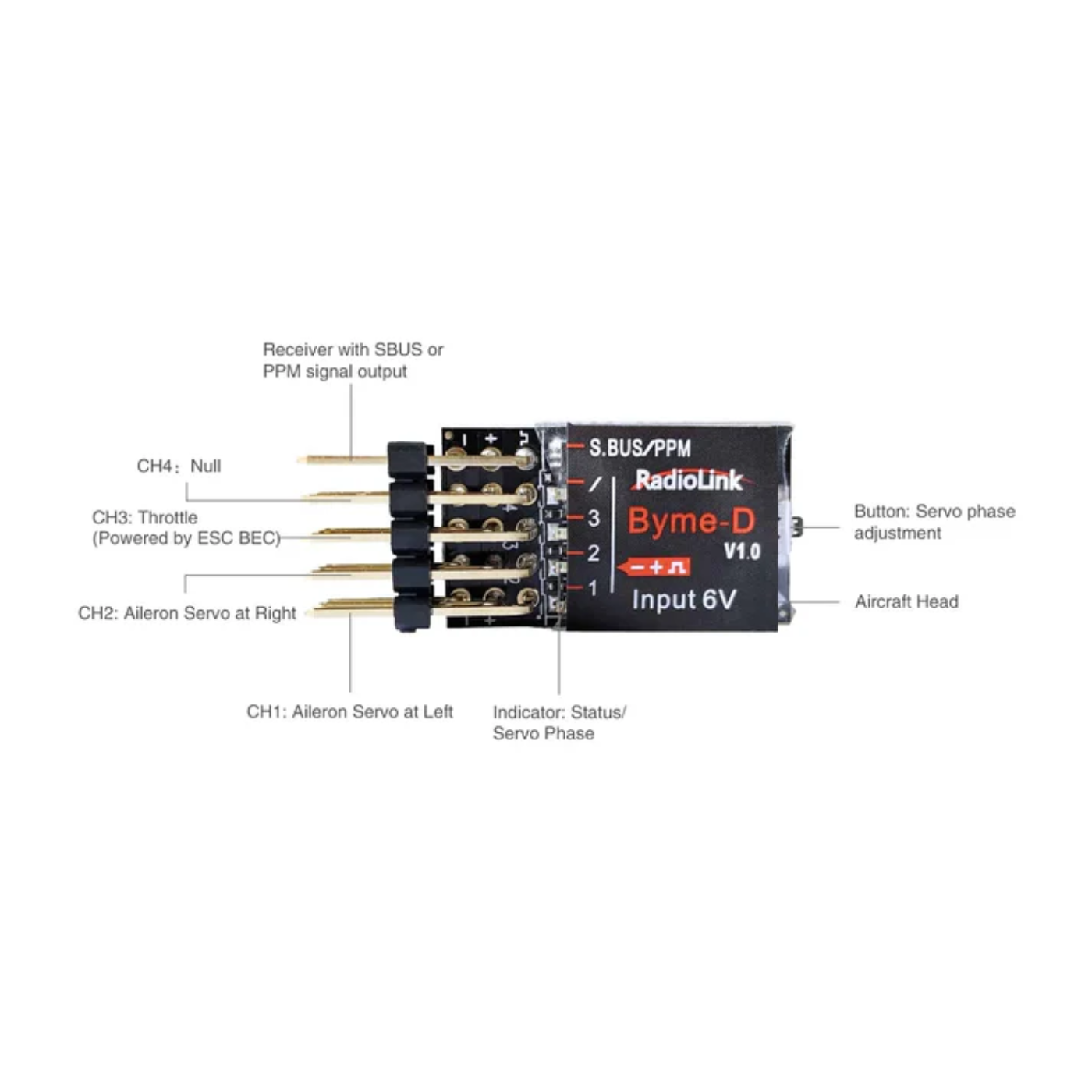

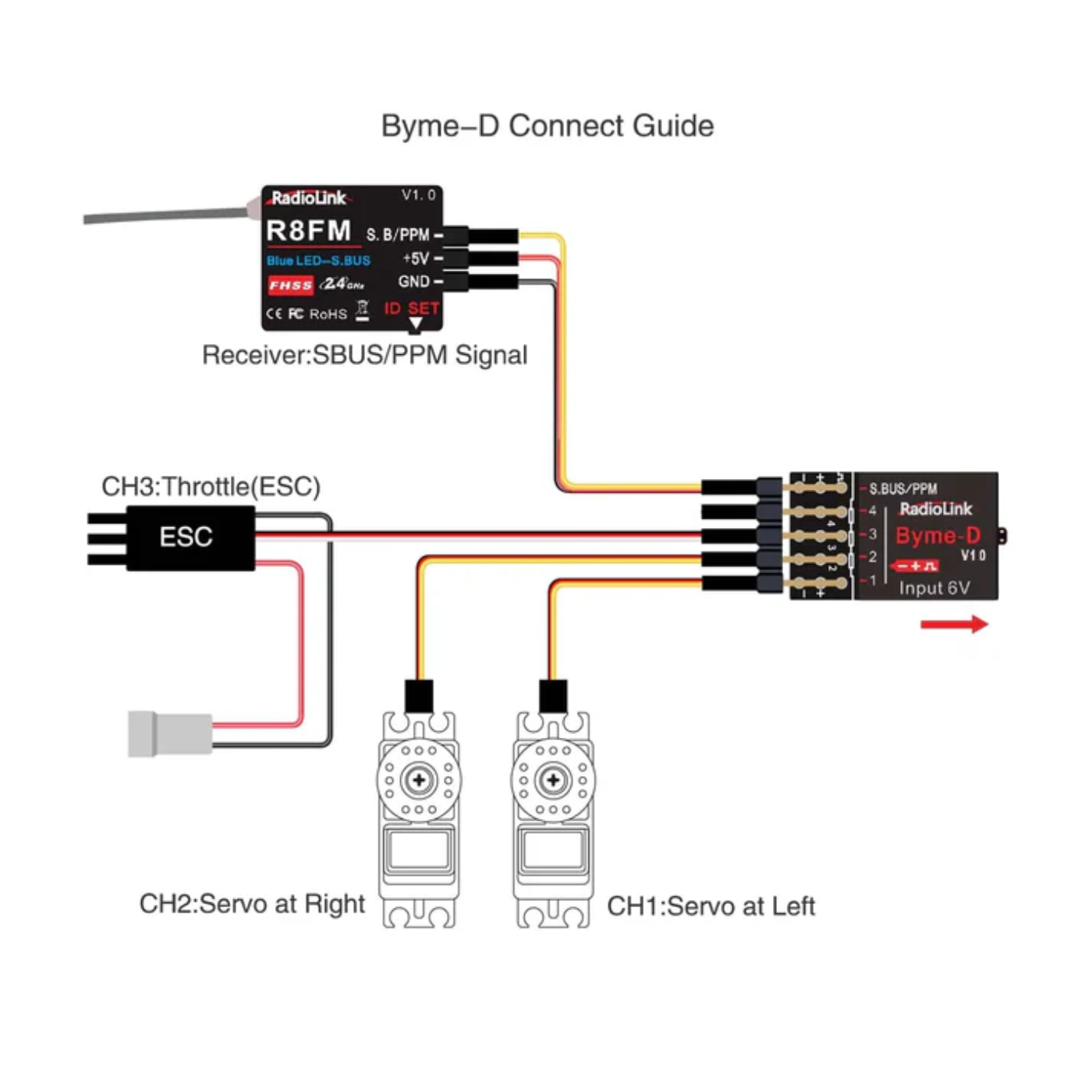

1. How to install the Radiolink Byme-D 3CH Flight Controller in an RC plane or FPV drone?

Mount the Byme-D flight controller securely and level on your aircraft, close to the center of gravity to ensure accurate sensor readings. Connect the receiver to the flight controller using PWM or PPM signal cables, and link servos or ESCs to the appropriate output channels. This 3-channel flight controller integrates easily with most RC planes and FPV drone flight controller setups. Avoid mounting near high-vibration components to prevent signal noise.

2. How to calibrate the gyroscope and accelerometer on the Byme-D flight controller?

Power on your aircraft with the Byme-D flight controller in a completely level and stationary position for accurate calibration. The onboard gyroscope and acceleration sensor automatically initialize and align to the horizon within a few seconds. Do not move the aircraft during this process—wait until the LED stabilizes to confirm completion. Recalibrate whenever the mounting orientation changes or after hard landings.

3. How to switch between flight modes on the Radiolink Byme-D controller?

Assign a switch on your transmitter to control flight modes by configuring the appropriate channel output. The 3-channel flight controller supports multiple modes such as gyro-off, rate mode, and full stabilization for versatile handling. Your switch selection determines whether the FPV drone flight controller applies angular correction or flies in manual mode. Test mode transitions on the ground before flight to verify responsiveness.

4. How to troubleshoot unstable flight or drift with the Byme-D controller?

If you experience drift or erratic behavior, first ensure the Byme-D flight controller is mounted flat and free from vibrations. Re-calibrate the gyroscope and acceleration sensor while the aircraft is level and powered only by the flight battery. Check that servo linkages are tight and control surfaces move freely without binding. Adjust the gyro gain setting via your transmitter if over-correction or sluggish response occurs.

1. What is the Radiolink Byme-D flight controller?

The Radiolink Byme-D flight controller is a compact stabilizer designed to make flying easier and more enjoyable. As a 3-channel flight controller, it uses its integrated gyroscope and acceleration sensor to provide incredibly stable control. This makes it perfect for a wide range of small RC planes and even simple FPV drones.

2. How many channels does the Byme-D flight controller support?

This is a dedicated 3-channel flight controller, which is perfect for simple fixed-wing aircraft. It is designed to manage the three most essential flight controls: throttle for speed, aileron for roll, and elevator for pitch. This setup provides you with all the necessary control for fun and easy flying.

3. What sensors are included with the Byme-D flight controller?

The board is equipped with a high-precision 3-axis gyroscope and a matching 3-axis acceleration sensor. These two sensors work together to automatically correct for wind and bumps. This gives your aircraft incredibly smooth flight characteristics and ensures responsive flight performance.

4. Is the flight controller beginner-friendly?

Yes, this flight controller is extremely beginner-friendly and is one of the best ways to learn how to fly. It takes the stress out of flying by automatically keeping the plane level. It is a fantastic tool for anyone new to RC aircraft or simple FPV drones.

5. Does the flight controller offer multiple flight modes?

It offers several flight modes to suit your skill level, including a self-leveling stabilizer mode for beginners and more advanced gyro modes. This allows you to easily switch between fully assisted flying when you are learning and more manual control as you gain confidence.

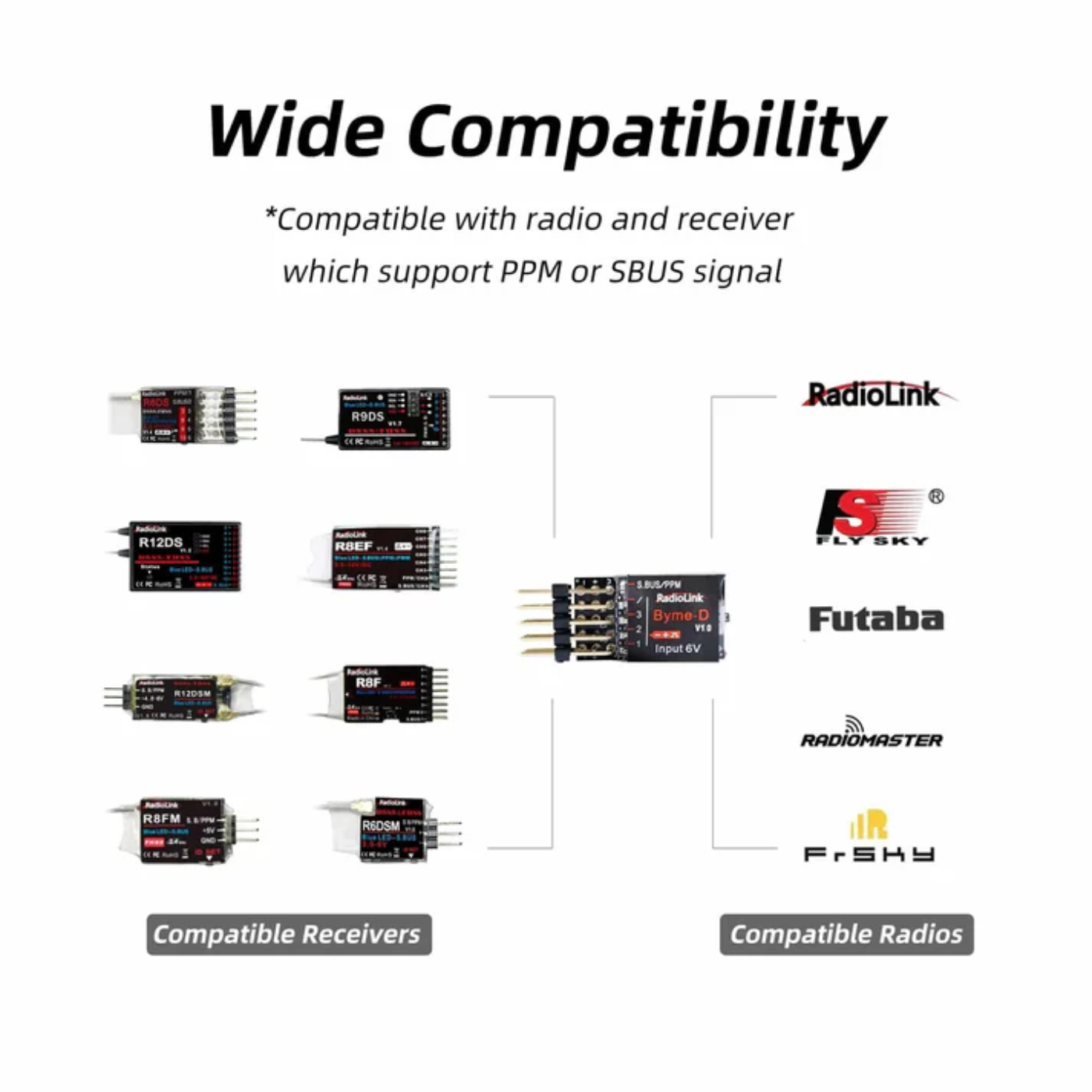

6. Is the Radiolink Byme-D compatible with common RC transmitters?

Yes, the Byme-D flight controller is designed to work with most standard RC transmitters that output SBUS or PPM signals. This compatibility ensures easy integration into your existing setup. You can get it installed and ready to fly in just a few minutes.

7. What types of RC aircraft are suitable for this 3-channel flight controller?

This 3-channel flight controller is perfect for a variety of small and lightweight aircraft. It works exceptionally well in traditional fixed-wing RC planes, flying wings, and delta wings. It can also be used in some mini FPV drones to provide simple and stable flight control.
