Multi-Channel Indoor Gateway For Lorawan-LPS8

Multi-Channel Indoor Gateway For Lorawan-LPS8

Out of stock

Regular price Rs. 25,479
Regular price Rs. 27,099 Sale price Rs. 25,479
Sale Sold out 6% off Best Price Guaranteed
You save Rs. 1,620
Incl. GST (No Hidden Charges)
Currently, people are actively checking out this product.
Submit your Bulk Enquiry Here

Contact form

  • This is Multi-Channel Indoor Gateway For Lorawan-LPS8
  • The LPS8 is an open-source LoRaWAN gateway based on the AR9331 SoC.
  • It can connect a LoRa wireless network to an IP network using WiFi or Ethernet.
  • It has one RJ45 Ethernet port that supports 10/100 Mbps, one 2.4 GHz 802.11bgn radio, and one USB host port.
  • It is charged using a USB type C connector.
  • The LPS8 is fully compatible with the LoRaWAN protocol and uses a Semtech packet forwarder.
  • It includes a LoRa concentrator SX1308 with 10 programmable parallel demodulation paths and supports personalized frequency bands for users.

Multi-Channel Indoor Gateway For Lorawan-LPS8

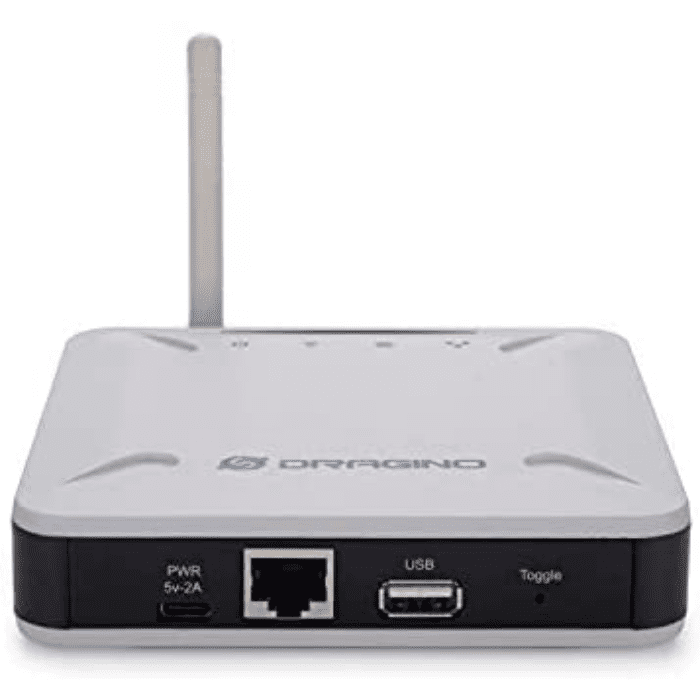

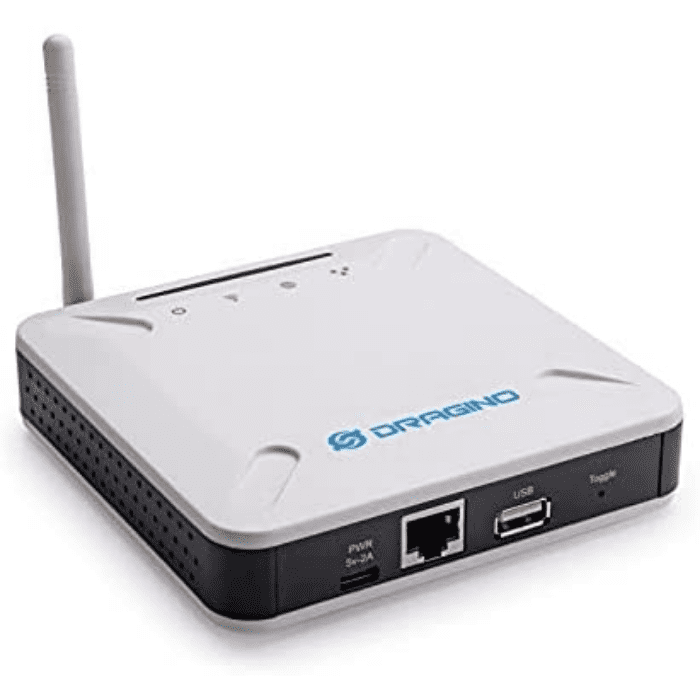

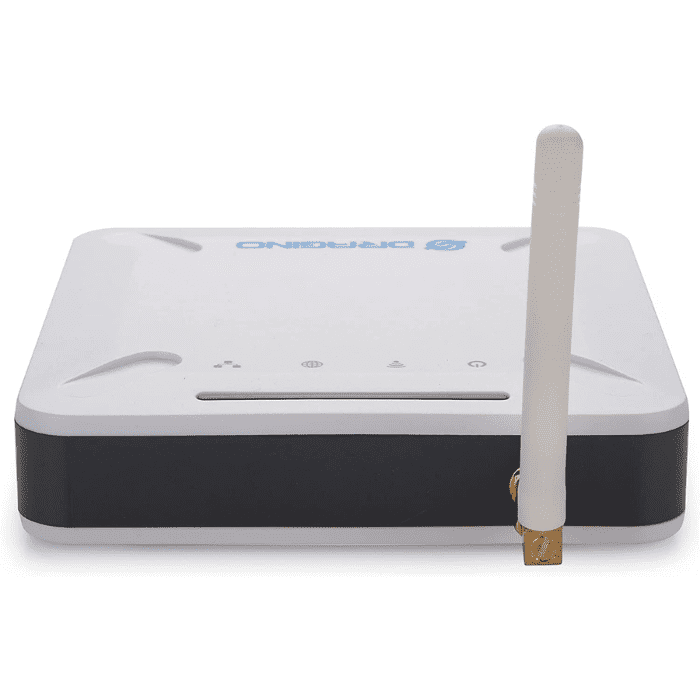

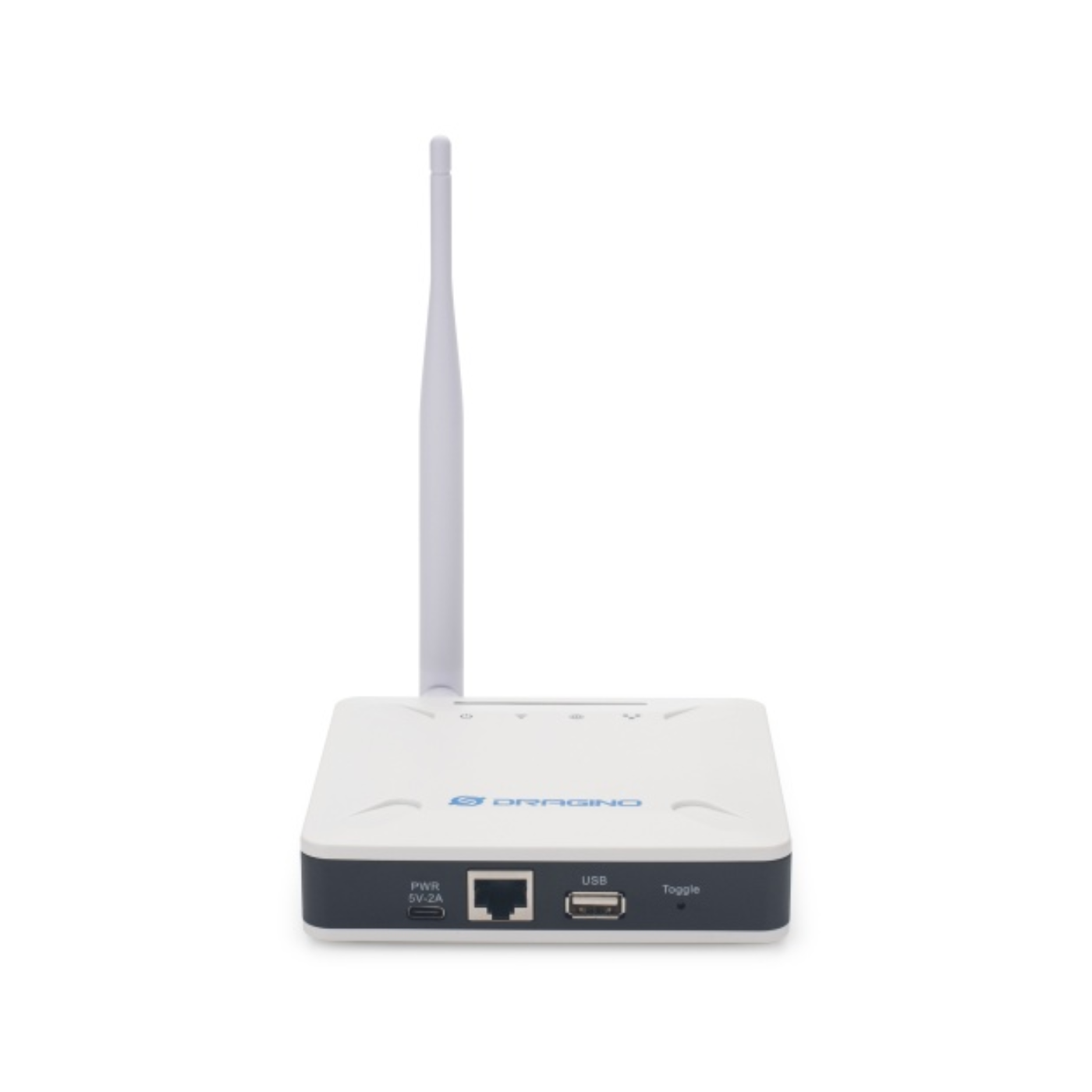

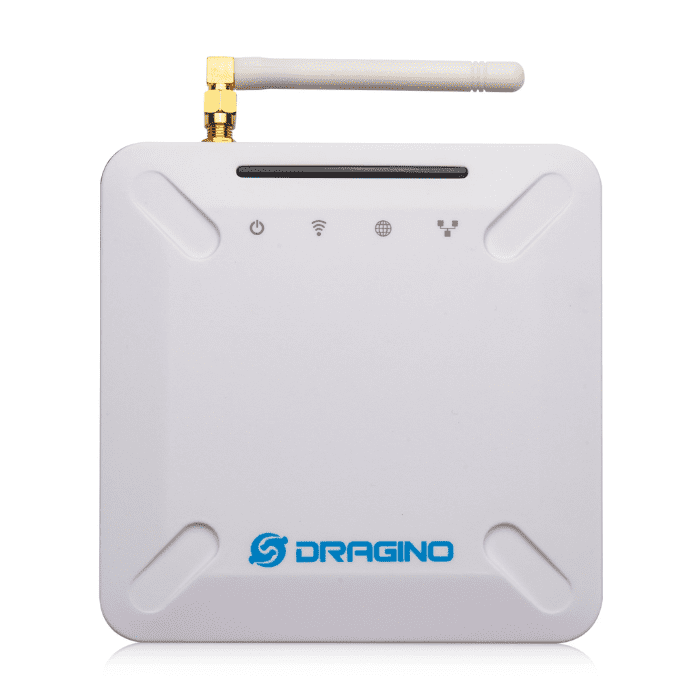

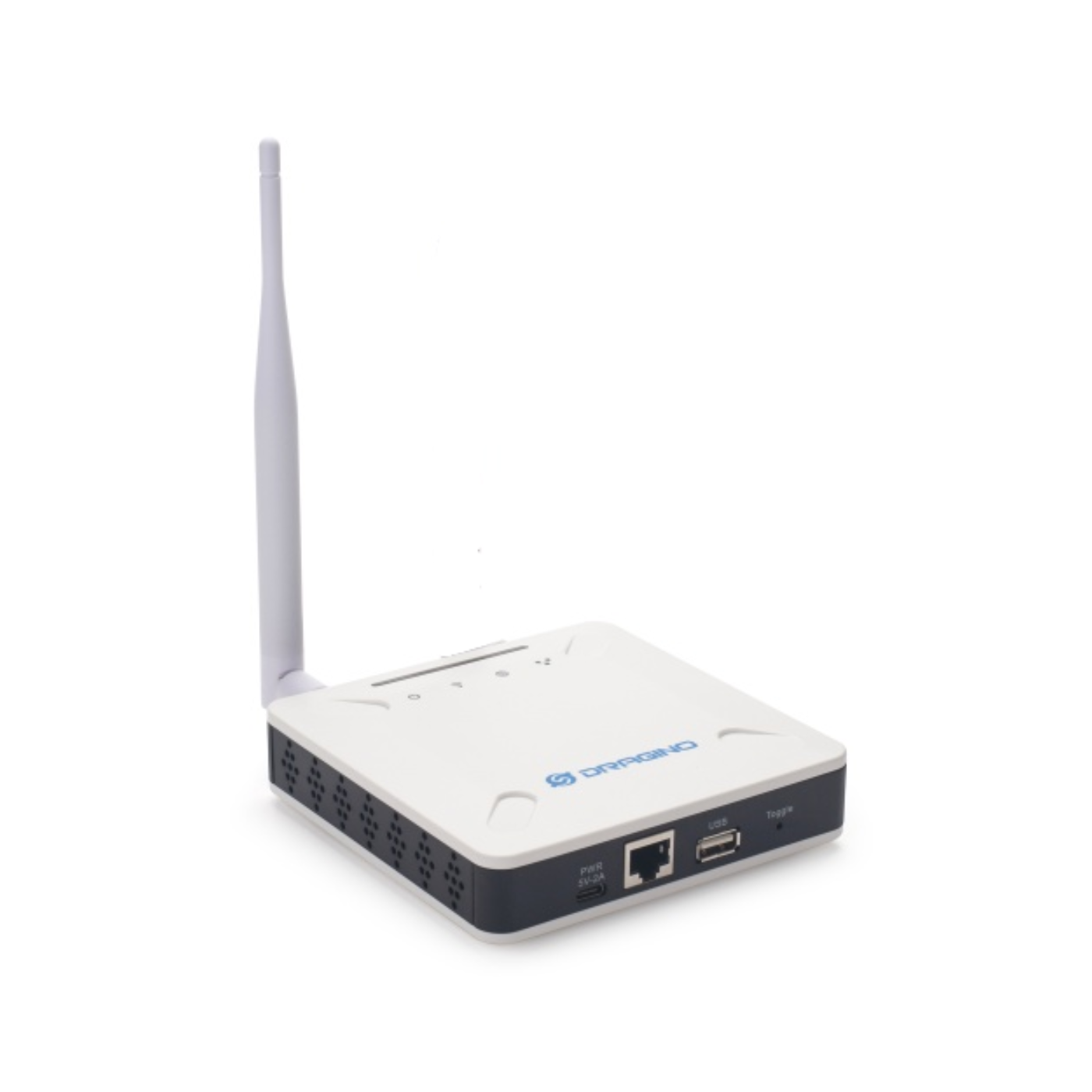

The Dragino LPS8 is an open-source LoRaWAN gateway based on the AR9331 SoC that uses WiFi or Ethernet to connect a LoRa wireless network to an IP network. It has one RJ45 Ethernet port that supports 10/100 Mbps, one 2.4 GHz 802.11bgn radio, and one USB host port. It is charged using a USB type C connector. The LPS8 is a LoRaWAN Gateway that is open source. It allows you to connect a LoRa wireless network to an IP network using Wi-Fi or Ethernet. LoRa wireless allows users to send data over extremely long distances while maintaining low data rates.

The LPS8 is fully compatible with the LoRaWAN protocol and uses a Semtech packet forwarder. It includes a LoRa concentrator SX1308 with 10 programmable parallel demodulation paths. LPS8 comes with pre-configured standard LoRaWAN frequency bands for use in various countries. Users can also personalize the frequency bands that will be used in their own LoRa network.

Features:

  • Open Source OpenWrt system
  • Managed by Web GUI, SSH via LAN or WiFi
  • Emulates 49x LoRa® demodulators
  • LoRaWAN® Gateway
  • 10 programmable parallel demodulation paths

Applications:

  • Smart Buildings & Home Automation
  • Logistics and Supply Chain Management
  • Smart Metering
  • Smart Agriculture
  • Smart Cities
  • Smart Factory

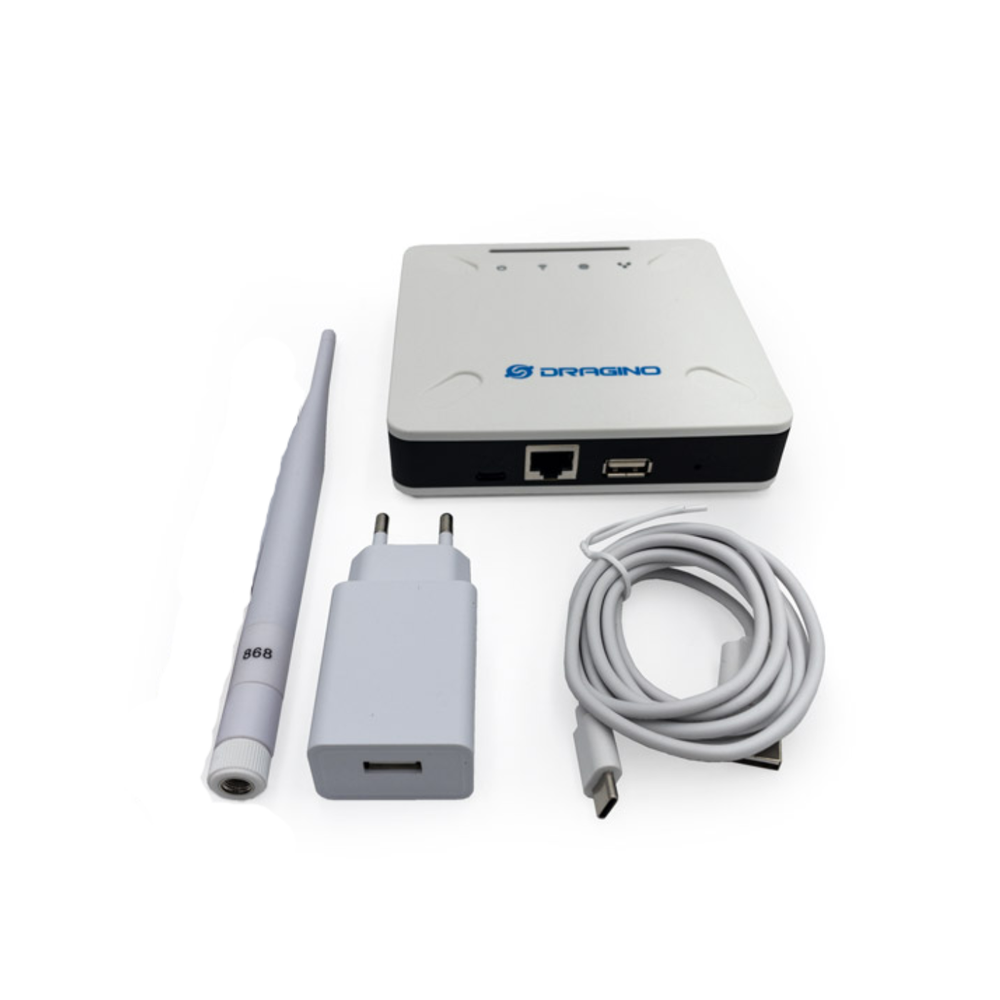

 Package Includes:

  • 1 x Multi-Channel Indoor Gateway For Lorawan-Lps8

Specifications:

Brand

Dragino

Model

LPS8

CPU MHz

400

Flash MB

16

RAM MB

64

WLAN Hardware

Atheros AR9330

USB ports

1x 2.0

Serial

Yes

Dimensions

120 x 120 x 30 mm/pcs

Weight

187g

Shipping & Returns

  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details

People Also Buy

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

1 of 4

1. What is LoRaWAN indoor gateway?

A LoRaWAN indoor gateway is a device that acts as a link between sensors in the environment and people, enabling scale for the Internet of Things (IoT) and better decision making. It is a key element in the chain that enables better visibility, reduction in costs, reduction in resource inputs, and improved safety. Specifically, an indoor gateway is designed to be a fully compliant, ultra low-cost LoRaWAN gateway with WiFi as the backhaul. It is an 8-channel gateway based on SX1308 with built-in ESP8266 WiFi connectivity. There are various versions and power outlets available for indoor gateways

2. How many channels does LoRa gateway have?

The number of channels that a LoRaWAN gateway has varies depending on the device. For example, an outdoor LoRaWAN gateway can have 8 or 16 channels, while a general LoRaWAN gateway such as LPS8N uses a multi-channel LoRaWAN Concentrator that supports 10 rx channels and 1 tx channel. However, a typical LoRaWAN gateway has eight 500 kHz uplink channels as well as eight 500 kHz downlink channels defined. In North America, gateways can have up to 64, 125 kHz uplink channels as well as eight 500 kHz uplink and downlink channels
