MPR121 - 12 Channel Capacitive Touch Sensor Controller Module - I2C Interface

MPR121 - 12 Channel Capacitive Touch Sensor Controller Module - I2C Interface

Regular price Rs. 79
Regular price Rs. 149 Sale price Rs. 79
Sale Sold out 47% off Best Price Guaranteed
You save Rs. 70 | Free Shipping on Orders Above ₹ 499/-
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here
  • The operating voltage is 2.5v - 3.6v
  • 29μA supply current at 16ms sample period.
  • 3μA shutdown current
  • 12 electrodes
  • The operating temperature range is -40°C to +85°C.
Trust Badge 1 Trust Badge 2 Trust Badge 3

MPR121 - 12 Channel Capacitive Touch Sensor Controller Module - I2C Interface

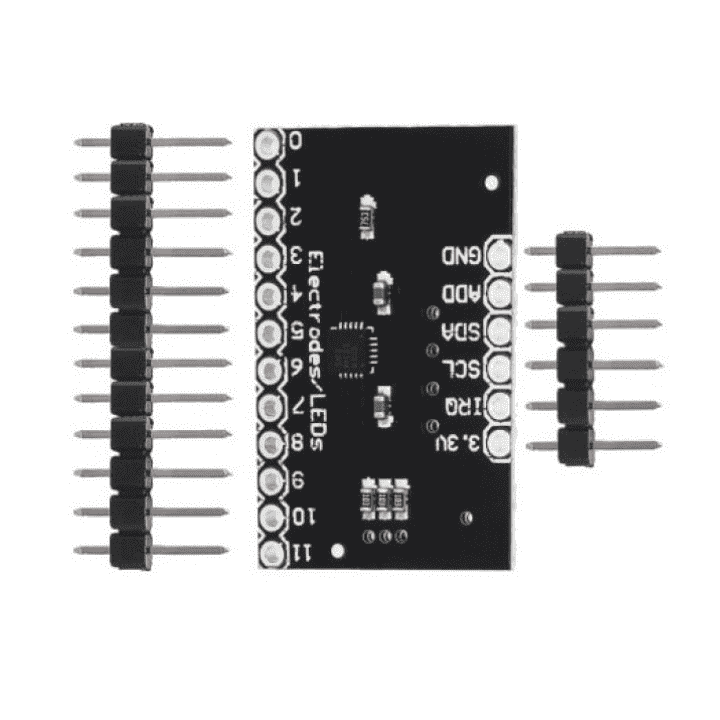

The MPR121 12-Channel Capacitive Touch Sensor Controller Module is a capacitive touch sensor controller driven by an I2C interface. The chip can control up to twelve individual electrodes, as well as a simulated thirteenth electrode. This is a breakout board for NXP/ Freescale’s MPR121QR2. The MPR121 also features eight LED driving pins. When these pins are not configured as electrodes, they may be used to drive LEDs.

There a four jumpers on the bottom of the board, all of which are set (closed) by default. An address jumper ties the ADD pin to ground, meaning the default I2C address of the chip will be 0x5A. If you need to change the address of the chip (by shorting ADD to a different pin), make sure you open the jumper first. Jumpers also connect SDA, SCL and the interrupt pin to 10k pull-up resistors. If you don’t require the pull-up resistors you can open the jumpers by cutting the trace connecting them.

There is no regulation on the board, so the voltage supplied should be between 2.5 and 3.6VDC. The VREG pin is connected through a 0.1uF capacitor to ground, which means, unless you modify the board, you can’t operate the MPR121 in low-supply voltage mode (1.71-2.75VDC).

Pin Diagram of MPR121-12 Channel Touch Sensor Module:

Package Includes:

  • 1 x MPR121 - 12 Channel Capacitive Touch Sensor Controller Module
  • 2 x Pin Set

Specifications:

Operating voltage 2.5v - 3.6v
Number of Electrodes 12 electrodes
Dimensions  5 x 4 x 2 cms
Weight  5 grams
