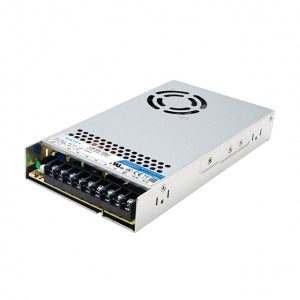

Mornsun LMF320-23B24 AC/DC 320W Enclosed Switching Power Supply
Mornsun LMF320-23B24 AC/DC 320W Enclosed Switching Power Supply
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 10000 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Universal input voltage range of 85-305VAC or 120-430VDC
- Accepts AC or DC input (dual-use of same terminal)
- Operating temperature range: -30°C to +70°C
- Built-in active PFC function
- High I/O isolation test voltage up to 4000VAC
- Output short circuit, over-current, over-voltage, over-temperature protection
- LED indicator for power on
- Built-in DC fan
- Emissions meets CISPR32/EN55032 CLASS B
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LMF320-23B24 AC/DC 320W Enclosed Switching Power Supply
The LMF320-23B24 is an enclosed AC-DC switching power supply from Mornsun. It features a universal AC input range of 85-305VAC, a DC input voltage range of 120-430VDC, an output voltage of 24VDC, an output current of 13.4A, and an efficiency of up to 88.5%. The LMF320-23B24 also has a built-in active PFC function, which helps to improve power factor and reduce energy consumption.
The LMF320-23B24 is a cost-effective and reliable power supply that is suitable for a wide range of applications, including industrial, LED, street light control, electricity, security, telecommunications, and smart home.
Features:
- Universal AC input range of 85-305VAC
- DC input voltage range of 120-430VDC
- Output voltage of 24VDC
- Output current of 13.4A
- Efficiency of up to 88.5%
- Built-in active PFC function
- High reliability
- Cost-effective
check out : Mornsun LMF320-23B12 AC/DC 320W Enclosed Switching Power Supply
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LMF320-23B24 AC/DC 320W Enclosed Switching Power Supply
Specifications:
| Output power | 320W |
| Input voltage | 85-305VAC |
| Output voltage | 24VDC |
| Output current | 13.4A |
| Efficiency | up to 88.5% |
| Active PFC | Yes |
| Isolation | 4000VAC |
| Dimensions | 220 x 100 x 60mm |
| Weight | 2.5kg |
