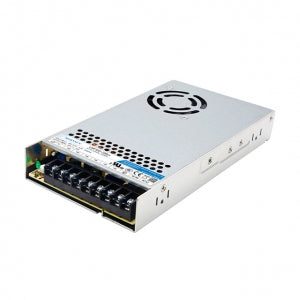

Mornsun LMF320-23B12 AC/DC 320W Enclosed Switching Power Supply
Mornsun LMF320-23B12 AC/DC 320W Enclosed Switching Power Supply
Out of stock
Couldn't load pickup availability
Contact form
- Universal 85 - 305VAC or 120 - 430VDC input voltage
- Accepts AC or DC input (dual-use of same terminal)
- Operating temperature range: -30℃ to +70℃
- Built-in active PFC function
- High I/O isolation test voltage up to 4000VAC
- Output short circuit, over-current, over-voltage, over-temperature protection
- LED indicator for power on
- Built-in DC fan
- Emissions meets CISPR32/EN55032 CLASS B
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LMF320-23B12 AC/DC 320W Enclosed Switching Power Supply
The LMF320-23B12 is an enclosed AC/DC power supply from Mornsun. It has a power output of 320W and an output voltage of 12V. The input voltage range is 85 to 305VAC, and the output current is 26.7A. The efficiency is 85.5%, and the isolation voltage is 4000VAC. The power supply is also protected against overvoltage, overcurrent, and short circuit.
Features
- Enclosed design for protection from dust and moisture
- Wide input voltage range for compatibility with a variety of power sources
- High output current for powering a wide range of devices
- High efficiency for low power consumption
- Overvoltage, overcurrent, and short circuit protection for safety
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Also check Mornsun LMF320-23B15 AC/DC 320W Enclosed Switching Power Supply. The power supply has a universal input voltage and can accept AC or DC input. It also has a built-in active PFC function and high I/O isolation. The output voltage can be adjusted.
Package Includes:
1 x Mornsun LMF320-23B12 AC/DC 320W Enclosed Switching Power Supply
Specifications:
| Power output | 320W |
| Output voltage | 12V |
| Input voltage range | 85 to 305VAC |
| Output current | 26.7A |
| Efficiency | 85.5% |
| Isolation voltage | 4000VAC |
| Dimensions | 290 x 150 x 100mm |
| Weight | 4.5kg |
