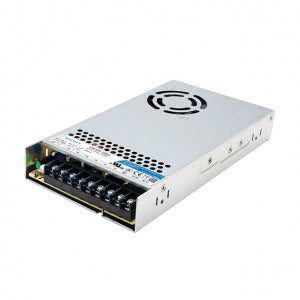

Mornsun LMF320-23B15 AC/DC 320W Enclosed Switching Power Supply
Mornsun LMF320-23B15 AC/DC 320W Enclosed Switching Power Supply
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 10000 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Universal AC input voltage of 85 to 305VAC or 120 to 430VDC
- Accepts AC or DC input (dual-use of same terminal)
- Operating temperature range of -30 to +70 degrees Celsius
- Built-in active PFC function
- High I/O isolation test voltage up to 4000VAC
- Output short circuit, over-current, over-voltage, and over-temperature protection
- LED indicator for power on
- Built-in DC fan
- Emissions meet CISPR32/EN55032 CLASS B
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LMF320-23B15 AC/DC 320W Enclosed Switching Power Supply
The LMF320-23B15 is a 320W enclosed AC/DC switching power supply from Mornsun. It features a universal input voltage of 85 to 305VAC or 120 to 430VDC, accepts AC or DC input (dual-use of same terminal), and has an operating temperature range of -30 to +70 degrees Celsius. The LMF320-23B15 also features a built-in active PFC function, high I/O isolation test voltage up to 4000VAC, output short circuit, over-current, over-voltage, and over-temperature protection, a LED indicator for power on, and a built-in DC fan. Emissions meet CISPR32/EN55032 CLASS B.
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Also check Mornsun LMF320-23B27 AC/DC 320W Enclosed Switching Power Supply. It also has a number of safety features, including short circuit protection, over current protection, and over voltage protection. The power supply is suitable for a wide range of applications, including industrial automation, LED lighting, and telecommunications.
Package Includes:
1 x Mornsun LMF320-23B15 AC/DC 320W Enclosed Switching Power Supply
Specifications
| Output voltage | 23V |
| Output current | 15A |
| Output power | 320W |
| Efficiency | 90% |
| Dimensions | 170 x 110 x 45mm |
| Weight | 1.2kg |
